MOXA

Serial Embedded Modules

Moxa’s embedded serial-to-Ethernet device server modules are compact, power-efficient, and easy to integrate.

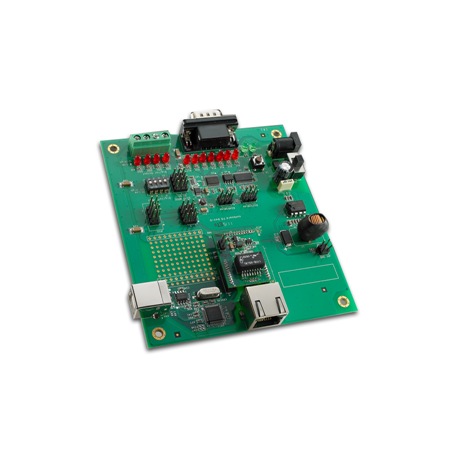

MiiNePort E2-SDK
MiiNePort E2 Series

MiiNePort E2 software development kit

Embedded System

  • CPU

    • 32-bit Arm Core
Memory

  • Flash

    • 2 MB

  • SDRAM

    • 4 MB
Input/Output Interface

  • Configurable DIO Channels (by software)

    • 4
Ethernet Interface

  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    • 4-pin pin header

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTP)
      Windows Utility

  • Management

    • ARP
      BOOTP
      Device Search Utility (DSU)
      DHCP Client
      IPv4
      SMTP
      SNMPv1
      TCP/IP
      Telnet
      TFTP
      UDP
      ICMP

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT
      Windows Embedded CE 5.0 and 6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11 and 10.1x
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Virtual Machine

    • VMWare ESXi (Windows 11 / 10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)

  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x and 4.x
      macOS 14, 13, 12 and 11

  • Android API

    • Android 3.1.x and later
Serial Interface

  • No. of Ports

    • 1

  • Serial Standards

    • TTL

  • Operation Modes

    • Real COM mode
      Ethernet Modem mode

  • Baudrate

    • 50 bps to 921.6 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None
      Even
      Odd
      Space
      Mark

  • Flow Control

    • None
      RTS/CTS
      DTR/DSR
      XON/XOFF
Serial Signals

  • TTL

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
NetEZ Technology

  • NetEZ Functions

    • EZPower
      EZPage
      SCM (Serial Command Mode)
      AutoCFG
      MCSC (Multi-Channel Serial Communication)
Serial Software Features

  • Serial to Ethernet Sample Source Code

    • TCP Server Echo
      TCP Server to Serial (Single connection)
      TCP Server to Serial (Multi-connection)
      TCP Client Echo
      TCP Client to Serial (Startup)
      TCP Client to Serial (Any character)
      TCP Client to Serial (Designed destination TCP/IP port from serial)
      UDP Echo
      UDP to Serial
Power Parameters

  • Input Current

    • 157 mA @ 3.3 VDC

  • Input Voltage

    • 3.3 to 5 VDC
Physical Characteristics

  • Dimensions

    • 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)

  • Weight

    • 77 g (0.17 lb)

  • Form Factor Type

    • Drop-in modules
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 60°C (-40 to 140°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-3

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 5,696,350 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
