UPort 2210/2410 Series

2 and 4-port RS-232 USB-to-serial converters

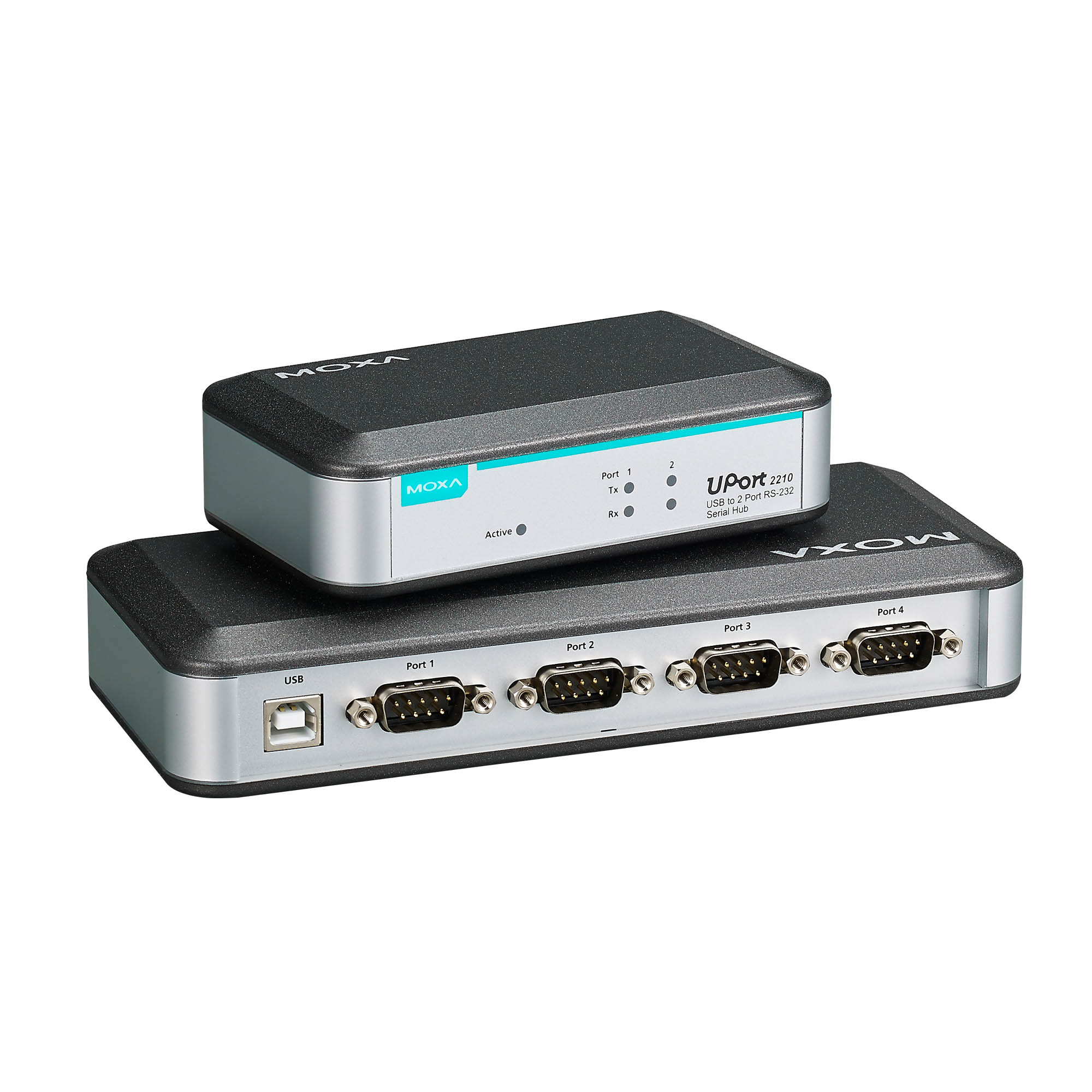

moxa-uport-2210-2410-series-image-1-(1).jpg | Moxa

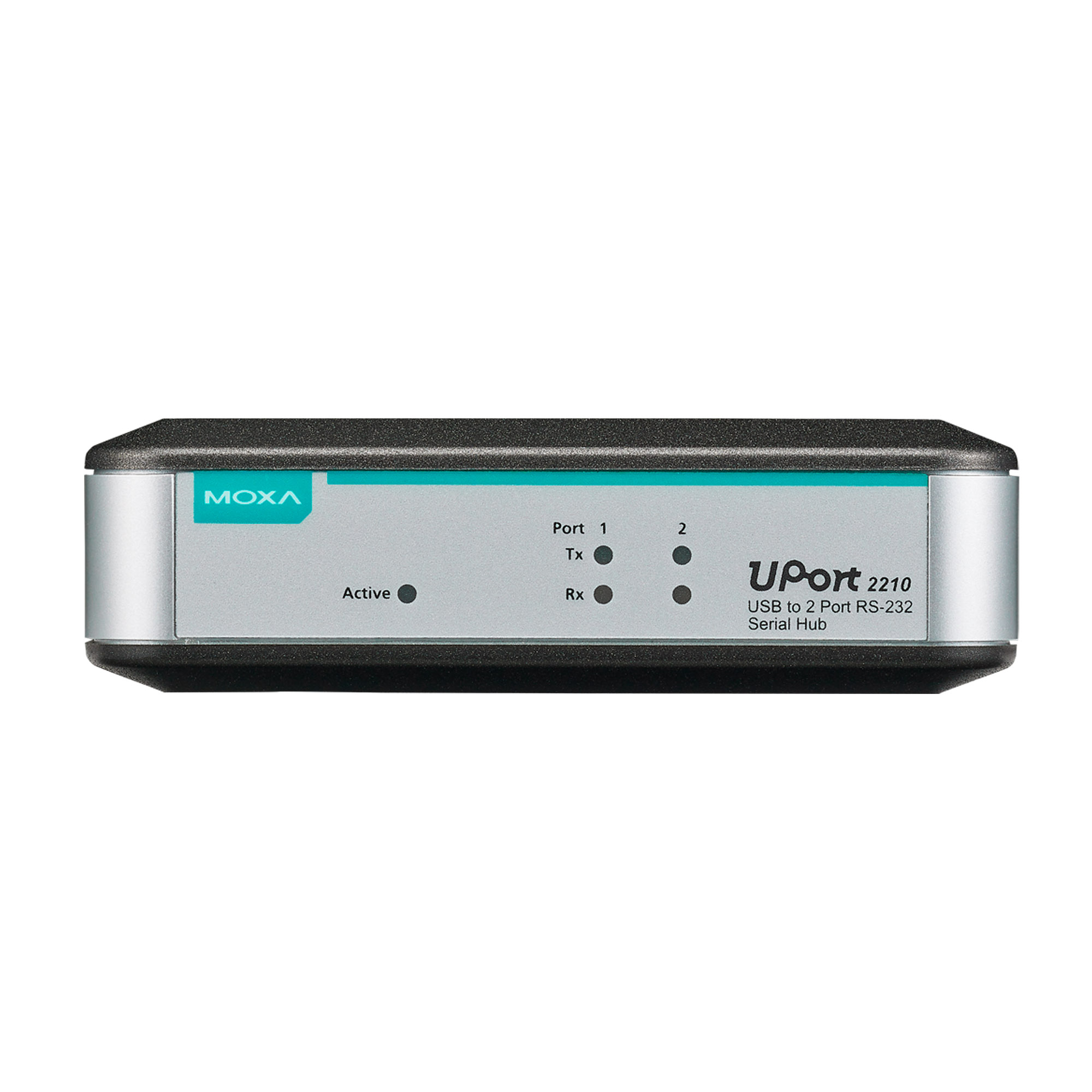

moxa-uport-2210-2410-series-image-2-(1).jpg | Moxa

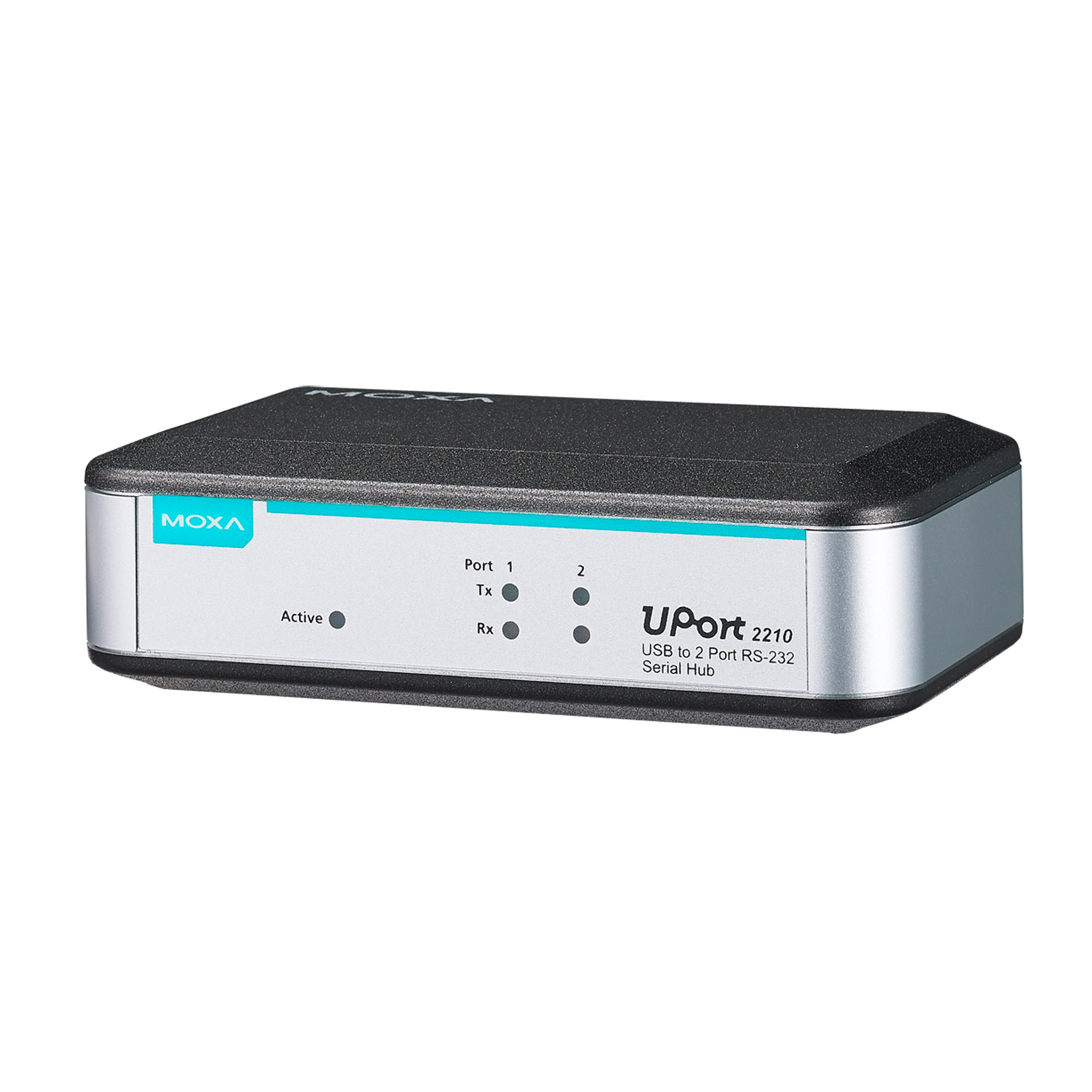

moxa-uport-2210-2410-series-image-3-(1).jpg | Moxa

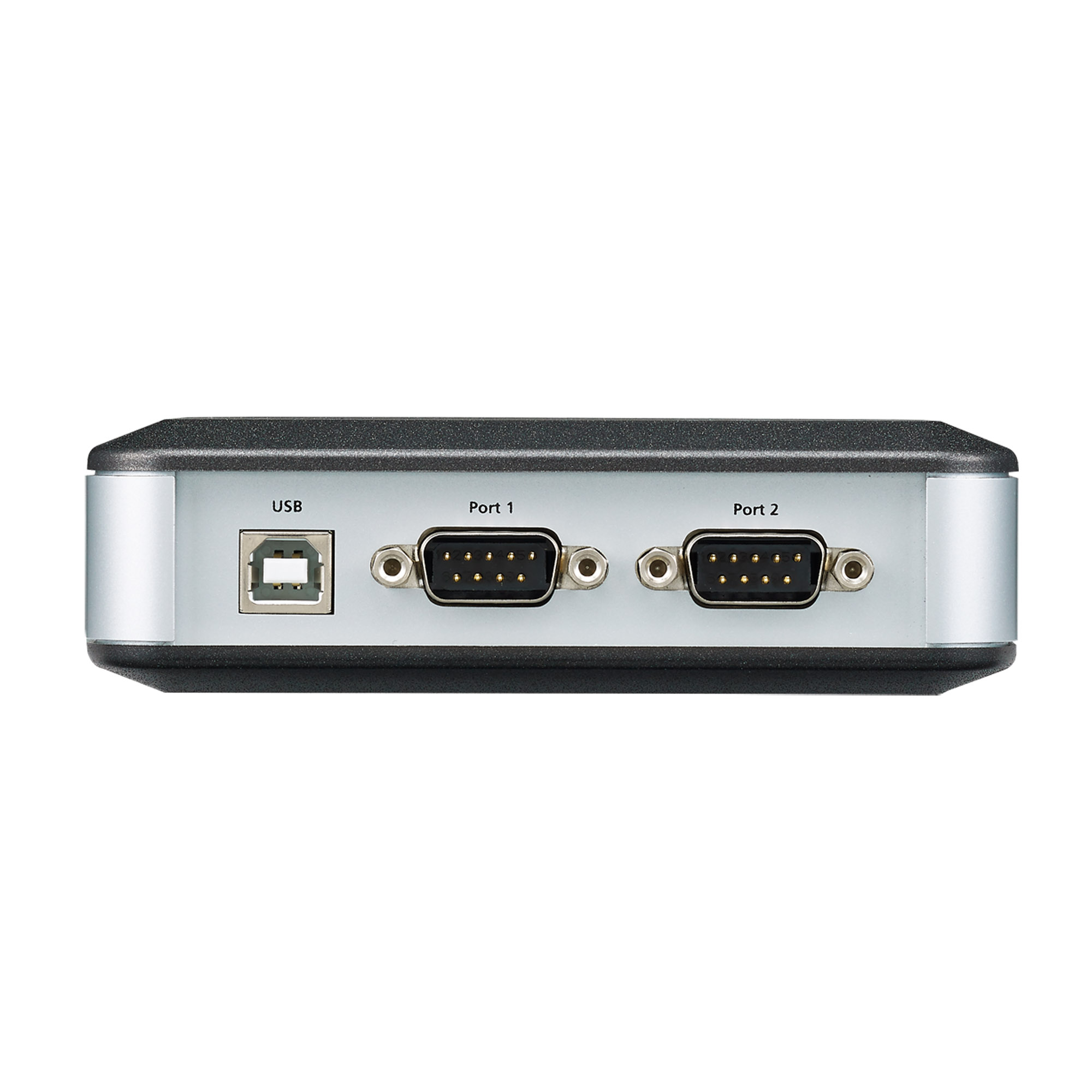

moxa-uport-2210-2410-series-image-4-(1).jpg | Moxa
moxa-uport-2210-2410-series-image-5-(1).jpg | Moxa

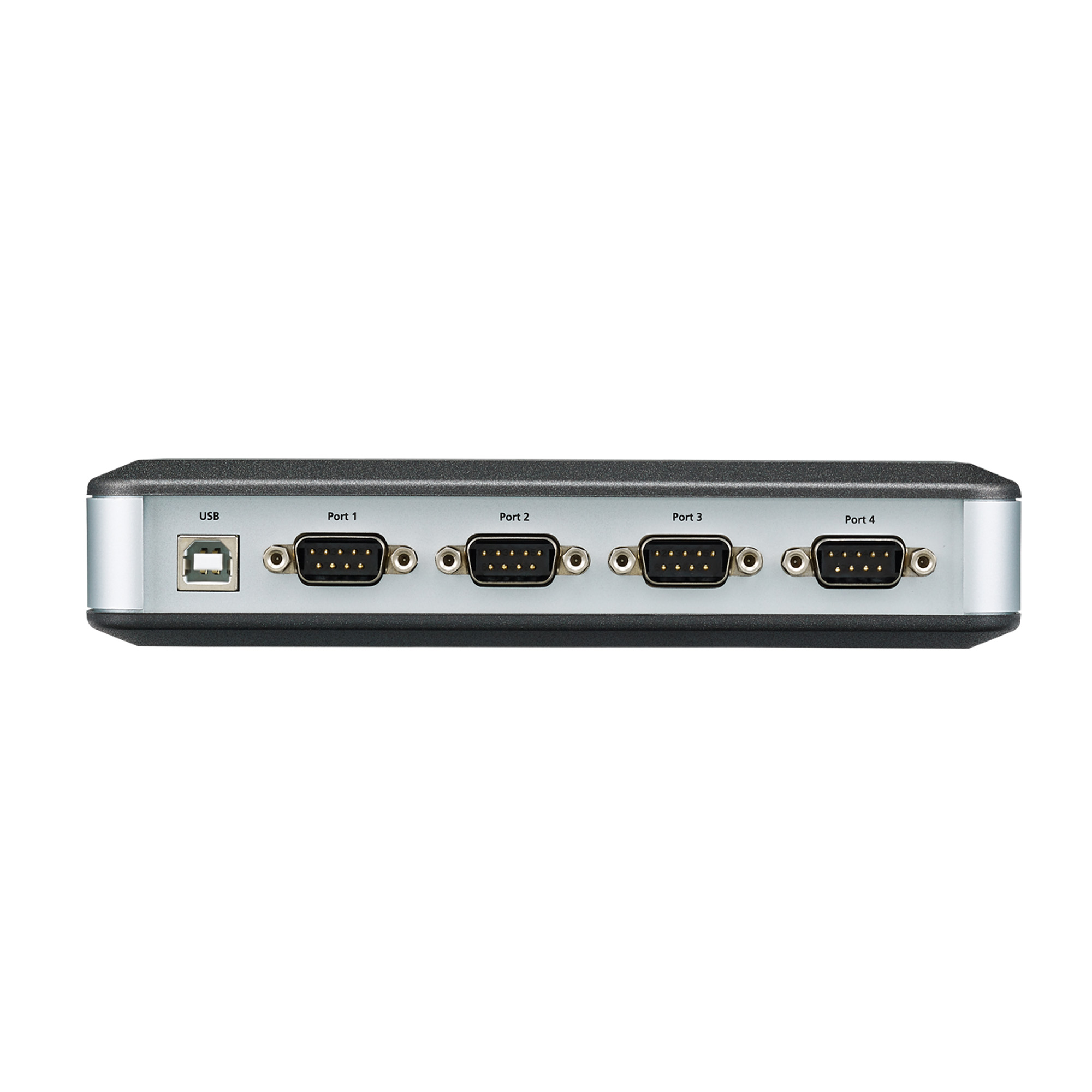

moxa-uport-2210-2410-series-image-6-(1).jpg | Moxa

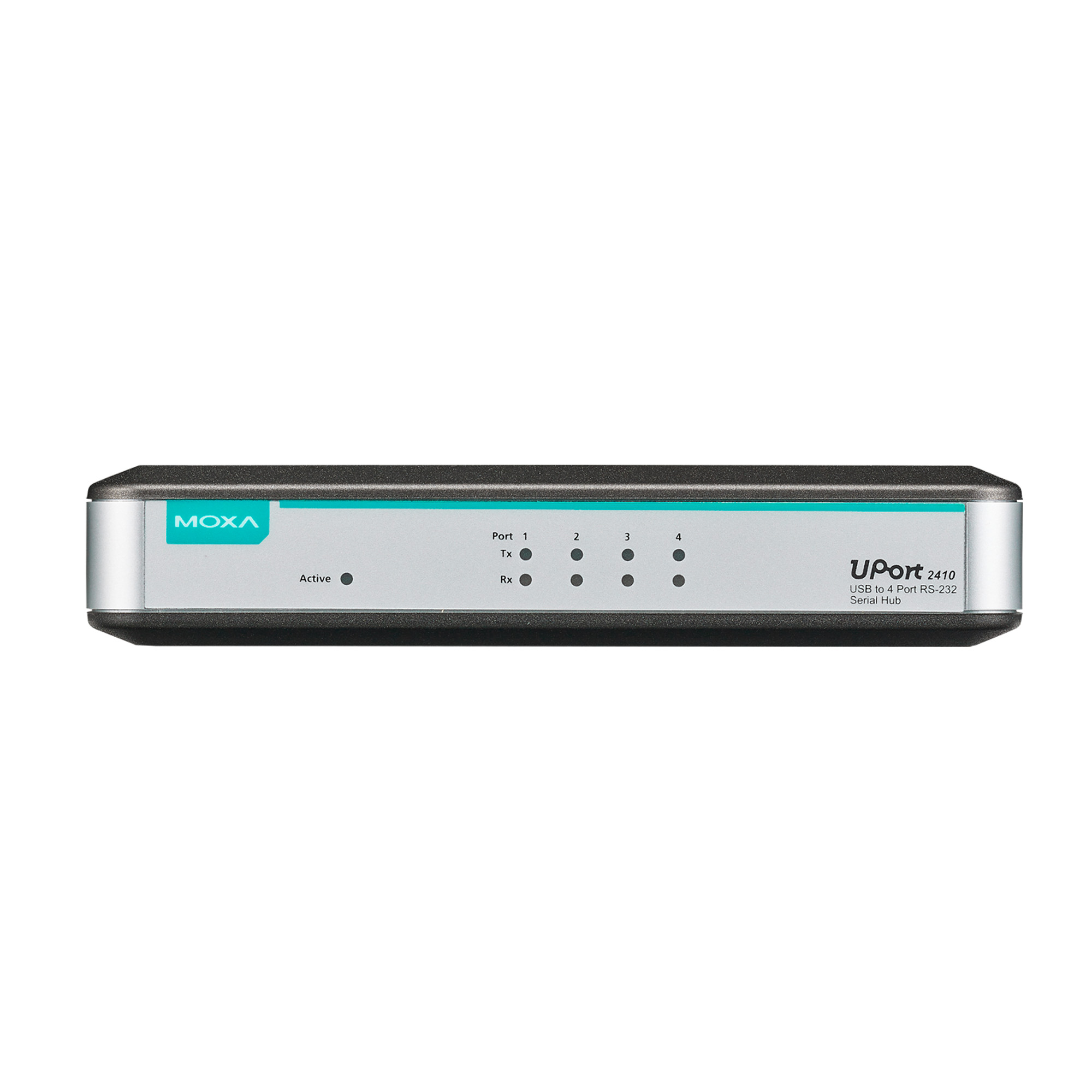

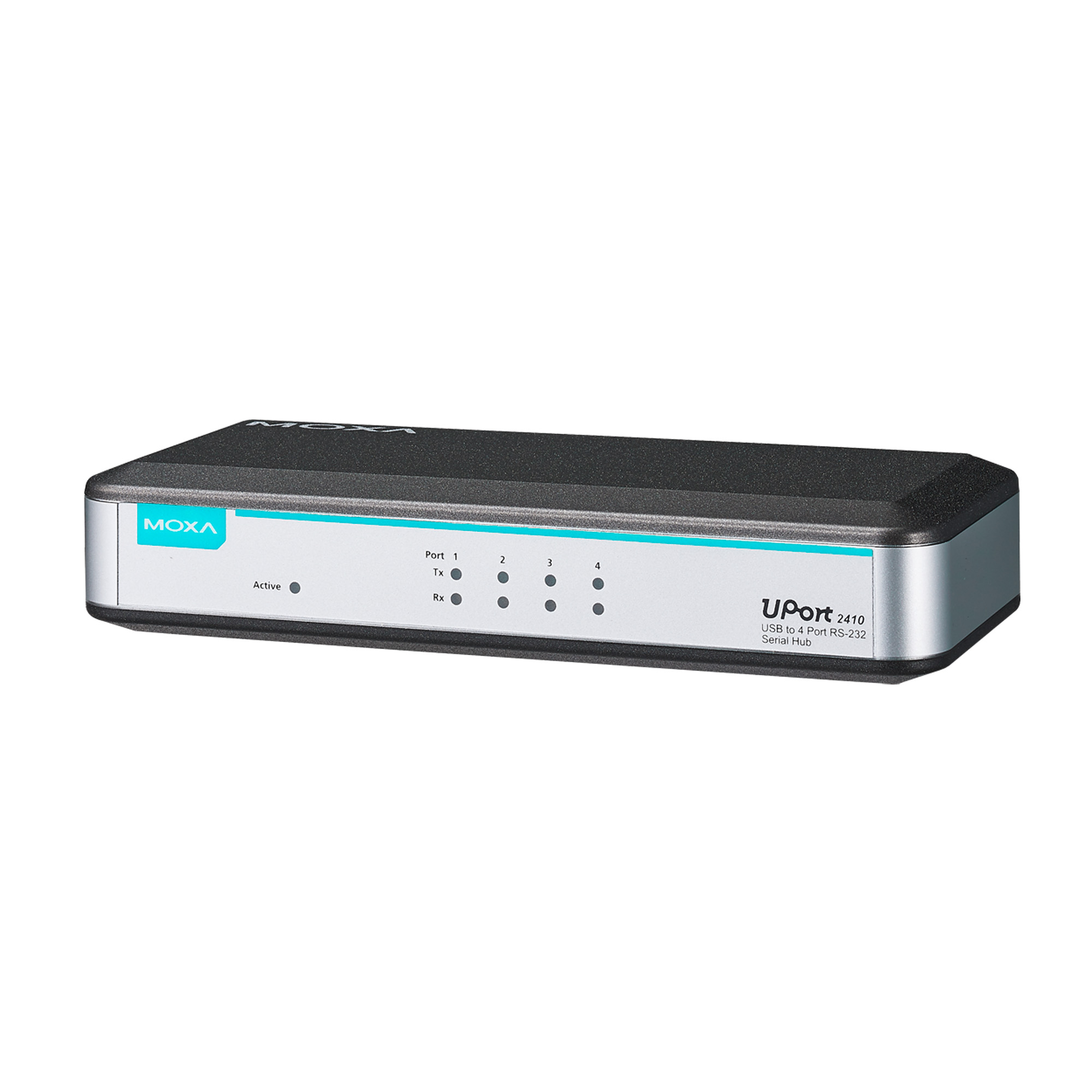

moxa-uport-2210-2410-series-image-7-(1).jpg | Moxa

Features and Benefits

  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows and Linux
  • Driver support for MAC OS
  • Supports fixed-base COM Utility for setting the initial extended COM port number
  • LEDs for easy monitoring

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

  • Speed

    12 Mbps, 480 Mbps

  • USB Connector

    USB Type B

  • USB Standards

    USB 1.1/2.0 compliant

  • Serial Standards

    RS-232

  • No. of Ports

    UPort 2210: 2
    UPort 2410: 4

  • Connector

    DB9 male

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Input Voltage

    5 VDC

  • Input Current

    UPort 2210: 140 mA @ 5 VDC
    UPort 2410: 240 mA @ 5 VDC

  • Housing

    Polycarbonate (PC)

  • Dimensions

    UPort 2210: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
    UPort 2410: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)

  • Weight

    Packaged:
    UPort 2210: 325 g (0.72 lb)
    UPort 2410: 455 g (1 lb)

    Product only:
    UPort 2210: 120 g (0.26 lb)
    UPort 2410: 210 g (0.46 lb)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 75°C (-4 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Safety

    UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-32

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    UPort 2210: 4,221,778 hrs
    UPort 2410: 3,901,775 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Utility
Name Type Checksum Version Operating System Release Date
Driver for UPort 2210/2410 Series (Linux kernel 6.x)
57.4 KB 		Driver
SHA-512
v6.0
  • Linux Kernel 6.x
 Jul 28, 2023 Jul 28, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB 		Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
 Jun 19, 2023 Jun 19, 2023 Release notes
Driver for UPort 2210/2410 Series (Windows 11 and Windows Server 2022, WHQL certified)
1.0 MB 		Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
 Nov 17, 2022 Nov 17, 2022 Release notes
Driver for UPort 2210/2410 Series (Windows 7 to 10, Windows Server 2008 R2 to 2019, WHQL certified)
1.8 MB 		Driver
SHA-512
v3.2
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
 Oct 26, 2022 Oct 26, 2022 Release notes
Driver for UPort 2210/2410 Series (Linux Kernel 4.x)
67.4 KB 		Driver
SHA-512
v4.1
  • Linux Kernel 4.x
 Dec 03, 2021 Dec 03, 2021 Release notes
Driver for UPort 2210/2410 Series (Linux Kernel 5.x)
62.5 KB 		Driver
SHA-512
v5.1
  • Linux Kernel 5.x
 Dec 03, 2021 Dec 03, 2021 Release notes
Driver for UPort 2210/2410 Series (macOS)
202.1 KB 		Driver
SHA-512
v2.0
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11.0
  • macOS 11.1
  • macOS 11.2
  • macOS 11.3
 Sep 01, 2021 Sep 01, 2021 Release notes
Driver for UPort 2210/2410 Series (Linux kernel 3.x support)
40.2 KB 		Driver
SHA-512
v3.0
  • Linux Kernel 3.x
 Jun 26, 2019 Jun 26, 2019 Release notes
Driver for UPort 2210/2410 Series (Linux kernel 2.6.x support)
45.3 KB 		Driver
SHA-512
v2.0
  • Linux Kernel 2.6.x
 Jun 21, 2019 Jun 21, 2019 Release notes
Driver for UPort 2210/2410 Series (Windows XP to Vista, 2000 to Server 2008)
1.0 MB 		Driver
SHA-512
v2.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Dec 12, 2018 Dec 12, 2018 Release notes
Driver for UPort 2210/2410 Series (Android)
4.3 MB 		Driver
SHA-512
v1.0
  • Android
 Aug 23, 2013 Aug 23, 2013 Release notes
Driver for UPort 2210/2410 Series (Mac OS)
102.0 KB 		Driver
SHA-512
v1.0
  • Mac OS X
 Dec 05, 2012 Dec 05, 2012 Release notes
Driver for UPort 2210/2410 Series (Linux)
27.3 KB 		Driver
SHA-512
v1.1
  • Linux 2.6.x
  • Linux 3.x
 Jul 29, 2012 Jul 29, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB 		Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
 May 13, 2012 May 13, 2012 Release notes
Viewcom
434.6 KB 		Utility
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Jul 11, 2010 Jul 11, 2010 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG Tech Note
Name Type Version Release Date
FOSS Statement for Moxa ViewCOM for Windows
139.9 KB 		Declaration v1.0 Feb 07, 2025 Feb 07, 2025
FOSS Statement for Moxa PComm Lite Suite for Windows
108.5 KB 		Declaration v1.0 Feb 07, 2025 Feb 07, 2025
FOSS Statement for UPort 2210/2410 Series macOS Driver
115.8 KB 		Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for UPort 2210/2410 Series Windows Driver
150.4 KB 		Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for UPort 2210/2410 Series Linux Driver
108.4 KB 		Declaration v1.0 Oct 29, 2024 Oct 29, 2024
QIG for UPort 2210/2410 Series
498.1 KB 		QIG v3.2 Aug 08, 2024 Aug 08, 2024
Declaration of Conformity for UPort 2210/2410 Series
294.8 KB 		Declaration v1.0 May 15, 2024 May 15, 2024
Tech Note: UPort Driver Porting Guide for Arm-based Platforms
423.1 KB 		Tech Note v1.2 Dec 21, 2021 Dec 21, 2021
QIG for UPort 2210/2410 Series
490.1 KB 		QIG v3.1 May 06, 2021 May 06, 2021
Datasheet for UPort 2210/2410 Series
835.4 KB 		Datasheet v1.2 Jan 17, 2020 Jan 17, 2020
Manual for UPort 2210/2410 Series
2.4 MB 		Manual v4.0 Mar 21, 2017 Mar 21, 2017
Tech Note: The Secrets of UART FIFO
42.8 KB 		Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of RS-485 Half-duplex Communication
41.1 KB 		Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
2D CAD for UPort 2410 TOP
193.0 KB 		2D CAD Nov 03, 1997 Nov 03, 1997
2D CAD for UPort 2210 TOP
173.3 KB 		2D CAD Nov 03, 1997 Nov 03, 1997

Available Models (2)

Show Images
Compare

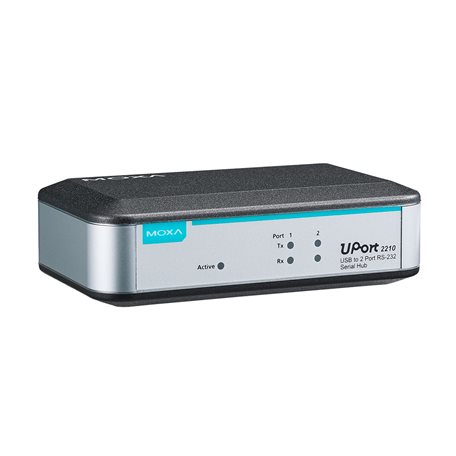

moxa-uport-2210-image.jpg | MoxaUPort 2210
Compare

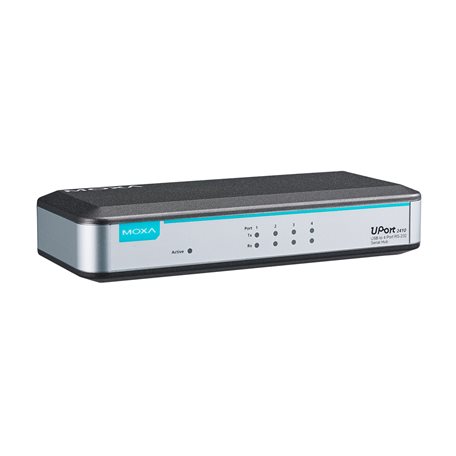

moxa-uport-2410-image.jpg | MoxaUPort 2410
USB InterfaceUSB 2.0USB 2.0
Serial StandardsRS-232RS-232
No. of Serial Ports24
Housing MaterialPolycarbonate (PC)Polycarbonate (PC)
Operating Temp.0 to 55°C0 to 55°C
