USB-to-Serial Converters

Moxa's UPort USB-to-serial converters provide computers with high performance, industrial-grade connections for up to 16 serial devices over a single USB port. A wide range of converters are available with features that include SuperSpeed USB 3.2 and Hi-Speed USB 2.0, advanced UARTs for high-end serial performance, COM port mapping, fixed-base COM functionality, and more.

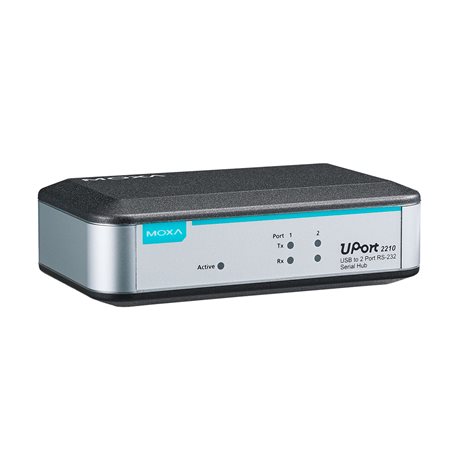

UPort 2210
UPort 2210/2410 Series

2-port RS-232 USB-to-serial converter

USB Interface
  • Speed

    • 12 Mbps, 480 Mbps
  • USB Connector

    • USB Type B
  • USB Standards

    • USB 1.1/2.0 compliant
Serial Interface
  • Serial Standards

    • RS-232
  • No. of Ports

    • 2
  • Connector

    • DB9 male
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
  • Input Voltage

    • 5 VDC
  • Input Current

    • 140 mA @ 5 VDC
Physical Characteristics
  • Housing

    • Polycarbonate (PC)
  • Dimensions

    • 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
  • Weight

    • Packaged: 325 g (0.72 lb)
      Product only: 120 g (0.26 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
  • Safety

    • UL 60950-1
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 4,221,778 hrs
  • Standards

    • Telcordia (Bellcore), GB
