EDS-4009 Series

9-port managed Ethernet switches

moxa-eds-4009-series-image-1-(1).jpg | Moxa

moxa-eds-4009-series-image-2-(1).jpg | Moxa

moxa-eds-4009-series-image-3-(1).jpg | Moxa

moxa-eds-4009-series-image-4-(1).jpg | Moxa

moxa-eds-4009-series-image-5-(1).jpg | Moxa

moxa-eds-4009-series-image-6-(1).jpg | Moxa

Features and Benefits

Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and RSTP/STP for network redundancy
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The EDS-4009 Series is a range of 9-port managed Fast Ethernet switches with the option for three 100M ST/SC fiber-optic ports.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4009 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

The EDS-4009 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

10/100BaseT(X) Ports (RJ45 connector)

6
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

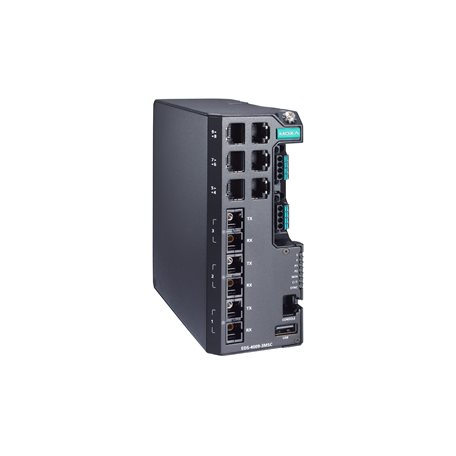

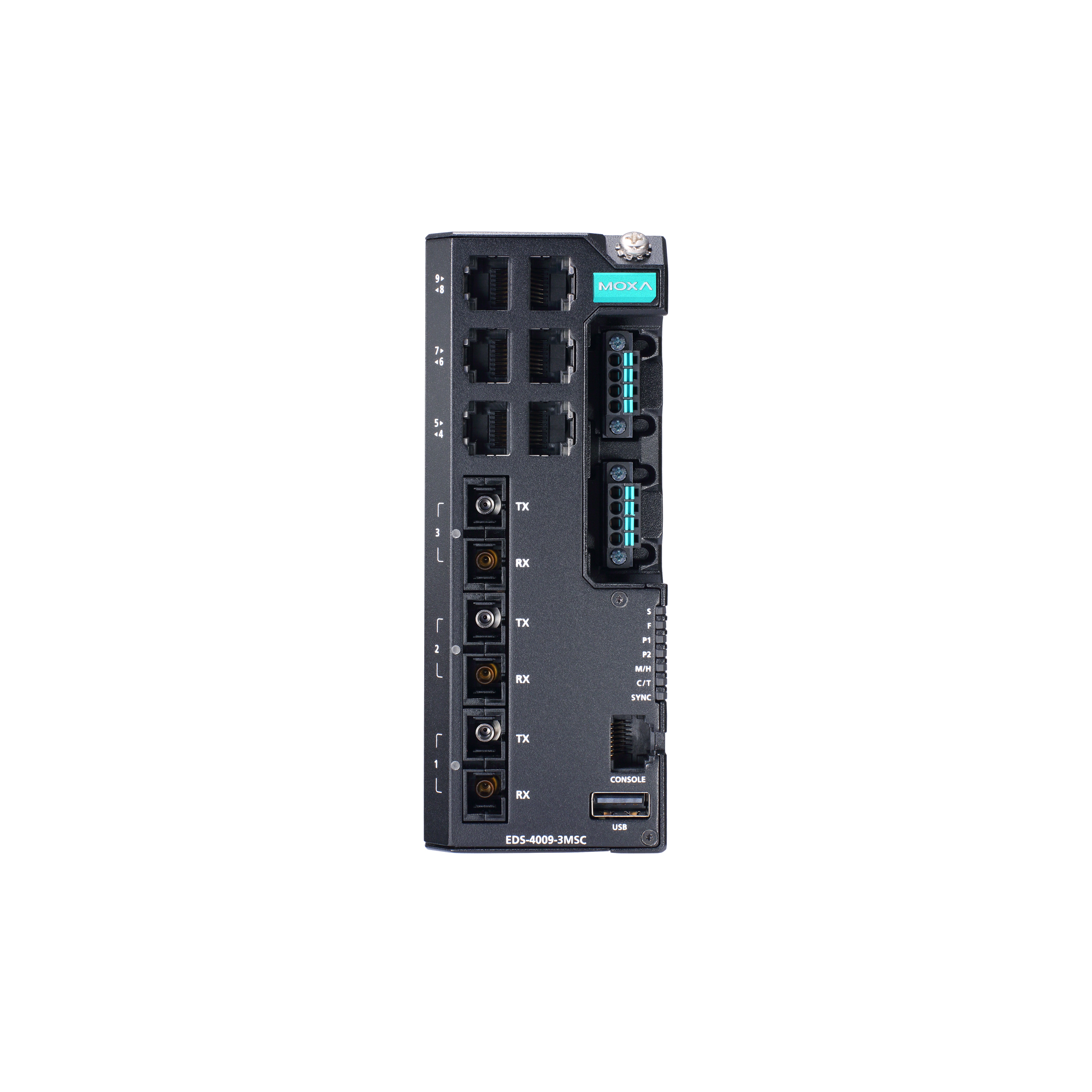

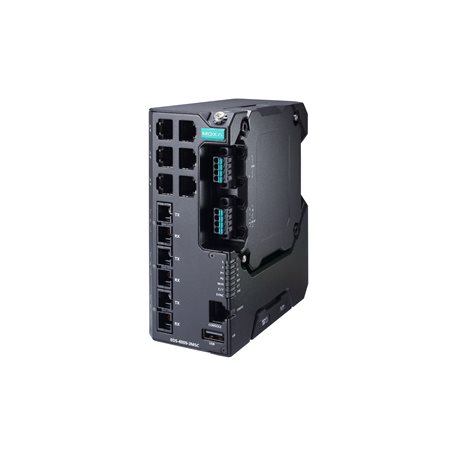

100BaseFX Ports (multi-mode SC connector)

EDS-4009-3MSC-LV/-HV/-T models: 3

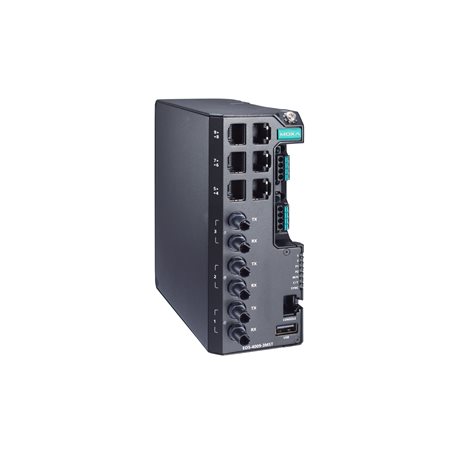

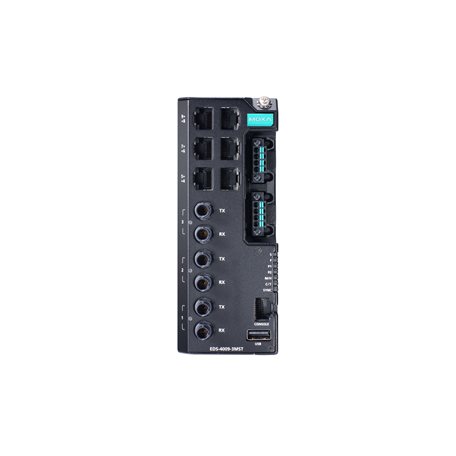

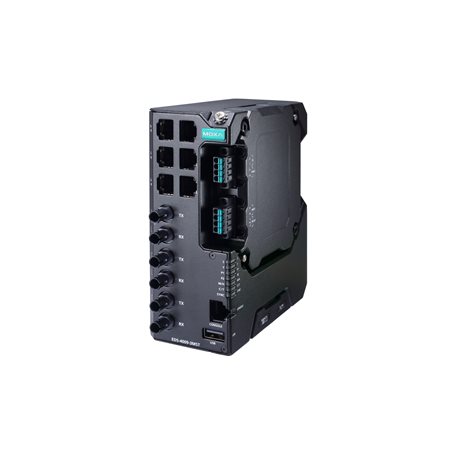

100BaseFX Ports (multi-mode ST connector)

EDS-4009-3MST-LV/-HV/-T models: 3

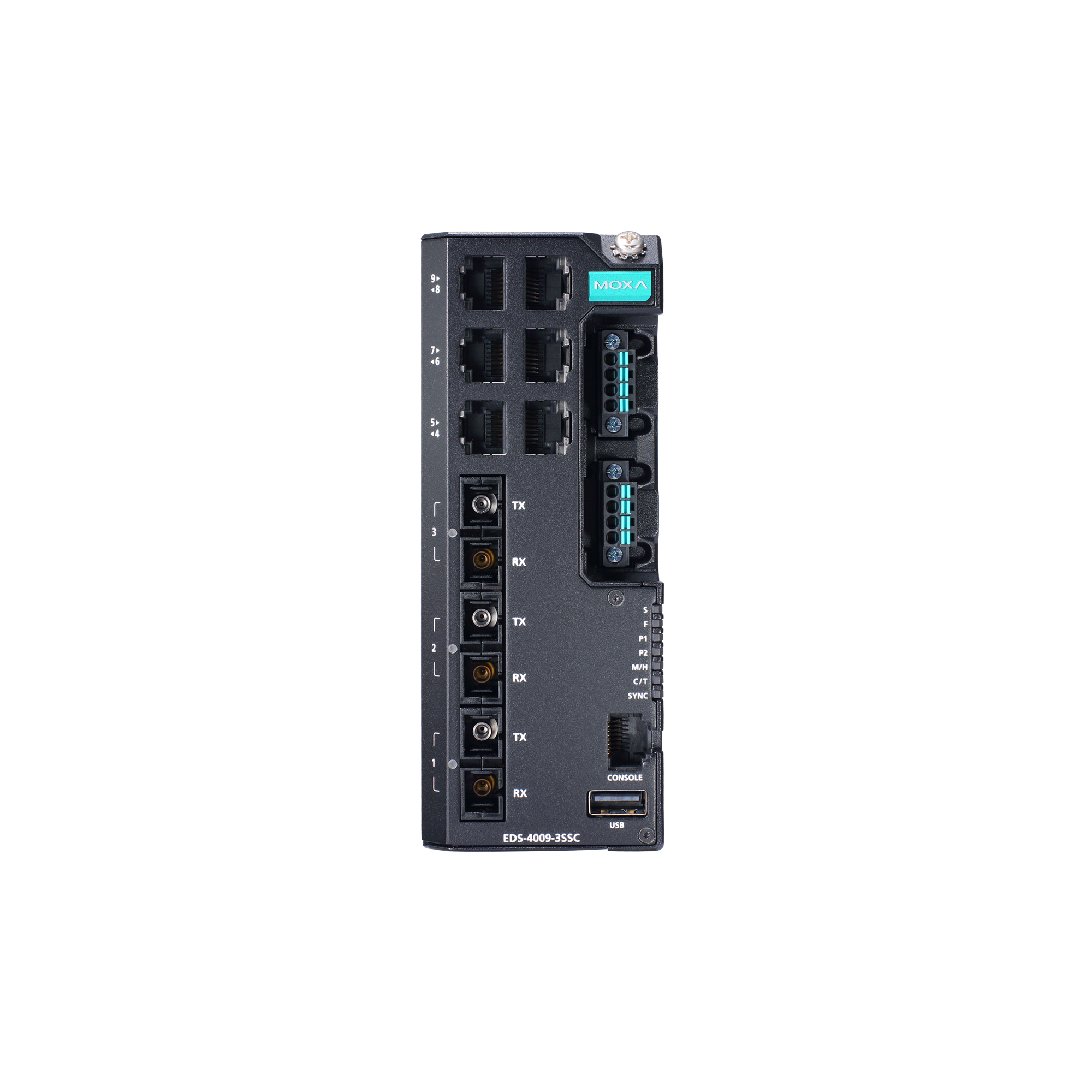

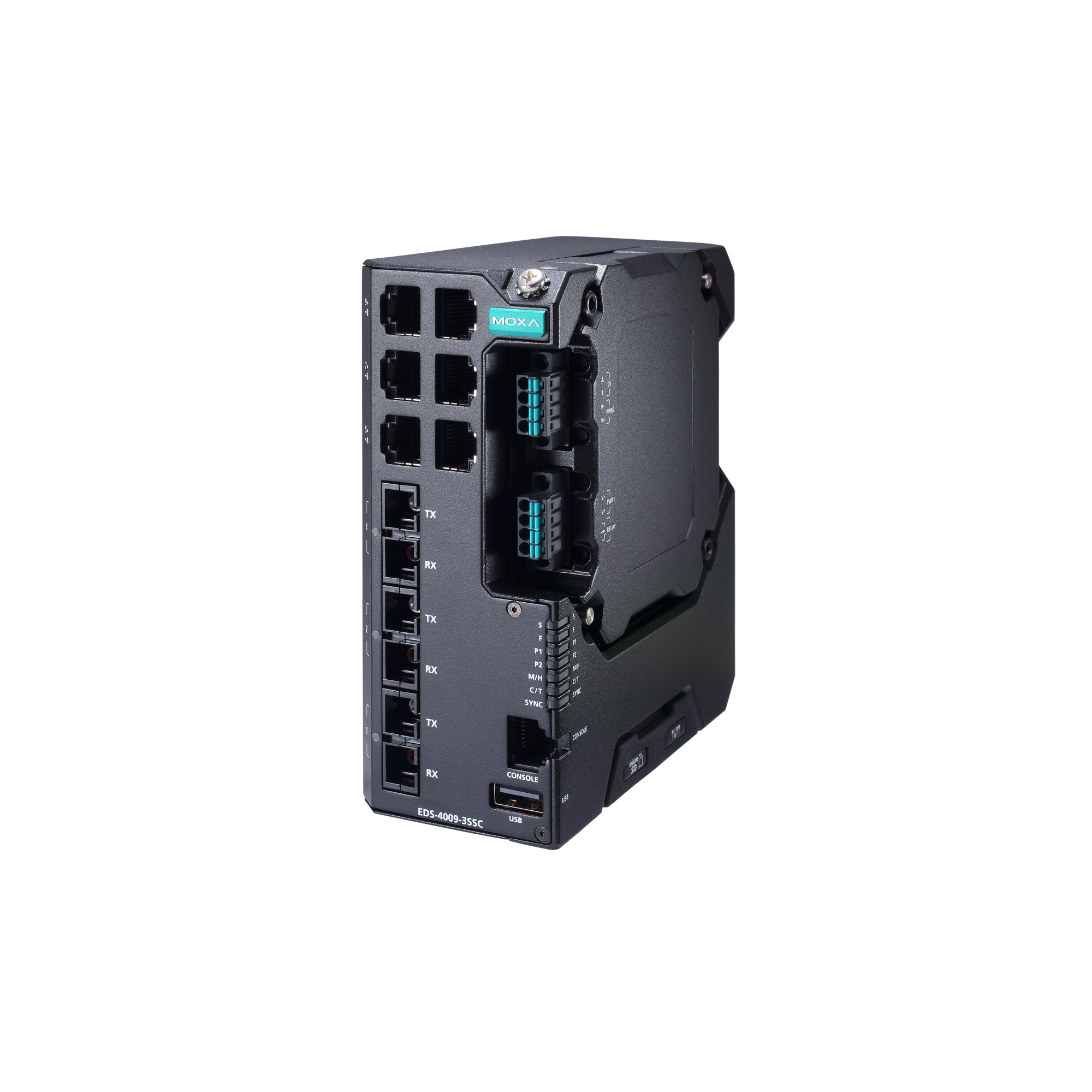

100BaseFX Ports (single-mode SC connector)

EDS-4009-3SSC-LV/-HV/-T models: 3
Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Industrial Protocols

EtherNet/IP
Modbus TCP
PROFINET IO Device
Management

IPv4/IPv6
Flow control
Back Pressure Flow Control
DHCP Server/Client
ARP
RARP
LLDP
Fiber check
Port Mirroring (SPAN, RSPAN)
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Filter

GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier
Redundancy Protocols

STP
RSTP
Turbo Ring v2
Turbo Chain
Ring Coupling
Dual-Homing
Link Aggregation
MRP
MSTP
Security

Broadcast storm protection
Rate Limit
Trust access control
Static Port Lock
MAC Sticky
HTTPS/SSL
SSH
RADIUS
TACACS+
Access control list
Login and Password Policy
DHCP Snooping
Time Management

SNTP
NTP Server/Client
NTP Authentication
IEEE 1588v2 PTP (hardware-based)
Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
Protocols

IPv4/IPv6
TCP/IP
UDP
ICMP
ARP
RARP
TFTP
DNS
NTP Client
DHCP Server
DHCP Client
802.1X
QoS
HTTPS
HTTP
Telnet
SMTP
SNMPv1/v2c/v3
RMON
Syslog
MIB

P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9

MAC Table Size

16 K
Jumbo Frame Size

9.216 KB
Max. No. of VLANs

256
VLAN ID Range

VID 1 to 4094
IGMP Groups

512
Priority Queues

4
Packet Buffer Size

1 MB

LED Indicators

PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Console Port

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Connector

USB Type A (Reserved)

Alarm Contact Channels

1, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels

1
Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Buttons

Reset button

DIP Switches

Turbo Ring, Master, Coupler, Reserve

Connection

2 removable 4-contact terminal block(s)
Pre-installed Power Module

-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
Note

The EDS-4009 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

For example:
EDS-4009-T + PWR-100–LV = EDS-4009-LV-T
EDS-4009-T + PWR-105-HV-I = EDS-4009-HV-T

If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4009–LV-T
with the PWR-105–HV-I, refer to the specifications of the EDS-4009–HV-T.
Input Voltage

-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
Operating Voltage

-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
Input Current

-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
Power Consumption (Max.)

EDS-4009-3MSC-LV(-T) models: 9.51 W
EDS-4009-3MSC-HV(-T) models: 12.14 W
EDS-4009-3MST-LV(-T) models: 9.51 W
EDS-4009-3MST-HV(-T) models: 12.17 W
EDS-4009-3SSC-LV(-T) models: 9.51 W
EDS-4009-3SSC-HV(-T) models: 12.34 W
Overload Current Protection

Supported
Reverse Polarity Protection

Supported

IP Rating

IP40
Dimensions

EDS-4009-3MSC(-T)/EDS-4009-3SSC(-T) models:
55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
EDS-4009-3MST(-T) models:
55 x 140 x 132 mm (2.17 x 5.51 x 5.20 in)
Weight

EDS-4009-3MSC(-T) models: 821.5 g (1.81 lb)
EDS-4009-3MST(-T) models: 920 g (2.03 lb)
EDS-4009-3SSC(-T) models: 932 g (2.05 lb)
Installation

DIN-rail mounting
Wall mounting (with optional kit)
Housing

Metal

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

Industrial Cybersecurity

IEC 62443-4-1
IEC 62443-4-2
Safety

UL 61010-2-201
EN 62368-1 (LVD)
EMC

EN 55032/35
EN 61000-6-2/-6-4
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime

-LV/-LV-T models: DNV, ABS, NK, LR
Vibration

IEC 60068-2-6
Shock

IEC 60068-2-27
Freefall

IEC 60068-2-32
Railway

EN 50121-4
Traffic Control

NEMA TS2
Power Substation

IEC 61850-3
IEEE 1613 Class 1
Hazardous Locations

-LV/-LV-T models:
ATEX
IECEx
Class I Division 2

Time

EDS-4009-3MSC-LV/-LV-T models: 972,841 hrs
EDS-4009-3MSC-HV/-HV-T models: 482,263 hrs
EDS-4009-3MST-LV/-LV-T models: 972,841 hrs
EDS-4009-3MST-HV/-HV-T models: 482,263 hrs
EDS-4009-3SSC-LV/-LV-T models: 972,841 hrs
EDS-4009-3SSC-HV/-HV-T models: 482,263 hrs

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Software Package for MXview One Series (Linux version) 508.2 MB	Software Package	09950ADEFA48D8CD14F5ECAC837CACC5B7359EBB9A9D1F5A7C87FD68380B3A905F95870B041090F246C7860E6BCB5B343AA5EAED54ADE2DA5F78FBE37DD9324C SHA-512	v1.5.0	Ubuntu 18.04 Ubuntu 20.04 Ubuntu 22.04	Jan 22, 2025 Jan 22, 2025 Release notes
Software Package for MXview One Series (Windows version) 284.5 MB	Software Package	1111B9086D22AA9BE324BDD372362AA1B62430D6BB34A9258FC54659FB0F62869CCB087629868A431F7122E63ABD37089EF2CD93EF0685CC636484ADFBCA1AF7 SHA-512	v1.5.0	Windows 10 Windows 11 Windows Server 2016 Windows Server 2019 Windows Server 2022	Jan 22, 2025 Jan 22, 2025 Release notes
MIB file for EDS-4000 and EDS-G4000 Series 406.4 KB	Software Package	1A54DE0AEEC67077862AA2B0D9309FCC485B4227F2B587FDB073B8CE8BE5921E2D55E217C4CE988D835017BE6AB3D91255AB7E1D439ED7870F6AB5C59218B96C SHA-512	v4.1		Jun 26, 2024 Jun 26, 2024 Release notes
Firmware for EDS-4000 and EDS-G4000 Series 65.4 MB	Firmware	BA9D34665F0A57EEEAED2DE1416BF86E9201A7A3A254A8E8E8F6B0E1FB0725C57D6E892E39467BC14CDA1F1C2B115EA1F8EE0BF5F10D7DD9240EB5FAA535AE74 SHA-512	v4.1		Jun 26, 2024 Jun 26, 2024 Release notes
EDS file for EDS-4000 and EDS-G4000 Series 178.4 KB	Software Package	38FF9024EE0BC6F7F93C92DD8342CA818EA7D786205CC7F868DCFA33FB344E2DCCC9E2F37FCC32E4F863E19A641886F45DC8E62365EE08D82F2416395E3F8F65 SHA-512	v1.0		Apr 24, 2024 Apr 24, 2024 Release notes
GSD file for EDS-4000 and EDS-G4000 Series 212.8 KB	Software Package	71221807AC0AA81231C6005CF57E6DA81F11FE72AE991232193CAA2A6B75ED4E600E70286DBC6774BE70CCFCF7C07DFCECC708480ADD1E0C7E1D83F023D912EF SHA-512	v1.0		Apr 24, 2024 Apr 24, 2024 Release notes
AOI file for EDS-4000 and EDS-G4000 Series 57.2 KB	Software Package	99F9DA9EEE2C3A1A55DFC1D05021F6D5B9A6F359CF5FE1E842B41284D2C2D8D20AC34717F9F63520A6033168BEE7C35BA8E436DB0736F6E0301225AAD8762B2D SHA-512	v1.0		Apr 24, 2024 Apr 24, 2024 Release notes

Support Documents

Name	Type	Version	Release Date
FOSS Statement for Various MDS, MDS4XGS, RKS, EDS Series Products 2.2 MB	Declaration	v1.0	Aug 14, 2024 Aug 14, 2024
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 Command Line Interface User Manual 5.4 MB	Manual	v1.2	Jun 26, 2024 Jun 26, 2024
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 User Manual 18.7 MB	Manual	v1.3	Jun 26, 2024 Jun 26, 2024
Declaration of Conformity for EDS-4008/4009 Series (with Fiber) 430.2 KB	Declaration	v1.0	Jun 18, 2024 Jun 18, 2024
QIG for EDS-4009 Series 3.0 MB	QIG	v1.2	Apr 29, 2024 Apr 29, 2024
Datasheet for EDS-4009 Series 2.3 MB	Datasheet	v1.5	Apr 24, 2024 Apr 24, 2024
Manual for EDS-4000 and EDS-G4000 Series 11.7 MB	Manual	v1.1	Jan 18, 2023 Jan 18, 2023
Command Line Interface Manual for EDS-4000 and EDS-G4000 Series 2.5 MB	Manual	v1.0	Apr 27, 2022 Apr 27, 2022
2D CAD for EDS-4009 Series (2D-EDS-4009-3SSC) 3.1 MB	2D CAD		Mar 07, 2022 Mar 07, 2022
2D CAD for EDS-4009 Series (2D-EDS-4009-3MSC) 3.1 MB	2D CAD		Mar 07, 2022 Mar 07, 2022
2D CAD for EDS-4009 Series (2D-EDS-4009-3MST) 3.3 MB	2D CAD		Mar 07, 2022 Mar 07, 2022

Powering Up Your Networks for IP Surveillance Systems

Application Note

Enhancing Network Resilience for Your Industrial Control Systems

Video

Strengthen Network Security With Game-changing Managed Switches

Video

Optimize the User Experience With Game-changing Managed Switches

Video

Enhance Network Performance With Game-changing Managed Switches

Technology Guide

Essential Tips for Building Futureproof Industrial Networks

Video

Witness the Evolution of Industrial Networking with Moxa

Video

EDS-4000/G4000 Series Layer 2 Managed Ethernet Switches

Video

Unboxing the EDS-4000/G4000 Series

Available Models (12)

Show Images

	Compare EDS-4009-3MSC-LV	Compare EDS-4009-3MSC-LV-T	Compare EDS-4009-3MSC-HV	Compare EDS-4009-3MSC-HV-T
10/100BaseT(X) Ports (RJ45 Connector)	6	6	6	6
100BaseFX Ports (Multi-mode SC Connector)	3	3	3	3
100BaseFX Ports (Multi-mode ST Connector)	–	–	–	–
100BaseFX Ports (Single-mode SC Connector)	–	–	–	–
Operating Voltage	9.6 to 60 VDC	9.6 to 60 VDC	88 to 300 VDC, 85 to 264 VAC	88 to 300 VDC, 85 to 264 VAC
Pre-installed Power Module	PWR-100-LV	PWR-100-LV	PWR-105-HV-I	PWR-105-HV-I
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare EDS-4009-3MST-LV	Compare EDS-4009-3MST-LV-T	Compare EDS-4009-3MST-HV	Compare EDS-4009-3MST-HV-T
10/100BaseT(X) Ports (RJ45 Connector)	6	6	6	6
100BaseFX Ports (Multi-mode SC Connector)	–	–	–	–
100BaseFX Ports (Multi-mode ST Connector)	3	3	3	3
100BaseFX Ports (Single-mode SC Connector)	–	–	–	–
Operating Voltage	9.6 to 60 VDC	9.6 to 60 VDC	88 to 300 VDC, 85 to 264 VAC	88 to 300 VDC, 85 to 264 VAC
Pre-installed Power Module	PWR-100-LV	PWR-100-LV	PWR-105-HV-I	PWR-105-HV-I
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare EDS-4009-3SSC-LV	Compare EDS-4009-3SSC-LV-T	Compare EDS-4009-3SSC-HV	Compare EDS-4009-3SSC-HV-T
10/100BaseT(X) Ports (RJ45 Connector)	6	6	6	6
100BaseFX Ports (Multi-mode SC Connector)	–	–	–	–
100BaseFX Ports (Multi-mode ST Connector)	–	–	–	–
100BaseFX Ports (Single-mode SC Connector)	3	3	3	3
Operating Voltage	9.6 to 60 VDC	9.6 to 60 VDC	88 to 300 VDC, 85 to 264 VAC	88 to 300 VDC, 85 to 264 VAC
Pre-installed Power Module	PWR-100-LV	PWR-100-LV	PWR-105-HV-I	PWR-105-HV-I
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

Strengthen Your Network Resilience

A new chapter of industrial networking has been unveiled by EDS-4000/G4000 Series. The strengthened security, easy-to-use design, and high performance coupled with high reliability help you face networking challenges.

Learn More

Industrial Network Infrastructure

Industrial Edge Connectivity

Industrial Computing

Industry Focus

Technology Focus

Don't Miss Out

Harness the Flow for Enduring BESS Solutions

Secure Your OT Networks

Unlock the Secrets of Your OT Data

Product Support

Repair & Warranty

Resources

Get in Touch

About Us

Get to Know Moxa

Create Value That Lasts

Convert Your Passion Into New Possibilities

EDS-4009 Series

9-port managed Ethernet switches

Features and Benefits

Certifications

Introduction

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

100BaseFX Ports (multi-mode SC connector)

100BaseFX Ports (multi-mode ST connector)

100BaseFX Ports (single-mode SC connector)

Standards

Optical Fiber

Ethernet Software Features

Industrial Protocols

Management

Filter

Redundancy Protocols

Security

Time Management

Protocols

MIB

Switch Properties

MAC Table Size

Jumbo Frame Size

Max. No. of VLANs

VLAN ID Range

IGMP Groups

Priority Queues

Packet Buffer Size

LED Interface

LED Indicators

Serial Interface

Console Port

USB Interface

USB Connector

Input/Output Interface

Alarm Contact Channels

Digital Input Channels

Digital Inputs

Buttons

DIP Switch Configuration

DIP Switches

Power Parameters

Connection

Pre-installed Power Module

Note

Input Voltage

Operating Voltage

Input Current

Power Consumption (Max.)

Overload Current Protection

Reverse Polarity Protection

Physical Characteristics

IP Rating

Dimensions

Weight

Installation

Housing

Environmental Limits

Operating Temperature

Storage Temperature (package included)

Ambient Relative Humidity

Standards and Certifications

Industrial
Computing
