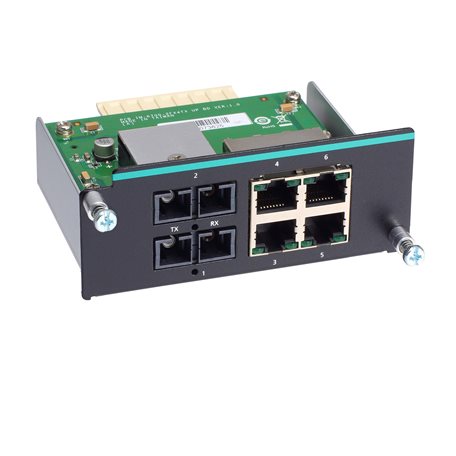

IM-6700A-2SSC4TX
IM-6700A Module Series

Fast Ethernet module with 2 single-mode 100BaseFX ports with SC connector, 4 10/100BaseT(X) ports

Ethernet Interface
  • 100BaseFX Ports (single-mode SC connector)

    • 2
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Optical Fiber

Power Parameters
  • Power Consumption

    • 3.19 W (max.)
Physical Characteristics
  • Weight

    • 270 g (0.60 lb)
MTBF
  • Time

    • 7,356,096 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
