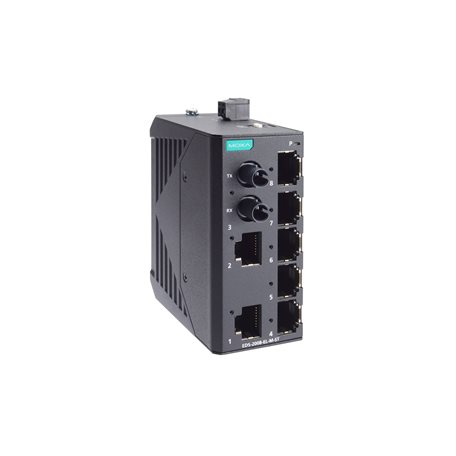

EDS-2008-EL-M-ST-T
EDS-2008-EL Series

Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors, 12/24/48 power input, metal housing, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • EDS-2008-EL: 8
      EDS-2008-EL-M-ST: 7
      EDS-2008-EL-M-SC: 7
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • 100BaseFX Ports (multi-mode SC connector)

    • EDS-2008-EL-M-SC: 1
  • 100BaseFX Ports (multi-mode ST connector)

    • EDS-2008-EL-M-ST: 1
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.1p for Class of Service
  • Optical Fiber

Switch Properties
  • Processing Type

    • Store and Forward
  • MAC Table Size

    • 2 K
  • Packet Buffer Size

    • 768 kbits
DIP Switch Configuration
  • Ethernet Interface

    • Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)
Power Parameters
  • Connection

    • 1 removable 2-contact terminal block(s)
  • Input Current

    • EDS-2008-EL: 0.052A @ 24 VDC
      EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDC
  • Input Voltage

    • 12/24/48 VDC
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Weight

    • 169 g (0.37 lb)
  • Housing

    • Metal
  • Dimensions

    • EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
      EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)
      EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
Environmental Limits
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Operating Temperature

    • EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)
      EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Standards and Certifications
  • Safety

    • UL 61010-2-201
      EN 62368-1
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 22, 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 3,329,688 hrs
  • Standards

    • Telcordia (Bellcore), GB
