EDS-2008-ELP Series

8-port entry-level unmanaged Ethernet switches with plastic housing

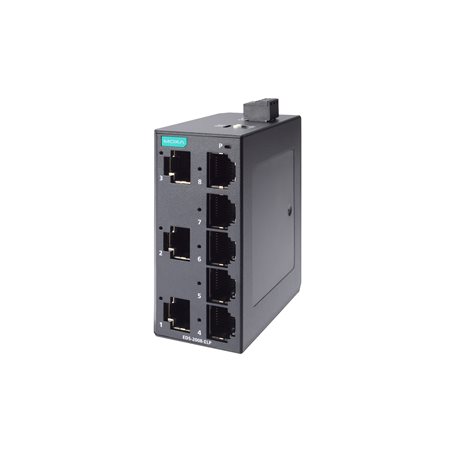

moxa-eds-2008-elp-series-image-(1).jpg | Moxa

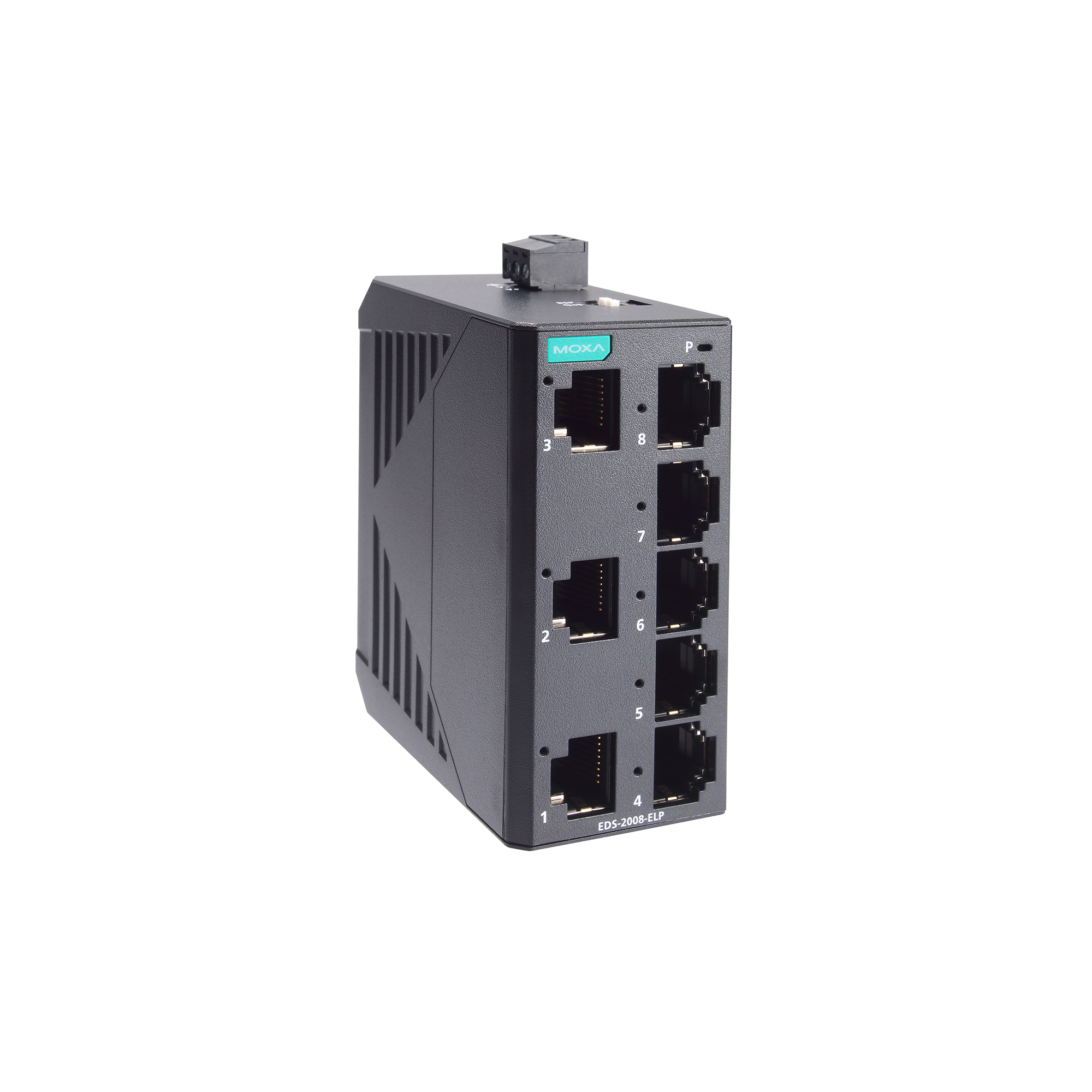

moxa-eds-2008-elp-series-image-1-(1).jpg | Moxa

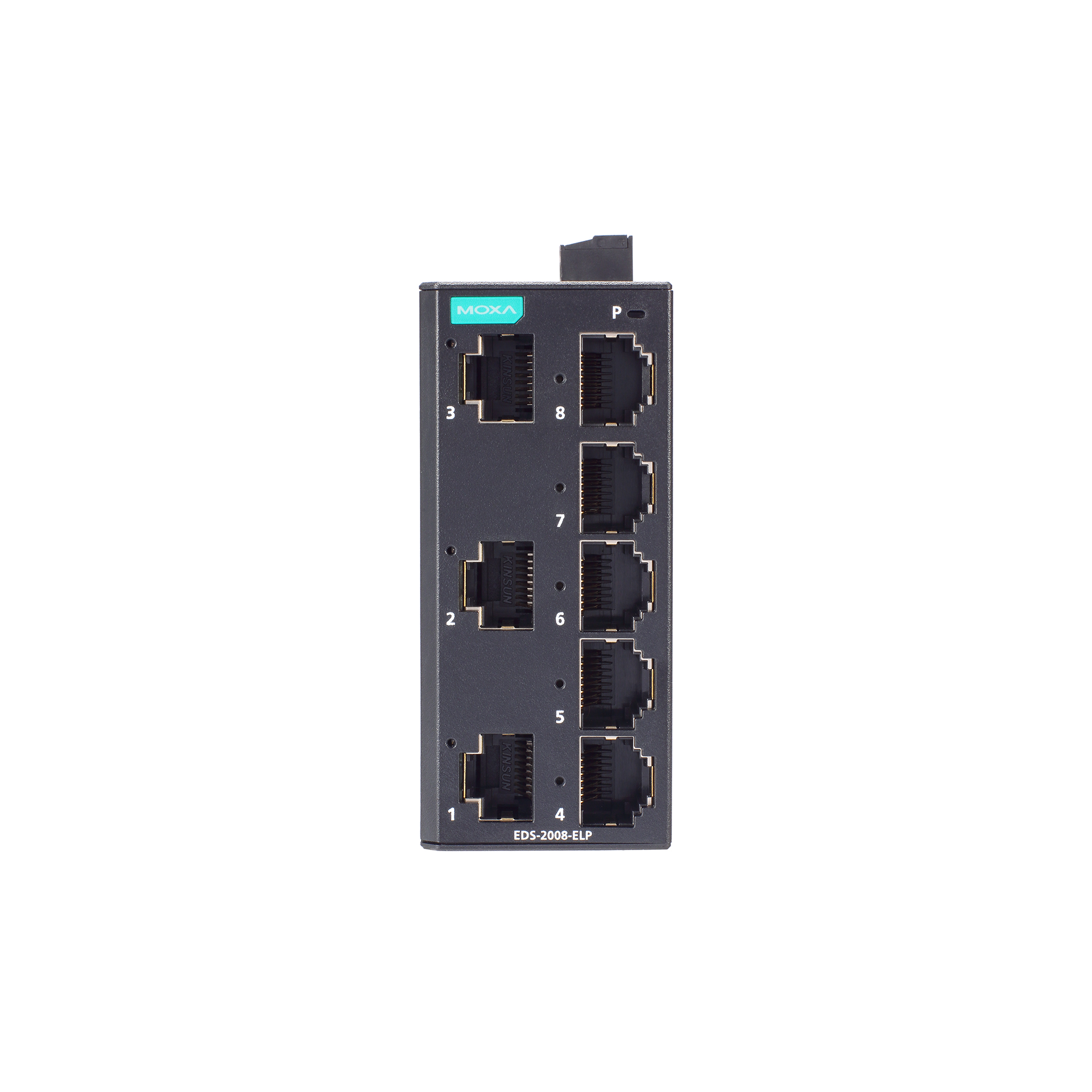

moxa-eds-2008-elp-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated plastic housing
  • Compliant with PROFINET Conformance Class A Only for models with hardware version 2.0.0 or later.

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel..

The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.

The EDS-2008-ELP Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable for PROFINET networks.

  • 10/100BaseT(X) Ports (RJ45 connector)

    8
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.1p for Class of Service
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

  • Processing Type

    Store and Forward

  • MAC Table Size

    2 K

  • Packet Buffer Size

    768 kbits

  • Ethernet Interface

    Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)

  • Connection

    1 removable 3-contact terminal block(s)

  • Input Current

    0.057 A @ 24 VDC

  • Input Voltage

    12-48 VDC

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Dimensions

    36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Housing

    Plastic

  • Weight

    110.5 g (0.24 lb)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Safety

    UL 61010-2-201
    EN IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 22, 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-32

  • Time

    3,696,394 hrs

  • Standards

    Telcordia (Bellcore), GB
