Unmanaged Switches

Moxa has a large portfolio of industrial unmanaged switches that have been specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches uphold the stringent standards that are required for operational reliability in harsh environments.

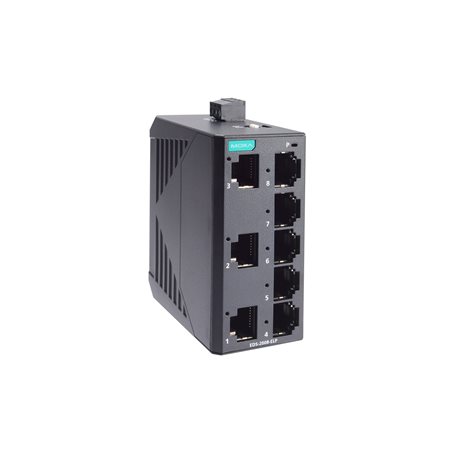

EDS-2008-ELP
EDS-2008-ELP Series

Unmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports, 12/24/48 power input, plastic housing, -10 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 8
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.1p for Class of Service
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
  • Optical Fiber

Switch Properties
  • Processing Type

    • Store and Forward
  • MAC Table Size

    • 2 K
  • Packet Buffer Size

    • 768 kbits
DIP Switch Configuration
  • Ethernet Interface

    • Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)
Power Parameters
  • Connection

    • 1 removable 3-contact terminal block(s)
  • Input Current

    • 0.052 A @ 24 VDC
  • Input Voltage

    • 12/24/48 VDC
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Dimensions

    • 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Housing

    • Plastic
  • Weight

    • 110.5 g (0.24 lb)
Environmental Limits
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Standards and Certifications
  • Safety

    • UL 61010-2-201
      EN 62368-1
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 22, 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 3,696,394 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
