Network Security Appliance

Moxa’s Network Security Appliances are designed to protect your critical industrial assets from industrial cybersecurity threats with OT-IT integrated cybersecurity technologies such as OT-centric Deep Packet Inspection (DPI) and Intrusion Prevention System (IPS).



For more information, visit our Industrial Cybersecurity microsite

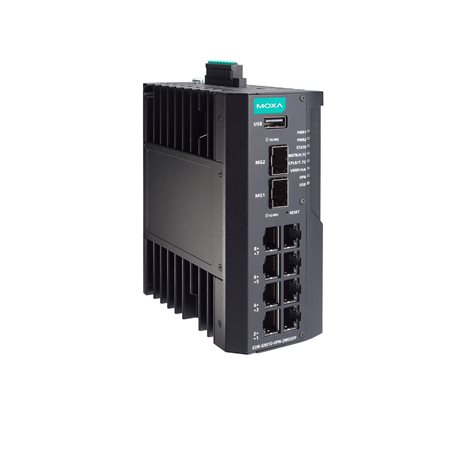

EDR-G9010-VPN-2MGSFP
EDR-G9010 Series

8 GbE copper + 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8
  • 1000/2500BaseSFP Ports

    • 2
  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      Static Port Trunk
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.1X for authentication
  • DMZ

    • User-configurable DMZ ports
Ethernet Software Features
  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding
  • Management

    • Back Pressure Flow Control
      DDNS
      DHCP Server/Client
      Web Console (HTTP/HTTPS)
      LLDP
      QoS/CoS/ToS
      SNMPv1/v2c/v3
      Telnet
      TFTP
      HTTPS
      SSH
  • Redundancy Protocols

    • RSTP
      STP
      Turbo Ring v2
      Turbo Chain
  • Routing Throughput

    • Max. 350K packets per second / 2 Gbps (based on RFC 2544)
  • Routing Table

    • Max. 4K routing rules
  • Concurrent Connections

    • Max. 400K (based on RFC 3511)
  • Connections Per Second

    • Max. 20K (based on RFC 3511)
  • Routing Redundancy

    • VRRP
  • Security

    • Secure Boot
      IPsec
      L2TP (server)
      RADIUS
      Trust access control
      TACACS+
      SCP
      SFTP
      NTP authentication
      Syslog Authentication
  • Time Management

    • NTP Server/Client
      SNTP
  • Unicast Routing

    • OSPF
      RIPV1/V2
      Static Route
  • Multicast Routing

    • Static Route
  • Filter

    • IGMP v1/v2/v3
Switch Properties
  • VLAN ID Range

    • VID 1 to 4094
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 32
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
DoS and DDoS Protection
  • Technology

    • ARP-Flood
      FIN Scan
      ICMP Flood
      TCP Sessions Without SYN
      NMAP-ID Scan
      NMAP-Xmas Scan
      Null Scan
      SYN/FIN Scan
      SYN/RST Scan
      SYN-Flood
      Xmas Scan
Firewall
  • Filter

    • DDoS
      Ethernet protocols
      ICMP
      IP address
      MAC address
      Ports
  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall
  • Deep Packet Inspection

    • DNP3
      EtherNet/IP
      IEC 60870-5-104
      IEC 61850 MMS
      MELSEC
      Modbus TCP
      Modbus UDP
      Omron FINS
      OPC UA
      Siemens S7 Comm.
      Siemens S7 Comm. Plus
      Additional protocols will be supported through future firmware updates.
  • Intrusion Prevention System

    • Requires an additional license.
  • Throughput

    • Firewall:
      Max. 350K packets per second / 2 Gbps (based on RFC 2544)

      IPS:
      Max. 200K packets per second / 2 Gbps (based on RFC 2544)
IPsec VPN
  • Authentication

    • MD5 and SHA (SHA-512)
      RSA (key size: 1024-bit, 2048-bit)
      X.509 v3 certificate
  • Concurrent VPN Tunnels

    • Max. 250 IPsec VPN tunnels
  • Encryption

    • DES
      3DES
      AES-128
      AES-192
      AES-256
      AES-256-GCM
  • Protocols

    • IPsec
      L2TP (server)
      PPTP (client)
  • Throughput

    • Conditions: AES-256, SHA-256
      Max. 100K packets per second / 800 Mbps (based on RFC 2544)
NAT
  • Features

    • 1-to-1
      N-to-1
      NAT loopback
      Port forwarding
Real-Time Firewall / VPN Event Log
  • Event Type

    • Firewall event
      VPN event
  • Media

    • Local storage
      SNMP Trap
      Syslog server
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
  • Connector

    • USB Type-C
Power Parameters
  • Connection

    • Removable terminal block
  • Input Voltage

    • 12/24/48 VDC (DNV-certified for 24 VDC)
      Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Input Current

    • 1.51 A @ 12 VDC
      0.70 A @ 24 VDC
      0.35 A @ 48 VDC
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP40
  • Dimensions

    • 58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)
  • Weight

    • 1030 g (2.27 lb)
  • Installation

    • DIN-rail mounting (DNV-certified)
      Wall mounting (with optional kit)
Environmental Limits
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • IEC 62368-1
      UL 62368-1
      IEC 60950-1
      UL 60950-1
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Maritime

    • IEC 60945
      DNV
  • Power Substation

    • IEEE 1613
      IEC 61850-3 Edition 2.0
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,080,807 hrs
  • Standards

    • Telcordia (Bellcore), GB
