AWK-4252A Series

Outdoor industrial IEEE 802.11a/b/g/n/ac wireless AP/bridge/client

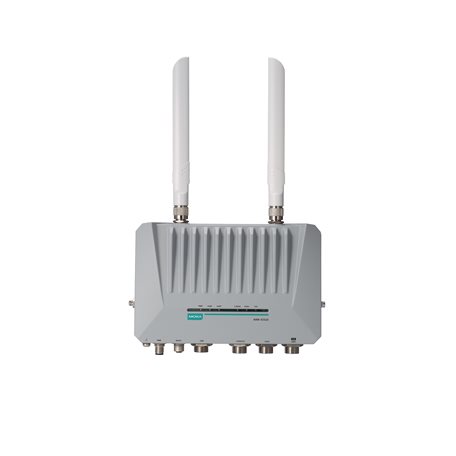

moxa-awk-4252a-series-image-1-(1).jpg | Moxa

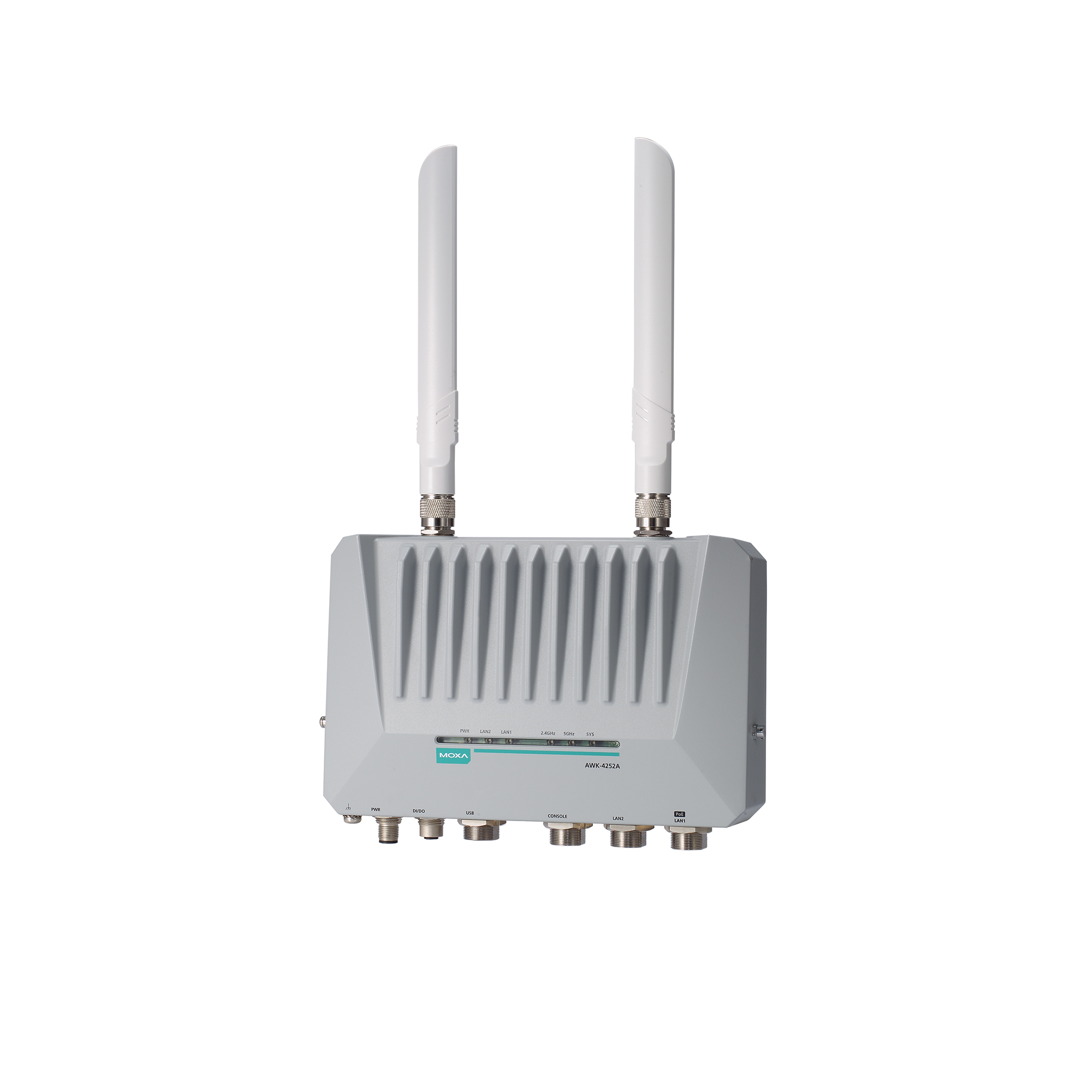

moxa-awk-4252a-series-image-2-(1).jpg | Moxa

Features and Benefits

IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
Latest WPA3 encryption for enhanced wireless network security
Universal (UN) models with configurable country or region code for more flexible deployment
Easy network setup with Network Address Translation (NAT)
Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range
Integrated antenna isolation
IEC 62443-4-2 Security Level 1 certified
-40 to 75°C operating temperature range

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The AWK-4252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-4252A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4252A can be powered via PoE to facilitate flexible deployment. The AWK-4252A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

IEC 62443-4-2 Security Level 1 Certified

The US and UN models of the series are IEC 62443-4-2 Security Level 1 certified (FR_Cyber10095) helping our customers meet the compliance requirements of secure industrial network design.

Advanced 802.11ac Industrial Wireless Solution

802.11a/b/g/n/ac compliant AP/bridge/client for flexible deployment
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

Seamless roaming with client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual. for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

-40 to 75°C wide operating temperature for smooth wireless communication in harsh environments
Enhanced antenna port isolation protection designed to withstand up to 30 kV ESD and 6 kV surge protection

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

WLAN Standards

2.4 GHz: 802.11b/g/n with 256 QAM support
5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Frequency Band for US (20 MHz operating channels)

AWK-4252A US Models Only:
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
5.745 to 5.825 GHz (5 channels)
Frequency Band for UN (20 MHz operating channels)

AWK-4252A UN Models Only:
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
5.745 to 5.825 GHz (5 channels)
Available channels change depending on the selected country or region code.
Wireless Security

WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal
Transmission Rate

2.4 GHz:
802.11b: 1 to 11 Mbps
802.11g: 6 to 54 Mbps
802.11n: 6.5 to 400 Mbps

5 GHz:
802.11a: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
802.11ac: 6.5 to 867 Mbps
Transmitter Power for 802.11a (Dual Chain)

24±1.5 dBm @ 6 Mbps
22±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain)

24±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS0 40 MHz
21±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain)

23.5±1.5 dBm @ MCS0 20 MHz
20.5±1.5 dBm @ MCS8 20 MHz
23.5±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS9 40 MHz
22.5±1.5 dBm @ MCS0 80 MHz
20±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11b (Dual Chain)

27.5±1.5 dBm @ 1 Mbps
28±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain)

28±1.5 dBm @ 6 Mbps
25±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

26±1.5 dBm @ MCS0 20 MHz
24±1.5 dBm @ MCS7 20 MHz
26±1.5 dBm @ MCS0 40 MHz
24.5±1.5 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

Typ. -88 @ 6 Mbps
Typ. -71 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

Typ. -87 dBm @ MCS0 20 MHz
Typ. -68 dBm @ MCS7 20 MHz
Typ. -83 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac

Typ. -87 dBm @ MCS0 20 MHz
Typ. -64 dBm @ MCS8 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -59 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -56 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

Typ. -93 dBm @ 1 Mbps
Typ. -86 dBm @ 11 Mbps
Note: Concurrent USB read/write activity on the device may generate interference and may mildly affect receiver sensitivity performance. It is recommended to avoid USB activity on the device in mission-critical applications.
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

Typ. -88 dBm @ 6 Mbps
Typ. -71 dBm @ 54 Mbps
Note: Concurrent USB read/write activity on the device may generate interference and may mildly affect receiver sensitivity performance. It is recommended to avoid USB activity on the device in mission-critical applications.
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

Typ. -87 dBm @ MCS0 20 MHz
Typ. -68 dBm @ MCS7 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Note: Concurrent USB read/write activity on the device may generate interference and may mildly affect receiver sensitivity performance. It is recommended to avoid USB activity on the device in mission-critical applications.
WLAN Operation Mode

Access point
Client
Client-Router
Master
Slave
Sniffer
Mesh
Antenna

External, 3/6 dBi
Omni-directional
Antenna Connectors

2 x N-type female

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af for PoE
IEEE 802.3at for PoE
IEEE 802.3az for Energy-Efficient Ethernet
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
10/100/1000BaseT(X) Ports (RJ45 connector)

1
PoE Ports (10/100/1000BaseT(X), RJ45 connector)

1

Management

DHCP Server
DHCP Client
DNS
HTTP
IPv4/IPv6
LLDP
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
UDP
VLAN
MXconfig
Routing

Port forwarding
Static Route
NAT
Security

HTTPS/SSL
RADIUS
SSH
Certificate Management
Time Management

SNTP Client

Filter

ICMP
MAC address
IP protocol
Port-based
Wi-Fi ACL
Client Isolation

Console Port

RS-232
8-pin RJ45

Storage Port

USB Type A

LED Indicators

PWR, LAN1, LAN2, 2.4G, 5G, SYS

Digital Inputs

2
Max. input current: 8 mA
+13 to +30 V for state 1
+3 to -30 V for state 0
Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC
Buttons

Reset button

Housing

Metal
Dimensions

66.5 x 157.6 x 244 mm (2.56 x 6.20 x 9.61 in)
IP Rating

IP68
Weight

2024 g (4.7 lb)
Installation

Wall mounting
DIN-rail mounting (with optional kit)
Pole mounting (with optional kit)

Input Current

12-48 VDC, 2.2-0.55 A
Input Voltage

12 to 48 VDC
Redundant dual inputs
48 VDC Power-over-Ethernet
Power Connector

M12 A-coded 5-pin male connector
Power Consumption

28.4 W (max.)

Operating Temperature

Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 61000-6-2/-6-4
EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 30 A/m
Industrial Cybersecurity

IEC 62443-4-2 Security Level 1
Safety

IEC 60950-1
IEC 62368-1
UL 62368-1
Vibration

IEC 60068-2-6
Radio

EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

Time

746,471 hrs
Standards

Telcordia Standard SR-332

Warranty Period

5 years
Details

See www.moxa.com/warranty
