電源アダプタ

AC電源アダプタ

moxa-power-adapters-image-(1).jpg | Moxa
moxa-power-adapters-image-1-(1).jpg | Moxa
moxa-power-adapters-image-2-(1).jpg | Moxa
moxa-power-adapters-image-3-(1).jpg | Moxa
moxa-power-adapters-image-4-(1).jpg | Moxa
moxa-power-adapters-image-5-(1).jpg | Moxa

特徴および利点

  • 100~240 VACの入力
  • -40~75℃の動作温度範囲(-Tモデル)

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

Moxa電源アダプタシリーズは、多数のMoxa製品に対して信頼性の高い電源を提供します。

  • Voltage Range

    100 to 240 VAC (50 to 60 Hz)

  • Input Plug Type

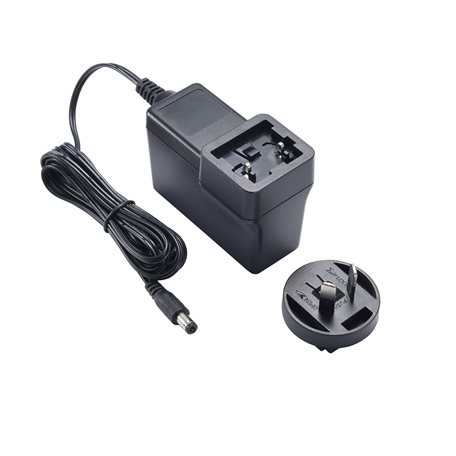

    PWR-AU Series: Australia plug type

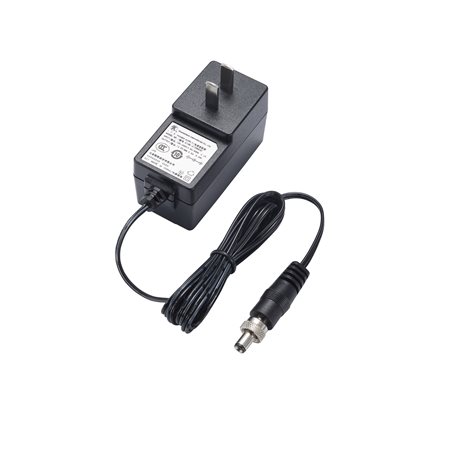

    PWR-CN Series: China plug type

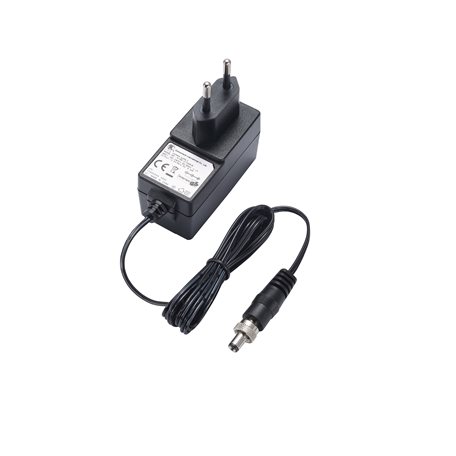

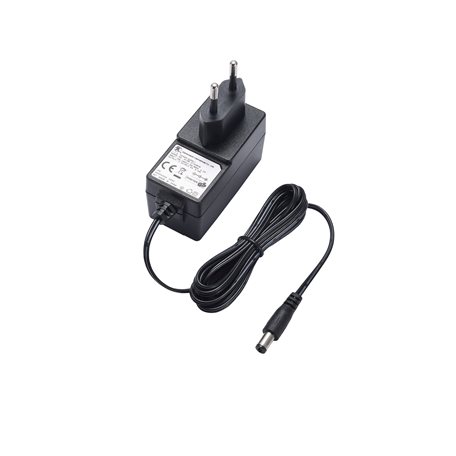

    PWR-EU Series: Europe plug type

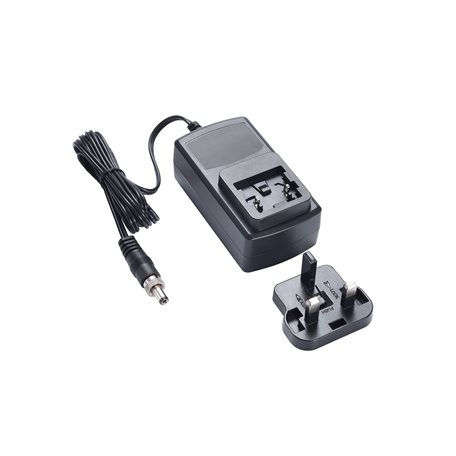

    PWR-UK Series: United Kingdom plug type

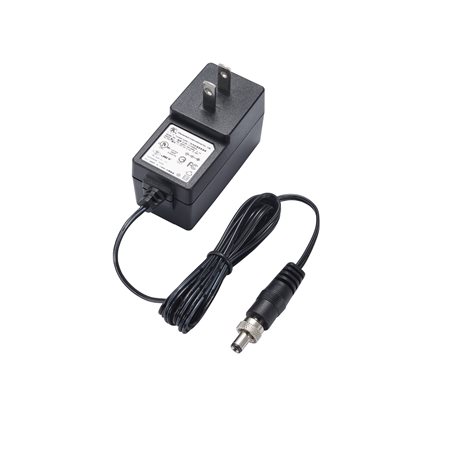

    PWR-USJP Series: United States/Japan plug type

  • Output Power Rating

    PWR-12050 Series: 0.5 A @ 12 VDC
    PWR-12125-USJP-S1: 1.25 A @ 12 VDC
    PWR-12150 Series: 1.5 A @ 12 VDC
    PWR-12125-DT-S2: 1.25 A @ 12 VDC
    PWR-12200-DT-S1: 2 A @ 12 VDC
    PWR-12300 Series: 3 A @ 12 VDC

  • Output Plug Type

    PWR-12050-S1 Series: S-Type 5.5/2.1/7.5
    PWR-12300 Series: S-Type 5.5/2.1/7.5
    PWR-12050-S2 Series: L-Type 5.5/2.1/9.0
    PWR-12125-USJP-S1: L-Type 5.5/2.1/9.5
    PWR-12150 Series: L-Type 5.5/2.1/9.0
    PWR-12125-DT-S2: S-Type 5.5/2.1/7.5
    PWR-12200-DT-S1: S-Type 5.5/2.1/7.5
    PWR-12150-SA-T Series: L-Type 5.5/2.1/7.5
    Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in)
    Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)

  • Dimensions

    PWR-12050-WPAU-S1: 64 x 40.5 x 58.5 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPAU-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.30 in)
    PWR-12050-WPCN-S1: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPCN-S2: 64 x 40.5 x 46.5 mm (2.52 x 1.59 x 1.83 in)
    PWR-12050-WPEU-S1: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)
    PWR-12050-WPEU-S2: 64 x 40.5 x 68.7 mm (2.52 x 1.59 x 2.71 in)
    PWR-12050-WPUK-S1: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUK-S2: 64 x 40.5 x 56.2 mm (2.52 x 1.59 x 2.21 in)
    PWR-12050-WPUSJP-S1: 64 x 40.5 x 47.5 mm (2.52 x 1.59 x 1.87 in)
    PWR-12050-WPUSJP-S2: 64 x 40.5 x 30 mm (2.52 x 1.59 x 1.18 in)
    PWR-12125-USJP-S1: 74 x 43.5 x 52.5 mm (2.91 x 1.71 x 2.07 in)

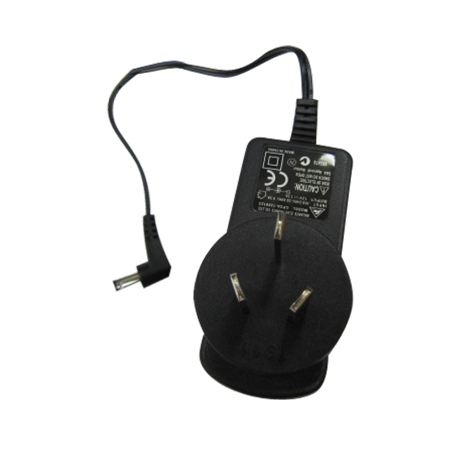

    PWR-12150-AU-S2: 70 x 55 x 56 mm (2.76 x 2.17 x 2.21 in)

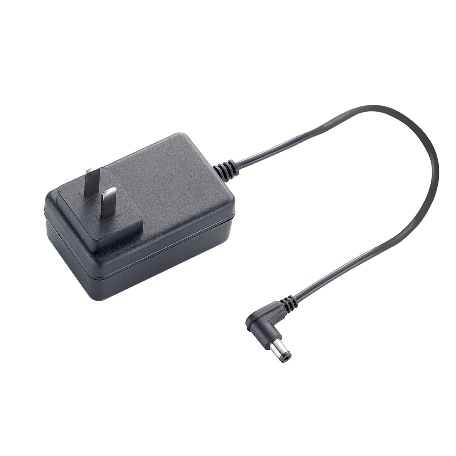

    PWR-12150-CN-S1: 70 x 45 x 54 mm (2.76 x 1.77 x 2.13 in)

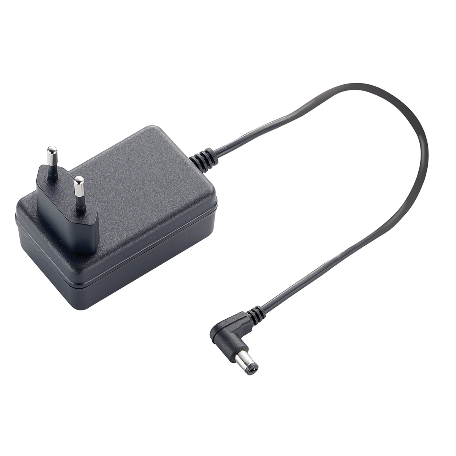

    PWR-12150-EU-S2: 70 x 45 x 66.5 mm (2.76 x 1.77 x 2.62 in)
    PWR-12150-UK-S2: 70 x 48 x 60 mm (2.76 x 1.89 x 2.36 in)
    PWR-12300-WPAU-S1: 74 x 43.5 x 63.3 mm (2.91 x 1.71 x 2.49 in)
    PWR-12300-WPCN-S1: 74 x 43.5 x 51.3 mm (2.91 x 1.71 x 2.02 in)
    PWR-12300-WPEU-S1: 74 x 43.5 x 73.5 mm (2.91 x 1.71 x 2.89 in)
    PWR-12300-WPUK-S1: 74 x 43.5 x 61 mm (2.91 x 1.71 x 2.40 in)
    PWR-12300-WPUSJP-S1: 74 x 43.5 x 52.3 mm (2.91 x 1.71 x 2.06 in)
    PWR-12125-DT-S2: 75 x 47.5 x 27.3 mm (2.95 x 1.87 x 1.07 in)
    PWR-12200-DT-S1: 110.8 x 51.8 x 32 mm (4.36 x 2.04 x 1.26 in)
    PWR-12150-AU-SA-T: 41 x 73.9 x 89.5 mm (1.61 x 2.91 x 3.52 in)
    PWR-12150-CN-SA-T: 32 x 60 x 88 mm (1.26 x 2.36 x 3.46 in)
    PWR-12150-EU-SA-T: 32 x 85.3 x 88 mm (1.26 x 3.36 x 3.46 in)
    PWR-12150-UK-SA-T: 50 x 91 x 82.5 mm (1.97 x 3.58 x 3.25 in)
    PWR-12150-USJP-SA-T: 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in)

  • Weight

    PWR-12050 Series: 70 g ( 0.15 lb )
    PWR-12125-US-JP-S1: 108 g (0.24 lb )
    PWR-12150 Series: 200 g ( 0.44 lb )
    PWR-12300-S1 Series: 163 g ( 0.36 lb )
    PWR-DT Series: 200 g ( 0.44 lb )

  • Cord Length

    PWR-12050-S1 Series: 1530±100 mm (60.24±3.94 in)
    PWR-12050-S2 Series: 1830±100 mm (72.05±3.94 in)
    PWR-12125-USJP-S1: 1530±100 mm (60.24±3.84 in)
    PWR-12150 Series: 1800±200 mm (70.87±7.87 in)
    PWR-12300 Series: 1530±200 mm (60.24±7.87 in)
    PWR-12200-DT-S1: 1800±200 mm (70.87±7.87 in)
    PWR-12125-DT-S2: 1530±100 mm (60.24±3.94 in)

  • Operating Temperature

    Standard models: 0 to 40°C (32 to 104°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    Standard models: -20 to 70°C (-4 to 158°F)
    Wide T models: -40 to 75°C (-40 to 167°F)

  • Safety

    PWR-12050-S1 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12300 Series: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12050-S2 Series: CE/FCC/UL/RCM/PSE/CCC
    PWR-12125-USJP-S1: CE/FCC/UL/RCM/PSE/GS
    PWR-12150-AU-S2: RCM
    PWR-12150-CN-S1: CCC
    PWR-12150-EU-S2: CE/GS
    PWR-12150-UK-S2: CE
    PWR-12200-DT-S1: Efficiency Level 5: CE/FCC/UL/RCM/PSE/CCC; Efficiency Level 6: CE/FCC/UL/PSE
    PWR-12125-DT-S2: CE/FCC/UL/PSE/GS
    PWR-12150-AU-SA-T: RCM
    PWR-12150-CN-SA-T: CCC
    PWR-12150-EU-SA-T: TUV/CE/GS
    PWR-12150-UK-SA-T: CE
    PWR-12150-USJP-SA-T: FCC/UL/PSE

利用可能なモデル (6)

画像を表示
moxa-pwr-12150-uk-sa-t-image.jpg | MoxaPWR-12150-UK-SA-Tmoxa-pwr-12200-dt-s1-image.jpg | MoxaPWR-12200-DT-S1moxa-pwr-12150-usjp-sa-t-image.jpg | MoxaPWR-12150-USJP-SA-Tmoxa-pwr-12150-eu-sa-t-image.jpg | MoxaPWR-12150-EU-SA-T
Barrel-plug TypeLockingLockingLockingLocking
Input-plug TypeUKDesktopUS/JPEU
Output Rating1.5 A @ 12 VDC2 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC
Operating Temperature-40 to 75°C (-40 to 167°F)0 to 40°C (32 to 104°F)-40 to 75°C (-40 to 167°F)-40 to 75°C (-40 to 167°F)
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-pwr-12150-cn-sa-t-image.jpg | MoxaPWR-12150-CN-SA-Tmoxa-pwr-12150-au-sa-t-image.jpg | MoxaPWR-12150-AU-SA-T
Barrel-plug TypeLockingLocking
Input-plug TypeCNAU
Output Rating1.5 A @ 12 VDC1.5 A @ 12 VDC
Operating Temperature-40 to 75°C (-40 to 167°F)-40 to 75°C (-40 to 167°F)
見積りに追加バッグを見る見積りに追加バッグを見る
バッグに追加

電源アダプタ

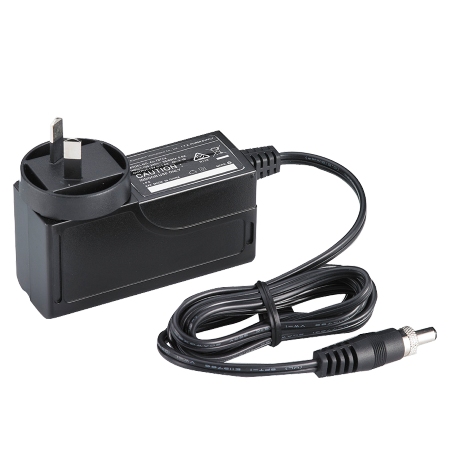

PWR-12150-AU-SA-T

moxa-pwr-12150-au-sa-t-image.jpg | Moxa

Buy online from our distributors

電源アダプタ

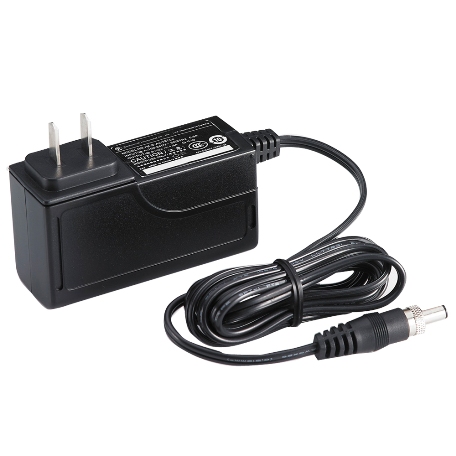

PWR-12150-CN-SA-T

moxa-pwr-12150-cn-sa-t-image.jpg | Moxa

Buy online from our distributors

電源アダプタ

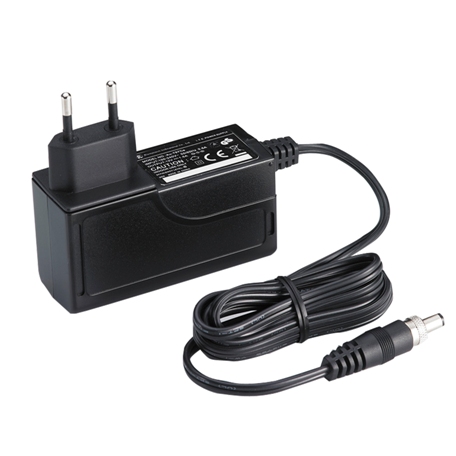

PWR-12150-EU-SA-T

moxa-pwr-12150-eu-sa-t-image.jpg | Moxa

Buy online from our distributors

電源アダプタ

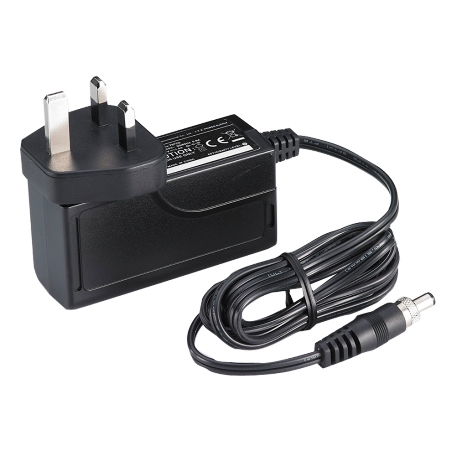

PWR-12150-UK-SA-T

moxa-pwr-12150-uk-sa-t-image.jpg | Moxa

Buy online from our distributors

電源アダプタ

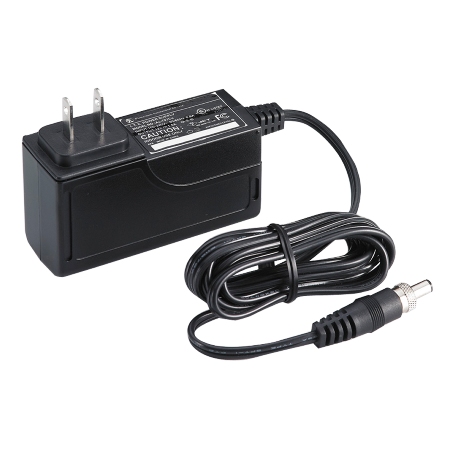

PWR-12150-USJP-SA-T
