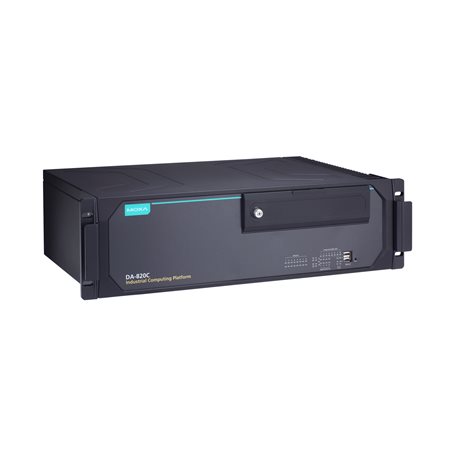

DA-820C-KLXL-HH-T
DA-820Cシリーズ

x86 computer with Intel® Core™ Xeon E3-1505L v6 CPU, 2 HDMIs, 1 VGA, 2 PS/2s, 4 Gigabit LAN ports, 2 RS/232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA, 4 SSD slots, dual AC power, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel® Xeon® Processor E3-1505L v6 (8M Cache, 2.20 GHz)

  • System Memory Slot

    • SODIMM DDR4 slot x 2

  • DRAM

    • 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module)
      ECC RAM only supports i3 CPU and Xeon CPU models

  • Graphics Controller

    • Intel® HD Graphics P630

  • Storage Slot

    • 2.5-inch HDD/SSD slots x 4

  • Supported OS

    • Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      Linux Debian 9
      Note: OS available by CTOS

  • Supported Driver

    • Windows Server 2016
Computer Interface

  • Video Output

    • HDMI x 2, HDMI connector (type A)
      VGA x 1, 15-pin D-sub connector (female)

  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 2.0

    • USB 2.0 hosts x 3, type-A connectors
      2 ports on the front panel, 1 port inside the computer

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
      3 ports on the rear panel

  • Expansion Slots

    • PCIe x16 slot x 1
      PCIe x4 slots x 1
      PCIe x1 slots x 2
      PCI slots x 1

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • TPM

    • TPM v2.0

  • Digital Input

    • DIs x 6

  • Digital Output

    • DOs x 2
LED Indicators

  • System

    • Power x 1
      Storage x 1
      Programmable x 8

  • Serial

    • 2 per port (Tx, Rx)

  • LAN

    • 8 per port (10/100/1000 Mbps)
Serial Interface

  • Baudrate

    • 300 bps to 115.2 kbps

  • Connector

    • DB9 male

  • ESD

    • 8 kV (level 4)

  • Isolation

    • 2 kV

  • Serial Standards

    • RS-232/422/485

  • Surge

    • 2 kV
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs

  • Digital Input Channels

    • DIs x 6

  • Voltage

    • 0 to 30 VDC at 25 Hz

  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
Digital Outputs

  • Digital Output Channels

    • DOs x 2

  • Current Rating

    • Max. 200 mA per channel

  • Voltage

    • 24 to 30 VDC

  • I/O Type

    • Sink
Power Parameters

  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)

  • Power Consumption

    • 100 W (max.)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (without ears)

    • 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in)

  • Weight

    • 14,000 g (31.11 lb)

  • Installation

    • 19-inch rack mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4, EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 20 A/m
      IEC 61000-4-11 DIPs

  • Power Substation

    • IEC 61850-3, IEEE 1613

  • Protection Relay

    • IEC 60255

  • Safety

    • IEC 60950-1, IEC 62368-1, UL 62368-1

  • Shock

    • IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 325,730 hrs

  • Standards

    • Telcordia SR332
