MOXA

ターミナルサーバー

Moxaのターミナルサーバーは、ネットワークへの信頼できるターミナル接続を確立するために必要となる特別な機能とセキュリティ機能を備えており、ターミナル、モデム、データスイッチ、メインフレームコンピュータ、POSデバイスなどのさまざまなデバイスを接続して、ネットワークホストやネットワーク処理で利用可能にします。

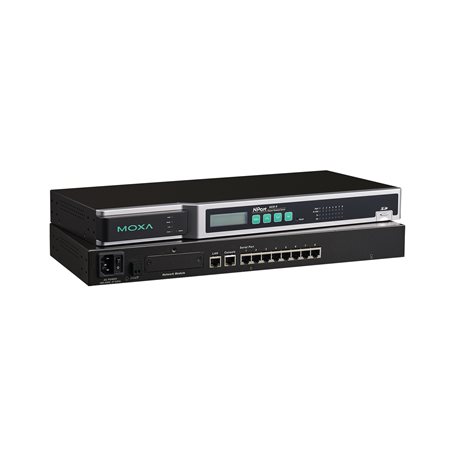

NPort 6610-8
NPort 6400/6600シリーズ

8-port RS-232 to Ethernet secure device server, 100-240 VAC input

Memory
  • SD Slot

    • Up to 32 GB (SD 2.0 compatible)
Input/Output Interface
  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • MIB

    • MIB-II
  • Time Management

    • SNTP Client
  • Unicast Routing

    • RIPV1/V2, Static Route
  • Authentication

    • Local Account Accessibility, RADIUS, TACACS+
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 8
  • Serial Standards

    • RS-232
  • Secure Operation Modes

    • Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
  • Standard Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
  • Input Current

    • 140 mA @ 100 VAC
  • Input Voltage

    • 100 to 240 VAC, 47 to 63 Hz
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
  • Dimensions (without ears)

    • 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
  • Weight

    • 3460 g (7.63 lb)
  • Interactive Interface

    • LCD panel display
      Push buttons for configuration
  • Installation

    • Rack mounting
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Safety

    • UL 60950-1
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-34
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 135,891 hrs
  • Standards

    • Telcordia (Bellcore) Standard
Warranty
