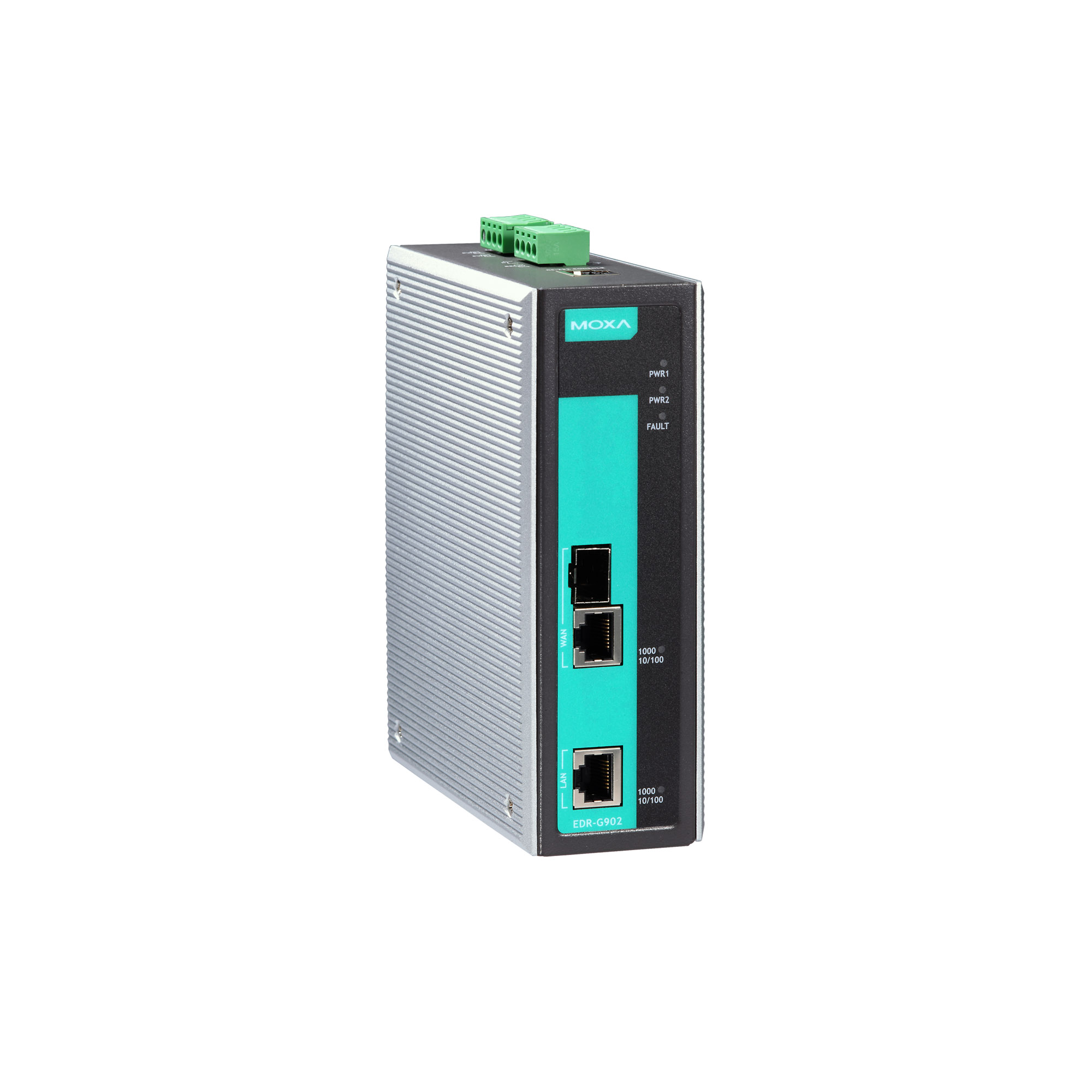

EDR-G902シリーズ

ファイアウォール/NAT/VPNを備えた産業用セキュアルータ

moxa-edr-g902-series-image-1-(1).jpg | Moxa

機能と特長

  • ファイアウォール/NAT/VPN/ルータオールインワン
  • VPNによる安全なリモートアクセストンネル
  • ステートフルファイアウォールによる重要な資産の保護
  • PacketGuard技術による産業プロトコルの検査
  • ネットワークアドレス変換(NAT)を使用した簡単なネットワーク設定
  • パブリックネットワークを介したデュアルWAN冗長インターフェース
  • 異なるインターフェースのVLANのサポート
  • -40~75℃の動作温度範囲(-Tモデル)
  • IEC 62443/NERC CIPに基づくセキュリティ機能

認証

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

EDR-G902は、ファイアウォール/NATオールインワンセキュアルータを備えた高性能な産業用VPNサーバーです。これは、重要な遠隔制御または監視ネットワーク上のイーサネットベースのセキュリティアプリケーション用に設計されており、ポンプステーション、DCS、石油リグ上のPLCシステム、および水処理システムを含む重要なサイバー資産の保護のための電子セキュリティ周辺機器を提供します。EDR-G902シリーズには、以下のサイバーセキュリティ機能が搭載されています。

  • 仮想プライベートネットワーク(VPN):VPNは、パブリックインターネットからプライベートネットワークにアクセスするときに、ユーザーに安全な通信リンクを提供するように設計されています。ネットワーク層ですべてのIPパケットの暗号化と認証にIPsec(IPセキュリティ)サーバーまたはクライアントモードを使用して、機密性と送信者認証を確保します。

  • ファイアウォール:異なる信頼ゾーン間のネットワークトラフィックを制御します。ネットワークアドレス変換(NAT)。外部ホストからの不正なアクティビティから内部LANを保護します。

EDR-G902の「クイックオートメーションプロファイル」機能は、EtherCAT、EtherNet/IP、FOUNDATION Fieldbus、Modbus TCP、およびPROFINETを含む、最も一般的なフィールドバスプロトコルをサポートします。ユーザーは、シングルクリックによる使い勝手のよいWeb UIから容易にセキュアなイーサネットフィールドネットワークを作成することができます。さらに、MoxaのPacketGuard技術(Deep PacketInspection)は、OSIレイヤ7でModbus TCPコマンドをフィルタリングするのに役立ちます。使用可能な広温度範囲モデルは、危険な-40~75°Cの環境で確実に動作します。

  • Alarm Contact Channels

    1 relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    1

  • Standards

    IEEE 802.1Q for VLAN Tagging
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

  • WAN Ports, RJ45/Fiber Combo Port

    1

  • LAN Ports, RJ45 port

    1

  • Management

    Back Pressure Flow Control, DDNS, DHCP Server/Client, HTTP, LLDP, QoS/CoS/ToS, SMTP, SNMPv1/v2c/v3, Telnet, TFTP, QoS, PPPOE, Traffic prioritization

  • Routing

    Throughput: 25,000 packets per second (max. 300 Mbps)

  • Routing Redundancy

    VRRP

  • Security

    HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS

  • Time Management

    NTP Server/Client, SNTP

  • Unicast Routing

    OSPF, RIPV1/V2, Static Route

  • Max. No. of VLANs

    10

  • Technology

    ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan

  • Deep Packet Inspection

    Modbus TCP
    Modbus UDP

  • Filter

    DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports

  • Quick Automation Profiles

    DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet

  • Stateful Inspection

    Router firewall
    Transparent (bridge) firewall

  • Throughput

    Max. 25000 packets per second (max. 300 Mbps)

  • Authentication

    MD5 and SHA (SHA-256)
    RSA (key size: 1024-bit, 2048-bit)
    X.509 v3 certificate

  • Concurrent VPN Tunnels

    Max. 50 IPsec VPN tunnels

  • Encryption

    3DES, AES-128, AES-192, AES-256, DES

  • Protocols

    IPsec, L2TP (server), PPTP (client)

  • Throughput

    Max. 60 Mbps (Conditions: AES-256, SHA-256)

  • Features

    1-to-1, bidirectional 1-to-1, N-to-1, Port forwarding

  • Authentication

    User password by MD5 and SHA1

  • Concurrent VPN Tunnels

    Client Mode: max. 2 external servers
    Server Mode: max. 5 external clients

  • Encryption

    AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC

  • Protocols

    OpenVPN (client and server), UDP, and TCP, Tunnel mode (routing) and TAP mode (bridge)

  • Event Type

    Firewall event, System event, VPN event

  • Media

    Local storage, SNMP Trap, Syslog server

  • Console Port

    RS-232

  • Connection

    Removable terminal block

  • Input Voltage

    12/24/48 VDC

  • Inrush Current (Max.)

    0.45 A @ 24 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)

  • Weight

    1250 g (2.82 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    EDR-G902: 0 to 60°C (32 to 140°F)
    EDR-G902-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Maritime

    DNV-GL

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    981,233 hrs

  • Standards

    Telcordia (Bellcore), GB

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Software Package for MXview One Series (Windows version)
374.0 MB
ソフトウェアパッケージ
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 リリースノート
Software Package for MXview One Series (Linux version)
333.4 MB
ソフトウェアパッケージ
SHA-512
v1.3.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年1月31日 2024年1月31日 リリースノート
Firmware for EDR-G902 Series
26.0 MB
ファームウェア
SHA-512
v5.7.21
2023年9月22日 2023年9月22日 リリースノート
Firmware for EDR-G902 Series
26.0 MB
ファームウェア
SHA-512
v5.7
2021年12月28日 2021年12月28日 リリースノート
MIB file for EDR-G902 Series
145.1 KB
ソフトウェアパッケージ
SHA-512
v5.0
2019年2月1日 2019年2月1日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
QIG for EDR-G902/EDR-G903 Series
1.6 MB
QIG (クイックインストールガイド) 英語 v6.1 2021年5月25日 2021年5月25日
EDR-G902シリーズデータシート
3.5 MB
データシート 日本語 v1.1 2019年8月26日 2019年8月26日
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
テクニカルノート 英語 v1.0 2019年2月12日 2019年2月12日
Manual for EDR-G902 Series
17.0 MB
マニュアル 英語 v4.0 2018年4月16日 2018年4月16日
2D CAD for EDR-G902
295.5 KB
2D CAD 英語 2018年1月19日 2018年1月19日
Moxa Industrial Secure Router CLI Command Set User's Manual
510.4 KB
マニュアル 英語 v1.0 2014年12月16日 2014年12月16日

利用可能なモデル (2)

画像を表示
moxa-edr-g902-image.jpg | MoxaEDR-G902moxa-edr-g902-t-image.jpg | MoxaEDR-G902-T
10/100/1000BaseT(X)
RJ45 Connector,
100/1000Base SFP Slot Combo WAN Port
11
Firewall/NAT/VPN
Operating Temp.0 to 60°C-40 to 75°C
