Reset button

2

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)

Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH

Secure Boot, Trust access control

NTP Server/Client, SNTP

Static Route

Throughput: 15K packets per second (max. 100 Mbps)

Max. 32 routing rules

Max. 30K

Max. 4.5K

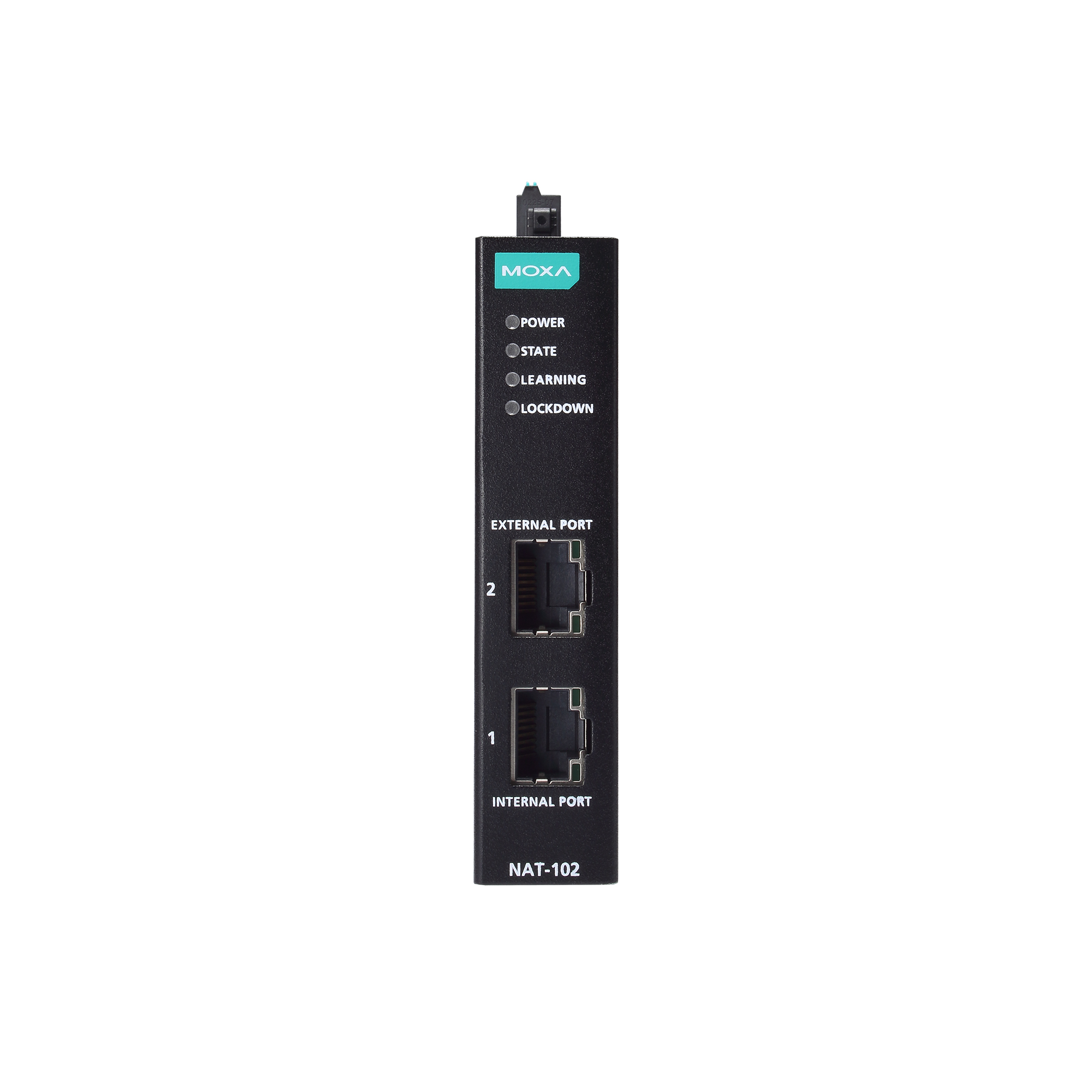

POWER, STATE, LEARNING, LOCKDOWN

IP address, MAC address, Ports

MAC address
IP address

Max. 15K packets per second (max. 100 Mbps)

1-to-1, N-to-1, Port forwarding, NAT loopback

Max. 15K packets per second (max. 100 Mbps)

Policy enforcement

Local storage, Syslog server

RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

USB Type-C

Removable terminal block

12/24/48 VDC

0.196 A @ 12 VDC
0.100 A @ 24 VDC
0.056 A @ 48 VDC

Supported

Metal

20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in)

210 g (0.47 lb)

DIN-rail mounting, Wall mounting (with optional kit)

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

UL 62368-1

EN 55032/35

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

ATEX, Class I Division 2

NEMA TS2

EN 50121-4

IEC 60068-2-27

IEC 60068-2-32

IEC 60068-2-6

2,135,469 hrs

Telcordia (Bellcore), GB

5 years

See www.moxa.com/jp/warranty
