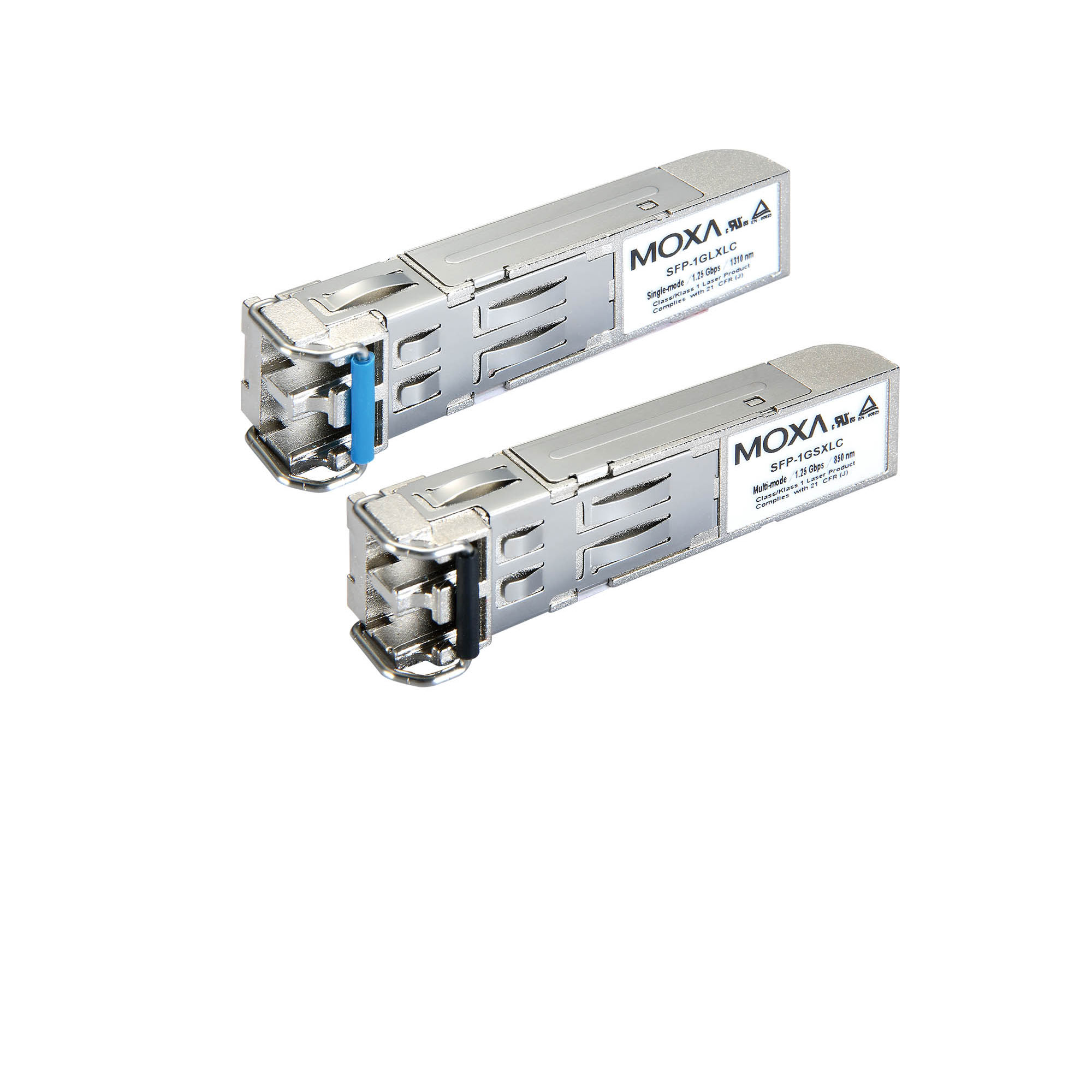

SFP-1G 系列

1 埠 Gigabit 乙太網路 SFP 模組

moxa-sfp-1g-series-image-(1).jpg | Moxa

特色與優點

  • 數位診斷監控功能
  • -40 至 85°C 操作溫度範圍（T 型號）
  • 符合 IEEE 802.3z 標準
  • 差異化 LVPECL 輸入與輸出
  • TTL 訊號偵測指示燈
  • 可熱插拔的 LC 雙工連接器
  • 符合 Class 1 laser 產品 EN 60825-1 標準

認證

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-rec-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

SFP-1G 系列 1 埠 Gigabit 乙太網路 SFP 模組可作為部分 Moxa 乙太網路交換器的選配配件。

  • Ports

    1

  • Connectors

    Duplex LC connector
    Simplex LC connector (WDM-type only)

  • Optical Fiber

    Gigabit Ethernet SFP
    SFP-SX SFP-LSX SFP-LX SFP-LH
    Transceiver Type Multi-Mode Multi-Mode Single-mode Single-mode
    Fiber Cable Type OM1 OM2 OM2 OM1 G.652 G.652
    Typical Distance 300 m 550 m 1 km 2 km 10 km 30 km
    Wavelength Typical (nm) 850 1310 1310 1310
    TX Range (nm) 830 to 860 1270 to 1355 1280 to 1355 1280 to 1355
    RX Range (nm) 770 to 860 1260 to 1610 1260 to 1610 1260 to 1610
    Optical Power TX Range (dBm) -4 to -9.5 -1 to -9 -3 to -9 -3 to -8
    RX Range (dBm) 0 to -18 -1 to -19 -3 to -21 -3 to -23
    Link Budget (dB) 8.5 10 12 15
    Dispersion Penalty (dB) 4.3 3.6 5 5 1 1
    Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.

  • Optical Fiber

    Gigabit Ethernet SFP
    SFP-LHX SFP-ZX SFP-EZX SFP-EZX-120
    Transceiver Type Single-mode Single-mode Single-mode Single-mode
    Fiber Cable Type G.652 G.652 G.652 G.652
    Typical Distance 40 km 80 km 110 km 120 km
    Wavelength Typical (nm) 1310 1550 1550 1550
    TX Range (nm) 1280 to 1340 1530 to 1570 1530 to 1570 1530 to 1570
    RX Range (nm) 1260 to 1610 1260 to 1610 1260 to 1610 1100 to 1600
    Optical Power TX Range (dBm) +3 to -4 +5 to 0 +5 to 0 +3 to -2
    RX Range (dBm) -1 to -24 -1 to -24 -9 to -30 -8 to -33
    Link Budget (dB) 20 24 30 31
    Dispersion Penalty (dB) 1 1 1 2
    Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.

  • Optical Fiber

    WDM Gigabit Ethernet SFP
    SFP-10A SFP-10B SFP-20A SFP-20B
    Transceiver Type Single-mode Single-mode
    Fiber Cable Type G.652 G.652
    Typical Distance 10 km 20 km
    Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310 TX 1310, RX 1550 TX 1550, RX 1310
    TX Range (nm) 1270 to 1355 1530 to 1570 1270 to 1355 1530 to 1570
    RX Range (nm) 1480 to 1580 1260 to 1360 1480 to 1580 1260 to 1360
    Optical Power TX Range (dBm) -3 to -9 -2 to -8
    RX Range (dBm) -3 to -21 -2 to -23
    Link Budget (dB) 12 15
    Dispersion Penalty (dB) 2 3
    Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC).
    Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.

  • Optical Fiber

    WDM Gigabit Ethernet SFP
    SFP-40A SFP-40B
    Transceiver Type Single-mode
    Fiber Cable Type G.652
    Typical Distance 40 km
    Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310
    TX Range (nm) 1290 to 1330 1530 to 1570
    RX Range (nm) 1480 to 1580 1260 to 1360
    Optical Power TX Range (dBm) +2 to -3
    RX Range (dBm) -1 to -23
    Link Budget (dB) 20
    Dispersion Penalty (dB) 1
    Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC).
    Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.

  • Optical Fiber

    Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)

  • Power Consumption

    Max. 1 W

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 176°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    CE, FCC, TÜV (EN 60825), UL 60950-1

  • Maritime

    DNV-GL

支援文件

篩選

全部 相容性指南 產品資料表
名稱 類型 語言 版本 發布日期
Moxa Ethernet SFP Transceiver Product Compatibility Matrix
542.3 KB 		相容性指南 英文 v1.4 2023年2月10日 2023年2月10日
SFP-1G 系列產品資料表
2.4 MB 		產品資料表 中文 v1.0 2018年11月30日 2018年11月30日

可供選擇的機型 (26)

顯示圖片
比較
moxa-sfp-1gezxlc-image.jpg | MoxaSFP-1GEZXLC
比較
moxa-sfp-1gezxlc-120-image.jpg | MoxaSFP-1GEZXLC-120
比較
moxa-sfp-1glhlc-image.jpg | MoxaSFP-1GLHLC
比較
moxa-sfp-1glhxlc-image.jpg | MoxaSFP-1GLHXLC
Transceiver TypeSingle-modeSingle-modeSingle-modeSingle-mode
Typical Distance110 km120 km30 km40 km
Operating Temp.0 to 60°C0 to 60°C0 to 60°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1glsxlc-image.jpg | MoxaSFP-1GLSXLC
比較
moxa-sfp-1glxlc-image.jpg | MoxaSFP-1GLXLC
比較

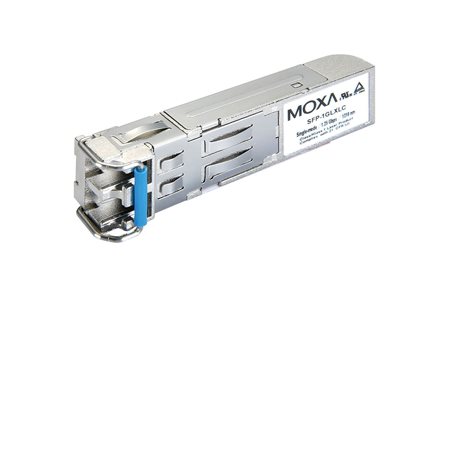

moxa-sfp-1gsxlc-image.jpg | MoxaSFP-1GSXLC
比較
moxa-sfp-1gzxlc-image.jpg | MoxaSFP-1GZXLC
Transceiver TypeMulti-modeSingle-modeMulti-modeSingle-mode
Typical Distance1 km/2 km10 km300 m/550 m80 km
Operating Temp.0 to 60°C0 to 60°C0 to 60°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1glhlc-t-image.jpg | MoxaSFP-1GLHLC-T
比較
moxa-sfp-1glhxlc-t-image.jpg | MoxaSFP-1GLHXLC-T
比較
moxa-sfp-1glsxlc-t-image.jpg | MoxaSFP-1GLSXLC-T
比較
moxa-sfp-1glxlc-t-image.jpg | MoxaSFP-1GLXLC-T
Transceiver TypeSingle-modeSingle-modeMulti-modeSingle-mode
Typical Distance30 km40 km1 km/2 km10 km
Operating Temp.-40 to 85°C-40 to 85°C-40 to 85°C-40 to 85°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1gsxlc-t-image.jpg | MoxaSFP-1GSXLC-T
比較
moxa-sfp-1gzxlc-t-image.jpg | MoxaSFP-1GZXLC-T
比較
moxa-sfp-1g10alc-image.jpg | MoxaSFP-1G10ALC
比較
moxa-sfp-1g10blc-image.jpg | MoxaSFP-1G10BLC
Transceiver TypeMulti-modeSingle-modeSingle-modeSingle-mode
Typical Distance300 m/550 m80 km10 km10 km
Operating Temp.-40 to 85°C-40 to 85°C0 to 60°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1g20alc-image.jpg | MoxaSFP-1G20ALC
比較
moxa-sfp-1g20blc-image.jpg | MoxaSFP-1G20BLC
比較
moxa-sfp-1g40alc-image.jpg | MoxaSFP-1G40ALC
比較
moxa-sfp-1g40blc-image.jpg | MoxaSFP-1G40BLC
Transceiver TypeSingle-modeSingle-modeSingle-modeSingle-mode
Typical Distance20 km20 km40 km40 km
Operating Temp.0 to 60°C0 to 60°C0 to 60°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1g10alc-t-image.jpg | MoxaSFP-1G10ALC-T
比較
moxa-sfp-1g10blc-t-image.jpg | MoxaSFP-1G10BLC-T
比較
moxa-sfp-1g20alc-t-image.jpg | MoxaSFP-1G20ALC-T
比較
moxa-sfp-1g20blc-t-image.jpg | MoxaSFP-1G20BLC-T
Transceiver TypeSingle-modeSingle-modeSingle-modeSingle-mode
Typical Distance10 km10 km20 km20 km
Operating Temp.-40 to 85°C-40 to 85°C-40 to 85°C-40 to 85°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
比較
moxa-sfp-1g40alc-t-image.jpg | MoxaSFP-1G40ALC-T
比較
moxa-sfp-1g40blc-t-image.jpg | MoxaSFP-1G40BLC-T
Transceiver TypeSingle-modeSingle-mode
Typical Distance40 km40 km
Operating Temp.-40 to 85°C-40 to 85°C
加入詢價查看詢價明細加入詢價查看詢價明細
