可程式化型 IIoT 閘道器

Moxa 進階 IIoT 閘道器可承受惡劣運作環境的考驗，特別適合部署於分散式和無人值守的站點。這些 IIoT 閘道器可與 Azure 等各種雲端平台無縫整合，方便您輕鬆收集並分析來自工業設備的資料。它們具備可程式化的特性，可提供建立客製化解決方案所需的功能，以滿足各種工業應用的特殊需求。

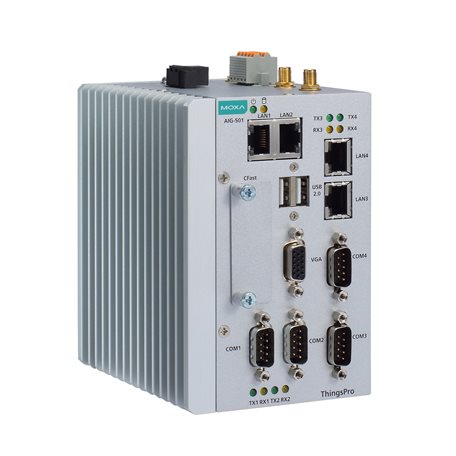

AIG-501-T-AZU-LX
AIG-501 系列

4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)

  • Graphics Controller

    • Intel® HD Graphics

  • DRAM

    • 4 GB DDR3L

  • Storage Pre-installed

    • 32 GB CFast eMMC

  • Pre-installed OS

    • Linux Debian 9, Kernel 4.9

  • No. of Tags Supported

    • 2048
Computer Interface

  • TPM

    • TPM v2.0

  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors

  • Wi-Fi Antenna Connector

    • RP-SMA x 2 (AIG-501-T-AZU-LX)

  • Cellular Antenna Connector

    • SMA x 2 (excluding AIG-501-T-AZU-LX)

  • GPS Antenna Connector

    • SMA x 1 (excluding AIG-501-T-AZU-LX)

  • Expansion Slots

    • mPCIe slots x 1 (AIG-501-T-AZU-LX)

  • Buttons

    • Reboot
      Reset to factory default

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • Number of SIMs

    • 1

  • SIM Format

    • Mini

  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 4
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master)
      Generic MQTT
      Azure IoT Device
      AWS IoT Core
      Azure IoT Edge
      OPC UA Server
      Sparkplug B Client

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      ThingsPro Proxy Utility

  • Time Management

    • NTP Server/Client
      GPS
Serial Interface

  • Console Port

    • 1 x 4-pin header

  • No. of Ports

    • 4

  • Connector

    • DB9 male

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Flow Control

    • ADDC (automatic data direction control) for RS-485

  • Parity

    • None
      Even
      Odd
      Space
      Mark

  • Stop Bits

    • 1, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
Digital Inputs

  • Connector

    • Spring-type Euroblock terminal

  • Sensor Type

    • Dry contact

  • Dry Contact

    • Off: open
      On: short to GND

  • Isolation

    • None
Digital Outputs

  • Connector

    • Spring-type Euroblock terminal

  • Current Rating

    • 10 mA (max.) total for all channels

  • I/O Type

    • Sink

  • Isolation

    • None
Cellular Interface

  • Cellular Standards

    • LTE Cat. 4

  • Band Options (US)

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz)/ LTE Band 71 (600 MHz) This band is not within the selectable antenna support range. Please contact Moxa if you need to use this band.
      UMTS/HSPA Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
      Carrier Approval: Verizon, AT&T

  • Band Options (EU)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28A (700 MHz)
      UMTS/HSPA Band 1 (2100 MHz) / Band 3 (1900 MHz) / Band 8 (900 MHz)

  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 ( 1700 MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) / LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 6 (800 MHz) / Band 8 (900 MHz) / Band 19 (800 MHz)
GPS Interface

  • Receiver Types

    • GPS/GLONASS/BeiDou/Galileo/QZSS

  • Accuracy

    • 0.8 m

  • Acquisition

    • -147 dBm

  • Sensitivity

    • Cold starts: -145 dBm
      Tracking: -160 dBm
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Serial

    • 2 per port (Tx, Rx)
Azure IoT Edge

  • Versions Supported

    • v1.4.8

  • Authentication Methods

    • Manual / Connection String
      DPS / TPM
      DPS / Symmetric Encryption
      DPS / X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation

  • Azure Module Twin

    • Device Configuration

  • Moxa Functions

    • Message Group
      Custom Payload
Sparkplug B Client

  • Versions Supported

    • v2.2

  • Node Commands (NCMD)

    • Next Broker
      Reboot
      Rebirth

  • Moxa Functions

    • Store and Forward
      Custom Payload
OPC UA Server

  • No. of Client Connections

    • 10

  • Security

    • Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256

  • User Authentication and Authorization

    • Username/password

  • Supported Profiles

    • OPC UA v1.02

  • No. of Supported Tags

    • 1024
Generic MQTT Client

  • Versions Supported

    • v3.1.1
      v3.1

  • QoS Levels

    • 0, 1, 2

  • Authentication Methods

    • Username and password

  • Secure Transmission

    • TLS 1.0
      TLS 1.1
      TLS 1.2

  • Native Capabilities

    • Keep Alive
      Retain Message
      Clean Session
      Will and Testament

  • Moxa Functions

    • Store and Forward
      Custom Payload
      Remote API Invocation
Azure IoT Device

  • Connection Protocols Supported

    • MQTT
      MQTT over WebSockets
      AMQP
      AMQP over WebSockets

  • Authentication Methods

    • Symmetric Key
      X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation
AWS IoT Core

  • QoS Levels

    • 0,1

  • Authentication Methods

    • X.509 Certificate
      Private Key
      Trusted Root CA

  • Native Capabilities

    • Keep Alive

  • Moxa Functions

    • Store and Forward
      Custom Payload

  • Commands Invokable Via Jobs

    • Reboot
      Software Upgrade
      Remote API Invocation
Modbus RTU/ASCII

  • Mode

    • Master

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 256 per port

  • Max. No of Connected Devices

    • 62
Modbus TCP

  • Mode

    • Client (Master)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    • 64

  • Max. No. of Commands

    • 2048
Power Parameters

  • Input Voltage

    • 12 to 36 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal

  • Power Consumption

    • 30 W (max.)

  • Input Current

    • 2.5 A @ 12 VDC
Reliability

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics

  • Housing

    • Metal

  • Installation

    • DIN-rail mounting (with optional kit)
      Wall mounting (with optional kit)

  • IP Rating

    • IP20

  • Dimensions

    • 132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)

  • Weight

    • 1,340 g (2.95 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • RED

    • EN 300 328
      EN 301 893
      EN 301 489-1/17/19/52
      EN 301 511
      EN 301 908-1
      EN 303 413
      EN 62311

  • Safety

    • UL 62368-1
      EN 62368-1

  • Carrier Approvals

    • AT&T
      Verizon

  • Green Product

    • RoHS, CRoHS, WEEE

  • Hazardous Locations

    • Class I Division 2
      ATEX
MTBF

  • Time

    • AIG-501-T-US-AZU-LX, AIG-501-T-EU-AZU-LX, AIG-501-T-AP-AZU-LX: 441,032 hrs
      AIG-501-T-AZU-LX: 453,637 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
