MOXA

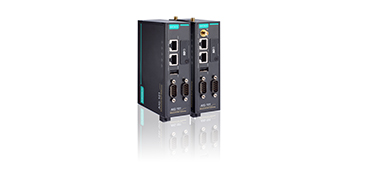

開箱即用的 IIoT 閘道器

Moxa 入門級 IIoT 閘道器可將 Modbus 設備，與 Azure、AWS 以及其他使用 MQTT 協議存取的雲端平台整合在一起，方便您輕鬆收集資料，並將資料傳輸到雲端。此外，Moxa IIoT 閘道器全面支援資料預處理解決方案，工程師不需額外編寫程式，便可輕鬆完成部署。

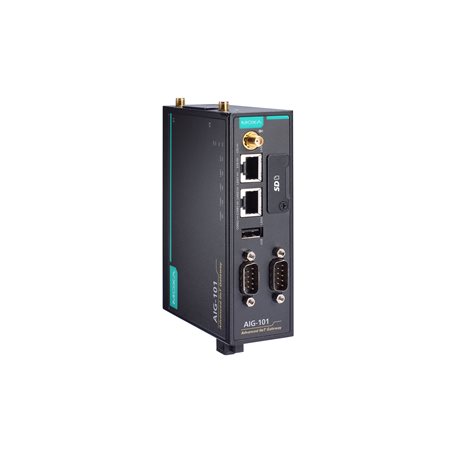

AIG-101-T
AIG-101 系列

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with -40 to 70°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2, Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master) / Server (Slave)
      Generic MQTT
      Azure IoT Device
      AWS IoT Core

  • Configuration Options

    • Web Console (HTTP/HTTPS)

  • Time Management

    • NTP Client
      GPS
Serial Interface

  • No. of Ports

    • 2

  • Connector

    • DB9 male

  • Serial Standards

    • RS-232/422/485

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 2

  • Flow Control

    • RTS/CTS
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface

  • Cellular Standards

    • LTE Cat. 1

  • Cellular Antenna Connectors

    • SMA x 2

  • SIM Format

    • Nano SIM

  • No. of SIMs

    • 2

  • GPS Antenna Connectors

    • SMA x 1

  • Band Options

    • US Model:
      LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
      UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
      Carrier Approval: Verizon, AT&T

      EU Model:
      LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)
      UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)

      AP Model:
      LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)
      UMTS Bands: Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
Modbus RTU/ASCII

  • Mode

    • Master

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 256 per port
Modbus TCP

  • Mode

    • Server (Slave)
      Client (Master)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    • 4

  • Max. No. of Server Connections

    • 64

  • Max. No. of Commands

    • 1500
Generic MQTT Client

  • Versions Supported

    • v3.1.1
      v3.1

  • QoS Levels

    • 0, 1, 2

  • Authentication Methods

    • Username and password

  • Secure Transmission

    • TLS 1.0
      TLS 1.1
      TLS 1.2

  • Native Capabilities

    • Keep Alive
      Retain Message
      Clean Session
      Will and Testament

  • Moxa Functions

    • Store and Forward
      Custom Payload
      Remote API Invocation
Azure IoT Device

  • Connection Protocols Supported

    • MQTT
      MQTT over WebSockets
      AMQP
      AMQP over WebSockets

  • Authentication Methods

    • Symmetric Key
      X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation

  • Moxa Functions

    • Store and Forward
      Custom Payload
AWS IoT Core

  • QoS Levels

    • 0,1

  • Authentication Methods

    • X.509 Certificate
      Private Key
      Trusted Root CA

  • Native Capabilities

    • Keep Alive

  • Moxa Functions

    • Store and Forward
      Custom Payload

  • Commands Invokable Via Jobs

    • Reboot
      Software Upgrade
      Remote API Invocation
Memory

  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
      Max. No. of Tags Supported: 1500
Power Parameters

  • Input Voltage

    • 9 to 36 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal

  • Power Consumption

    • 8 W (max.)
Physical Characteristics

  • Dimensions

    • 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)

  • Housing

    • Metal

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • Weight

    • AIG-101-T: 492 g (1.08 lb)
      AIG-101-T-AP/EU/US: 512 g (1.13 lb)
Environmental Limits

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64
      5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)

  • Cellular Standards

    • EN 303 413 (GPS)
      EN 301 908-1 (WCDMA/LTE)
      EN 301 908-2/-13 (WCDMA/LTE)
      EN 301 489-1/-19
      EN 301 489-1/-52
      EN 62311

  • Radio Frequency

    • FCC
      PTCRB
      RCM

  • Carrier Approvals

    • Verizon
      AT&T

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 566,458 hrs

  • Standards

    • Telcordia SR332
