BXP-A101 Series

Compact box computers with Intel Atom® x6211E/x6425E processor

特色與優點

Box-type computer with fanless design
Intel Atom® X Series processor
Compact size to fit most field applications
-30 to 70°C operating temperature range
External dual storage with a removable cover design for easy maintenance

認證

您可在 My Moxa 查看已追蹤產品的更新資訊

聯絡銷售顧問

Introduction

The BXP-A101 wall-mount computers are powered by an Intel Atom® X processor. The computers come with 2 software-selectable RS-232/422/485 serial ports, 2 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A removeable cover design enables users to quickly and easily swap their storage in any location, delivering one more user-friendly feature in a reliable, durable, and versatile platform.

The BXP-A101 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 70°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

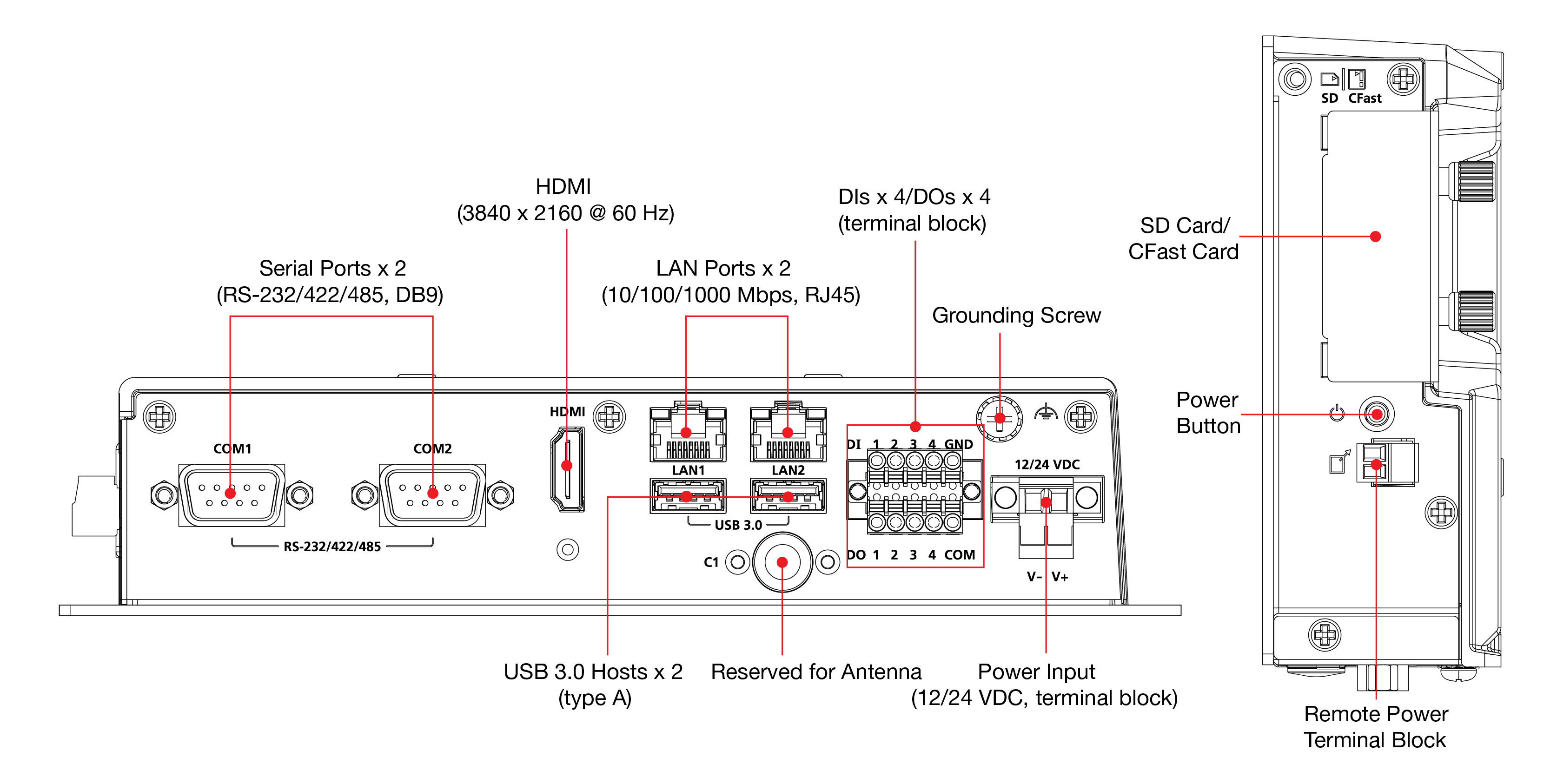

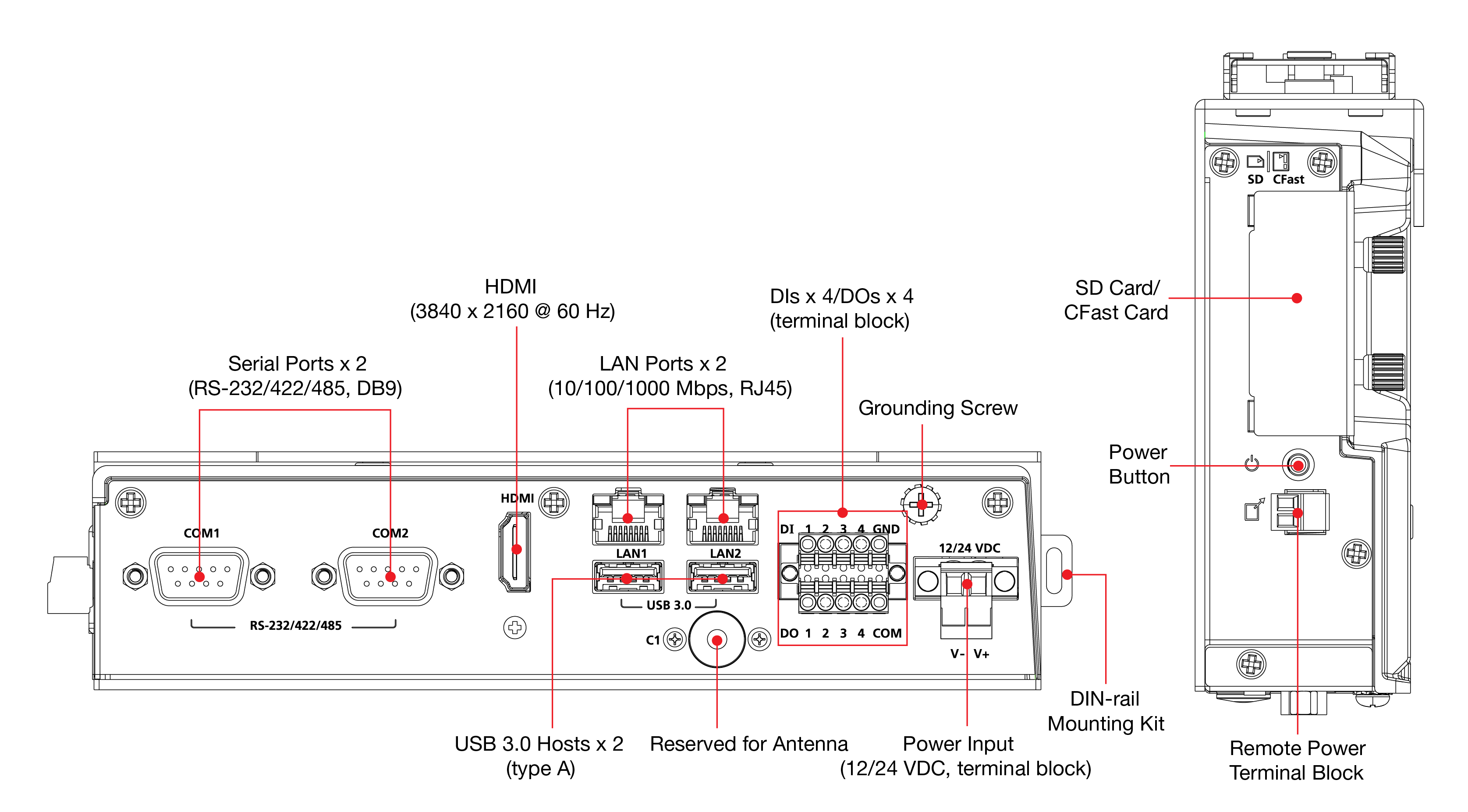

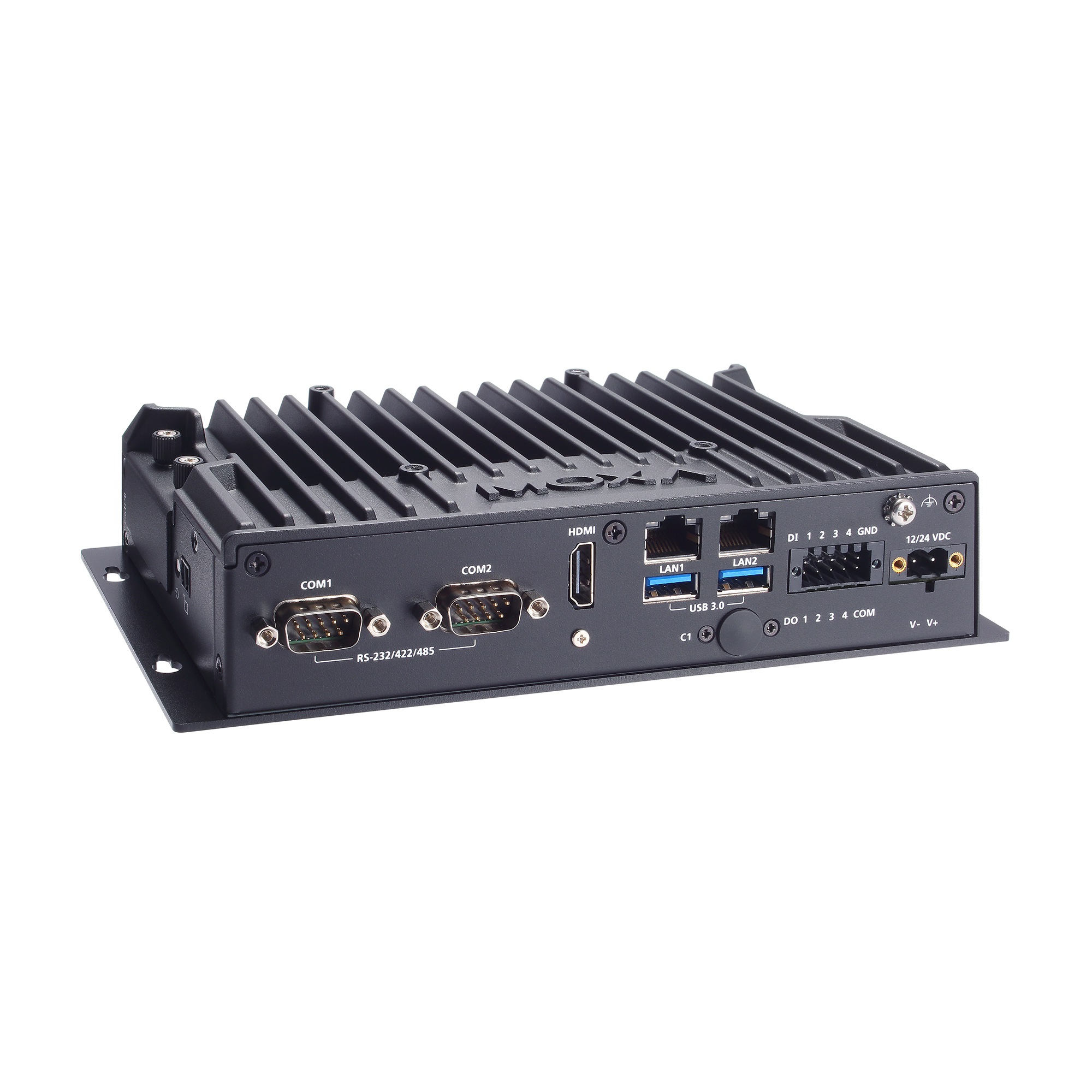

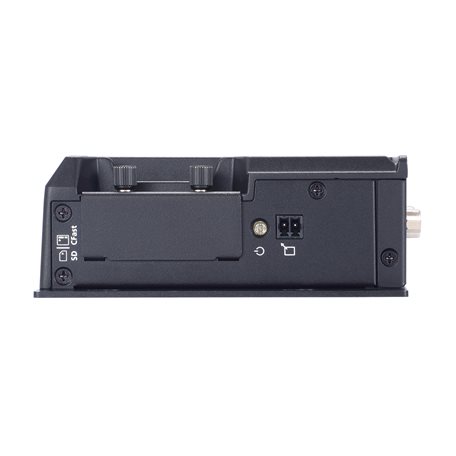

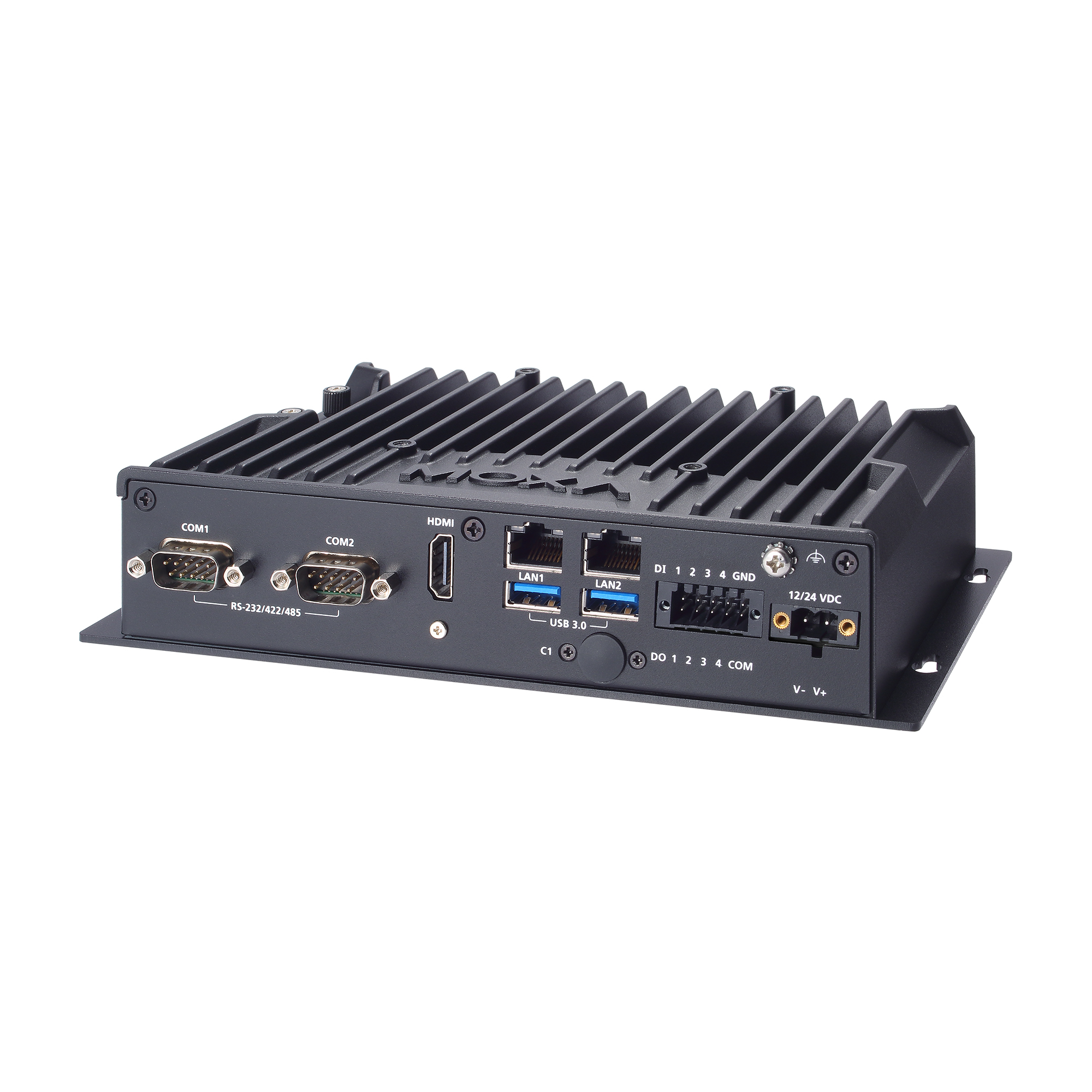

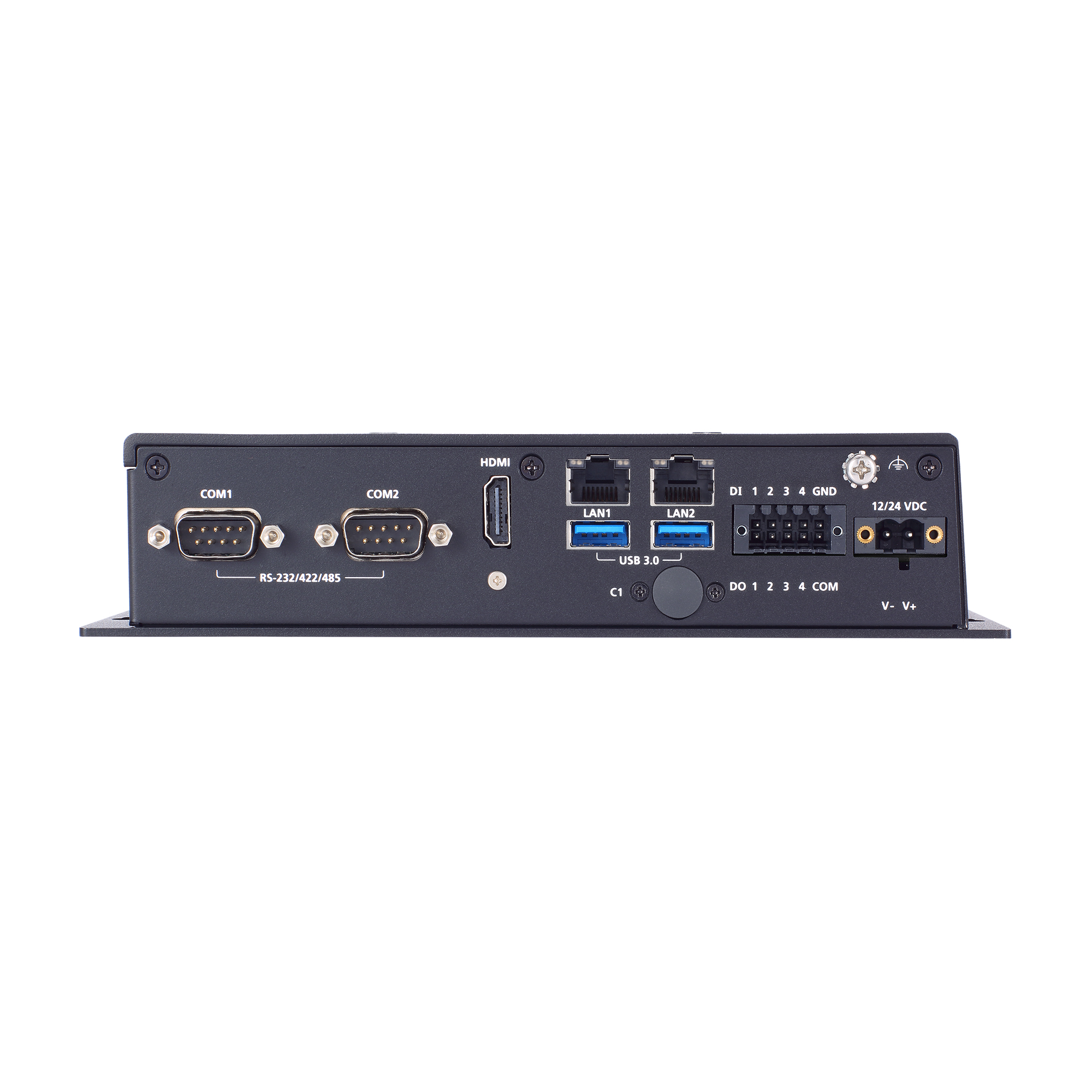

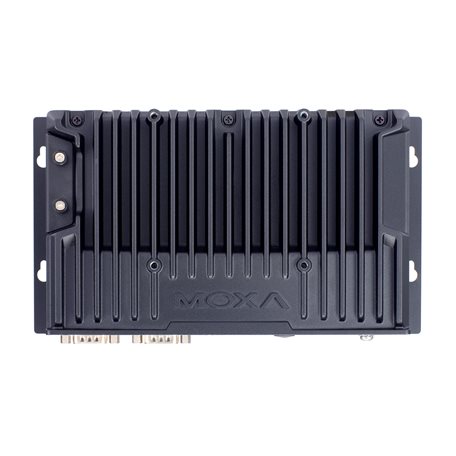

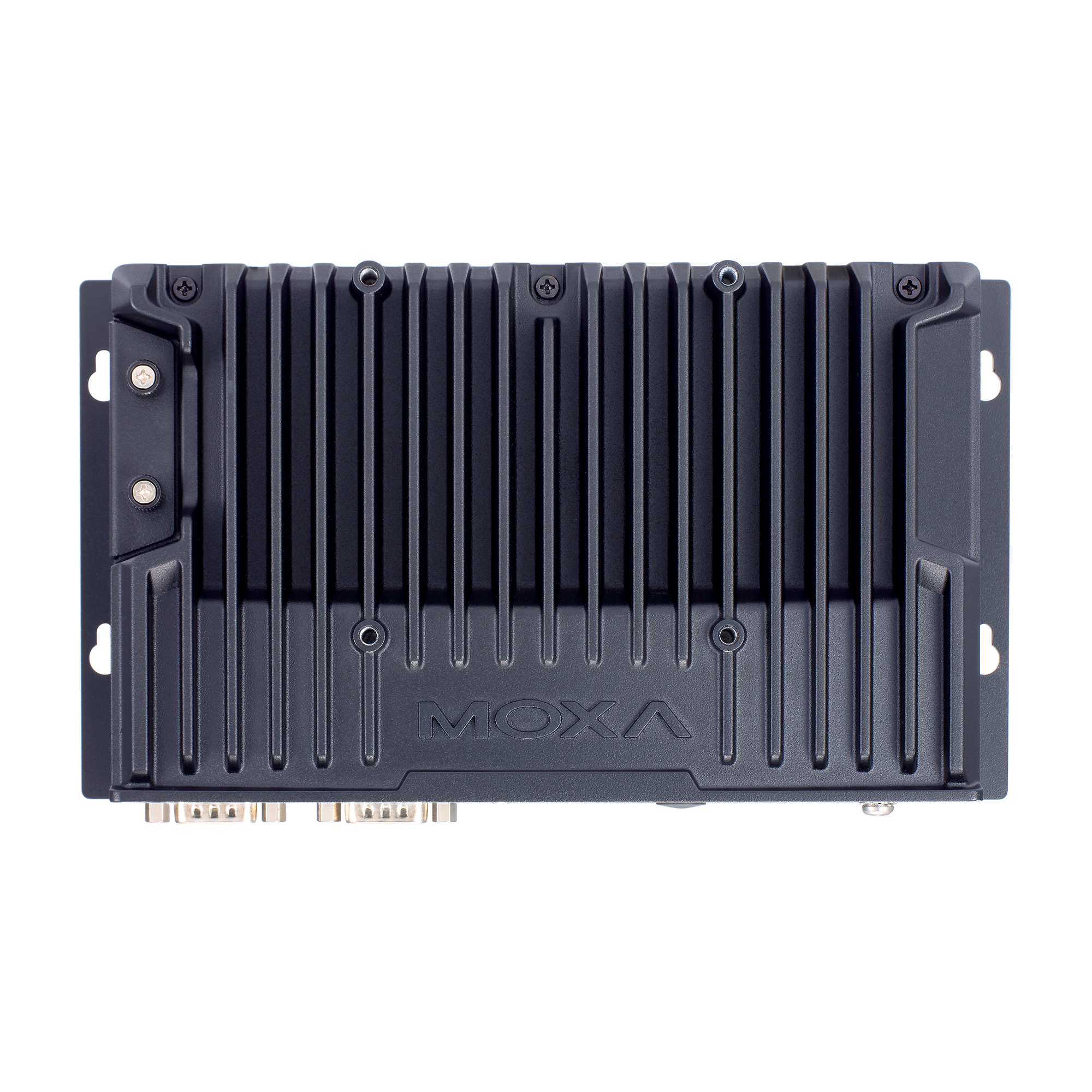

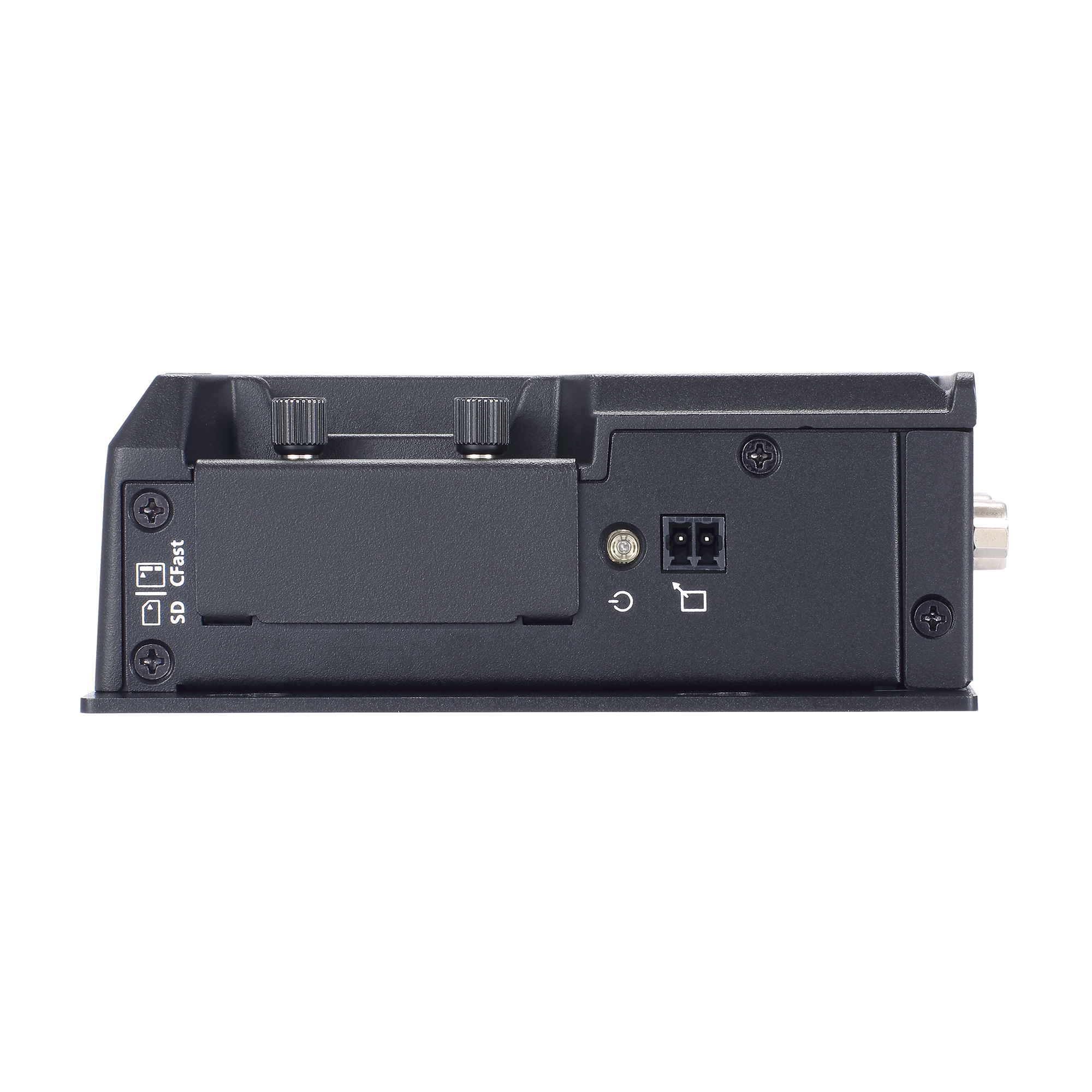

Appearance

下載產品資料表
列印此頁
儲存至 My Moxa

您可管理並分享您儲存在 My Moxa 中的頁面清單

CPU

BXP-A101-E2-T: Intel Atom® x6211E processor (dual-core, 1.5 M cache, 1.30 GHz)
BXP-A101-E4-T: Intel Atom® x6425E processor (quad-core, 1.5 M cache, 2.00 GHz)
System Memory Slot

SODIMM DDR4 slots x 1, up to 32 GB max.
System Memory Pre-installed

8 GB DDR4
Storage Slot

CFast slot x 1 (SATAIII interface)
SD slots x 1, SD 3.0 interface (SDHC/SDXC)
Expansion Slots

mPCIe slots x 1
Supported OS

Windows images and drivers supported:
- Windows 10 IoT Enterprise LTSC 2021 64-bit

Linux image supported:
- Debian 12 (kernel 6.10)

Linux drivers supported:
- Debian 12 (kernel 6.10)
- Ubuntu 22.04 LTS (kernel 5.15)
- RHEL 9 (kernel 5.14)
Graphics Controller

Intel® UHD Graphics

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
USB 3.0

USB 3.0 hosts x 2, type-A connectors
Digital Input

DIs x 4
Digital Output

DOs x 4
TPM

TPM v2.0
Video Output

HDMI 1.2a x 1, (type-A connector)
SIM Format

Nano
Number of SIMs

1
Buttons

Power button

Magnetic Isolation Protection

1.5 kV (built-in)

Baudrate

50 bps to 115.2 kbps
Connector

DB9 male
Data Bits

5, 6, 7, 8
Parity

None, Even, Odd, Space, Mark
Stop Bits

1, 1.5, 2
Flow Control

RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Connector

Spring-type Euroblock terminal
Sensor Type

Dry contact
Wet contact (NPN)
Dry Contact

Logic 0: Close to GND
Logic 1: Open
Wet Contact (COM to DI)

Logic 0: 10 to 30 VDC
Logic 1: 3 VDC max

Connector

Spring-type Euroblock terminal
I/O Type

Sink
Current Rating

200 mA per channel
Voltage

Logic 0: 200mA max. per channel, sink
Logic 1: 24 VDC (typ.), 30 VDC (max.), open collector

System

Power x 1
LAN

2 per port (10/100/1000 Mbps)

Input Voltage

12/24 VDC
Power Connector

Screw-fastened Euroblock terminal
Power Consumption

50 W

Housing

Metal
IP Rating

IP20
Dimensions

207 x 116.1 x 44.5 mm (8.14 x 4.57 x 1.75 in)
Installation

Wall mounting
Weight

1,225 g (2.7 lb)

Operating Temperature

-30 to 70°C (-22 to 158°F)
Storage Temperature

-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
BSMI
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety

BSMI
IEC 62368-1
UL 62368-1
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-64
Package Drop Test

ISTA 1A
Package Vibration Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time Source

Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger

Built-in WDT

Time

1,581,038 hrs
Standards

Telcordia (Bellcore), GB

Warranty Period

3 years
Details

See www.moxa.com/warranty
