V2406C 系列

第 7 代 Intel® Core™ CPU 鐵路電腦配備2 個 mini PCIe 無線模組擴充插槽、2 個可熱插拔的 HDD/SSD 插槽、電源隔離保護

moxa-v2406c-series-image-(1).jpg | Moxa
moxa-v2406c-series-image-1-(1).jpg | Moxa
moxa-v2406c-series-image-2-(1).jpg | Moxa
moxa-v2406c-series-image-3-(1).jpg | Moxa
moxa-v2406c-series-image-4-(1).jpg | Moxa
moxa-v2406c-series-image-5-(1).jpg | Moxa
moxa-v2406c-series-image-6-(1).jpg | Moxa

特色與優點

  • Intel® Celeron®/Intel® Core™ i3/i5/i7 高效能網路錄影機,可供軌道車輛應用
  • DDR4 記憶體插槽;容量可達 32GB
  • 支援雙獨立顯示器(VGA 和 HDMI,具有 4K 解析度)
  • 2 個 Gigabit 乙太網路連接埠,M12 X-coded 連接器
  • M12 A-coded 電源連接器
  • 符合所有 EN 50155 規範強制性測試項目 此產品適用於符合 EN 50155 標準所定義的所有軌道車輛應用。按此處取得更詳細內容: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 符合 EN 50121-4 標準
  • 通過 IEC 61373 防撞和抗震認證
  • 提供 -40 至 70°C 寬溫度型號

認證

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

V2406C 系列嵌入式電腦搭載 Intel® Core™ i7/i5/i3 或 Intel® Celeron® 高效能處理器,並且配備高達 32 GB 記憶體、一個 mSATA 插槽,以及兩個可熱插拔的 HDD/SSD 以供儲存空間擴充。本電腦符合 EN 50155:2017 與 EN 50121-4 標準,涵蓋操作溫度、電源輸入電壓、突波、ESD 以及震動,使其適合軌道車載以及軌旁應用。

為連接車載以及軌旁系統與裝置,V2406C 電腦配備有各種豐富介面,包括 2 個 Gigabit 乙太網路連接埠、4 個 RS-232/422/485 串列埠、6 個 DI、2 個 DO 以及 4 個 USB 3.0 連接埠。此外,V2406C 電腦提供了 1 個 VGA 視訊輸出以及 1 個 HDMI 輸出,並且支援 4K 解析度。

為了在列車對地 (T2G) 應用方面提供可靠的連線,此系列電腦提供了 2 個 mPCIe 無線擴充插槽以及 4 個 SIM 卡插槽。這些設計有助於建立備援 LTE/WiFi 連接,確保在高速行駛的列車以及軌旁應用之間提供可靠的雙向通訊。此外,用於無線模組預先安裝的 QMA 纜線可減少組裝工作,並且確保RF低洩漏。

外觀

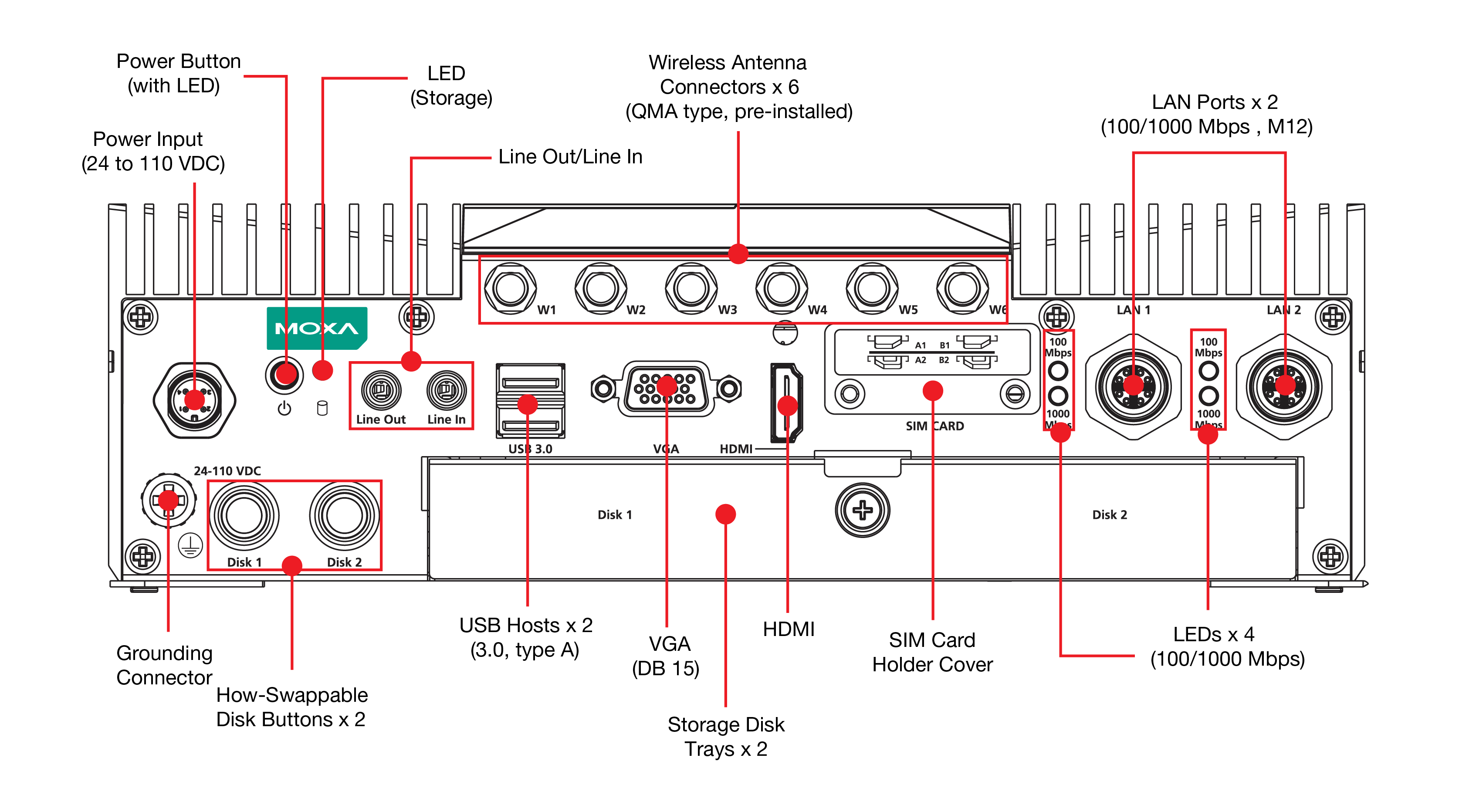

前視圖

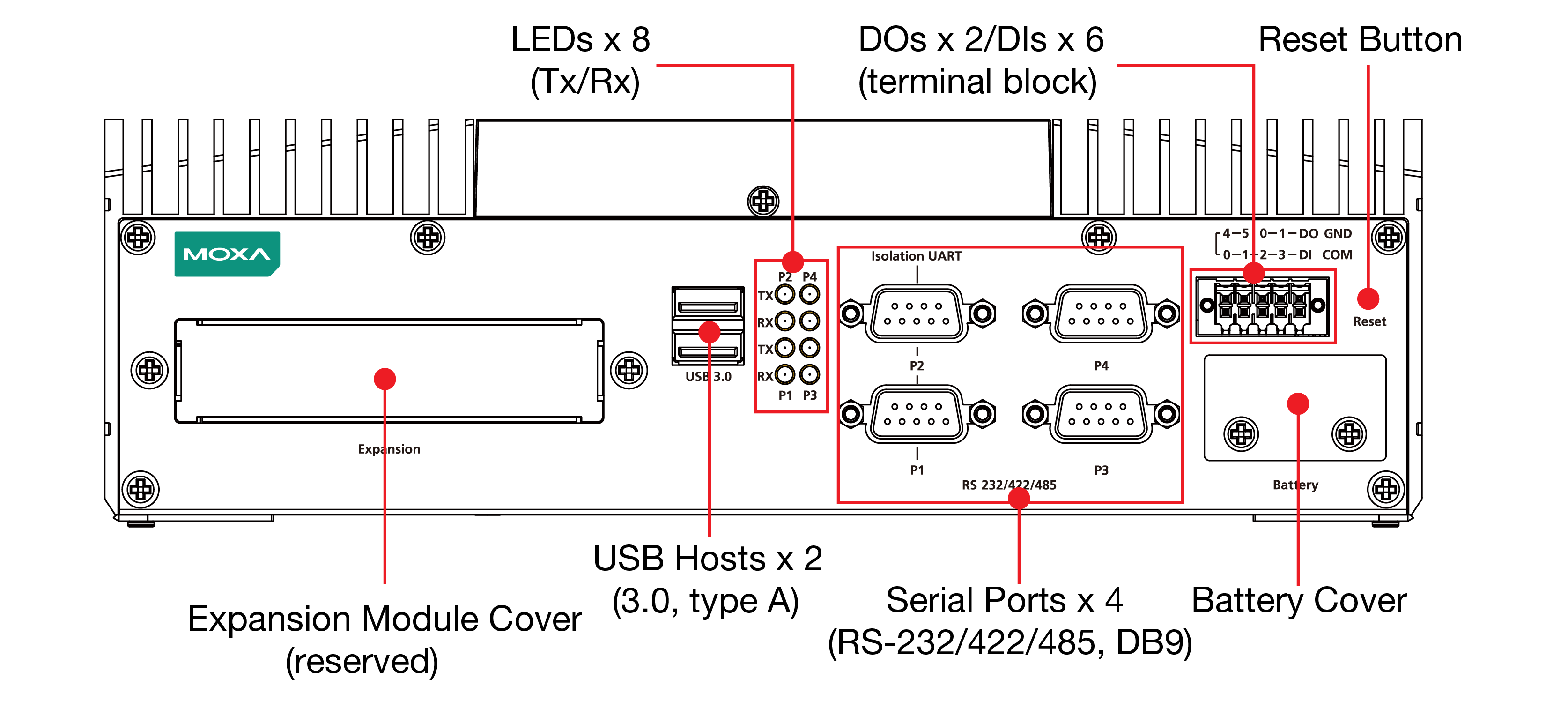

後視圖

  • CPU

    V2406C-KL1-T: Intel® Celeron® 3965U processor (2M Cache, 2.2 GHz)
    V2406C-KL3-T: Intel® Core™ i3-7100U processor (3M Cache, 2.4 GHz)
    V2406C-KL5-T: Intel® Core™ i5-7300U processor (3M Cache, 2.6 GHz)
    V2406C-KL7-T: Intel® Core™ i7-7600U processor (4M Cache, 2.8 GHz)

  • Storage Slot

    2.5-inch HDD/SSD slots x 2
    mSATA slots x 1, internal mini-PCIe socket

  • Supported OS

    Linux Debian 9
    Windows 10 Embedded IoT Ent 2019 LTSC 64-bit

  • System Memory Slot

    SODIMM DDR4 slot x 2

  • DRAM

    32 GB max

  • Graphics Controller

    Intel® HD Graphics 620

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Digital Output

    DOs x 2

  • Serial Ports

    RS-232/422/485 ports x 4, software selectable (DB9 male)

  • Digital Input

    DIs x 6

  • USB 3.0

    USB 3.0 hosts x 4, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, 3.5 mm phone jack

  • Video Output

    VGA x 1, 15-pin D-sub connector (female)
    HDMI x 1, HDMI connector (type A)

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    DI

  • Isolation

    3k VDC

  • Sensor Type

    Wet contact (NPN or PNP)
    Dry contact

  • Dry Contact

    Logic 0: Short to GND
    Logic “1”: Open

  • Wet Contact (DI to COM)

    Logic 0: 0 to 3 VDC
    Logic 1: 10 to 30 VDC

  • Connector

    Screw-fastened Euroblock terminal
    10-pin terminal block

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    0 to 30 VDC

  • Isolation

    3k VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    24 to 110 VDC

  • Power Connector

    M12 A-coded male connector

  • Power Consumption (Max.)

    70 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP20

  • Dimensions (without ears)

    250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)

  • Weight

    2,700 g (5.95 lb)

  • Installation

    Wall mounting (standard)

  • Protection

    PCB conformal coating
    V2406C PCB conformal coating: Available on request

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway Fire Protection

    EN 45545-2

  • EMC

    EN 55032/35

  • Safety

    EN 62368-1, IEC 62368-1, UL 62368-1

  • Railway

    EN 50121-4, EN 50121-3-2, EN 50155:2017

  • Shock

    IEC 60068-2-27, IEC 61373

  • Vibration

    IEC 60068-2-64, IEC 61373

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    394,260 hrs

  • Standards

    Telcordia (Bellcore), GB

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
374.0 MB
軟體套件
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 版本說明
Software Package for MXview One Series (Linux version)
333.4 MB
軟體套件
SHA-512
v1.3.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年1月31日 2024年1月31日 版本說明
System Image for V2406C Series WL Models
370.8 MB
韌體
SHA-512
v1.2
  • Moxa Industrial Linux 2 (Debian 10)
2023年1月17日 2023年1月17日 版本說明
Software Package for V2406C Series KL Models (Windows 10 Enterprise LTSC 21H2 example code)
7.3 MB
軟體套件
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
Driver for V2406C Series KL Models (Windows 10 Enterprise LTSC 21H2)
2.7 GB
驅動程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
Utility for V2406C Series KL Models (Windows 10 Enterprise LTSC 21H2)
5.9 MB
工具程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
Software package for V2406C Series WL Models (Windows 10 Enterprise LTSC 21H2 example code)
11.1 MB
軟體套件
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
Utility for V2406C Series WL Models (Windows 10 Enterprise LTSC 21H2)
5.9 MB
工具程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
Drivers for V2406C Series WL Models (Windows 10 Enterprise LTSC 21H2)
2.2 GB
驅動程式
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2023年1月17日 2023年1月17日 版本說明
x86 Computers (Linux drivers and SDK)
802.0 bytes
軟體套件
SHA-512
v1.1
  • CentOS 7.9
  • Debian 11.x
  • Ubuntu 20.04
2022年11月28日 2022年11月28日 版本說明
Driver for V2406C Series KL models (Windows 10)
24.7 MB
驅動程式
SHA-512
v1.1
  • Windows 10
2022年1月10日 2022年1月10日 版本說明
System Image for V2406C Series KL Models
475.2 MB
韌體
SHA-512
v1.1
  • Debian 9.x
2022年1月10日 2022年1月10日 版本說明
Library for V2406C Series KL models (Linux example code)
330.0 bytes
程式庫
SHA-512
v1.1
  • Debian 9.x
2022年1月10日 2022年1月10日 版本說明
MXview v3.2.6 Software
417.7 MB
軟體套件
SHA-512
v3.2.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2022年1月7日 2022年1月7日 版本說明
Proactive Monitoring Software Package
68.4 MB
軟體套件
SHA-512
v2.2
  • Windows 10 IoT Enterprise LTSC 2019
2021年7月28日 2021年7月28日 版本說明
MXview v3.2.4 Software
389.2 MB
軟體套件
SHA-512
v3.2.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2021年7月16日 2021年7月16日 版本說明
Software Package for V2406C Series (Windows 10 example code)
15.0 MB
軟體套件
SHA-512
v1.0
  • Windows 10 Enterprise LTSB
2020年6月1日 2020年6月1日 版本說明
Utility for V2406C Series (Windows 10)
3.4 MB
工具程式
SHA-512
v1.0
  • Windows 10 Enterprise LTSB
2020年6月1日 2020年6月1日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Manual for V2406C Series (hardware)
9.3 MB
使用者手冊 英文 v3.1 2023年11月24日 2023年11月24日
Moxa Industrial Linux 2 (Debian 10) Manual (for V2406C Series WL models)
1.7 MB
使用者手冊 英文 v1.0 2023年1月20日 2023年1月20日
Windows 10 IoT Enterprise LTSC 2021 (212H) User Manual for x86 Computers
9.4 MB
使用者手冊 英文 v1.2 2023年1月20日 2023年1月20日
QIG for V2406C Series
1.5 MB
QIG 英文 v1.2 2022年1月17日 2022年1月17日
Manual for V2406C Series (Linux)
2.1 MB
使用者手冊 英文 v2.1 2022年1月17日 2022年1月17日
Manual for V2406C Series (Windows 10)
9.5 MB
使用者手冊 英文 v1.2 2022年1月17日 2022年1月17日
Manual for Proactive Monitoring Software
3.9 MB
使用者手冊 英文 v2.0 2021年6月9日 2021年6月9日
V2406C 系列產品資料表
3.8 MB
產品資料表 中文 v1.3 2021年1月22日 2021年1月22日
2D CAD for V2406C Series (V2406C)
1.1 MB
2D CAD 英文 2019年10月25日 2019年10月25日

可供選擇的機型 (4)

顯示圖片
moxa-v2406c-kl1-t-image.jpg | MoxaV2406C-KL1-Tmoxa-v2406c-kl3-t-image.jpg | MoxaV2406C-KL3-Tmoxa-v2406c-kl5-t-image.jpg | MoxaV2406C-KL5-Tmoxa-v2406c-kl7-t-image.jpg | MoxaV2406C-KL7-T
CPUCeleron 3965Ui3-7100Ui5-7300Ui7-7600U
Memory2, DDR4,
2133 MHz (optional);
32 GB max.
2, DDR4,
2133 MHz (optional);
32 GB max.
2, DDR4,
2133 MHz (optional);
32 GB max.
2, DDR4,
2133 MHz (optional);
32 GB max.
OS Storage (mSATA)1 (optional);
512 GB max.
1 (optional);
512 GB max.
1 (optional);
512 GB max.
1 (optional);
512 GB max.
SSD/HDD
(Hot Swap)
2 (optional);
1 TB max.
2 (optional);
1 TB max.
2 (optional);
1 TB max.
2 (optional);
1 TB max.
USB4 x USB 3.0 (type A)4 x USB 3.0 (type A)4 x USB 3.0 (type A)4 x USB 3.0 (type A)
Power Input24 to 110 VDC
(M12 A-coded)
24 to 110 VDC
(M12 A-coded)
24 to 110 VDC
(M12 A-coded)
24 to 110 VDC
(M12 A-coded)
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
Conformal Coating
