MOXA

x86 電腦

我們的工業級無風扇 x86 電腦通過嚴格的測試，並遵循嚴格的工業標準，確保它們即使在惡劣環境中，也能提供可靠持久的運作，是重工業、變電站、公用事業、交通運輸、石油和天然氣，以及海事等應用的理想選擇。

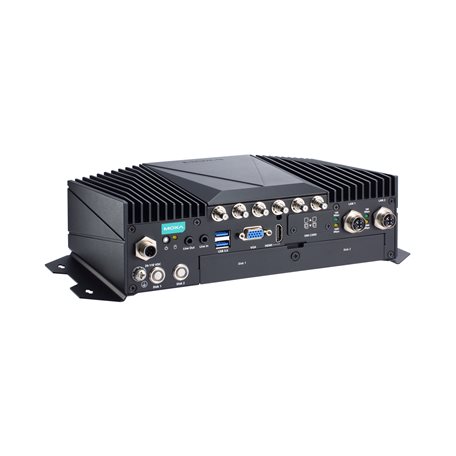

V2406C-KL5-T
V2406C 系列

x86 embedded computer with Intel Core i5-7300U, 4 GB of DDR4 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel® Core™ i5-7300U Processor (3M Cache, up to 2.60 GHz)

  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2
      mSATA slots x 1, internal mini-PCIe socket

  • Supported OS

    • Linux Debian 9
      Windows 10 Embedded IoT Ent 2019 LTSC 64-bit

  • System Memory Slot

    • SODIMM DDR4 slot x 2

  • DRAM

    • 32 GB max

  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Digital Output

    • DOs x 2

  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (DB9 male)

  • Digital Input

    • DIs x 6

  • USB 3.0

    • USB 3.0 hosts x 4, type-A connectors

  • Audio Input/Output

    • Line in x 1, Line out x 1, 3.5 mm phone jack

  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • I/O Mode

    • DI

  • Isolation

    • 3k VDC

  • Sensor Type

    • Wet contact (NPN or PNP)
      Dry contact

  • Dry Contact

    • Logic 0: Short to GND
      Logic 1: Open

  • Wet Contact (DI to COM)

    • Logic 0: 0 to 3 VDC
      Logic 1: 10 to 30 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal
      10-pin terminal block

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 0 to 30 VDC

  • Isolation

    • 3k VDC
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Serial

    • 2 per port (Tx, Rx)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters

  • Input Voltage

    • 24 to 110 VDC

  • Power Connector

    • M12 A-coded male connector

  • Power Consumption (Max.)

    • 70 W (max.)
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP20

  • Dimensions (without ears)

    • 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)

  • Weight

    • 2,700 g (5.95 lb)

  • Installation

    • Wall mounting (standard)

  • Protection

    • PCB conformal coating
      V2406C PCB conformal coating: Available on request
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway Fire Protection

    • EN 45545-2

  • EMC

    • EN 55032/35

  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1

  • Railway

    • EN 50121-4
      EN 50121-3-2
      EN 50155:2017

  • Shock

    • IEC 60068-2-27, IEC 61373

  • Vibration

    • IEC 60068-2-64, IEC 61373
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 376,538 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
