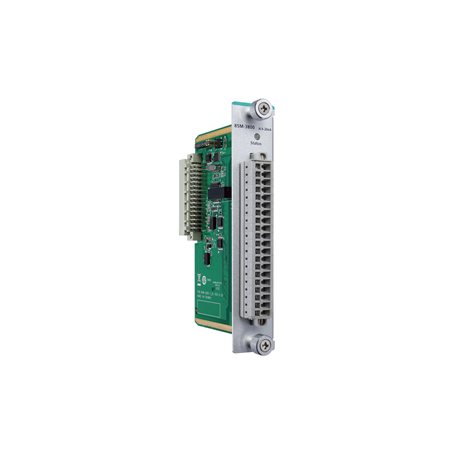

86M-2604D-T
ioPAC 8600 系列 (86M) 模組

Module for the ioPAC 8600 Series, 6 Relays, form A (N.O.), channel LED, -40 to 75°C operating temperature

Input/Output Interface
  • Relay Channels

    • 6
  • Isolation

    • 3k VDC or 2k Vrms
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • DO or PWM
Relays
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • Relay or PWM
  • Contact Current Rating

    • Resistive load: 5 A @ 30 VDC, 250 VAC
  • Contact Resistance

    • 100 milli-ohms (max.)
  • Electrical Endurance

    • 60,000 operations @ 5 A resistive load
  • Initial Insulation Resistance

    • 1,000 mega-ohms (min.) @ 500 VDC
  • Mechanical Endurance

    • 5,000,000 operations
  • Pulse Output Frequency

    • 0.33 Hz at rated load
  • Type

    • Form A (N.O.) power relay
Power Parameters
  • Power Consumption

    • 127 mA @ 24 VDC
Physical Characteristics
  • Dimensions

    • 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
  • Weight

    • Under 80 g
  • Wiring

    • I/O cable, 16 to 28 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4, EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 4,173,843 hrs
  • Standards

    • Telcordia SR332
Warranty
