ioLogik E1200 系列

含 2 埠乙太網路交換器的乙太網路遠端 I/O

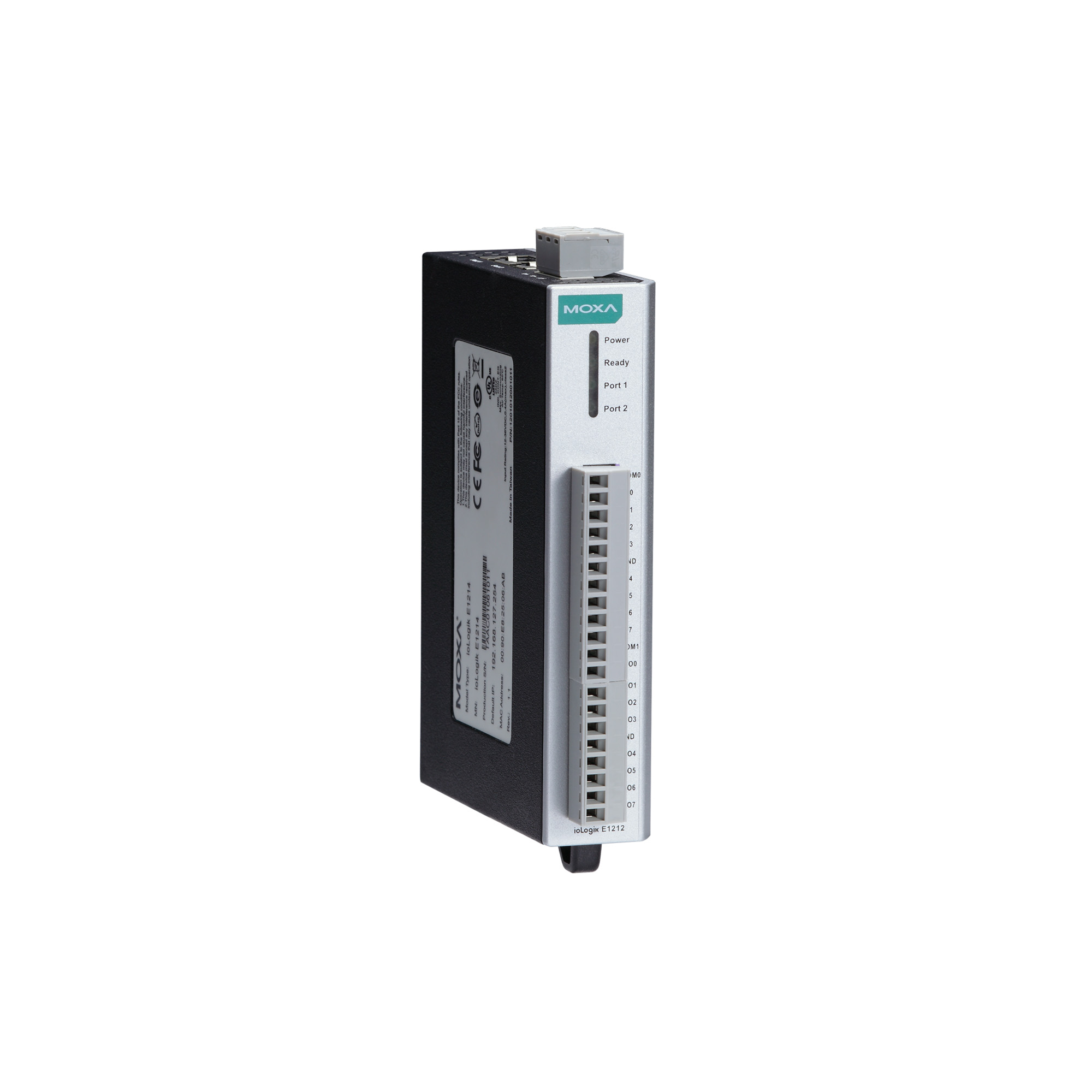

moxa-iologik-e1200-series-image-1-(1).jpg | Moxa

特色與優點

  • 使用者可定義的 Modbus TCP 對應位置
  • 針對 IIoT 應用支援 RESTful API
  • 支援 EtherNet/IP 協議
  • 適用於雛菊鏈拓撲的 2 埠乙太網路交換器
  • 透過端對端通訊節省時間與佈線成本
  • 透過 MX-AOPC UA 伺服器進行通訊
  • 支援 SNMP v1/v2c
  • 透過 ioSearch 公用程式輕鬆大量部署及配置
  • 透過網頁瀏覽器輕鬆配置
  • 透過適用於 Windows 或 Linux 的 MXIO 程式庫簡化 I/O 管理
  • Class I Division 2,ATEX Zone 2 認證 Class I Division 2 與 ATEX 目前不適用於 E1213/E1213-T 型號。
  • 提供寬操作溫度型號,適合 -40 至 75°C (-40 至 167°F) 的作業環境

認證

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

ioLogik E1200 系列支援最常用的 I/O 資料擷取通訊協定,能夠處理各種應用。大多數 IT 工程師都使用 SNMP 或 RESTful API 通訊協定,但 OT 工程師則更熟悉 Modbus 及 EtherNet/IP 等 OT 式通訊協定。Moxa 的智慧型 I/O 使 IT 與 OT 工程師都能夠方便地從相同 I/O 裝置中擷取資料。ioLogik E1200 系列支援六種不同的通訊協定,包括適用於 OT 工程師的 Modbus TCP、EtherNet/IP 與 Moxa AOPC,以及適用於 IT 工程師的 SNMP、RESTful API 與 Moxa MXIO 程式庫。ioLogik E1200 能夠擷取 I/O 資料並同時將資料轉換成這裡的任何通訊協定,讓您輕鬆毫不費力地連接應用。



雛菊鏈乙太網路 I/O 連接

此工業乙太網路遠端 I/O 模組配備兩個交換式乙太網路連接埠,可讓資訊隨意從下游流動至其他本機乙太網路裝置,或透過可擴充雛菊鏈乙太網路 I/O 陣列向上游傳送至控制伺服器。例如工廠自動化、安全性與監控系統及通道連接等應用可利用雛菊鏈乙太網路來透過標準乙太網路纜線建構 Multidrop I/O 網路。多數工業自動化使用者對 Multidrop 的認知,主要來自其作為現場匯流排解決方案的典型配置。ioLogik 乙太網路遠端 I/O 裝置所支援的雛菊鏈功能不僅能夠提升遠端 I/O 應用的擴充性與安裝彈性,更可透過減少獨立乙太網路交換器的需求,有效降低整體成本。如此一來,雛菊鏈裝置也將可降低整體人工及佈線費用。



透過端對端通訊節省時間與佈線成本

在遠端自動化應用中,控制室與感應器通常相距甚遠,使得長距離佈線成為持續性的技術挑戰。透過端對端網路技術,使用者現在可將一對 ioLogik 系列模組進行對應,使輸入值能夠直接傳送至輸出通道,大幅簡化佈線流程並降低佈線成本。







使用者可定義的 Modbus TCP 定址可無痛升級現有系統

針對受固定位址控制及偵測的 Modbus 裝置,使用者需耗費大量時間研究及驗證初始配置。使用者需要尋找每部設備的網路詳細資料,例如 I/O 通道與廠商定義的位址,才能啟用 SCADA 系統或 PLC 的初始或起始位址。支援使用者可定義 Modbus TCP 定址的裝置可提供更大的彈性與更輕鬆的設定方式。使用者無需擔心個別裝置,只需設定功能與位址對應即可符合其需求。







事件推送技術

當搭配 MX-AOPC UA 伺服器使用時,裝置可透過主動推送通訊機制,將狀態變更及/或事件傳送至 SCADA 系統。與輪詢系統不同,當使用推送架構與 SCADA 系統通訊時,僅在狀態變更或發生設定事件時傳送訊息,可達成更高精準度並大幅降低需要傳輸的資料量。







  • Digital Input Channels

    ioLogik E1210 models: 16
    ioLogik E1212/E1213 models: 8
    ioLogik E1214 models: 6
    ioLogik E1242 models: 4

  • Digital Output Channels

    ioLogik E1211 models: 16
    ioLogik E1213 models: 4

  • Configurable DIO Channels (by jumper)

    ioLogik E1212 models: 8
    ioLogik E1213/E1242 models: 4

  • Relay Channels

    ioLogik E1214 models: 6

  • Analog Input Channels

    ioLogik E1240 models: 8
    ioLogik E1242 models: 4

  • Analog Output Channels

    ioLogik E1241 models: 4

  • RTD Channels

    ioLogik E1260 models: 6

  • Thermocouple Channels

    ioLogik E1262 models: 8

  • Isolation

    3k VDC or 2k Vrms

  • Buttons

    Reset button

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • I/O Mode

    DI or event counter

  • Dry Contact

    On: short to GND
    Off: open

  • Wet Contact (DI to COM)

    ioLogik E1210/E1212/E1213/E1214/E1242 models:
    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Points per COM

    ioLogik E1210/E1212 models: 8 channels
    ioLogik E1213 models: 12 channels
    ioLogik E1214 models: 6 channels
    ioLogik E1242 models: 4 channels

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Type

    ioLogik E1211/E1212/E1242 models: Sink
    ioLogik E1213 models: Source

  • I/O Mode

    DO or pulse output

  • Current Rating

    ioLogik E1211/E1212/E1242 models: 200 mA per channel
    ioLogik E1213 models: 500 mA per channel

  • Pulse Output Frequency

    500 Hz (max.)

  • Over-Current Protection

    ioLogik E1211/E1212/E1242 models: 2.6 A per channel @ 25°C
    ioLogik E1213 models: 1.5 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Type

    Form A (N.O.) power relay

  • I/O Mode

    Relay or pulse output

  • Pulse Output Frequency

    0.3 Hz at rated load (max.)

  • Contact Current Rating

    ioLogik E1214/E1214-T models:
    Resistive load:
    5A @ 30 VDC, 250 VAC, 110 VAC

  • Contact Resistance

    100 milli-ohms (max.)

  • Mechanical Endurance

    5,000,000 operations

  • Electrical Endurance

    100,000 operations @ 5 A resistive load

  • Breakdown Voltage

    500 VAC

  • Initial Insulation Resistance

    1,000 mega-ohms (min.) @ 500 VDC

  • Note

    Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Resolution

    16 bits

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Accuracy

    ioLogik E1240/E1242:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1240-T/E1242-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C
    ±0.5% FSR @ -40 to 75°C

  • Sampling Rate

    ioLogik E1240: 12 samples/sec per module (shared between up to 8 channels) 如果啟用 N 通道,每個已啟用通道的取樣率 = 12/N 樣本/秒。
    ioLogik E1242: 12 samples/sec per module (shared between up to 4 channels) 如果啟用 N 通道,每個已啟用通道的取樣率 = 12/N 樣本/秒。

  • Built-in Resistor for Current Input

    120 ohms

  • Input Impedance

    10 mega-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA

  • Resolution

    12-bit

  • Accuracy

    ioLogik E1241:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1241-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Load (Current Mode)

    Internal power: 400 ohms (max.)
    24 V external power: 1000 ohms (max.)

  • Voltage Output Short-Circuit Protection

    10 mA

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    PT1000 (-200 to 350°C)
    PT50, PT100, PT200, PT500 (-200 to 850°C)

  • Resistance Type

    310, 620, 1250, and 2200 ohms

  • Input Connection

    2- or 3-wire

  • Sampling Rate

    ioLogik E1260: 12 samples/sec per module (shared between up to 6 channels) 如果啟用 N 通道,每個已啟用通道的取樣率 = 12/N 樣本/秒。

  • Resolution

    0.1°C or 0.1 ohms

  • Accuracy

    ioLogik E1260:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1260-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Input Impedance

    625 kilo-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV
    Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)

  • Resolution

    16 bits

  • Millivolt Accuracy

    ioLogik E1262:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1262-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • TC Accuracy

    Types J, T, E, S, B: ±5°C
    Types K, R, N: ±8°C

  • CJC Accuracy

    ±0.5°C @ 25°C
    ±1.5°C @ -40 to 75°C

  • Sampling Rate

    ioLogik E1262: 12 samples/sec per module (shared between up to 8 channels) 如果啟用 N 通道,每個已啟用通道的取樣率 = 12/N 樣本/秒。

  • Input Impedance

    10 mega-ohms (min.)

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP)
    Windows Utility (ioSearch)
    MCC Tool

  • Industrial Protocols

    Modbus TCP Server (Slave)
    Moxa AOPC (Active Tag)
    MXIO Library
    EtherNet/IP Adapter

  • Management

    RESTful API
    SNMPv1/v2c
    SNMPv1 Trap
    HTTP
    DHCP Client
    BOOTP
    IPv4
    TCP/IP
    UDP

  • MIB

    Device Settings MIB

  • Security

    Access control list

  • Authentication

    Local database

  • LED Indicators

    Power, Ready, Port 1, Port 2

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    Server (Slave)

  • Max. No. of Client Connections

    10

  • Mode

    Adapter

  • Max. No. of Scanner Connections

    9 (for read-only), 1 (for read/write)

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 36 VDC

  • Power Consumption

    ioLogik E1210 models: 110 mA @ 24 VDC
    ioLogik E1211 models: 200 mA @ 24 VDC
    ioLogik E1212 models: 155 mA @ 24 VDC
    ioLogik E1213 models: 130 mA @ 24 VDC
    ioLogik E1214 models: 188 mA @ 24 VDC
    ioLogik E1240 models: 121 mA @ 24 VDC
    ioLogik E1241 models: 194 mA @ 24 VDC
    ioLogik E1242 models: 139 mA @ 24 VDC
    ioLogik E1260 models: 110 mA @ 24 VDC
    ioLogik E1262 models: 118 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

  • Weight

    200 g (0.44 lb)

  • Installation

    DIN-rail mounting
    Wall mounting

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

  • Operating Temperature

    Standard models: -10 to 60°C (14 to 140°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    4000 m 如果您需要產品能在高海拔地區正常運作,請與 Moxa 聯繫。

  • EMC

    EN 55032/24
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2 ATEX 與 Class I Division 2 目前不適用於 ioLogik E1213/E1213-T 型號。

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    ioLogik E1210 models: 671,345 hrs
    ioLogik E1211 models: 923,027 hrs
    ioLogik E1212 models: 561,930 hrs
    ioLogik E1213 models: 715,256 hrs
    ioLogik E1214 models: 808,744 hrs
    ioLogik E1240 models: 474,053 hrs
    ioLogik E1241 models: 888,656 hrs
    ioLogik E1242 models: 502,210 hrs
    ioLogik E1260 models: 660,260 hrs
    ioLogik E1262 models: 631,418 hrs

  • Standards

    Telcordia Standard SR-332

  • Warranty Period

    ioLogik E1214: 2 years 由於功率繼電器的使用壽命有限,使用此元件的產品均提供 2 年保固。
    ioLogik E1210/E1211/E1212/E1213/E1240/E1241/E1242/E1260/E1262: 5 years

  • Details
