MGate 5114 系列

1 埠 Modbus RTU/ASCII/TCP/IEC 101 轉 IEC 104 閘道器

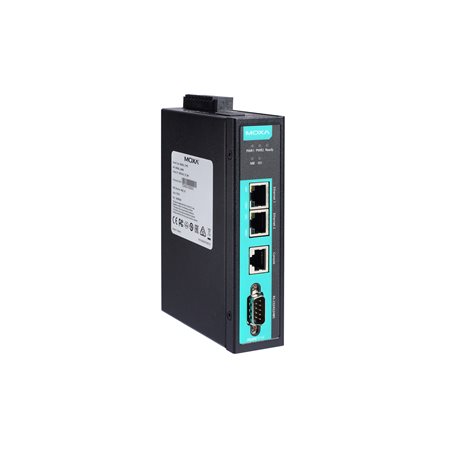

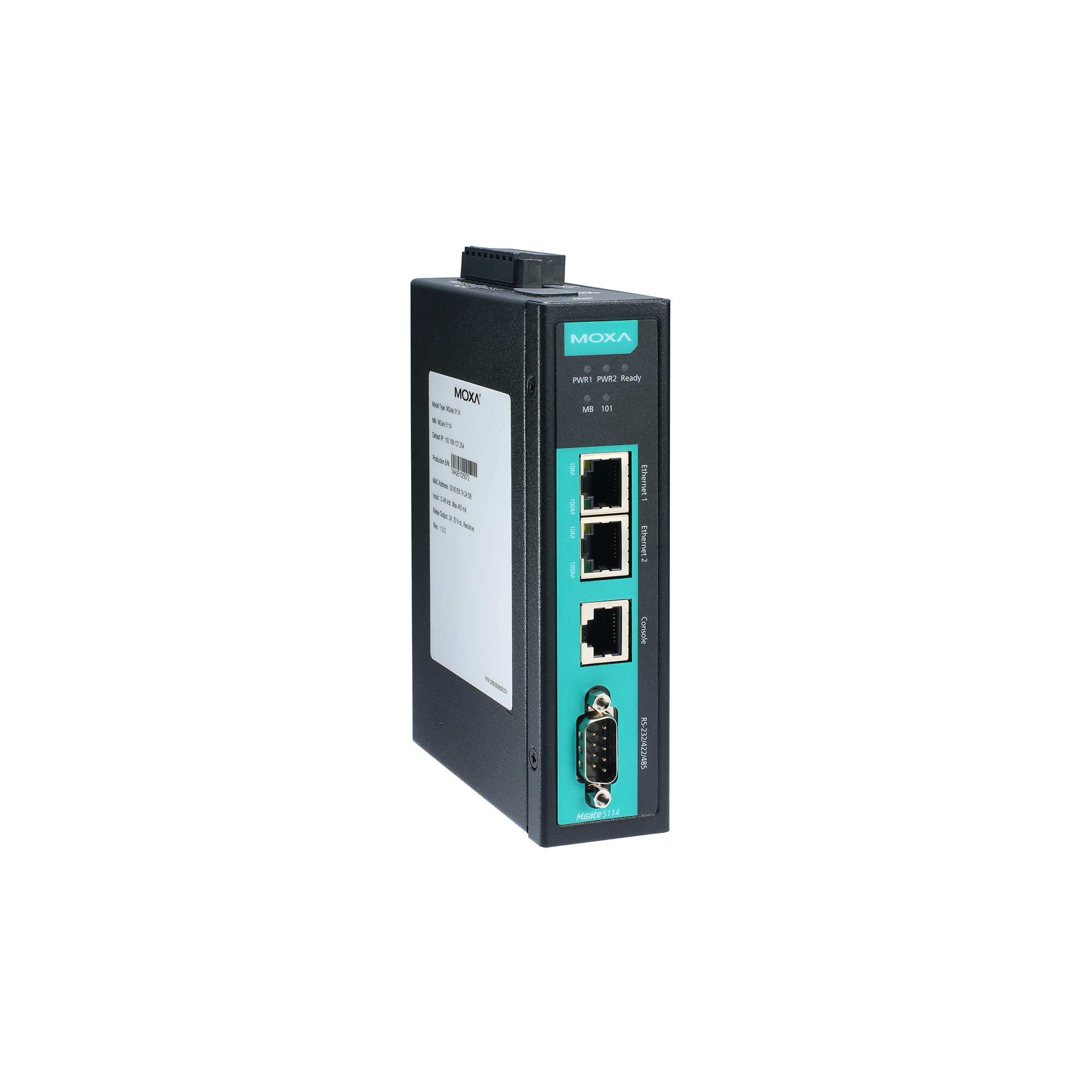

moxa-mgate-5114-series-image-(1).jpg | Moxa

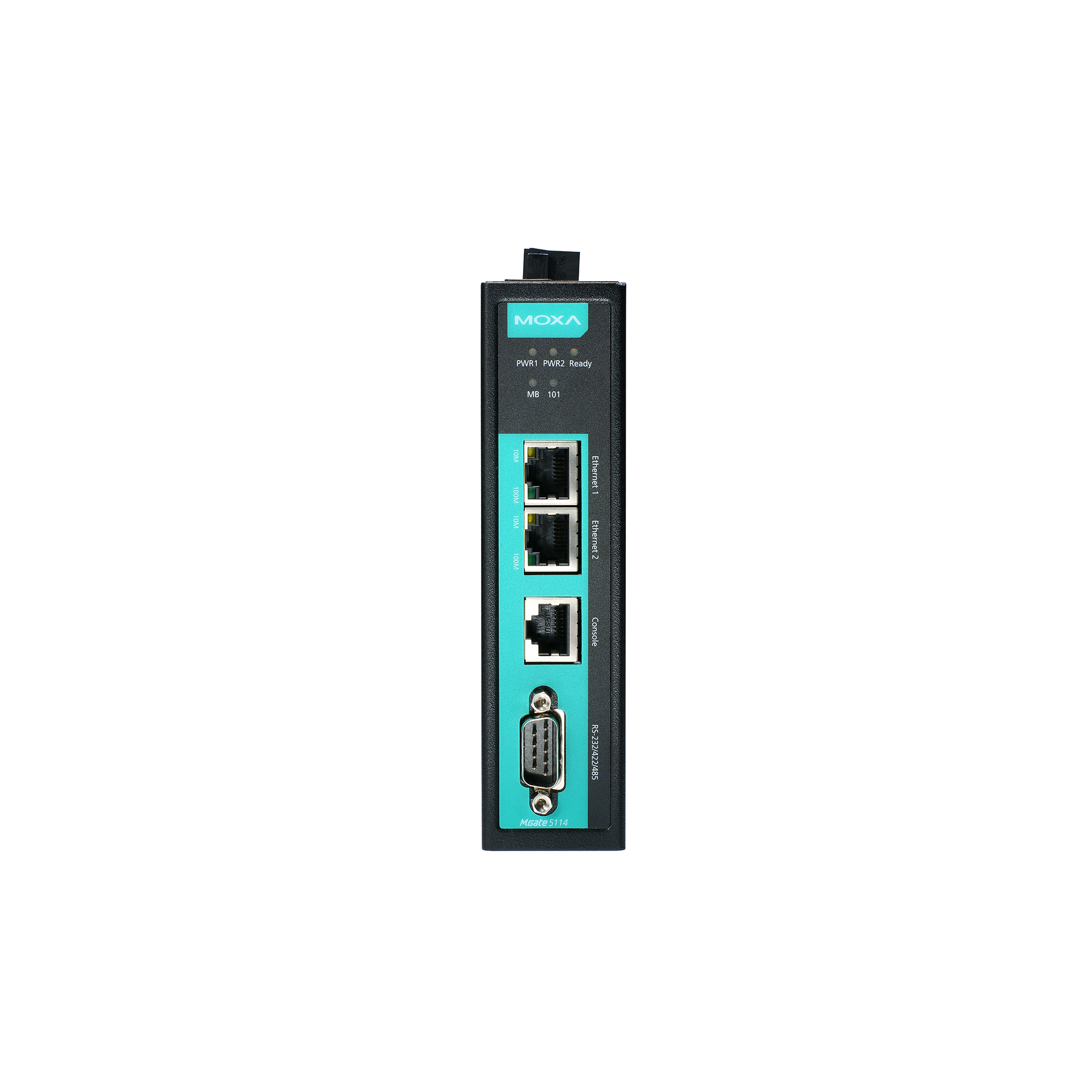

moxa-mgate-5114-series-image-1-(1).jpg | Moxa

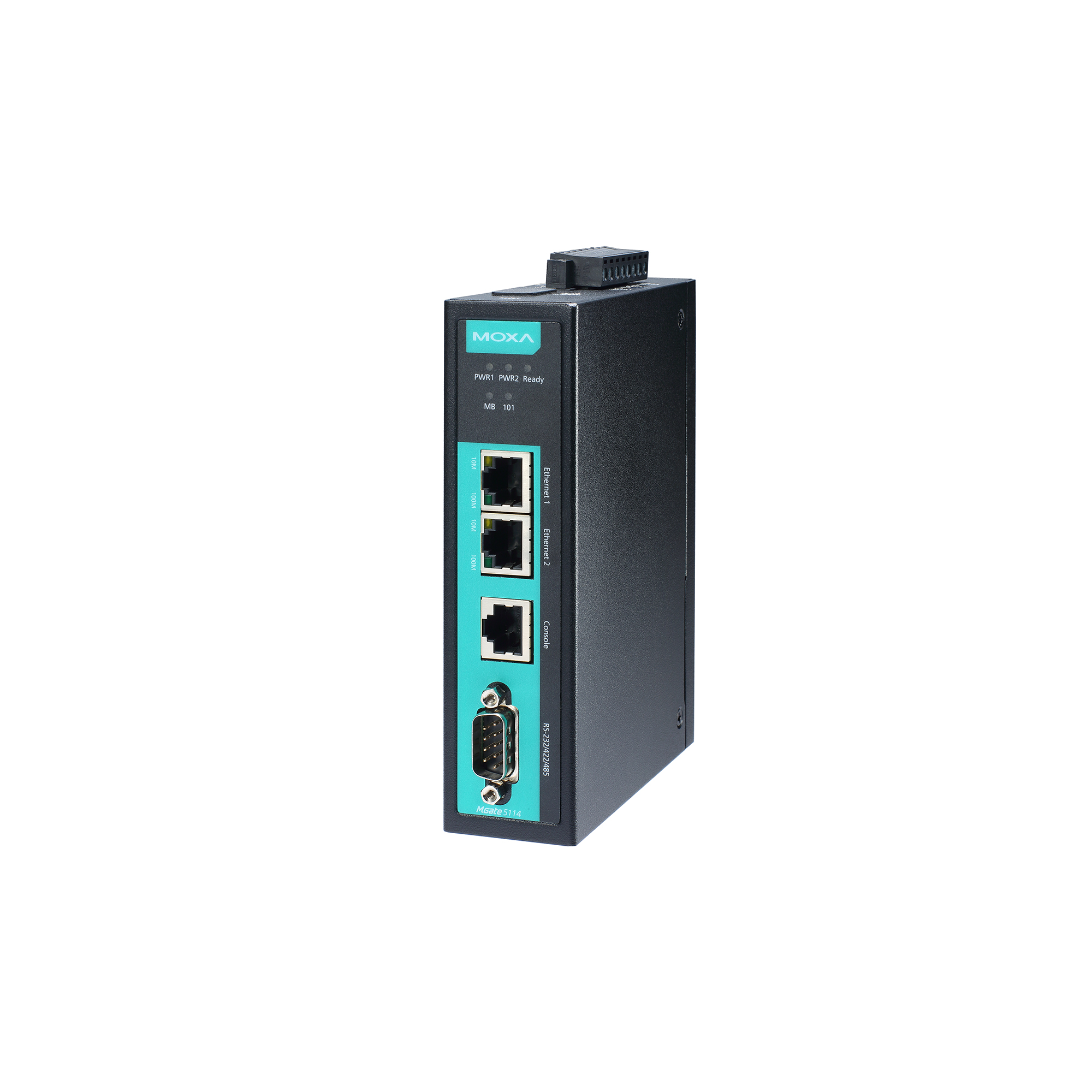

moxa-mgate-5114-series-image-2-(1).jpg | Moxa

特色與優點

  • Modbus RTU/ASCII/TCP、IEC 60870-5-101、IEC 60870-5-104 之間的通訊協定轉換
  • 支援 IEC 60870-5-101 主控裝置/從屬裝置(平衡/非平衡)
  • 支援 IEC 60870-5-104 用戶端/伺服器
  • 支援 Modbus RTU/ASCII/TCP 主控裝置/用戶端和從屬裝置/伺服器
  • 透過網頁式設定精靈輕鬆配置
  • 狀態監控和故障保護,可輕鬆維護
  • 嵌入式流量監控/診斷資訊,便於故障排除
  • microSD 卡可用於備份/複製配置與儲存事件日誌
  • 輕鬆佈線的內建乙太網路串接
  • 備援雙直流電源輸入和繼電器輸出
  • 提供 -40 至 75°C 寬溫度操作型號可供選用
  • 串列內建埠 2kV 隔離保護
  • 基於 IEC 62443 的資安防護功能

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate 5114 是工業乙太網路閘道器,配備 2 個乙太網路連接埠和 1 個 RS-232/422/485 串列埠,適用於 Modbus RTU/ASCII/TCP、IEC 60870-5-101 和IEC 60870-5-104 網路通訊。 透過整合常用的電源通訊協定,MGate 5114 提供滿足現場裝置使用不同通訊通訊協定連接到電源 SCADA 系統時出現的各種條件所需的彈性。若要將 Modbus 或 IEC 60870-5-101 裝置整合到 IEC 60870-5-104 網路,請將 MGate 5114 做為 Modbus 主控裝置/用戶端或 IEC 60870-5-101 主控裝置,藉以收集數據並與 IEC 60870-5-104 系統交換數據。

透過 Web 主控台輕鬆配置

MGate 5114 系列隨附有插圖的快速安裝指南,配置更便利。透過快速安裝,只要幾個步驟即可輕鬆存取通訊協定轉換模式,並完成配置。

Modbus RTU/ASCII/TCP 通訊協定流量監控

MGate 5114 系列閘道器支援 Modbus RTU/ASCII/TCP、IEC 60870-5-101 和 IEC 60870-5-104 通訊協定流量監控,故障排除更容易,尤其在安裝階段。值得一提的是,可以在常用的故障排除工具 Wireshark 中查看流量日誌。使用此項功能可以輕鬆分析流量以確定問題的根本原因。

維護功能

MGate 5114 閘道器支援系統日誌功能,可記錄 MGate 中的事件;使用者可以透過 Web 主控台從遠端輕鬆檢閱日誌數據。閘道器也支援狀態監控和失效防護功能。裝置中斷連線或無回應時,狀態監控功能會通知 PSCADA 系統,PSCADA 系統取得每台終端裝置的狀態,並發出警報通知操作員。

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master), Modbus TCP Server (Slave), IEC 60870-5-104 Client, IEC 60870-5-104 Server

  • Configuration Options

    Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console

  • Management

    ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    Even, Mark, None, Odd, Space

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only), RTS/CTS

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, IEC 60870-5-101 Master (Balanced/Unbalanced), IEC 60870-5-101 Slave (Balanced/Unbalanced)

  • Configuration Options

    Serial Console

  • Mode

    Master, Slave

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    128

  • Mode

    Client (Master), Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    128

  • Mode

    Client
    Server

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    32

  • Max. No. of Information Objects

    2000 points

  • Mode

    Master (Balanced/Unbalanced)
    Slave (Balanced/Unbalanced)

  • Max. No. of Master Connections

    1

  • Max. No. of Slave Connections

    1 (Balanced), 31 (Unbalanced)

  • Max. No. of Information Objects

    2000 points

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    507 g (1.12 lb)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Operating Temperature

    MGate 5114: 0 to 60°C (32 to 140°F)
    MGate 5114-T: -40 to 75°C (-40 to 167°F)

  • Safety

    EN 60950-1, UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2, IECEx

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64

  • Time

    1,140,815 hrs

  • Standards

    Telcordia SR332
