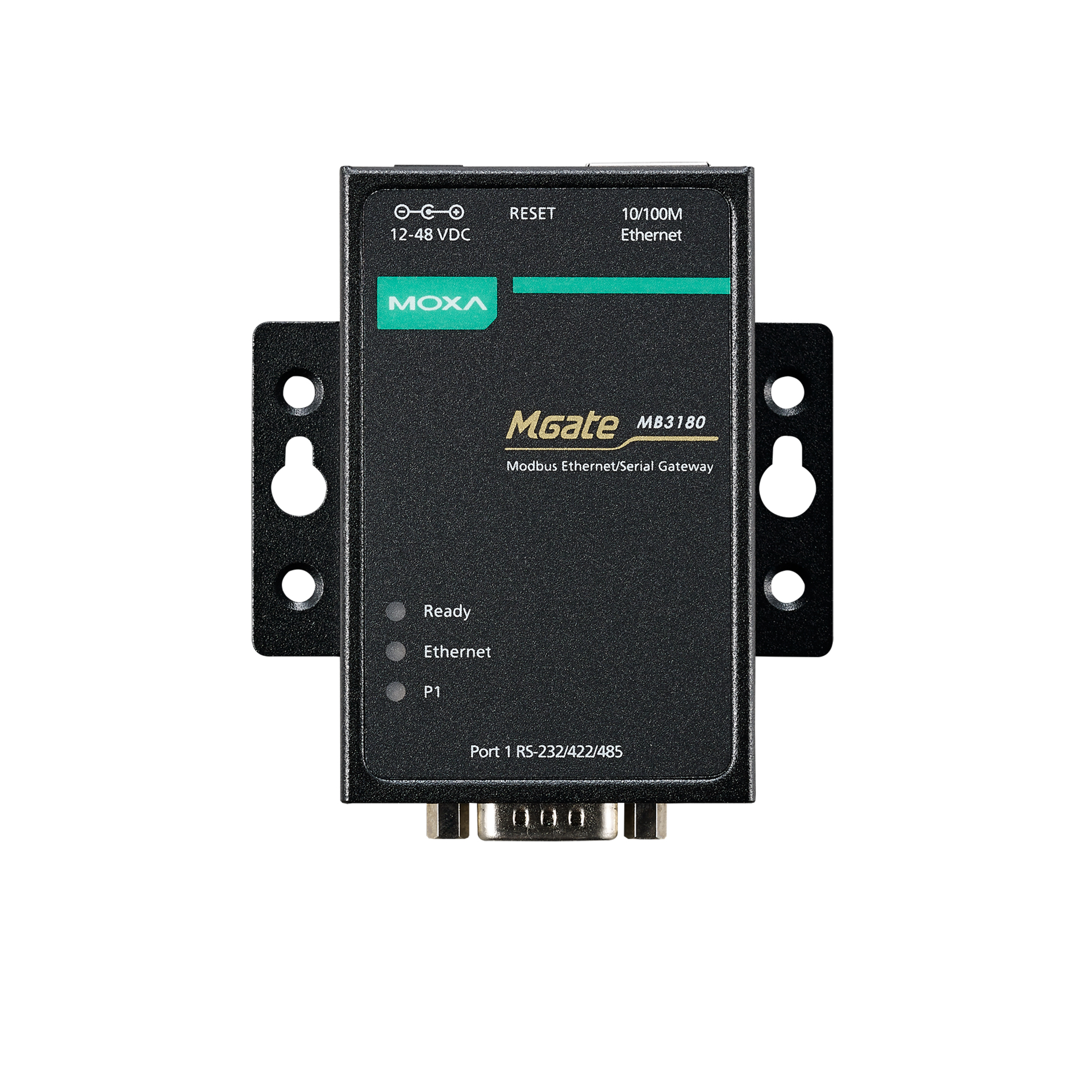

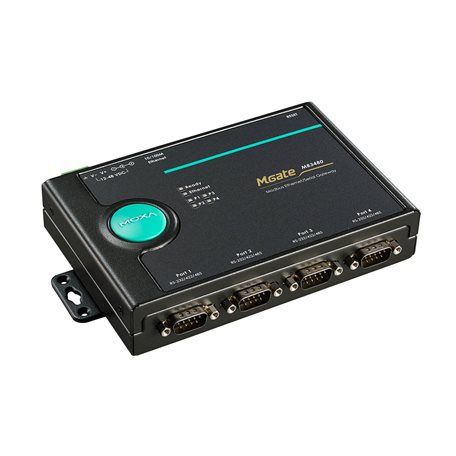

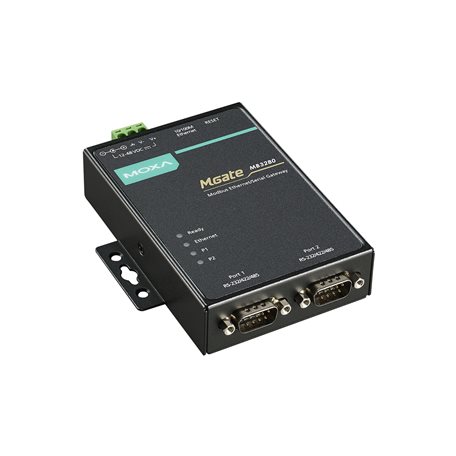

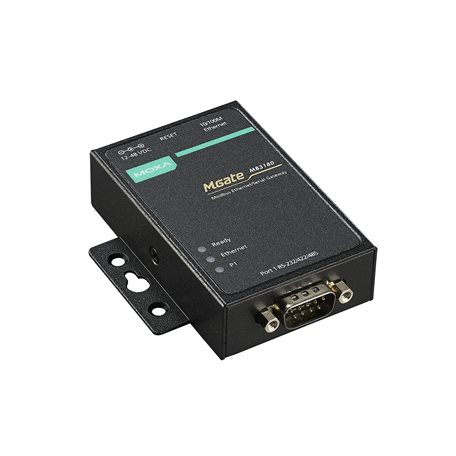

MGate MB3180/MB3280/MB3480 系列

1 埠、2 埠和 4 埠標準型串列轉乙太網路 Modbus 閘道器

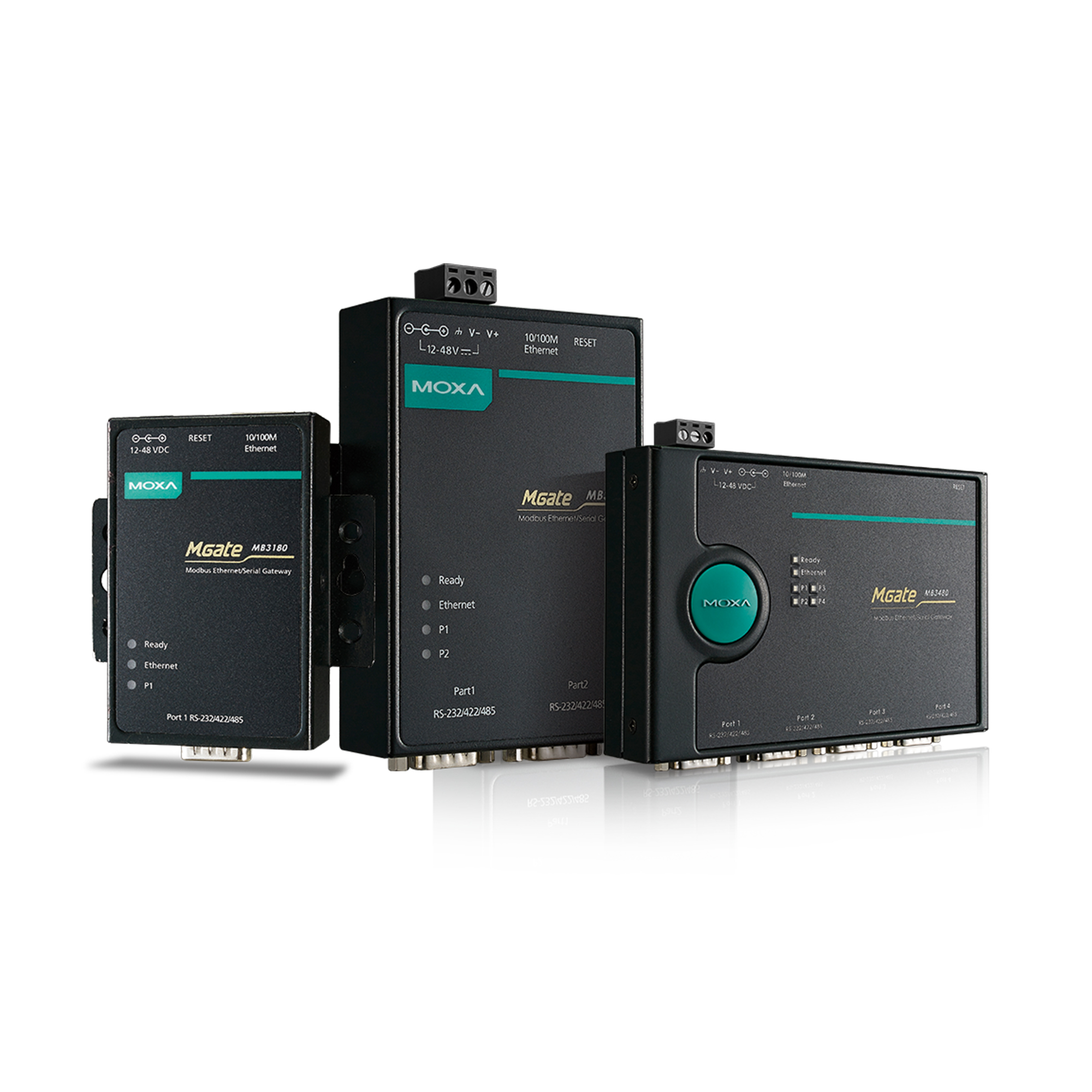

moxa-mgate-mb3180-mb3280-mb3480-series-image-(1).jpg | Moxa

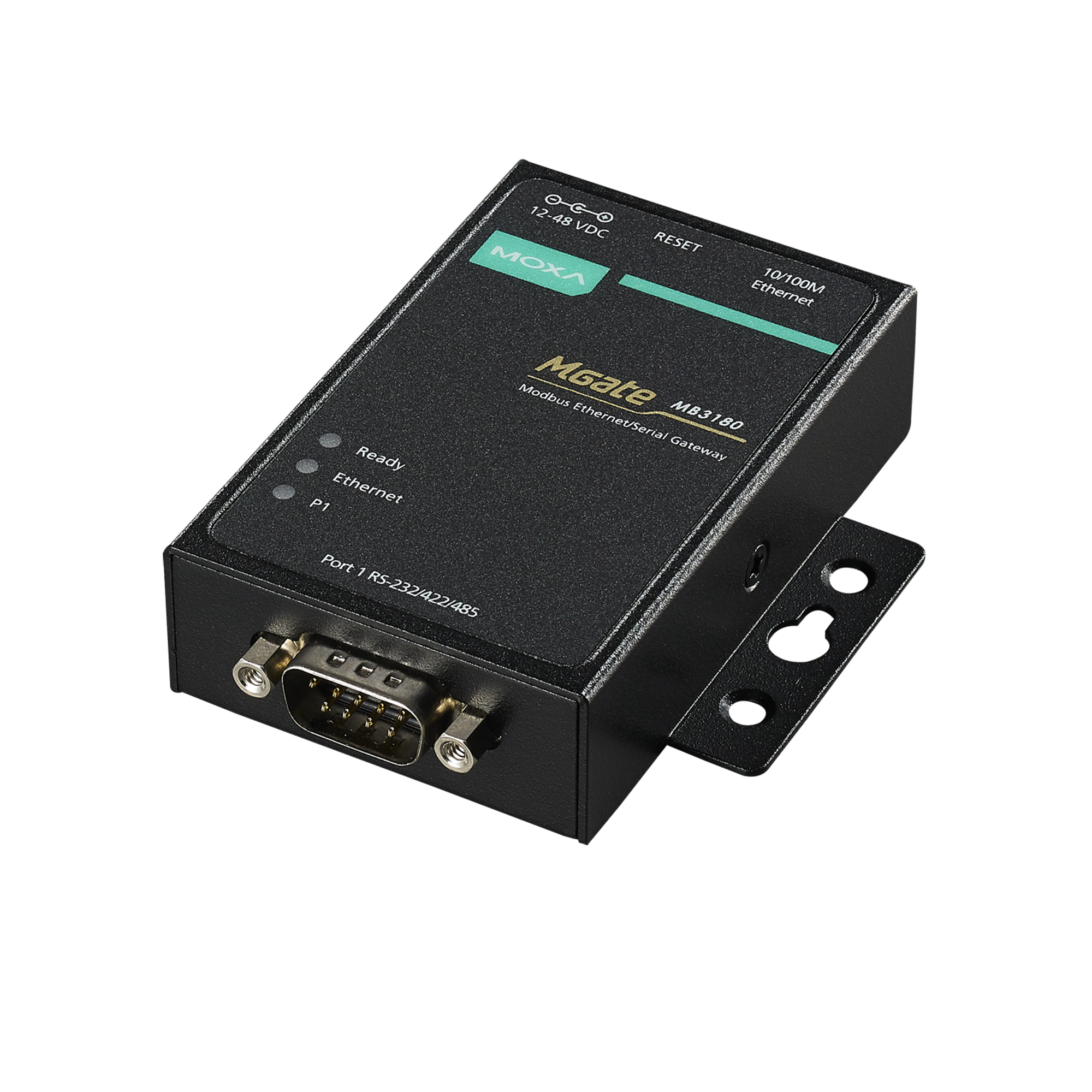

moxa-mgate-mb3180-mb3280-mb3480-series-image-1-(1).jpg | Moxa
moxa-mgate-mb3180-mb3280-mb3480-series-image-2-(1).jpg | Moxa

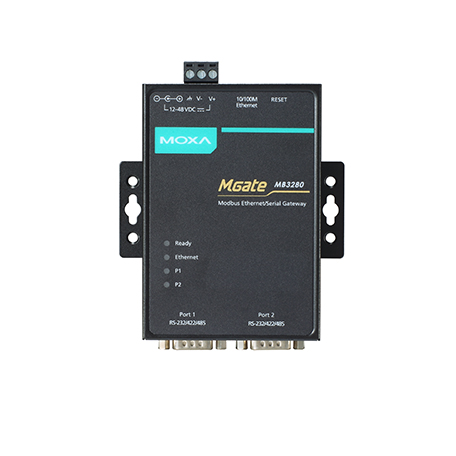

moxa-mgate-mb3180-mb3280-mb3480-series-image-3-(1).jpg | Moxa

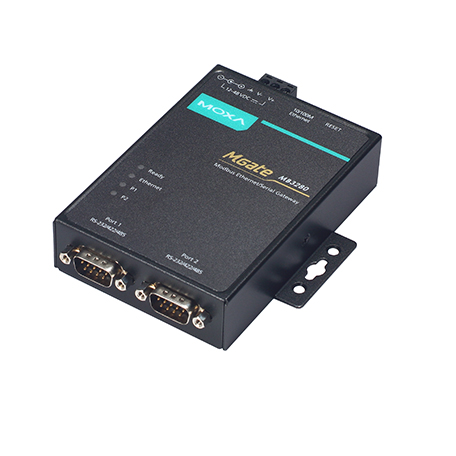

moxa-mgate-mb3180-mb3280-mb3480-series-image-4-(1).jpg | Moxa

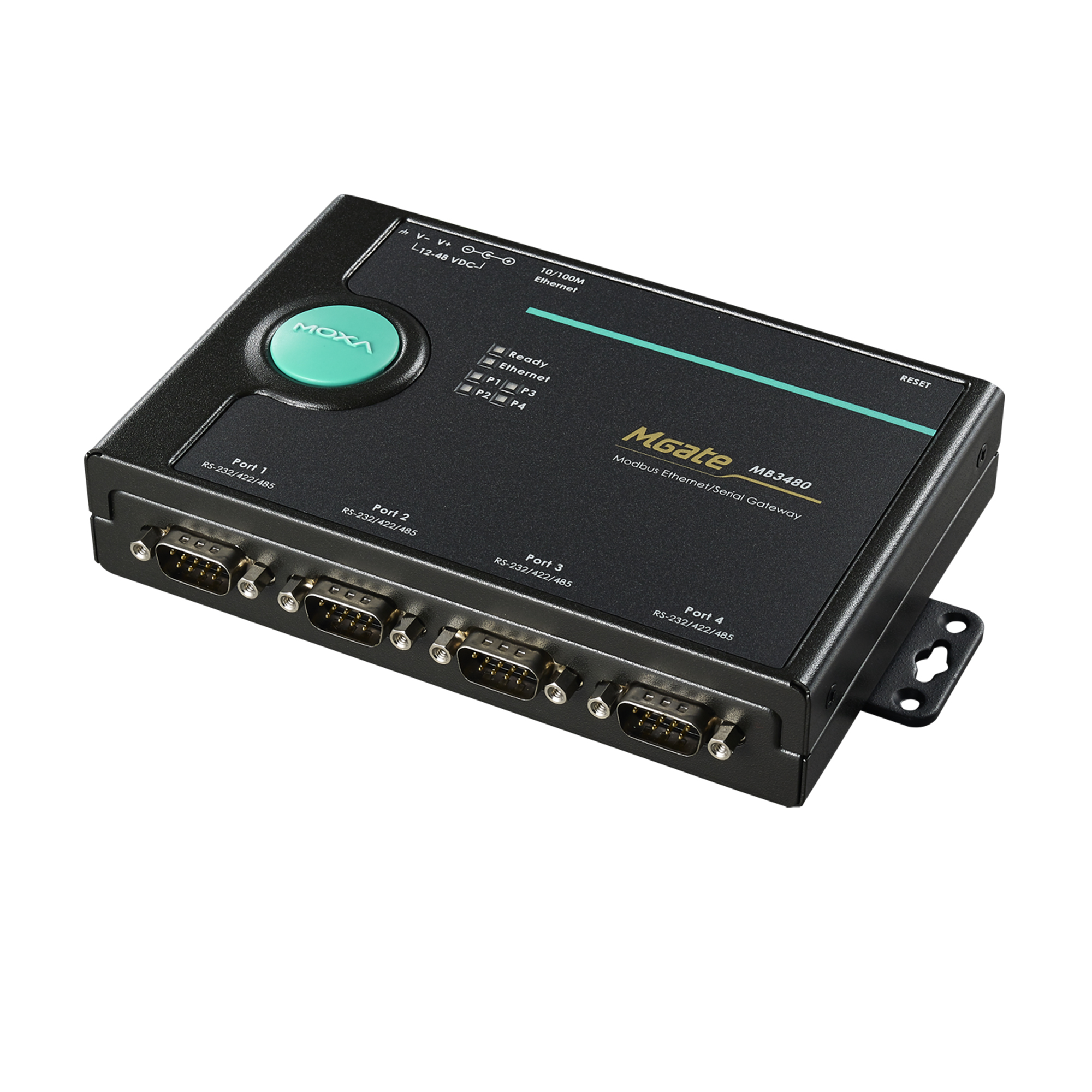

moxa-mgate-mb3180-mb3280-mb3480-series-image-5-(1).jpg | Moxa

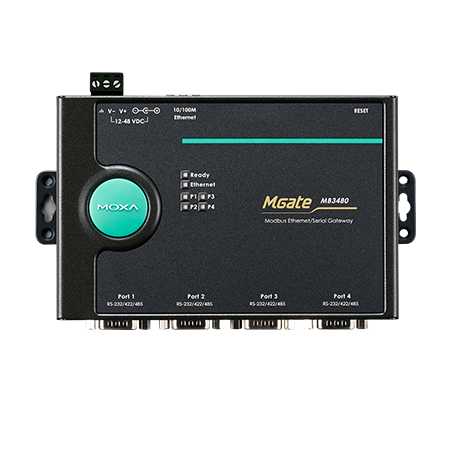

moxa-mgate-mb3180-mb3280-mb3480-series-image-6-(1).jpg | Moxa

特色與優點

  • 支援自動裝置路由以簡化配置
  • 透過 TCP 埠或 IP 位置支援路由以便靈活部署
  • 在 Modbus TCP 與 Modbus RTU/ASCII 通訊協定之間進行轉換
  • 1 個乙太網路連接埠以及 1、2 或 4 個 RS-232/422/485 連接埠
  • 同時支援 16 個 TCP master,每個 Master 最多可同時支援 32 個要求
  • 簡易硬體設定與安裝

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MB3180、MB3280 和 MB3480 是標準的 Modbus 閘道器,可在 Modbus TCP 與 Modbus RTU/ASCII 通訊協定之間進行轉換。最多可同時支援 16 個 Modbus TCP Master,每個串列埠最多可以有 31 個 RTU/ASCII slave。對於 RTU/ASCII Master,最多可支援 32 個 TCP slave。

標準 Modbus 網路整合

這三款標準 Mgate™ 型號(MB3180、MB3280 和 MB3480)是專為 Modbus TCP 與 RTU/ASCII 網路的整合所設計。藉由這些型號,Modbus 串列 slave 設備可以與現有 Modbus TCP 網路無縫結合,且串列 master 可存取 Modbus TCP slave 設備。MB3180、MB3280 和 MB3480 所提供的功能可幫助網路整合更加容易、可客製化,並且幾乎與所有 Modbus 網路相容。

高密度、符合成本效益的閘道器

MGate™ MB3000 閘道器能夠有效地將高密度的 Modbus 節點連接至相同網路。MB3280 最多可管理 62 個串列 slave 節點,而 MB3480 最多可管理 124 個串列 slave 節點。每個 RS-233/422/485 串列埠都可以各自針對 Modbus RTU 或 Modbus ASCII 作業進行設定,亦可設定不同的傳輸率。如此一來,只要一個 Modbus 閘道器即可將這兩種網路與 Modbus TCP 予以整合。

自動裝置路由,簡化配置(專利申請中)

Moxa 的自動裝置路由功能協助需要設置大量 Modbus 設備的工程師解決很多問題和不便。只需按滑鼠一鍵,即可設定 slave ID 路由表以及 Modbus 閘道器的配置,並能透過數據採集與監控 (SCADA) 系統自動偵測 Modbus 需求。由於不再需要手動建立 slave ID 路由表,自動裝置路由功能將可為工程師省下大量時間並且降低成本。

  • 10/100BaseT(X) Ports (RJ45 connector)

    1 (Auto MDI/MDI-X connection)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master), Modbus TCP Server (Slave)

  • Configuration Options

    All models: Web Console (HTTP), Device Search Utility (DSU), MGate Manager, MCC Tool, Telnet Console
    MGate MB3280/MB3480 only: Web Console (HTTPS)

  • Management

    All models: ARP, DHCP Client, DNS, HTTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP
    MGate MB3280/MB3240 only: HTTPS, SMTP, SNMP Trap, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client (MGate MB3180 Excluded)

  • No. of Ports

    MGate MB3180: 1
    MGate MB3280: 2
    MGate MB3480: 4

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485 (software selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 2

  • Flow Control

    DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    MGate MB3180: None
    MGate MB3280/MB3480: 120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

  • Max. No. of Client Connections

    16

  • Max. No. of Server Connections

    32

  • Input Voltage

    12 to 48 VDC

  • Input Current

    MGate MB3180: 200 mA @ 12 VDC
    MGate MB3280: 250 mA @ 12 VDC
    MGate MB3480: 385 mA @ 12 VDC

  • Power Connector

    MGate MB3180: Power jack
    MGate MB3280/MB3480: Power jack and terminal block

  • Housing

    Metal

  • IP Rating

    IP30 For the MGate MB3480, the two screws provided with the wall-mounting kit must be used to fasten the kit to the bottom of the MGate, and the MGate must be properly attached to the terminal block for power input.

  • Dimensions (with ears)

    MGate MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
    MGate MB3280: 22 x 100 x 111 mm (0.87 x 3.94 x 4.37 in)
    MGate MB3480: 35.5 x 102.7 x 181.3 mm (1.40 x 4.04 x 7.14 in)

  • Dimensions (without ears)

    MGate MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)
    MGate MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in)
    MGate MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)

  • Weight

    MGate MB3180: 340 g (0.75 lb)
    MGate MB3280: 360 g (0.79 lb)
    MGate MB3480: 740 g (1.63 lb)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Time

    MGate MB3180: 908,440 hrs
    MGate MB3280: 749,455 hrs
    MGate MB3480: 1,242,173 hrs

  • Standards

    Telcordia SR332
