NPort 5200 系列

2 埠 RS-232/422/485 串列設備伺服器

moxa-nport-5200-series-image-1-(1).jpg | Moxa
moxa-nport-5200-series-image-2-(1).jpg | Moxa
moxa-nport-5200-series-image-3-(1).jpg | Moxa
moxa-nport-5200-series-image-4-(1).jpg | Moxa
moxa-nport-5200-series-image-5-(1).jpg | Moxa
moxa-nport-5200-series-image-6-(1).jpg | Moxa
moxa-nport-5200-series-image-7-(1).jpg | Moxa

特色與優點

  • 設計小巧並安裝簡易
  • 通訊端模式:TCP server、TCP client、UDP
  • 方便使用的 Windows 工具程式,可設定多台設備伺服器
  • 用於 2 線和 4 線 RS-485 的 ADDC(自動資料流向控制)
  • 用於網路管理的 SNMP MIB-II

認證

  • moxa-dnv-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

NPort® 5200 串列設備伺服器能夠讓工業串列裝置立即聯網。 NPort 5200 串列設備伺服器的小巧尺寸使其成為連接 RS-232 (NPort 5210/5230/5210-T/5230-T) 或 RS-422/485 (NPort 5230/5232/5232I/5230- T/5232-T/5232I-T) 串列設備(例如:PLC、電表和感測器)到乙太網路 IP LAN 的最佳選擇。讓您的軟體在任何地方皆可透過區域網路或網際網路直接存取串列裝置。NPort 5200 系列具有許多實用的功能,其中包括標準 TCP/IP 通訊協定和操作模式選擇、現有軟體的 Real COM/TTY 驅動程式,以及透過 TCP/IP 或傳統 COM/TTY 連接埠遠端控制串列設備。



標準 TCP/IP 通訊協定和操作模式選擇

NPort 5200 設備伺服器可以在 TCP Server、TCP Client、UDP Server/Client 操作,確保與標準網路 API(例如:Winsock、BSD 通訊端)的軟體相容。



現有軟體的 Real COM/TTY 驅動程式

每台 NPort 提供的 Real COM/TTY 驅動程式,設計用於與 COM/TTY 連接埠通訊的軟體可以立即和 TCP/IP 網路整合。是保護軟體資產的絕佳方式,同時讓您享受連接串列裝置的效益。



透過 TCP/IP 或傳統 COM/TTY 連接埠遠端控制串列裝置

透過指定 NPort 5200 的 IP 位址和連接埠編號,網路通訊端 API 可以從任何支援 TCP/IP 的主機電腦經由網路存取已連接的串列設備。以 COM 或 TTY 為基礎的傳統 Windows 或 Linux 軟體,Moxa 的 COM/TTY 驅動程式使其可以透過網路來進行操作。



外觀



  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Windows Utility, Telnet Console, Web Console (HTTP), Serial Console

  • Management

    DHCP Client
    IPv4
    SNTP
    SMTP
    SNMPv1
    DNS
    HTTP
    ARP
    BOOTP
    UDP
    TCP/IP
    Telnet
    ICMP

  • Windows Real COM Drivers

    Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
    Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS versions: 10.12 to 10.15, 11.x
    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Linux Kernel 5.x/4.x

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Authentication

    Local database (password only)

  • Connector

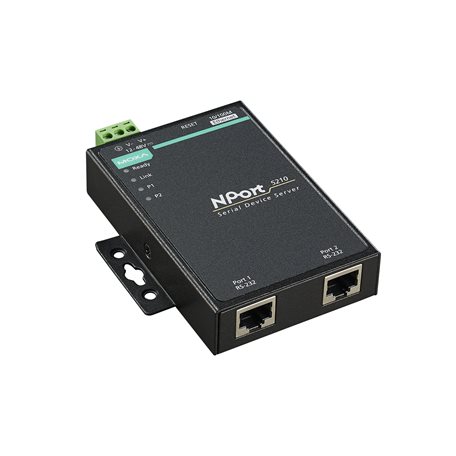

    NPort 5210 Models: 8-pin RJ45

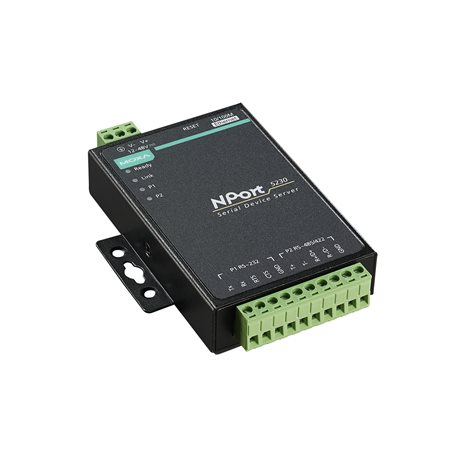

    NPort 5230/5232 Models: Terminal block

  • No. of Ports

    2

  • Serial Standards

    NPort 5210 Models: RS-232
    NPort 5230 Models RS-232/422/485 NPort 5230 型號的一個連接埠支援 RS-232,另一個連接埠支援 RS-422/485。

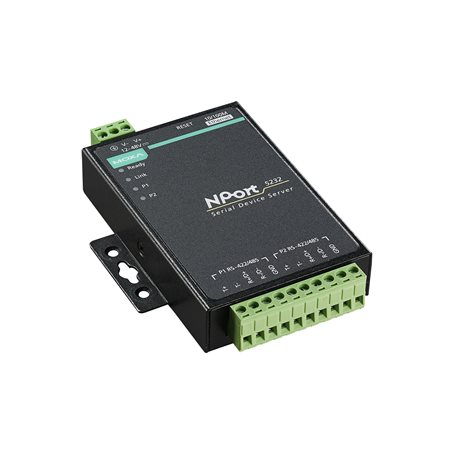

    NPort 5232 Models: RS-422/485

  • Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    TCP Client
    TCP Server
    UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only)
    DTR/DSR (RS-232 only)
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    NPort 5210 Models: None
    NPort 5230/5232/5232I Models: 1 kilo-ohms (fixed value)

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • Isolation

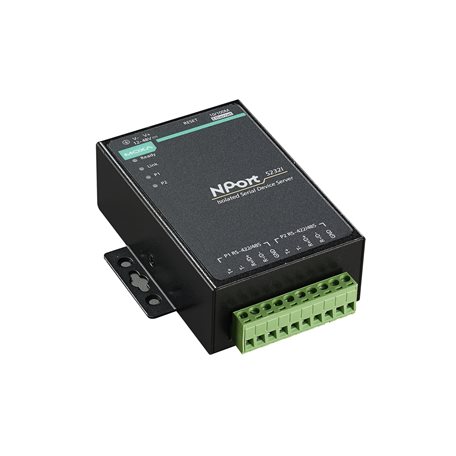

    NPort 5232I Models: 2 kV

  • RS-232

    NPort 5210 Models: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    NPort 5230 Models: TxD, RxD, RTS, CTS, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5210/5230 Models: 325 mA @ 12 VDC
    NPort 5232/5232I Models: 280 mA @ 12 VDC, 365 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    1

  • Power Connector

    1 removable 3-contact terminal block(s)

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    NPort 5210/5230/5232/5232-T Models: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
    NPort 5232I/5232I-T Models: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)

  • Dimensions (without ears)

    NPort 5210/5230/5232/5232-T Models: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
    NPort 5232I/5232I-T: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)

  • Weight

    NPort 5210 Models: 340 g (0.75 lb)
    NPort 5230/5232/5232-T Models: 360 g (0.79 lb)
    NPort 5232I/5232I-T Models: 380 g (0.84 lb)

  • Installation

    Desktop
    DIN-rail mounting (with optional kit)
    Wall mounting

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    UL 60950-1

  • Maritime

    NPort 5230/5232 Models: DNV

  • Medical

    NPort 5210/5210-T:
    EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
    EN 60601-1-2: 2007 compliant

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5210 Models: 381,342 hrs
    NPort 5230 Models: 377,937 hrs
    NPort 5232 Models: 309,383 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
