UPort 1200-G2 系列

2 埠 RS-485 USB 轉串列轉換器

moxa-uport-1200-g2-series-image-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-1-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-2-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-3-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-4-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-5-(1).jpg | Moxa
moxa-uport-1200-g2-series-image-6-(1).jpg | Moxa

特色與優點

  • USB 3.2 超高速功能
  • 50 bps 至 921.6 kbps 鮑率(支援非標準鮑率)
  • 512 位元組晶片 FIFO 快取和流量控制可增強效能
  • 角落的雙面 LED 可全方位顯示電源、TX 和 RX 狀態
  • 支援多種作業系統的驅動程式,包括 Windows 和 Linux
  • 連接更牢固的閉鎖式 USB 銅纜設計
  • 寬溫型號適用於 -40 至 75°C(-40 至 167°F)環境
  • 內建 2 kV 光電隔離保護的串列埠(適用於「-I」型號)

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-kc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

UPort® 1200-G2 系列 USB 轉串列轉換器非常適合需要串列埠擴充的筆記型電腦或工作站電腦。對於需要在現場連接不同串列設備或是沒有標準 COM 埠或 DB9 接頭獨立介面轉換器的電腦來說,必不可少。電腦還配備了纜線,其具有閉鎖和螺絲鎖以確保 UPort 和電腦之間更加安全的連接。UPort® 1200-G2 系列可將 USB 轉換為 RS-485。所有產品均與傳統串列設備相容,並適用於儀器儀表以及銷售點終端(point-of-sale)應用。

  • USB Standards

    USB 3.2 Gen 1
    USB 1.1/2.0 compliant

  • Speed

    5 Gbps, 480 Mbps, 12 Mbps

  • No. of USB Ports

    1

  • USB Connector

    USB Type B

  • Connector

    DB9 male

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • FIFO

    512 bytes

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Surge

    0.5 kV

  • Isolation

    2 kV (I models)

  • Serial Standards

    RS-232/422/485

  • No. of Ports

    2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    Windows 11, 10, 8.1, 8 and 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2

  • Linux Drivers

    Kernel 6.x, 5.x and 4.x

  • Mac Drivers

    macOS version (Intel 64): 13, 12, 11 and 10.1x

  • Virtual Machine

    VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
    VMWare ESXi (Linux kernel 4)
    Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)

  • Arm®-based Platform Support

    Linux kernel 6.x, 5.x and 4.x

  • Android API

    Android 3.1.x and later

  • Input Voltage

    5 VDC by USB bus power

  • Housing

    Metal

  • IP Rating

    IP20

  • Dimensions

    75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in)

  • Weight

    UPort 1250-G2 models: 259 g (0.57 lb)
    UPort 1250I-G2 models: 263 g (0.58 lb)

  • Operating Temperature

    Standard models: 0 to 60°C (32 to 140°F)
    -T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV
    IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
    IEC 61000-4-8 PFMF

  • Safety

    IEC 62368-1
    EN 62368-1
    UL 62368-1 (CB)
    KC

  • Freefall

    IEC 60068-2-31

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Shock

    IEC 60068-2-27

  • Green Product

    RoHS, CRoHS, WEEE

  • Standards

    Telcordia Standard SR332

  • Time

    UPort 1250-G2 models: 2,142,392 hrs
    UPort 1250I-G2 models: 1,793,060 hrs

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Driver for UPort 1200/1400/1600/G2 Series (Windows XP or Windows Server 2008 and prior, WHQL certified)
1.4 MB
驅動程式
SHA-512
v2.1
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2024年3月7日 2024年3月7日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 11 and Windows Server 2022 and later, WHQL certified)
8.6 MB
驅動程式
SHA-512
v4.1
  • Windows
  • Windows 11
  • Windows Server 2022
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
11.4 MB
驅動程式
SHA-512
v3.3
  • Windows
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 5.x)
646.4 KB
驅動程式
SHA-512
v5.2
  • Linux Kernel 5.x
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (macOS 10.12 to 13)
413.6 KB
驅動程式
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 6.x)
644.1 KB
驅動程式
SHA-512
v6.1
  • Linux Kernel 6.x
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 4.x)
722.5 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年10月13日 2023年10月13日 版本說明
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
工具程式
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月19日 2023年6月19日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
FOSS Statement for Moxa PComm Lite Suite for Windows
108.5 KB
聲明書 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for Moxa ViewCOM for Windows
139.9 KB
聲明書 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series macOS Driver
115.8 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series Windows Driver
187.6 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
UPort 1200-G2 系列產品資料表
2.8 MB
產品資料表 中文 v1.0 2024年2月1日 2024年2月1日
Manual for UPort 1200-G2/1400-G2/1600-8-G2 Series
10.3 MB
使用者手冊 英文 v2.0 2024年1月31日 2024年1月31日
QIG for UPort 1200-G2 Series
3.1 MB
QIG 英文 v1.0 2024年1月31日 2024年1月31日
Declaration of Conformity for UPort 1200-G2 Series
307.9 KB
聲明書 英文 v1.0 2024年1月25日 2024年1月25日
Tech Note: UPort Driver Arm-based Platform Porting Guide
423.1 KB
技術說明 英文 v1.2 2023年10月13日 2023年10月13日

可供選擇的機型 (4)

顯示圖片

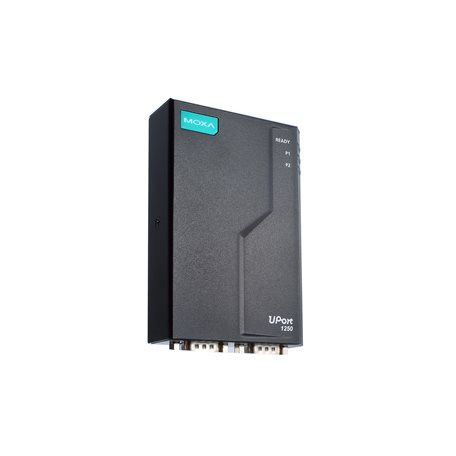

moxa-uport-1250i-g2-image.jpg | MoxaUPort 1250I-G2moxa-uport-1250-g2-t-image.jpg | MoxaUPort 1250-G2-Tmoxa-uport-1250i-g2-t-image.jpg | MoxaUPort 1250I-G2-Tmoxa-uport-1250-g2-image.jpg | MoxaUPort 1250-G2
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports2222
Isolation2 kV-2 kV-
Power InputUSB bus powerUSB bus powerUSB bus powerUSB bus power
Operating Temp.0 to 60°C-40 to 75°C-40 to 75°C0 to 60°C
