TN-4500B 系列

EN 50155 8 至 28 連接埠乙太網路網管型交換器

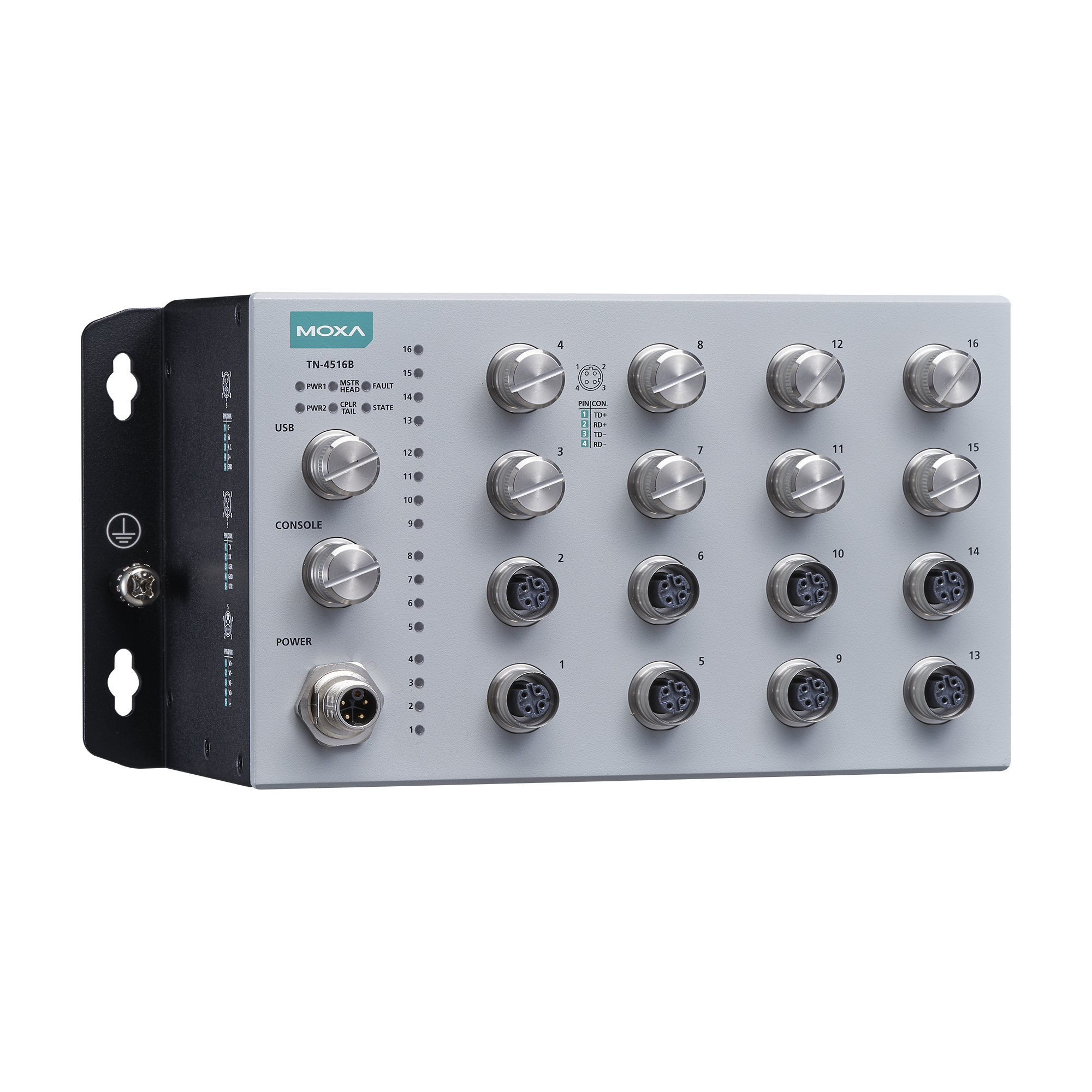

moxa-tn-4500b-series-image-(1).jpg | Moxa
moxa-tn-4500b-series-image-1-(1).jpg | Moxa

特色與優點

  • 最多 28 個乙太網路連接埠,配備 M12 推拉式連接器
  • 最多 8 個 Gigabit 連接埠,具備可選式雙繼電器繞道功能
  • 最多 24 個 PoE 連接埠,總 PoE 功率上限為 150 W
  • 隔離式電源,電源供應範圍為 24 至 110 VDC
  • -40 至 70°C 系統操作溫度範圍
  • 符合所有 EN 50155 規範強制性測試項目 此產品適用於符合 EN 50155 標準所定義的所有軌道車輛應用。按此處取得更詳細內容: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 內建 MX-NOS 軌道版本,這是一個全面性管理韌體,專為車載軌道網路的獨特需求量身打造

認證

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

ToughNet TN-4500B 系列 M12 網管型乙太網路交換器專為鐵路應用所設計,適用於軌道車輛及軌道安裝等應用。 交換器使用 M12 圓形連接器,確保連接緊密牢固,確保在振動和衝擊常見的工業環境中可正常運作。TN-4500B 系列乙太網路交換器提供 8 到 28 個乙太網路連接埠,符合或不符合 IEEE 802.3at/af 標準的 PoE功能。Gigabit 型號進一步提供最多 8 個 Gigabit 乙太網路連接埠。

交換器支援 24 至 110 VDC 的寬電源輸入範圍和隔離式雙電源輸入,不僅可讓您在世界各地使用相同類型的電源,還能提升通訊系統的可靠性。此外,交換器的工作溫度範圍為 -40 至 70°C,可確保它們能夠部署在嚴苛環境中。TN-4500B 系列乙太網路交換器符合 EN 50155 標準中有關工作溫度、電源輸入電壓、突波、ESD 和振動的強制要求,而且採用保形塗層和電力絕緣技術,因此非常適合各種工業應用。

附加特色與優點

  • 強固的 EN 50155 乙太網路交換器,適合軌道車輛應用

  • Turbo Ring 與 RSTP/MSTP/STP/MRP 支援網路備援

  • 壁掛安裝

  • 自動復原所連接裝置的 IP 位址

  • 可透過網頁瀏覽器、Telnet/序列主控台或 Windows 公用程式進行設定

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

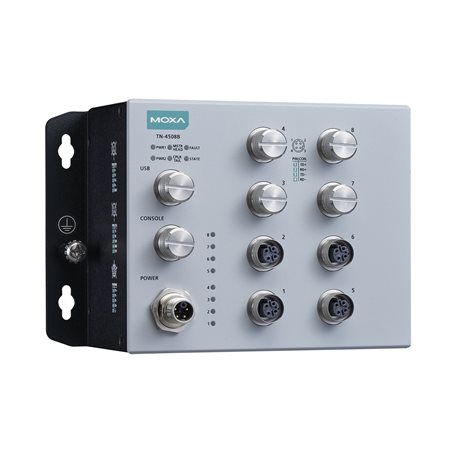

    TN-4508B-CT-T: 8

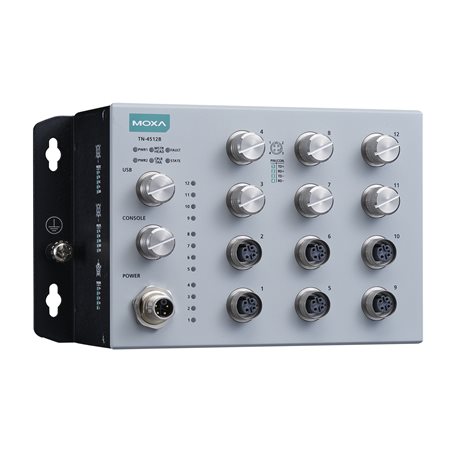

    TN-4512B-CT-T: 12
    TN-4516B-CT-T: 16

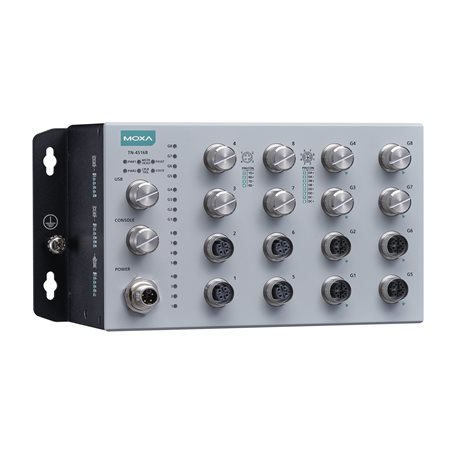

    TN-4516B-8G-CT-T: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-4512B PoE models: 8
    TN-4516B PoE models: 8

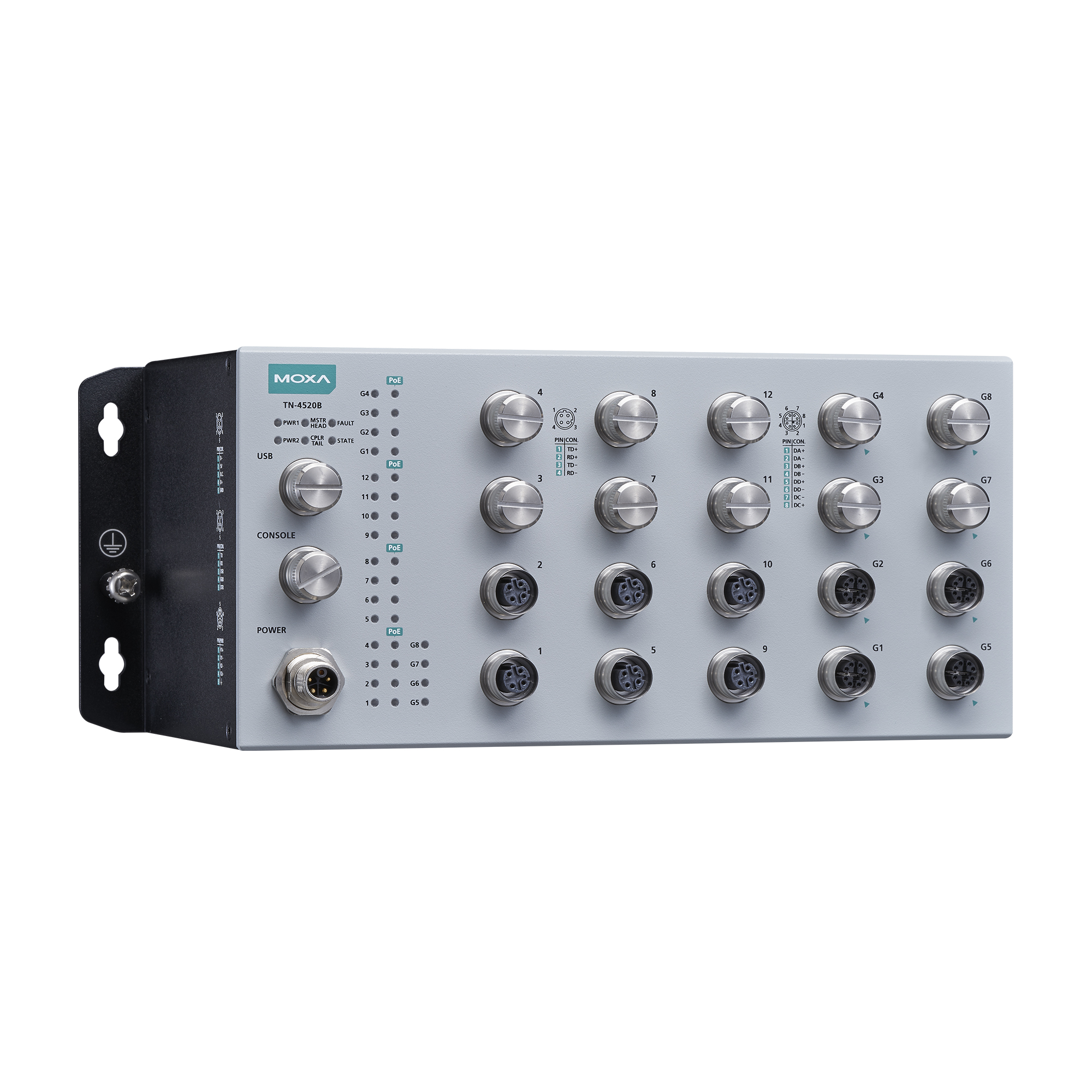

    TN-4520B models: 12
    TN-4524B models: 16
    TN-4528B models: 20

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    TN-4512B-8P-4G-CT-T: 4
    TN-4516B-8G-CT-T: 8

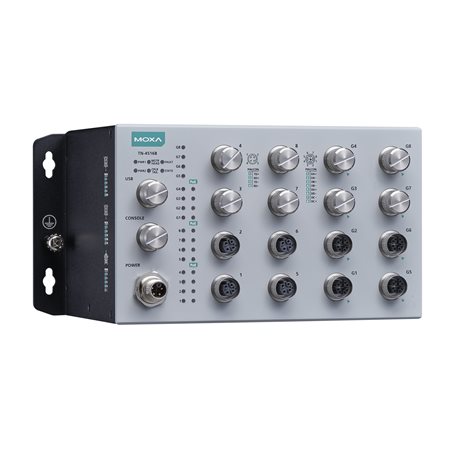

    TN-4516B-8P-4G-4GP-CT-T: 4

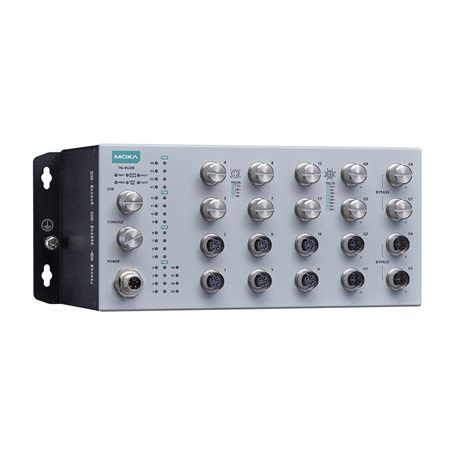

    TN-4520B-12P-4G-4GP-CT-T: 4
    TN-4524B-16P-4G-4GP-CT-T: 4
    TN-4528B-20P-4G-4GP-CT-T: 4

  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    TN-4516B PoE models: 4
    TN-4520B PoE models: 4
    TN-4524B PoE models: 4
    TN-4528B PoE models: 4

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    -4GBP models: 4

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3af/at for PoE/PoE+ output
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3x for flow control

  • Configuration Options

    Command Line Interface (CLI) through Serial/Telnet/SSH
    Web Console (HTTP/HTTPS)
    Windows Utility

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier
    Static Multicast

  • Management

    IPv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server
    DHCP Client
    DHCP Relay Agent (Option 82)
    QoS/CoS/ToS
    ARP
    RARP
    LLDP
    Port Mirroring
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Loop Protection

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    Ethernet-like MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • Redundancy Protocols

    STP
    RSTP
    MSTP
    Turbo Ring v2
    Link Aggregation
    Ring Coupling
    Static Port Trunk
    LACP
    MRP

  • Security

    Rate Limit
    Trust access control
    Port Lock
    Sticky MAC
    HTTPS/SSL
    SSH
    RADIUS
    TACACS+
    Access control list
    Login and password policy
    DHCP Snooping

  • Time Management

    SNTP Server/Client
    NTP Server/Client

  • MAC Table Size

    16 K

  • IGMP Groups

    1024

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • LED Indicators

    PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

  • Console Port

    M12 B-coded 5-pin female connector (RS-232)

  • M12 Connector

    M12 A-coded 5-pin female (for ABC-02 USB storage)

  • Input Current

    TN-4508B models: 0.46 A @ 24 V
    TN-4512B non-PoE models: 0.56 A @ 24 V
    TN-4512B PoE models: 4.9 A @ 24 V
    TN-4516B non-PoE models: 0.83 A @ 24 V
    TN-4516/20/24/28B PoE models: 9.3 A @ 24 V

  • Input Voltage

    24/36/48/72/96/110 VDC
    Redundant dual inputs
    No. of power inputs: 2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Power Connector

    M12 K-coded 5-pin male connector

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Power Consumption (Max.)

    TN-4508B-CT-T: Max. 11.3 W
    TN-4512B-CT-T: Max. 13.3 W
    TN-4512B-8P-4G-CT-T: Max. 23.7 W
    TN-4516B-CT-T: Max. 15.9 W
    TN-4516B-8G-CT-T: Max. 19.8 W
    TN-4516B-8P-4G-4GP-CT-T: Max. 51.9 W
    TN-4516B-8P-4GP-4GBP-CT-T: Max. 51.9 W
    TN-4520B-12P-4G-4GP-CT-T: Max. 55.5 W
    TN-4520B-12P-4GP-4GBP-CT-T: Max. 55.5 W
    TN-4524B-16P-4G-4GP-CT-T: Max. 56.2 W
    TN-4524B-16P-4GP-4GBP-CT-T: Max. 56.2 W
    TN-4528B-20P-4G-4GP-CT-T: Max. 57.0 W
    TN-4528B-20P-4GP-4GBP-CT-T: Max. 57.0 W
    Note: The system power consumption refers to the maximum power consumption of the PoE model without PoE load (excluding the power consumption of the PD).

  • Total PoE Power Budget

    TN-4512B PoE models: 80 W
    TN-4516B PoE models: 150 W
    TN-4516B/20B/28B PoE models: 150 W
    TN-4520B PoE models: 150 W
    TN-4524B PoE models: 150 W
    TN-4528B PoE models: 150 W

  • Housing

    Metal

  • Dimensions

    TN-4508B models: 180 x 115 x 83.5 mm (7.09 x 4.53 x 3.29 in)
    TN-4512B non-PoE models: 200 x 115 x 83.5 mm (7.87 x 4.53 x 3.29 in)
    TN-4512B PoE models: 200 x 115 x 102 mm (7.87 x 4.53 x 4.02 in)
    TN-4516B non-PoE models: 230 x 115 x 98 mm (9.06 x 4.53 x 3.86 in)
    TN-4516B PoE models: 230 x 115 x 133 mm (9.06 x 4.53 x 5.24 in)
    TN-4520B models: 280 x 115 x 133 mm (11.02 x 4.53 x 5.24 in)
    TN-4524B models: 313 x 115 x 133 mm (12.32 x 4.53 x 5.24 in)
    TN-4528B models: 348 x 115 x 133 mm (13.70 x 4.53 x 5.24 in)

  • IP Rating

    IP42

  • Weight

    TN-4508B models: 1,002 g (2.21 lb)
    TN-4512B non-PoE models: 1,123 g (2.48 lb)
    TN-4512B PoE models: 1,459 g (3.22 lb)
    TN-4516B non-PoE models: 1,500 g (3.31 lb)
    TN-4516B PoE models: 2,310 g (5.10 lb)
    TN-4520B models: 2,419 g (5.33 lb)
    TN-4524B models: 2,651 g (5.84 lb)
    TN-4528B models: 2,802 g (6.18 lb)

  • Installation

    Wall mounting

  • Protection

    PCB conformal coating

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    3000 m

  • EMC

    EN 55032/35

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Radio Frequency

    FCC

  • Railway

    IEC 60068-2-1, EN 50155
    IEC 60068-2-2, EN 50155
    IEC 60068-2-30, EN 50155
    IEC 60068-2-78
    EN 50121-4
    EN 50155
    IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 62368-1
    IEC 62368-1
    EN 62368-1
    BSMI

  • Salt Spray Test

    EN 50155

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Package Vibration Test

    ISTA 1A

  • Package Drop Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-4508B-CT-T: 1,964,461 hrs
    TN-4512B-CT-T: 1,447,268 hrs
    TN-4512B-8P-4G-CT-T: 1,033,581 hrs
    TN-4516B-CT-T: 1,346,637 hrs
    TN-4516B-8G-CT-T: 1,148,405 hrs
    TN-4516B-8P-4G-4GP-CT-T: 881,578 hrs
    TN-4516B-8P-4GP-4GBP-CT-T: 852,972 hrs
    TN-4520B-12P-4G-4GP-CT-T: 851,025 hrs
    TN-4520B-12P-4GP-4GBP-CT-T: 824,348 hrs
    TN-4524B-16P-4GP-4G-CT-T: 772,151 hrs
    TN-4524B-16P-4GP-4GBP-CT-T: 747,294 hrs
    TN-4528B-20P-4G-4GP-CT-T: 693,572 hrs
    TN-4528B-20P-4GP-4GBP-CT-T: 581,667 hrs

  • Standards

    Telcordia SR332 Issue 4

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
240.7 MB
軟體套件
SHA-512
v1.6.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年9月5日 2025年9月5日 版本說明
Software Package for MXview One Series (Linux version)
554.4 MB
軟體套件
SHA-512
v1.6.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年9月5日 2025年9月5日 版本說明
Firmware for TN-4500B Series
51.6 MB
韌體
SHA-512
v1.3
2025年9月3日 2025年9月3日 版本說明
Firmware for TN-4500B Series
51.6 MB
韌體
SHA-512
v1.2
2025年3月7日 2025年3月7日 版本說明
Software Package for TN-4500B Series (MIB file)
371.4 KB
軟體套件
SHA-512
v1.1
2025年2月7日 2025年2月7日 版本說明
Firmware for TN-4500B Series
51.6 MB
韌體
SHA-512
v1.1
2025年2月7日 2025年2月7日 版本說明
Firmware for TN-4500B Series
51.4 MB
韌體
SHA-512
v1.0
2024年9月24日 2024年9月24日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Declaration of Conformity (EU/UK) for TN-4516B (with PoE)
288.7 KB
聲明書 英文 v1.0 2025年8月22日 2025年8月22日
Declaration of Conformity (EU/UK) for TN-4516B (non PoE)
311.1 KB
聲明書 英文 v1.0 2025年8月22日 2025年8月22日
Declaration of Conformity (EU/UK) for TN-4524B (with PoE)
310.4 KB
聲明書 英文 v1.0 2025年7月30日 2025年7月30日
MX-NOS Rail Version V1 User Manual
13.3 MB
使用者手冊 英文 v1.4 2025年7月2日 2025年7月2日
TN-4500B 系列產品資料表
6.0 MB
產品資料表 中文 v1.4 2025年6月27日 2025年6月27日
QIG for TN-4500B Series
6.0 MB
QIG 英文 v1.1 2025年6月25日 2025年6月25日
MX-NOS Rail Version V1 Command Line Interface Manual
4.2 MB
使用者手冊 英文 v1.3 2025年3月13日 2025年3月13日
Declaration of Conformity (EU/UK) for TN-4512B (with PoE)
307.5 KB
聲明書 英文 v1.0 2024年11月4日 2024年11月4日
Declaration of Conformity (EU/UK) for TN-4508B (non PoE)
306.8 KB
聲明書 英文 v1.0 2024年11月1日 2024年11月1日
Declaration of Conformity (EU/UK) for TN-4512B (non PoE)
306.9 KB
聲明書 英文 v1.0 2024年11月1日 2024年11月1日
Moxa FOSS Statement_MX-NOS Rail Version V1
1.7 MB
聲明書 英文 v1.0 2024年9月24日 2024年9月24日
QIG for TN-4500B Series
4.8 MB
QIG 英文 v1.0 2024年9月19日 2024年9月19日
Declaration of Conformity (EU/UK) for TN-4528B (with PoE)
309.5 KB
聲明書 英文 v1.0 2024年9月9日 2024年9月9日
Declaration of Conformity (EU/UK) for TN-4520B (with PoE)
310.5 KB
聲明書 英文 v1.0 2024年8月28日 2024年8月28日

可供選擇的機型 (13)

顯示圖片

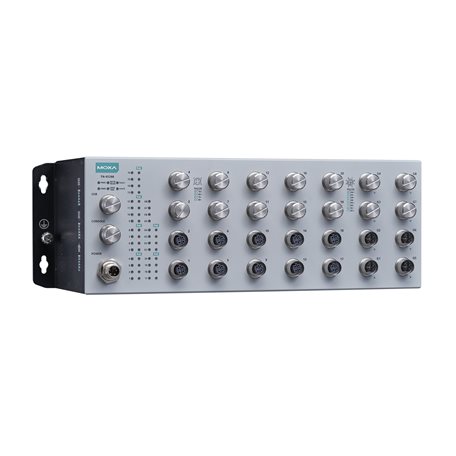

moxa-tn-4516b-8p-4g-4gp-ct-t-image.jpg | MoxaTN-4516B-8P-4G-4GP-CT-Tmoxa-tn-4512b-ct-t-image.jpg | MoxaTN-4512B-CT-TTN-4524B-16P-4G-4GP-CT-Tmoxa-tn-4516b-8g-ct-t-image.jpg | MoxaTN-4516B-8G-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector448
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector44
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector128
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector816
PoE Power Budget150 W150 W
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

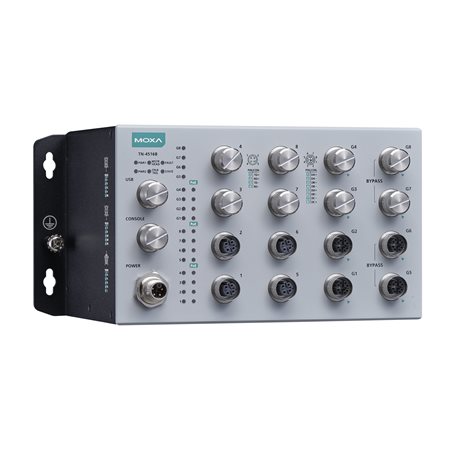

moxa-tn-4516b-8p-4gp-4gbp-ct-t-image.jpg | MoxaTN-4516B-8P-4GP-4GBP-CT-Tmoxa-tn-4520b-12p-4gp-4gbp-ct-t-image.jpg | MoxaTN-4520B-12P-4GP-4GBP-CT-Tmoxa-tn-4528b-20p-4gp-4gbp-ct-t-image.jpg | MoxaTN-4528B-20P-4GP-4GBP-CT-Tmoxa-tn-4520b-12p-4g-4gp-ct-t-image.jpg | MoxaTN-4520B-12P-4G-4GP-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector4
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector4444
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay444
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector8122012
PoE Power Budget150 W150 W150 W150 W
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

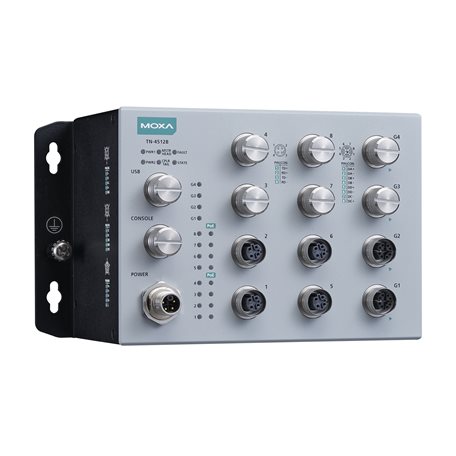

moxa-tn-4516b-ct-t-image.jpg | MoxaTN-4516B-CT-Tmoxa-tn-4512b-8p-4g-ct-t-image.jpg | MoxaTN-4512B-8P-4G-CT-Tmoxa-tn-4528b-20p-4g-4gp-ct-t-image.jpg | MoxaTN-4528B-20P-4G-4GP-CT-TTN-4524B-16P-4GP-4GBP-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector44
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector44
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay4
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector16
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector82016
PoE Power Budget80 W150 W150 W
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-tn-4508b-ct-t-image.jpg | MoxaTN-4508B-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector8
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector
PoE Power Budget
加入詢價查看詢價明細

product image

Buy online from distributors

已加入詢價列表
