EN 50155 交換器

Moxa 已取得 IRIS 認證，可提供符合 EN 50155 標準強制條款的堅固型乙太網路交換器。這些產品廣泛部署於全球眾多軌道和地鐵系統。利用我們的創新解決方案和技術，列車製造商可輕易提升整體運輸安全性和效率，並大幅節省鐵路系統運作與維護的成本和時間。

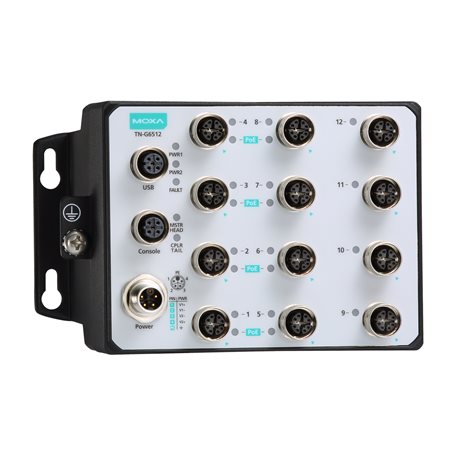

TN-G6512-8GPoE-WV-T
TN-G6500 系列

L2 Managed Ethernet switch, 8 * 10/100/1000BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000BaseT(X) M12 connectors, power input 24 - 110 VDC, -40 to 70°C operating temperature

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 4

  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    • 8

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3x for flow control
      IEEE 802.3u for 100BaseT(X)
Ethernet Software Features

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2, Port-based VLAN, Static Multicast

  • Industrial Protocols

    • SNMPv1/v2c/v3

  • Management

    • Account Management, Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, SNMP Trap

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC

  • Security

    • TACACS+, Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, Port Lock, RADIUS, Rate Limit, SSH

  • Time Management

    • NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 256

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100/1000M, PoE
Serial Interface

  • Console Port

    • RS-232 (M12 B-coded 5-pin female connector)
Power Parameters

  • Input Voltage

    • 24/36/48/72/96/110 VDC

  • No. of Power Inputs

    • 2

  • Operating Voltage

    • 16.8 to 137.5 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

  • Total PoE Power Budget

    • 96 W

  • Input Current

    • 5.8 A @ 24 VDC

  • Power Connector

    • M12 K-coded 5-pin male connector
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP67

  • Dimensions

    • 159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)

  • Weight

    • 1,750 g (3.86 lb)

  • Installation

    • Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Radio Frequency

    • FCC

  • Railway

    • EN 50121-4, EN 50155, IEC 60571

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • UL 61010-2-201, IEC 60950-1

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 471,356 hrs

  • Standards

    • Telcordia SR332
