Layer 2 網管型交換器

Moxa Layer 2 網管型交換器具備工業級可靠度、網路備援性，以及基於 IEC 62443 標準的安全防護功能。我們針對不同產業提供經強化的產品，所有產品均通過多項產業認證，例如 EN 50155 鐵路應用標準、IEC 61850-3 電力自動化系統標準，以及 NEMA TS2 智慧運輸系統標準。

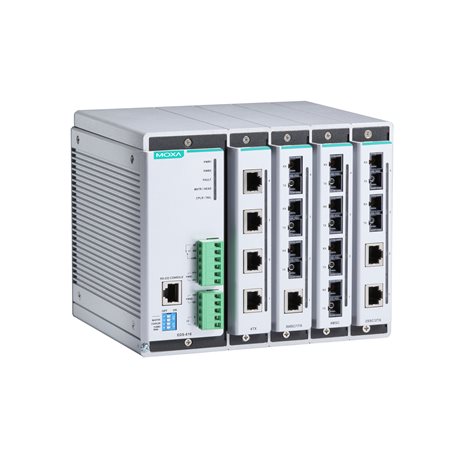

EDS-616
EDS-616 系列

Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports, 0 to 60°C operating temperature

Input/Output Interface

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface

  • Module

    • 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
Ethernet Software Features

  • Filter

    • GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP

  • Management

    • Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    • Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    • NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Connection

    • 1 removable 6-contact terminal block(s)

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • IP Rating

    • IP30

  • Dimensions

    • 185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in)

  • Weight

    • 2,448 g (5.40 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2

  • Maritime

    • ABS, DNV-GL, LR, NK

  • Railway

    • EN 50121-4

  • Safety

    • EN 62368-1, UL 508

  • Shock

    • IEC 60068-2-27

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 546,937 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
