SDS-3016 系列

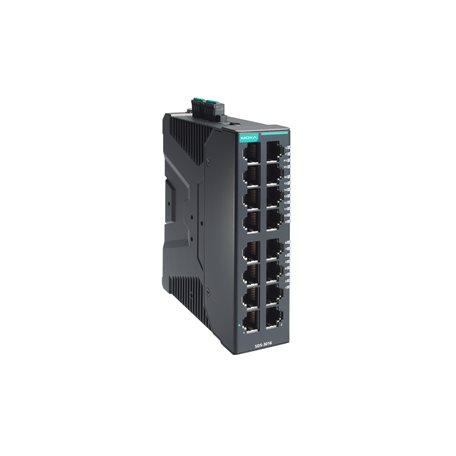

工業 14 埠+2G 埠 Gigabit 智慧型乙太網路交換器

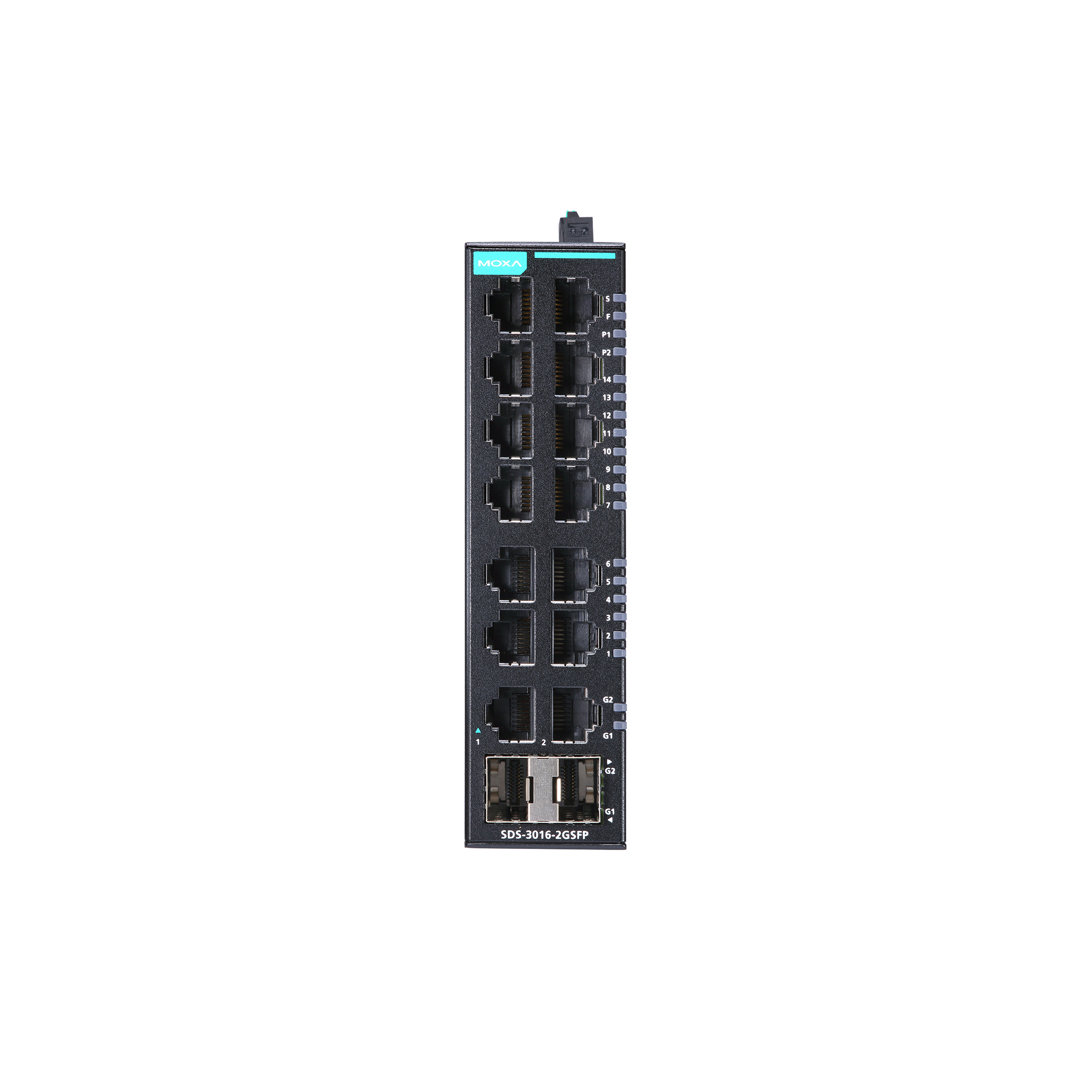

moxa-sds-3016-series-image-(1).jpg | Moxa

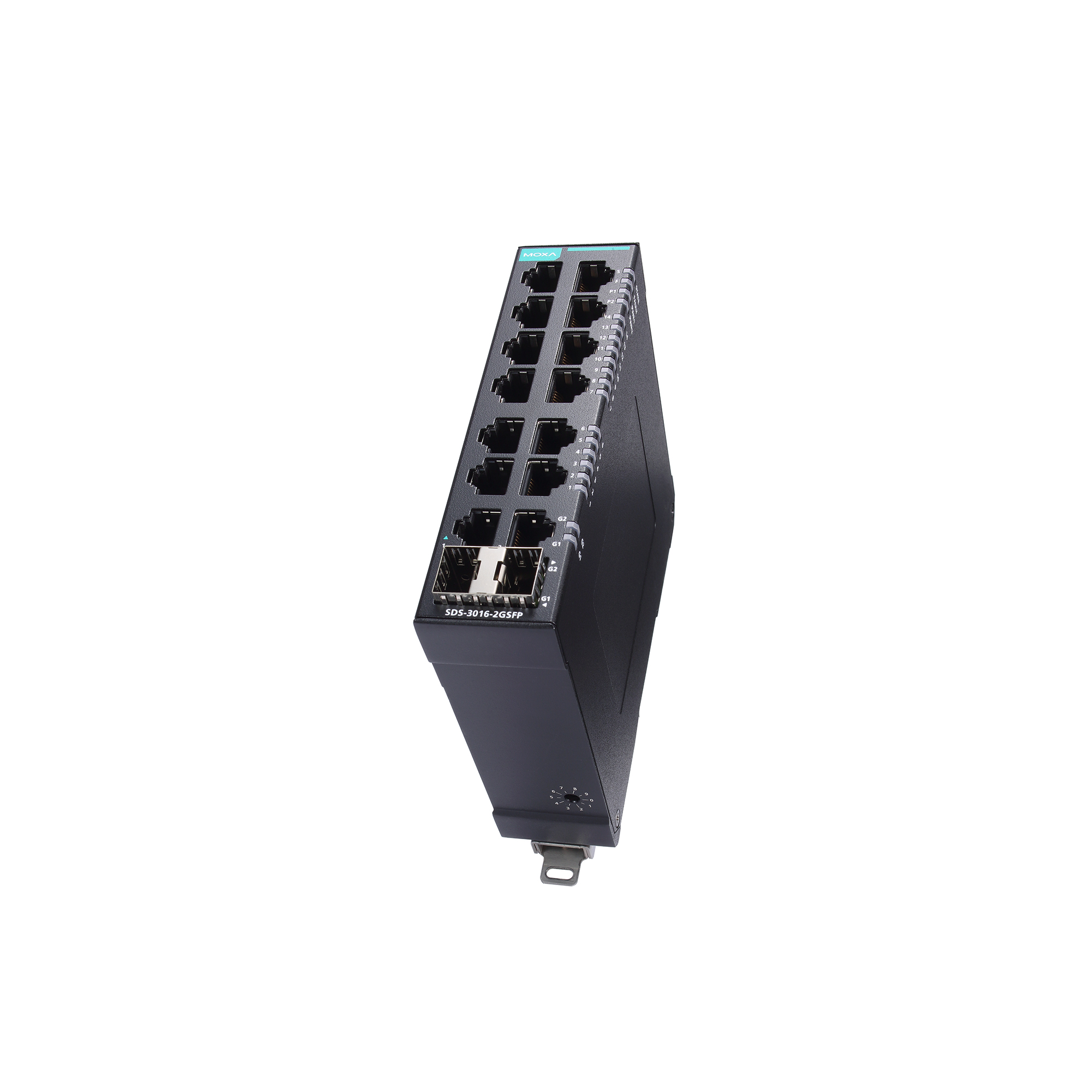

moxa-sds-3016-series-image-1-(1).jpg | Moxa

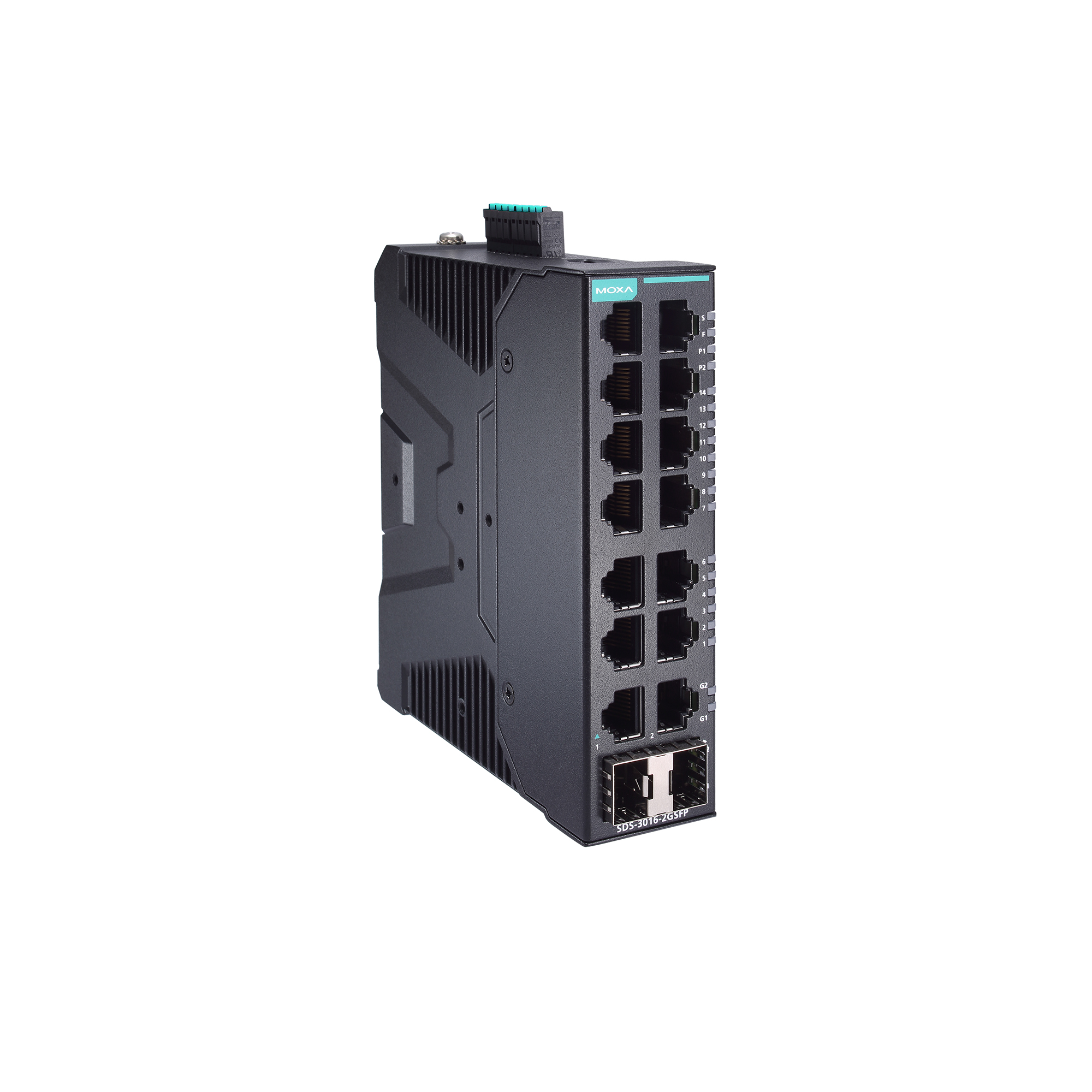

moxa-sds-3016-series-image-2-(1).jpg | Moxa

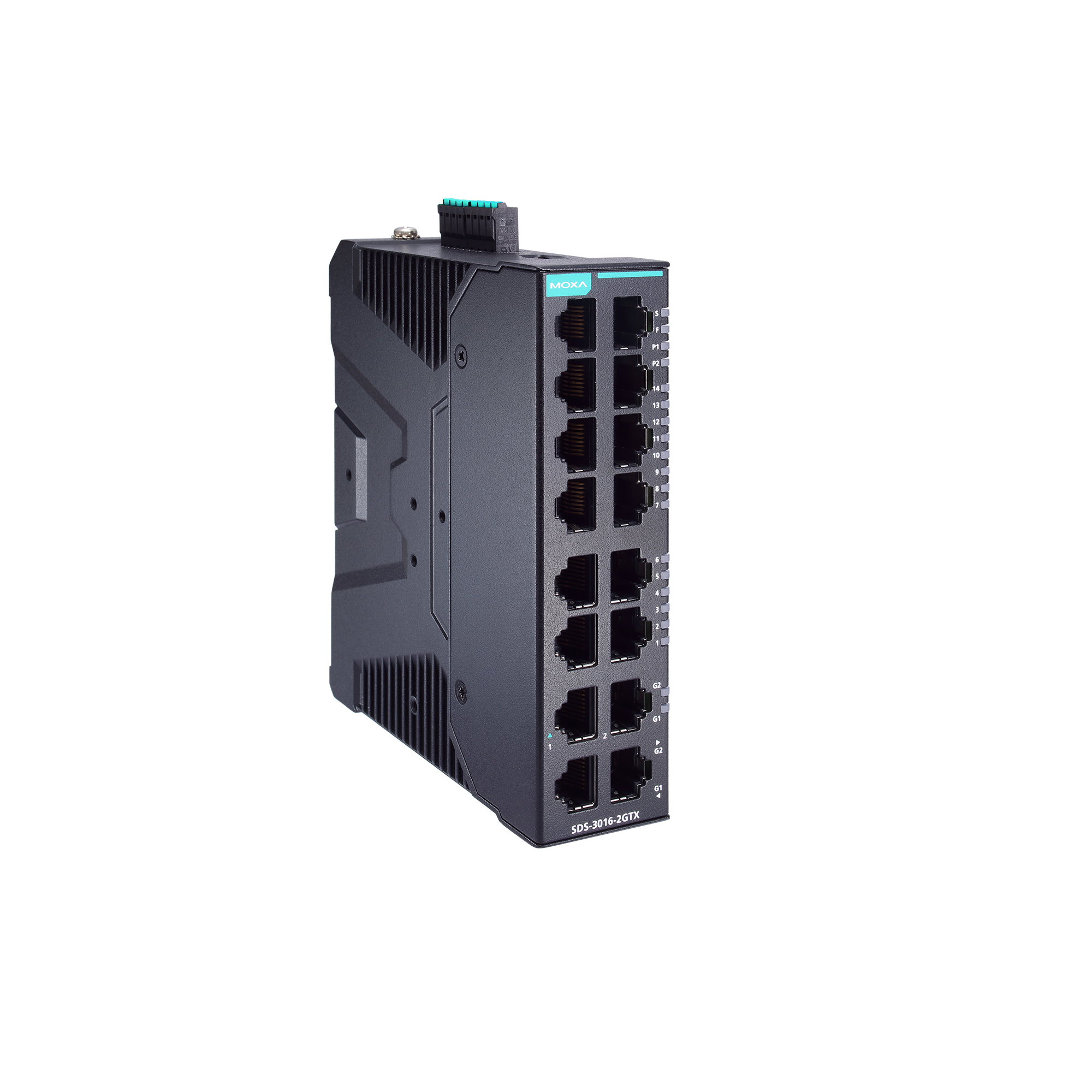

moxa-sds-3016-series-image-3-(1).jpg | Moxa

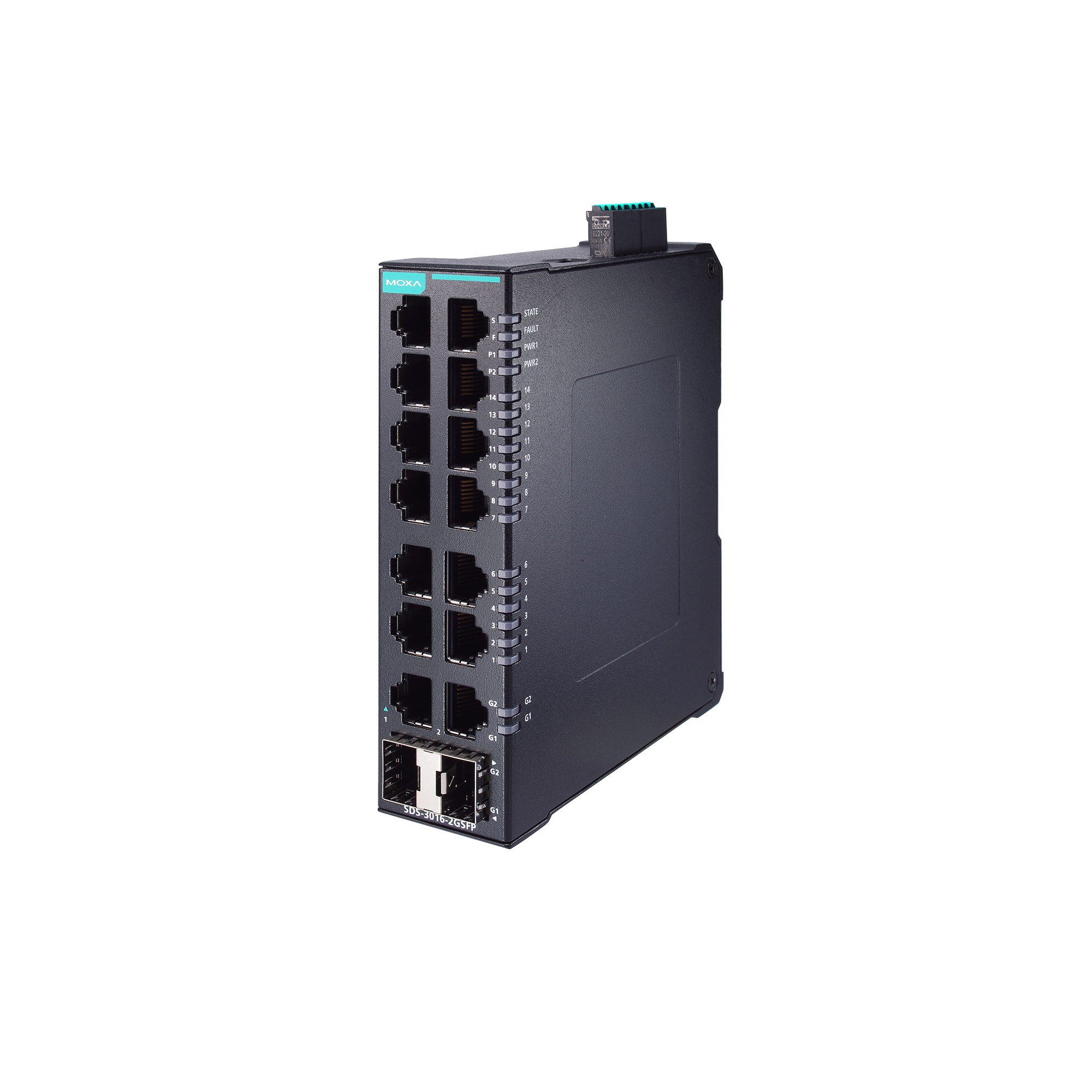

moxa-sds-3016-series-image-4-(1).jpg | Moxa

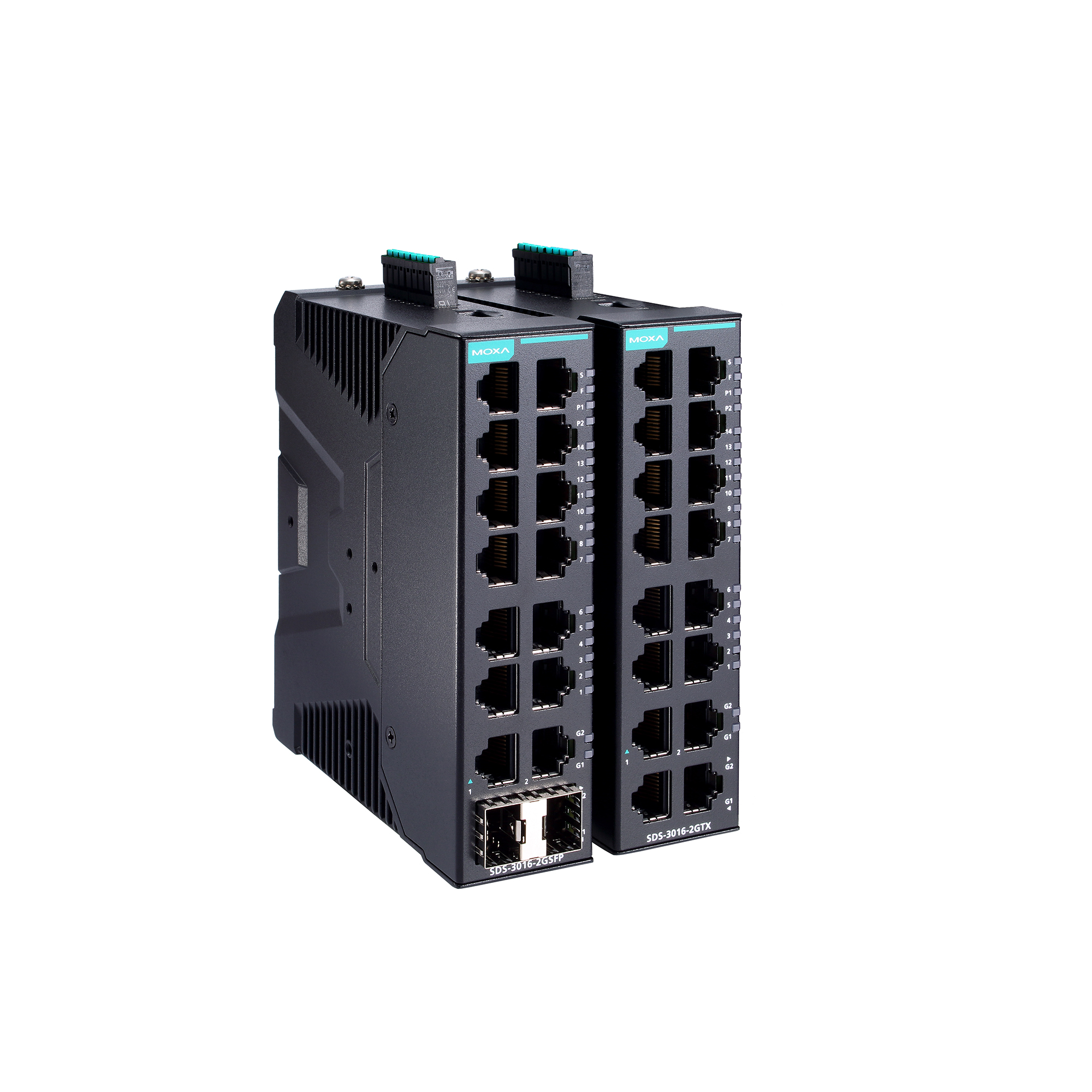

moxa-sds-3016-series-image-5-(1).jpg | Moxa
moxa-sds-3016-series-image-6-(1).jpg | Moxa

特色與優點

  • 輕巧彈性的外殼設計,適合狹窄空間
  • 網頁式 GUI,便於裝置配置和管理
  • 使用統計資料的連接埠診斷的網頁式 GUI,可偵測和預防問題
  • 多語言網頁式 GUI:英文、繁體中文、簡體中文、日文、德文和法文
  • 支援 RSTP/STP,實現網路備援
  • 支援基於 IEC 62439-2 的 MRP 用戶端備援,確保網路高可用性
  • 支援 EtherNet/IP、PROFINET 和 Modbus TCP 工業通訊協定,因此可 在自動化 HMI/ SCADA 系統中輕鬆整合和監控
  • IP 連接埠綁定,確保不需要重新指派 IP 位址即可快速更換關鍵裝置
  • 旋轉 DIP 開關可以在不使用網頁瀏覽器的情況下執行以設定檔為基礎的 設定
  • 符合 IEC 62443 的資安防護功能

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

SDS-3016 智慧型乙太網路交換器是 IA 工程師和自動化機器製造商的理想之選,能夠幫他們搭建符合工業 4.0 願景的網路。智慧型交換器可使機器和控制 櫃煥發新的生機,由於組態和安裝簡便,可簡化每日的例行工作。此外,在產品的整個生命週期均可進行監控,而且維護相當簡便。

最常用的自動化通訊協定(包括 EtherNet/IP、PROFINET 和 Modbus TCP)內建於 SDS-3016 交換器中,可從自動化 HMI 控制和查看交換器,提升操作 效能和彈性。另外,也支援多種實用的管理功能,包括 IEEE 802.1Q VLAN、連接埠鏡像、SNMP、由繼電器發出警告和多語言網頁式 GUI。

附加特色與優點

  • 支援 IEEE 802.1D-2004 和 IEEE 802.1w STP/RSTP 而實現快速網 路備援

  • IEEE 802.1Q VLAN,可簡化網路規劃

  • 支援 ABC-02-USB 自動備份配置器,可進行快速事件記錄和配置備 份。也可以實現快速裝置切換和韌體升級

  • 發生例外狀況時透過繼電器輸出自動發出警告

  • 未使用的連接埠鎖定、SNMPv3 和 HTTPS,可增強網路安全

  • 用於自訂管理和/或使用者帳戶的角色型帳戶管理

  • 本機日誌和匯出存貨檔案的功能可簡化存貨管理

  • Alarm Contact Channels

    1, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100BaseT(X) Ports (RJ45 connector)

    14
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    2 (SDS-3016-2GTX Series)
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100/1000BaseSFP Ports

    2 (SDS-3016-2GSFP Series)

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1p for Class of Service

  • Industrial Protocols

    EtherNet/IP, Modbus TCP, PROFINET IO Device

  • Management

    Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog

  • MIB

    RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB

  • Redundancy Protocols

    RSTP, STP, MRP (Client)

  • Security

    Broadcast storm protection, HTTPS/SSL, SNMPv3, Port Lock

  • Time Management

    NTP Server/Client, SNTP

  • Filter

    802.1Q VLAN

  • Industrial Profile

  • Industrial Profile

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    8

  • VLAN ID Range

    VID 1 to 4094

  • Packet Buffer Size

    3 Mbits

  • Storage Port

    USB Type A

  • LED Indicators

    PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port)

  • Connection

    2 removable 4-contact terminal block(s)

  • Input Voltage

    12/24/48/-48 VDC, Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Input Current

    SDS-3016-2GTX series: 12-48 VDC, 0.858 A (max.)
    SDS-3016-2GSFP series: 12-48 VDC, 0.99 A (max.)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP40

  • Dimensions

    36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)

  • Weight

    590 g (1.3 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    EN 62368-1, UL 61010-2-201

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    1,109,179 hrs

  • Standards

    Telcordia (Bellcore), GB

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
374.0 MB
軟體套件
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 版本說明
Software Package for MXview One Series (Linux version)
333.4 MB
軟體套件
SHA-512
v1.3.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年1月31日 2024年1月31日 版本說明
EDS file for SDS-3016 Series
6.0 KB
軟體套件
SHA-512
v1.1
2023年9月8日 2023年9月8日 版本說明
PROFINET GSD file for SDS-3016 Series
13.2 KB
軟體套件
SHA-512
v2.4
2023年9月8日 2023年9月8日 版本說明
Modbus file for SDS-3000 Series
1.4 KB
軟體套件
SHA-512
v1.1
2023年9月8日 2023年9月8日 版本說明
SNMP MIB file for SDS-3000 Series
17.7 KB
軟體套件
SHA-512
v1.3
2023年9月8日 2023年9月8日 版本說明
Firmware for SDS-3000 Series
3.1 MB
韌體
SHA-512
v2.2
2023年9月8日 2023年9月8日 版本說明
Firmware for SDS-3000 Series
3.1 MB
韌體
SHA-512
v2.1
2021年5月5日 2021年5月5日 版本說明
MXview plugin for SDS-3016 Series
624.1 KB
軟體套件
SHA-512
v1.0
2021年4月26日 2021年4月26日 版本說明
EtherNetIP FactoryTalk View
36.5 MB
軟體套件
SHA-512
v1.6
2021年3月31日 2021年3月31日 版本說明
PROFINET BMP file for SDS-3016 Series
4.6 KB
軟體套件
SHA-512
v1.0
2021年3月31日 2021年3月31日 版本說明
EtherNetIP AOI (16P) for SDS-3016 Series
9.0 KB
軟體套件
SHA-512
v1.3.0
2021年3月31日 2021年3月31日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Industrial Protocols User Guide for SDS Series
11.7 MB
使用者手冊 英文 v1.0 2024年1月18日 2024年1月18日
Moxa Industrial Smart Ethernet Switch User's Manual
4.1 MB
使用者手冊 英文 v2.3 2024年1月18日 2024年1月18日
Declaration of Conformity for SDS-3016 Series
310.0 KB
聲明書 英文 v1.0 2023年11月28日 2023年11月28日
Moxa Industrial Smart Ethernet Switch User’s Manual
3.5 MB
使用者手冊 英文 v2.1 2021年5月17日 2021年5月17日
Industrial Protocols User's Guide
6.9 MB
使用者手冊 英文 v6.0 2021年4月16日 2021年4月16日
SDS-3016 系列產品資料表
3.9 MB
產品資料表 中文 v1.0 2021年3月10日 2021年3月10日
QIG for SDS-3016 Series
1.8 MB
QIG 英文 v1.1 2021年3月9日 2021年3月9日
2D CAD for SDS-3016 Series (SDS-3016-2GTX/2GTX-T)
1.0 MB
2D CAD 英文 2021年3月4日 2021年3月4日
2D CAD for SDS-3016 Series (SDS-3016-2GSFP/2GSFP-T)
821.3 KB
2D CAD 英文 2021年2月24日 2021年2月24日
