Layer 2 智慧型交換器

Moxa 智慧型交換器具有簡易的配置、快速的安裝,以及嚴密的現場監控等優點,讓您的日常工作變得更為得心應手。Moxa Layer 2 智慧型交換器支援 PROFINET、Modbus 和 EtherNet/IP 等多種工業協定,並提供多種安裝方式,以實現簡易的連接、SCADA/HMI 監控和增強的可控性。

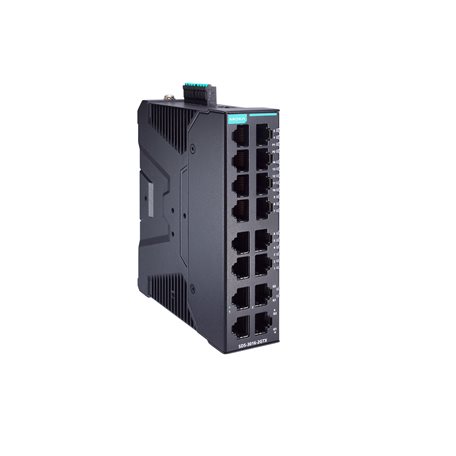

SDS-3016-2GTX
SDS-3016 系列

Compact industrial smart Ethernet switch with 14 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports, dual 12/24/48 VDC power inputs, -10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 14
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2 (SDS-3016-2GTX Series)
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • 100/1000BaseSFP Ports

    • 2 (SDS-3016-2GSFP Series)
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1p for Class of Service
Ethernet Software Features
  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET IO Device
  • Management

    • Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog
  • MIB

    • RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB
  • Redundancy Protocols

    • RSTP, STP, MRP (Client)
  • Security

    • Broadcast storm protection, HTTPS/SSL, SNMPv3, Port Lock
  • Time Management

    • NTP Server/Client, SNTP
  • Filter

    • 802.1Q VLAN
Rotary Switch Configuration
  • Industrial Profile

    •
  • Industrial Profile

Switch Properties
  • MAC Table Size

    • 8 K
  • Max. No. of VLANs

    • 8
  • VLAN ID Range

    • VID 1 to 4094
  • Packet Buffer Size

    • 3 Mbits
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port)
Power Parameters
  • Connection

    • 2 removable 4-contact terminal block(s)
  • Input Voltage

    • 12/24/48/-48 VDC, Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Input Current

    • 12-48 VDC, 0.858 A (max.)
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP40
  • Dimensions

    • 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
  • Weight

    • 590 g (1.3 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF: 30 A/m
  • Safety

    • EN 62368-1, UL 61010-2-201
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,109,179 hrs
  • Standards

    • Telcordia (Bellcore), GB
