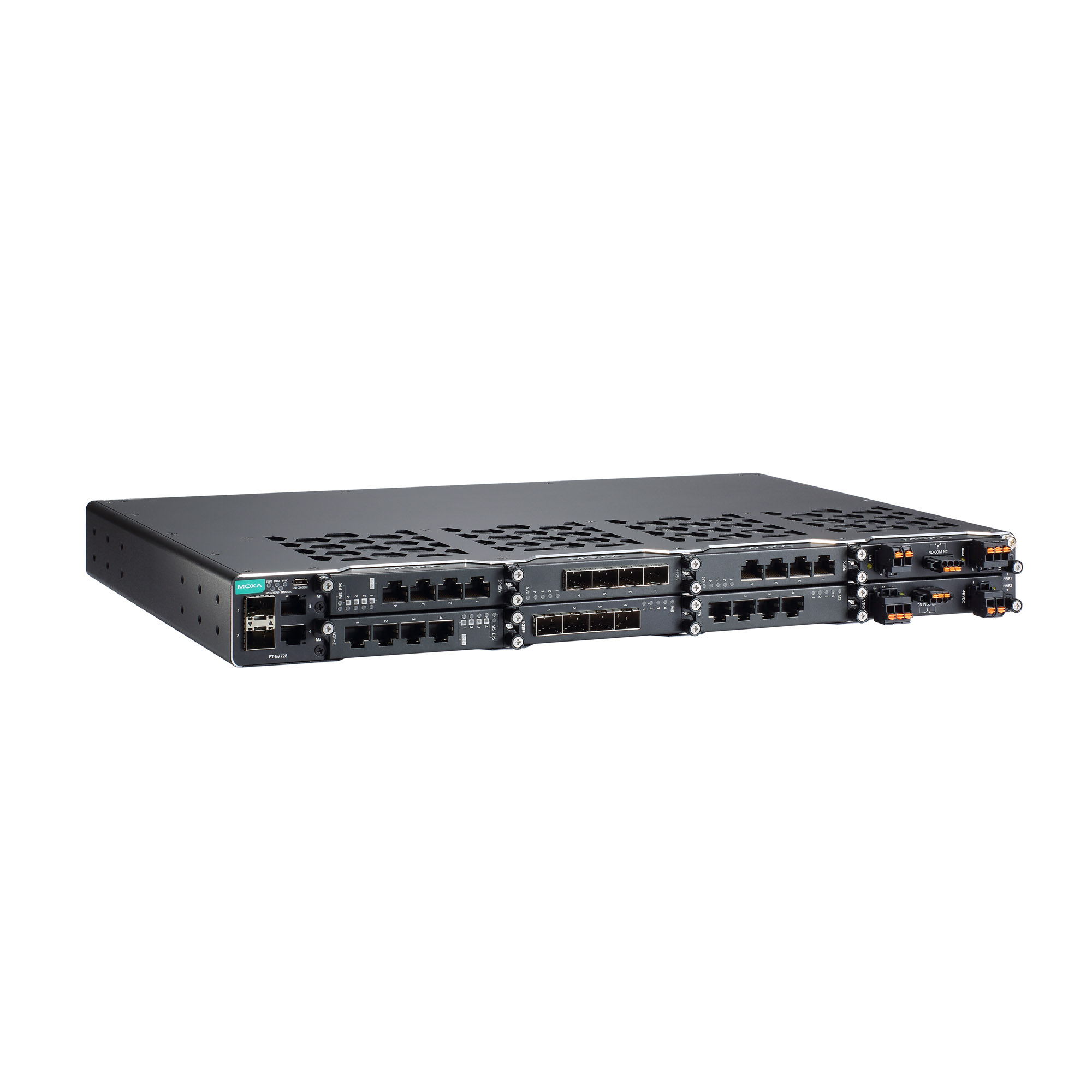

2

2

6

See the LM-7000H datasheet for Gigabit Ethernet module and PoE+ module information

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for flow control

IPv4/IPv6
SNMP Inform
SNMPv1/v2c/v3
DHCP Server/Client
DHCP Option 66/67/82
BOOTP
TFTP
LLDP
RARP
HTTP
HTTPS
Telnet
Flow control
Back Pressure Flow Control
Port Mirror
Fiber check
Dying Gasp
SMTP
Syslog

MIB-II
Ethernet-like MIB
Bridge MIB
P-BRIDGE MIB
Q-BRIDGE MIB
RSTP MIB
RMON MIB Groups 1, 2, 3, 9

802.1Q
GMRP
GVRP
IGMP v1/v2/v3
QinQ VLAN

Link Aggregation
MSTP
RSTP
STP
Turbo Chain
Turbo Ring v1/v2
V-ON
MRP

RADIUS
TACACS+
SSH
Port Lock
Broadcast storm protection
MAB authentication
Sticky MAC
Access control list

NTP Server/Client
SNTP
IEEE 1588v2 PTP (hardware-based)

IEC 61850 QoS
GOOSE Check

EtherNet/IP
Modbus TCP

Static Route
RIPV1/V2
OSPF

DVMRP
PIM-DM

VRRP

8

256

VID 1 to 4094

4096

16 K

12 Mbits

9.6 KB

RS-232 (RJ45)

USB Type A

With PWR-HV-P48 installed:
110/220 VDC/VAC for the switch system
48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

With PWR-LV-P48 installed:
24/48 VDC for the switch system
48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)

With PWR-HV-NP installed:
110/220 VDC/VAC for the switch system

With PWR-LV-NP installed:
24/48 VDC for the switch system

With PWR-HV-P48 installed:
88 to 300 VDC, 90 to 264 VAC for the switch system
46 to 57 VDC for PoE systems

With PWR-LV-P48 installed:
18 to 72 VDC for the switch system
46 to 57 VDC for PoE systems

With PWR-HV-NP installed:
88 to 300 VDC, 90 to 264 VAC for the switch system

With PWR-LV-NP installed:
18 to 72 VDC for the switch system

With PWR-HV-P48 installed:
PWR input current (switch system)
Max. 0.11 A @ 110 VDC
Max. 0.06 A @ 220 VDC
Max. 0.29 A @ 110 VAC
Max. 0.18 A @ 220 VAC
EPS input current (PoE system)
Max. 0.53 A @ 48 VDC
(excluding power consumption of PoE devices)

With PWR-LV-P48 installed:
PWR input current (switch system)
Max. 0.53 A @ 24 VDC
Max. 0.28 A @ 48 VDC
EPS input current (PoE system)
Max. 0.53 A @ 48 VDC
(excluding power consumption of PoE devices)

With PWR-HV-NP installed:
PWR input current (switch system)
Max. 0.11 A @ 110 VDC
Max. 0.06 A @ 220 VDC
Max. 0.29 A @ 110 VAC
Max. 0.18 A @ 220 VAC

With PWR-LV-NP installed:
PWR input current (switch system)
Max. 0.53 A @ 24 VDC
Max. 0.28 A @ 48 VDC

IP30

443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)

3080 g (6.8 lb)

19-inch rack mounting

-40 to 85°C (-40 to 185°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

EN 55032/35

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

IEC 61850-3 Edition 2 Class 2 (EMC)
IEEE 1613

EN 50121-4

UL 62368-1
IEC 62368-1

449,542 hrs

Telcordia (Bellcore), GB

5 years

See www.moxa.com/tw/warranty
