EDS-208A 系列

8 埠輕巧型非網管乙太網路交換器

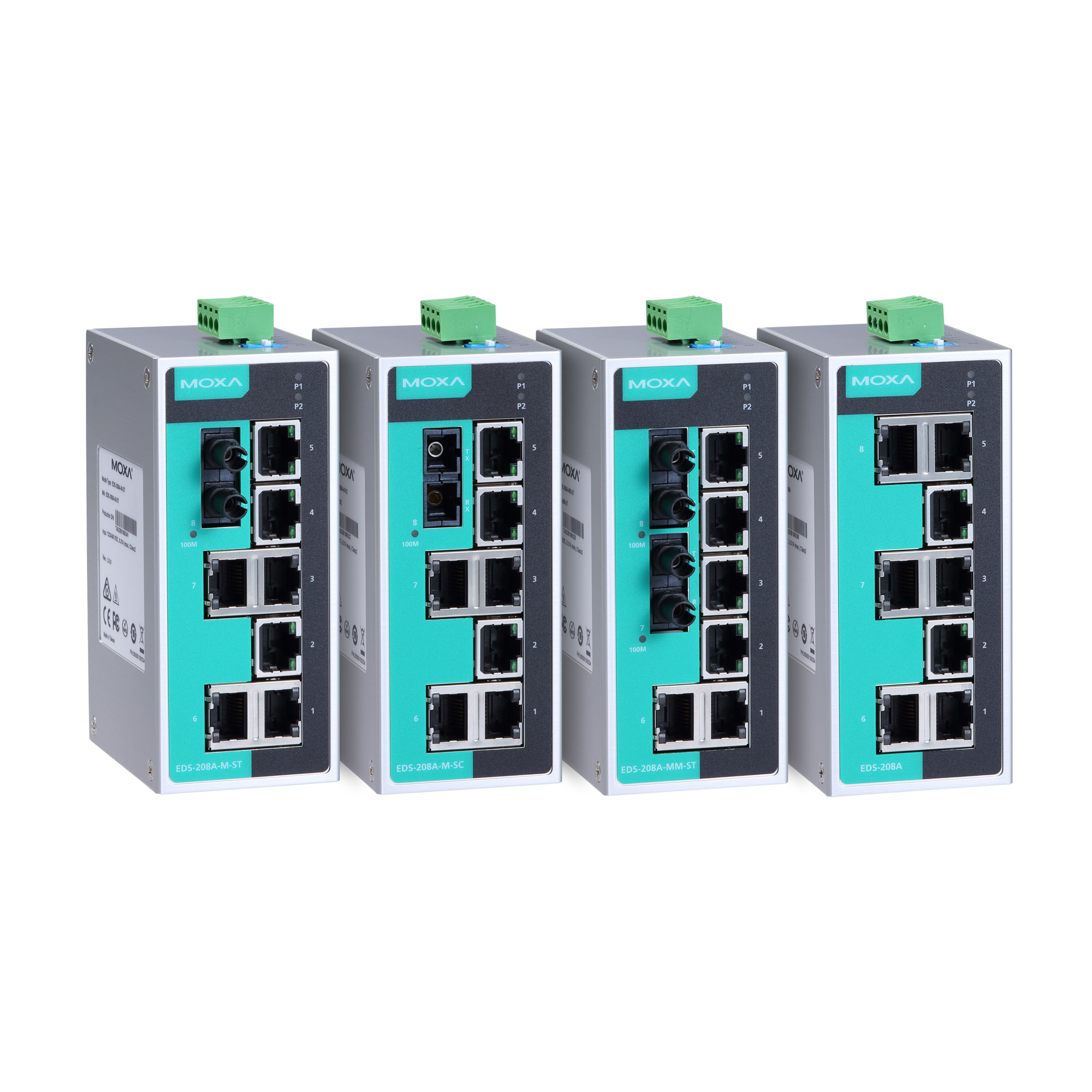

moxa-eds-208a-series-image-1-(1).jpg | Moxa

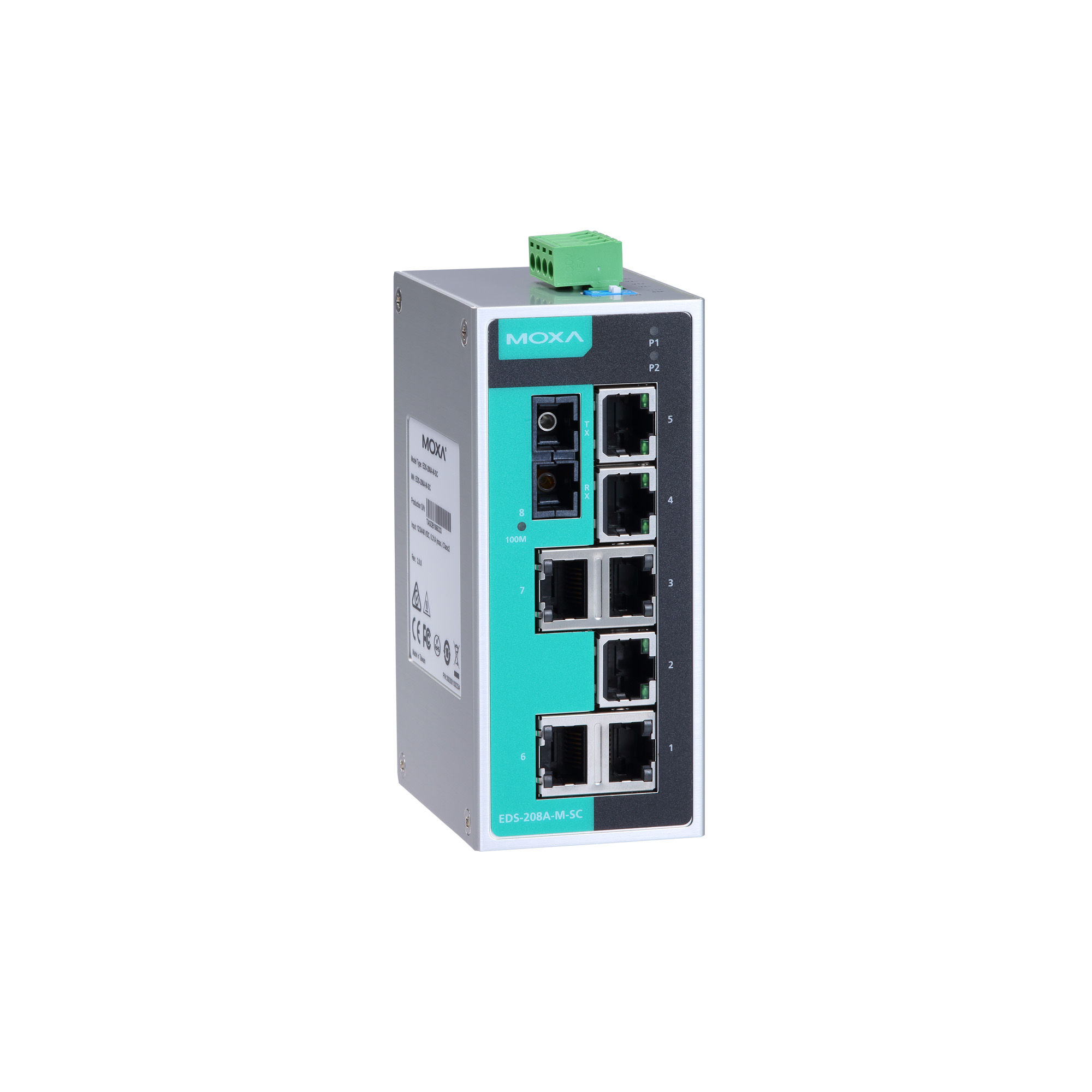

moxa-eds-208a-series-image-2-(1).jpg | Moxa
moxa-eds-208a-series-image-3-(1).jpg | Moxa

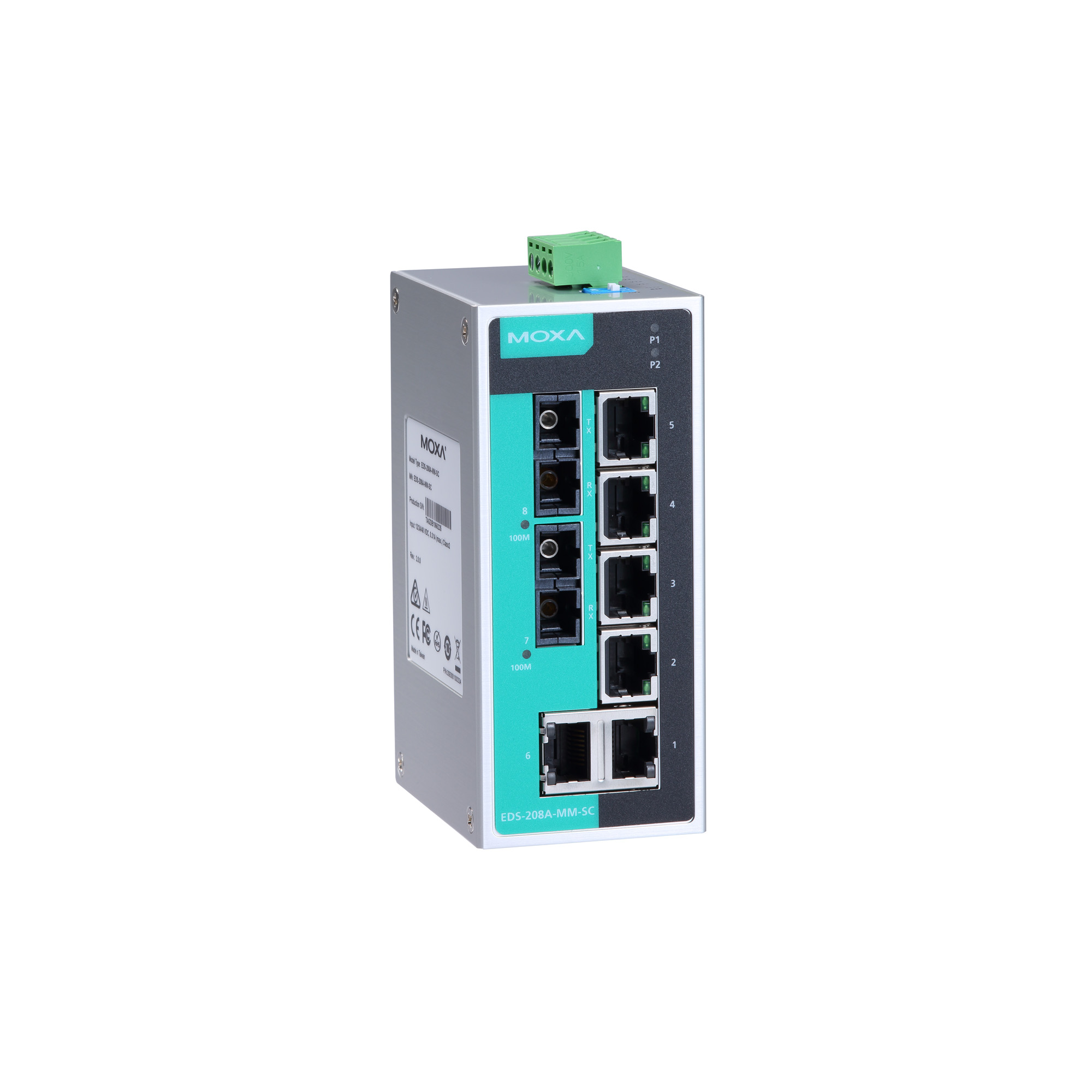

moxa-eds-208a-series-image-4-(1).jpg | Moxa

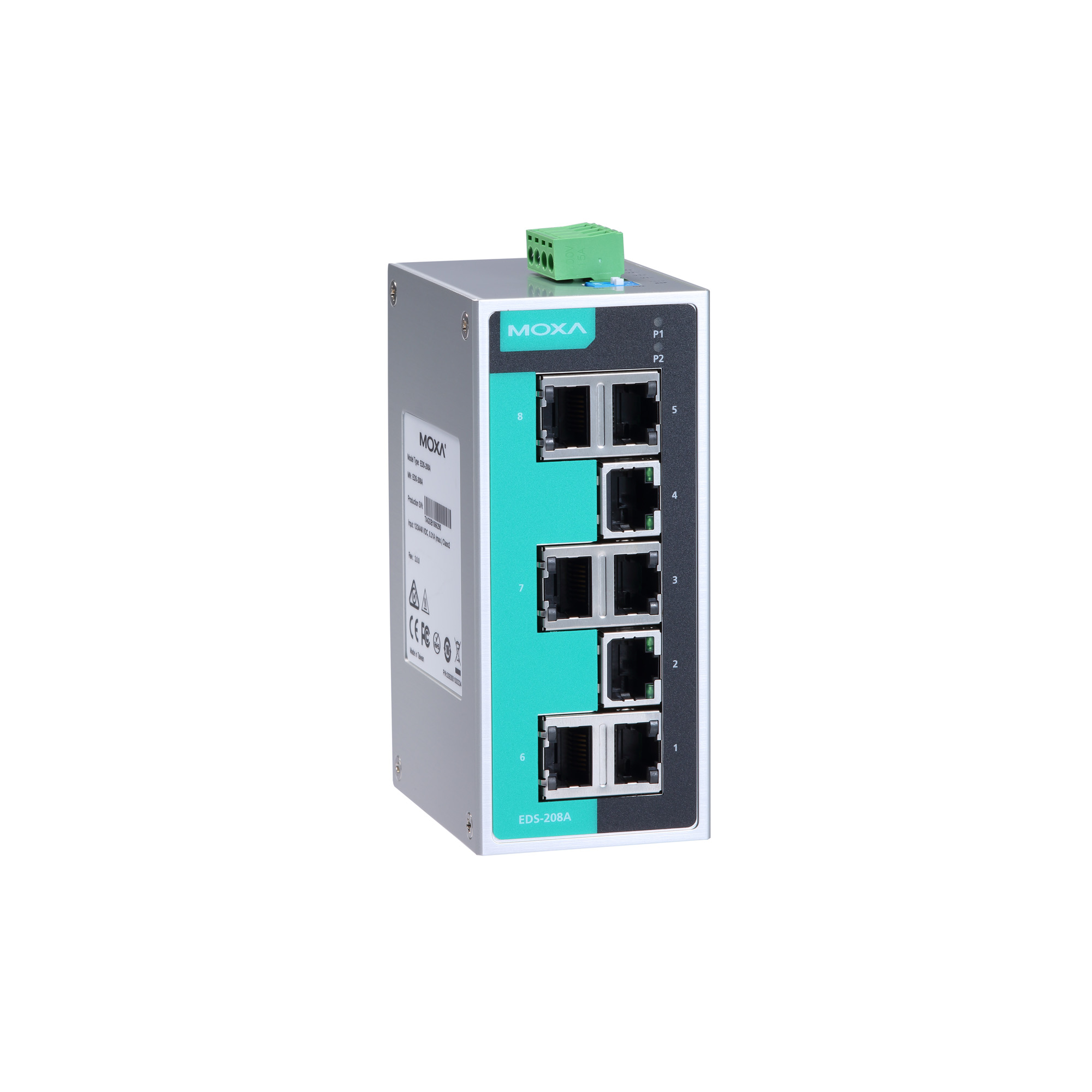

moxa-eds-208a-series-image-5-(1).jpg | Moxa

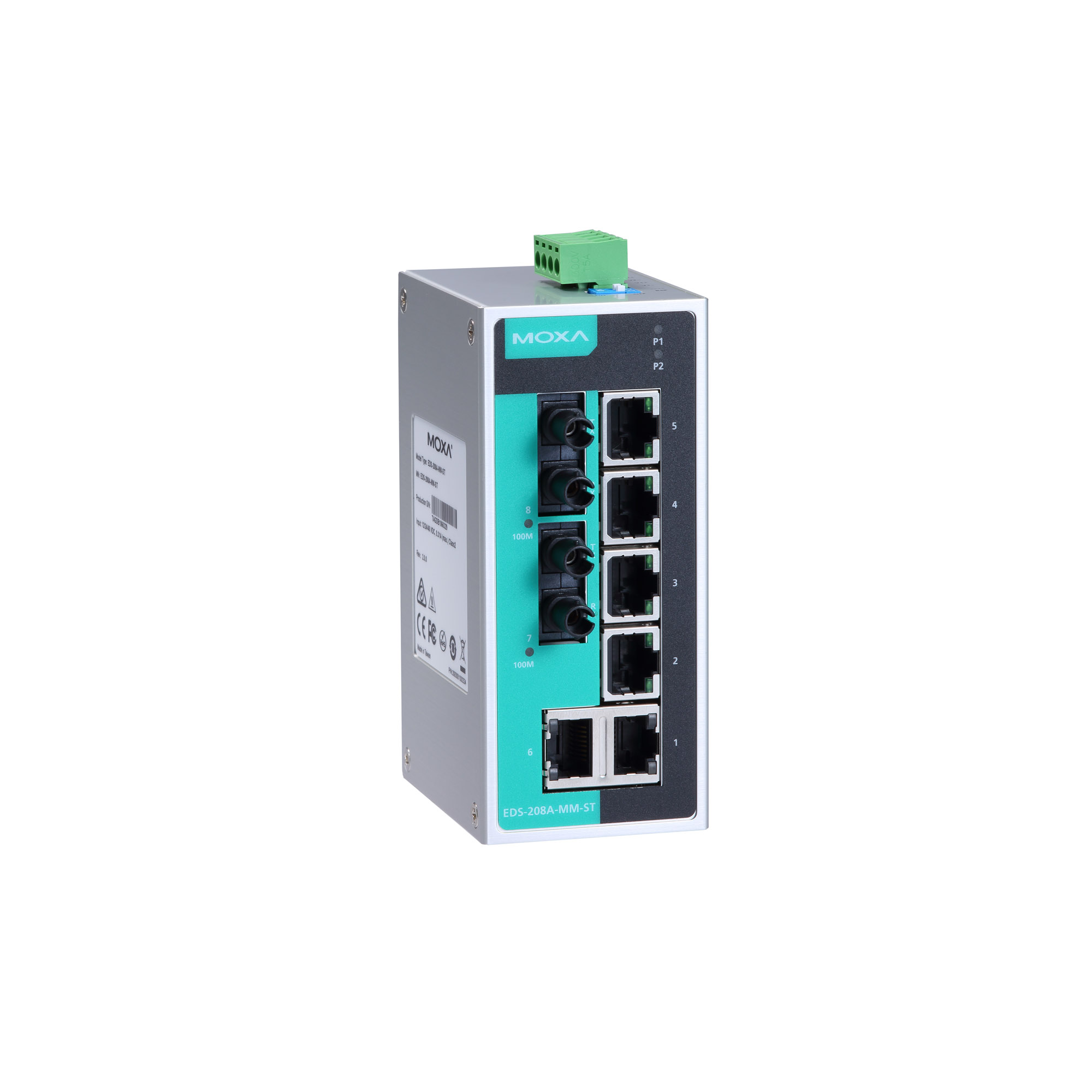

moxa-eds-208a-series-image-6-(1).jpg | Moxa

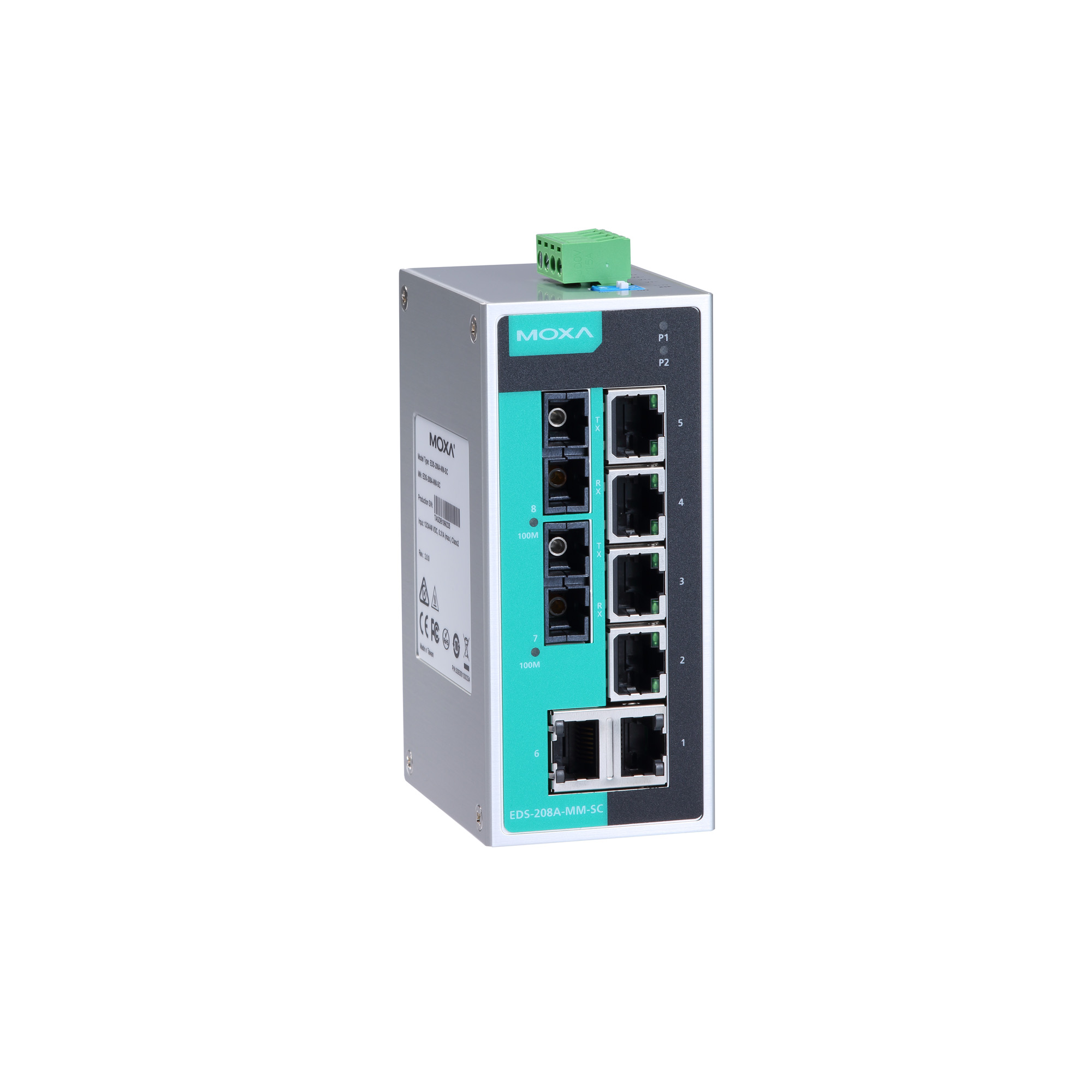

moxa-eds-208a-series-image-7-(1).jpg | Moxa

特色與優點

  • 10/100BaseT(X) (RJ45 連接器)、100BaseFX (多模/單模、SC 或 ST 連接器)
  • 備援雙 12/24/48 VDC 電源輸入
  • IP30 鋁製外殼
  • 堅固耐用的硬體設計,非常適合環境嚴苛場域應用 (Class 1 Div. 2/ATEX Zone 2),運輸應用 (NEMA TS2/EN 50121-4/e-Mark) 以及海事環境 (DNV/GL/LR/ABS/NK)
  • -40 至 75°C 工作溫度範圍 (-T 型號)

認證

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

EDS-208A 系列 8 埠工業級乙太網路交換器支援 IEEE 802.3 和 IEEE 802.3u/x,具有 10/100M、全/半雙工、MDI/MDI-X 自動感測功能。EDS-208A 系列具有 12/24/48 VDC (9.6 至 60 VDC) 備援電源輸入,可同時連接至直流電源。此系列交換器專為嚴苛工業環境所設計,例如海事 (DNV/GL/LR/ABS/NK)、軌道沿線、高速公路或行動應用 (EN 50121-4/NEMA TS2/e-Mark),或危險場所 (Class 1 Div. 2/ATEX Zone 2),並且符合 FCC、UL 和 CE 標準。

EDS-208A 交換器提供可運作於 -10 至 60°C 的標準溫度型號和運作於 -40 至 75°C 的寬溫型號,所有型號都經過 100% 的燒機測試,確保符合工業自動化控制應用的特殊需求。此外,EDS-208A 交換器具有 DIP 開關,用於啟用或停用廣播風暴保護功能,提高工業應用的靈活性。

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-208A/208A-T: 8
    EDS-208A-M-SC/M-ST/S-SC Series: 7
    EDS-208A-MM-SC/MM-ST/SS-SC Series: 6

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-208A-M-SC Series: 1
    EDS-208A-MM-SC Series: 2

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-208A-M-ST Series: 1
    EDS-208A-MM-ST Series: 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-208A-S-SC Series: 1
    EDS-208A-SS-SC Series: 2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

  • Optical Fiber

  • Optical Fiber

  • MAC Table Size

    2 K

  • Packet Buffer Size

    768 kbits

  • Processing Type

    Store and Forward

  • Connection

    1 removable 4-contact terminal block(s)

  • Input Current

    EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Series: 0.11 A @ 24 VDC
    EDS-208A-MM-SC/MM-ST/SS-SC Series: 0.15 A @ 24 VDC

  • Input Voltage

    12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Ethernet Interface

    Broadcast storm protection

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions

    50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)

  • Weight

    275 g (0.61 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp.Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2

  • Maritime

    ABS, DNV-GL, LR, NK

  • Railway

    EN 50121-4

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-31

  • Time

    2,701,531 hrs

  • Standards

    Telcordia (Bellcore), GB
