首頁 產品 工業網路基礎設施 乙太網路交換器 非網管型交換器 EDS-208A 系列 EDS-208A-S-SC-T
MOXA

非網管型交換器

Moxa 提供多元的工業級非網管型交換器，以全面支援各種工業級乙太網路基礎設施的運作。我們的非網管型乙太網路交換器符合嚴格的產業標準，可在惡劣環境中穩定可靠地運作。

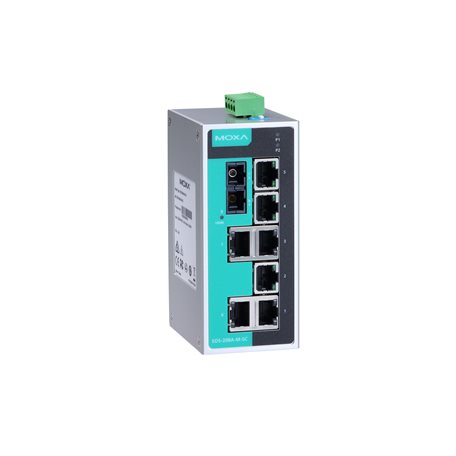

EDS-208A-S-SC-T
EDS-208A 系列

Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX single-mode port with SC connector, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 7
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports (single-mode SC connector)

    • 1

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Switch Properties

  • MAC Table Size

    • 2 K

  • Packet Buffer Size

    • 768 kbits

  • Processing Type

    • Store and Forward
Power Parameters

  • Connection

    • 1 removable 4-contact terminal block(s)

  • Input Current

    • 0.11 A @ 24 VDC

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
DIP Switch Configuration

  • Ethernet Interface

    • Broadcast storm protection
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP30

  • Dimensions

    • 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)

  • Weight

    • 275 g (0.61 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2

  • Maritime

    • ABS, DNV-GL, LR, NK

  • Railway

    • EN 50121-4

  • Safety

    • UL 508

  • Shock

    • IEC 60068-2-27

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Freefall

    • IEC 60068-2-31
MTBF

  • Time

    • 2,701,531 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
