1 relay output with current carrying capacity of 1 A @ 24 VDC

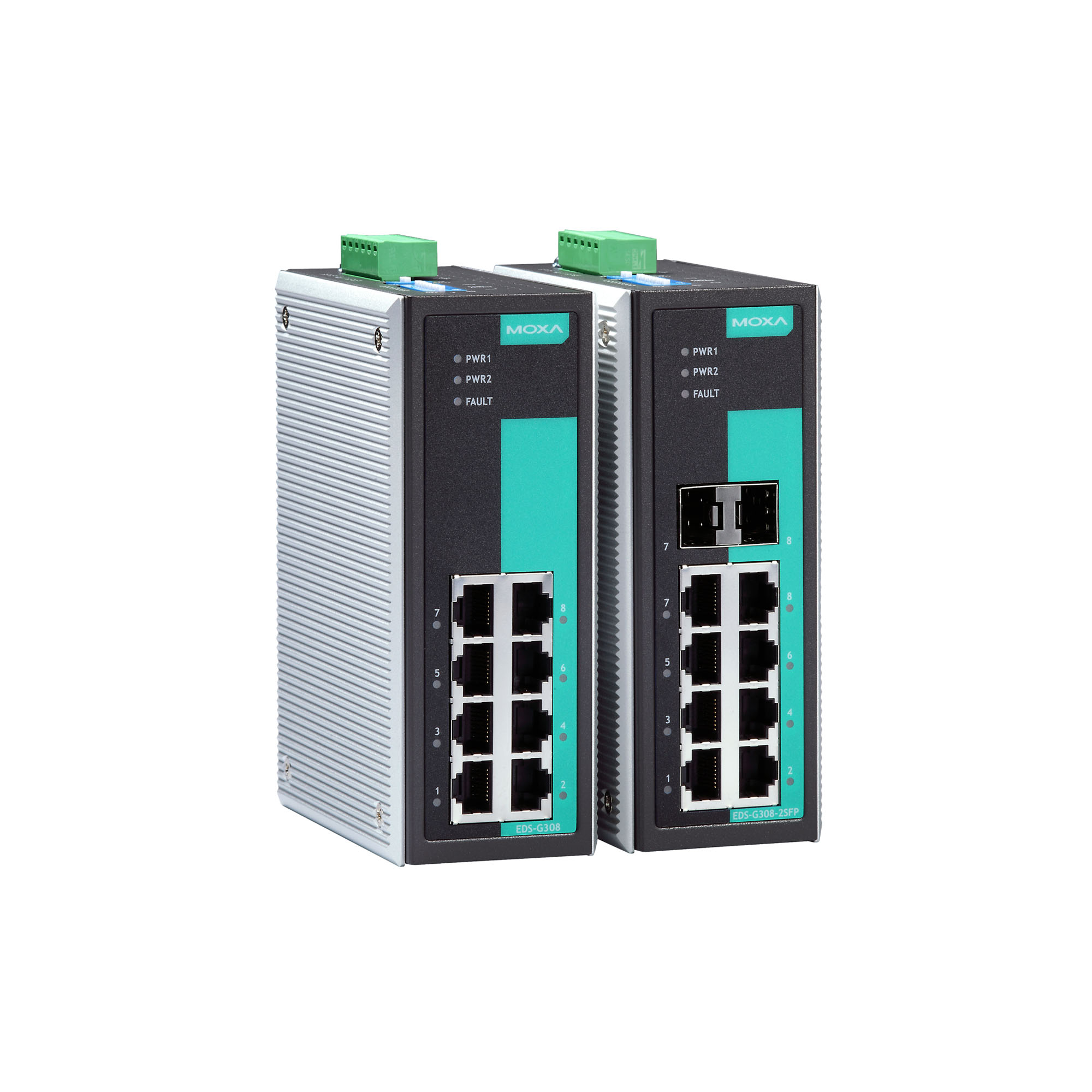

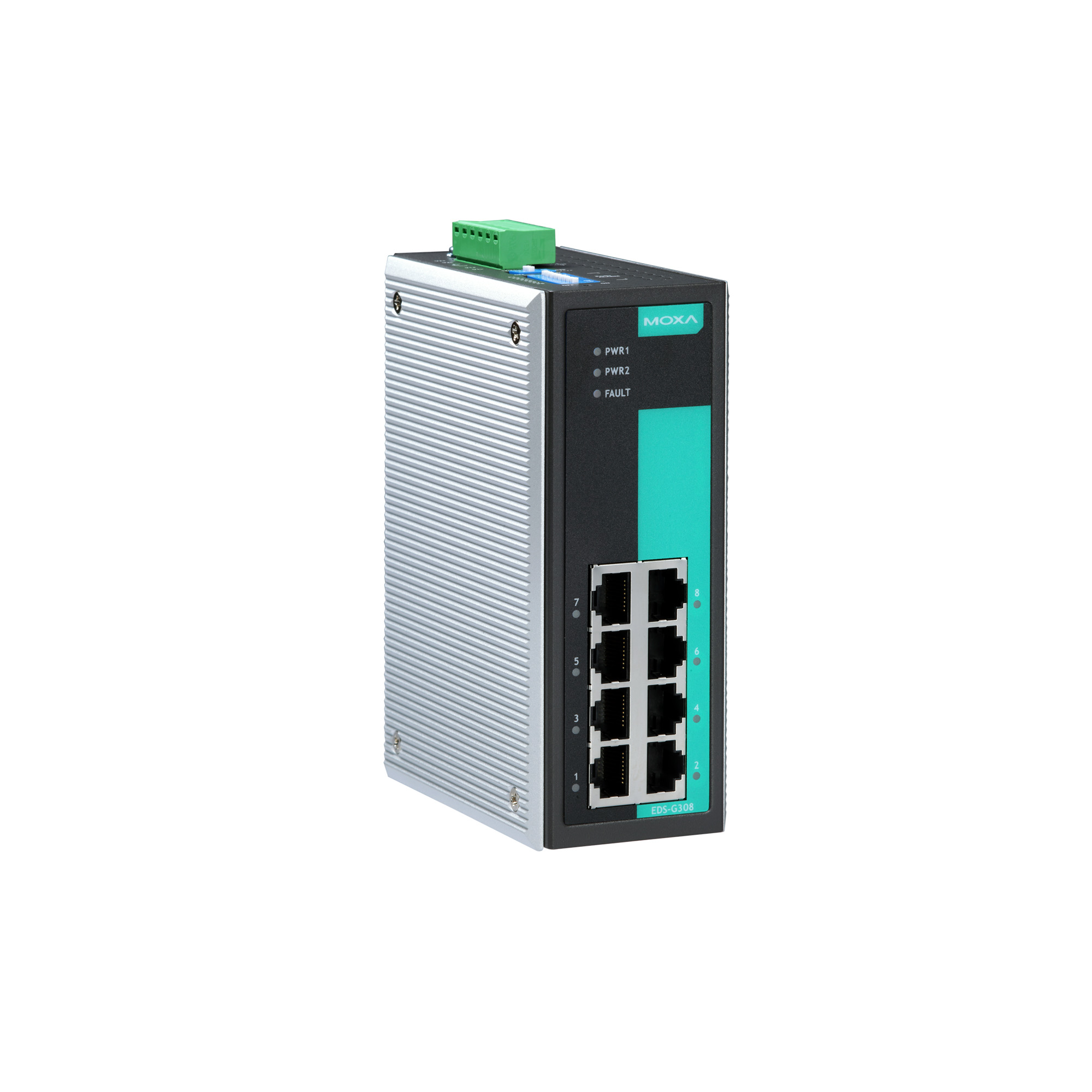

EDS-G308/G308-T: 8
EDS-G308-2SFP/G308-2SFP-T: 6

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

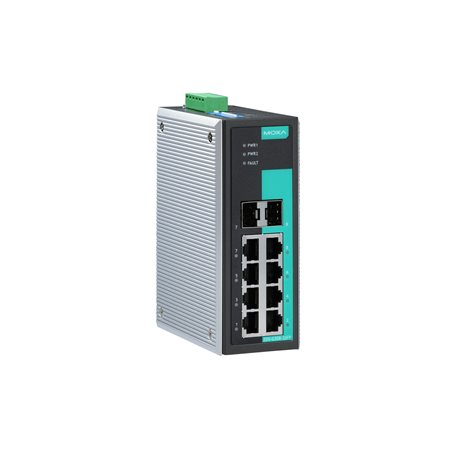

EDS-G308-2SFP: 2
EDS-G308-2SFP-T: 2

IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
IEEE 802.3az for Energy-Efficient Ethernet

Broadcast storm protection
Jumbo Frame
IEEE 802.3az energy saving
Port break alarm

9.6 KB

8 K

4 Mbits

Store and Forward

1 removable 6-contact terminal block(s)

12/24/48 VDC
Redundant dual inputs

9.6 to 60 VDC

Supported

EDS-G308: 0.8 A @ 12-48 VDC
EDS-G308-2SFP: 0.9 A @ 12-48 VDC

Metal

IP30

53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)

880 g (1.94 lb)

DIN-rail mounting
Wall mounting (with optional kit)

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

UL 508
EN 62368-1

EN 55032/35
EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m
IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 100 A/m

ATEX
Class I Division 2

EN 50121-4

IEC 60068-2-6

IEC 60068-2-27

IEC 60068-2-32

DNV
LR
ABS
NK

EDS-G308: 2,398,736 hrs
EDS-G308-2SFP: 2,260,195 hrs

Telcordia (Bellcore), GB

5 years

See www.moxa.com/tw/warranty
