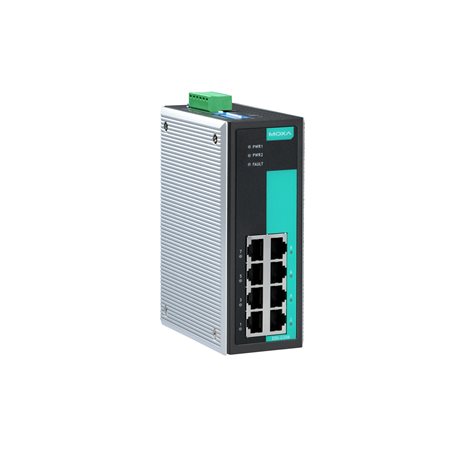

EDS-G308-T
EDS-G308 系列

Unmanaged full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, -40 to 75°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseX
      IEEE 802.3az for Energy-Efficient Ethernet
DIP Switch Configuration
  • Ethernet Interface

    • Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm
Switch Properties
  • Jumbo Frame Size

    • 9.6 KB
  • MAC Table Size

    • 8 K
  • Packet Buffer Size

    • 4 Mbits
  • Processing Type

    • Store and Forward
Power Parameters
  • Connection

    • 1 removable 6-contact terminal block(s)
  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Reverse Polarity Protection

    • Supported
  • Input Current

    • 0.29 A @ 24 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 52.85 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
  • Weight

    • 880 g (1.94 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m
      IEC 61000-4-3 RS: 800 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF: 100 A/m
  • Hazardous Locations

    • ATEX, Class I Division 2
  • Maritime

    • DNV
  • Railway

    • EN 50121-4
  • Safety

    • UL 508, EN 62368-1
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 2,260,195 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
