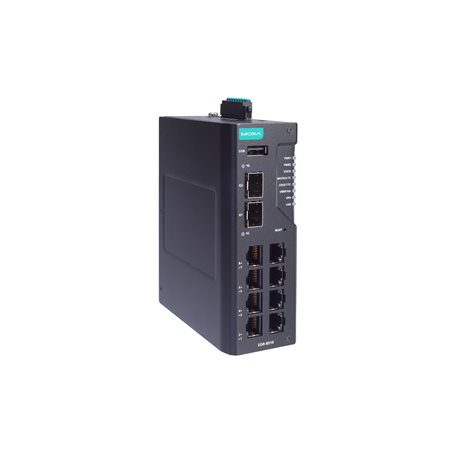

EDR-8010-VPN-2GSFP-CT
EDR-8010 系列

8 FE copper and 2 GbE SFP multiport industrial secure router with firewall/NAT/VPN, 12/24/48 VDC input voltage, -10 to 60°C operating temperature, conformal coating

Input/Output Interface

  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 8

  • 1000BaseSFP Slots

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3x for flow control
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      Static Port Trunk
Ethernet Software Features

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Management

    • Back Pressure Flow Control
      DDNS
      DHCP Server/Client
      Web Console (HTTP/HTTPS)
      LLDP
      QoS/CoS/ToS
      SNMPv1/v2c/v3
      Telnet
      TFTP
      HTTPS
      SSH

  • Redundancy Protocols

    • RSTP
      STP
      Turbo Ring v2

  • Routing

    • Throughput: 50K packets per second (max. 500 Mbps)

  • Routing Table

    • Max. 4K routing rules

  • Concurrent Connections

    • Max. 120K

  • Connections Per Second

    • Max. 6K

  • Routing Redundancy

    • VRRP

  • Security

    • Secure Boot
      IPsec
      L2TP (server)
      RADIUS
      Trust access control

  • Time Management

    • NTP Server/Client
      SNTP

  • Unicast Routing

    • OSPF
      RIPV1/V2
      Static Route

  • Multicast Routing

    • Static Route

  • Filter

    • IGMP v1/v2/v3
Switch Properties

  • VLAN ID Range

    • VID 1 to 4094

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 16
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
DoS and DDoS Protection

  • Technology

    • ARP-Flood
      FIN Scan
      ICMP-Death
      NEWWithout-SYN Scan
      NMAP-ID Scan
      NMAP-Xmas Scan
      Null Scan
      SYN/FIN Scan
      SYN/RST Scan
      SYN-Flood
      Xmas Scan
Firewall

  • Filter

    • DDoS
      Ethernet protocols
      ICMP
      IP address
      MAC address
      Ports

  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall

  • Deep Packet Inspection

    • Modbus TCP
      Modbus UDP
      DNP3
      IEC 60870-5-104
      IEC 61850 MMS
      Additional protocols will be supported through future firmware updates.

  • Throughput

    • Max. 50K packets per second (max. 500 Mbps)
IPsec VPN

  • Authentication

    • MD5 and SHA (SHA-256)
      RSA (key size: 1024-bit, 2048-bit)
      X.509 v3 certificate

  • Concurrent VPN Tunnels

    • Max. 50 IPsec VPN tunnels

  • Encryption

    • DES
      3DES
      AES-128
      AES-192
      AES-256

  • Protocols

    • IPsec
      L2TP (server)
      PPTP (client)

  • Throughput

    • Max. 200 Mbps (Conditions: AES-256, SHA-256)
NAT

  • Features

    • 1-to-1
      N-to-1
      Port forwarding
      NAT loopback
Real-Time Firewall / VPN Event Log

  • Event Type

    • Firewall event
      VPN event

  • Media

    • Local storage
      SNMP Trap
      Syslog server
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    • USB Type-C
Power Parameters

  • Connection

    • Removable terminal block

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Voltage

    • 12/24/48 VDC

  • Input Current

    • 0.53 A @ 12 VDC
      0.26 A @ 24 VDC
      0.14 A @ 48 VDC

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 45 x 135 x 105 mm (1.77 x 5.31 x 4.13 in)

  • Weight

    • 520 g (1.15 lb)

  • Installation

    • DIN-rail mounting (DNV-certified)
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • IEC 62368-1
      UL 62368-1

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Maritime

    • IEC 60945
      DNV

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 1,347,225 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
