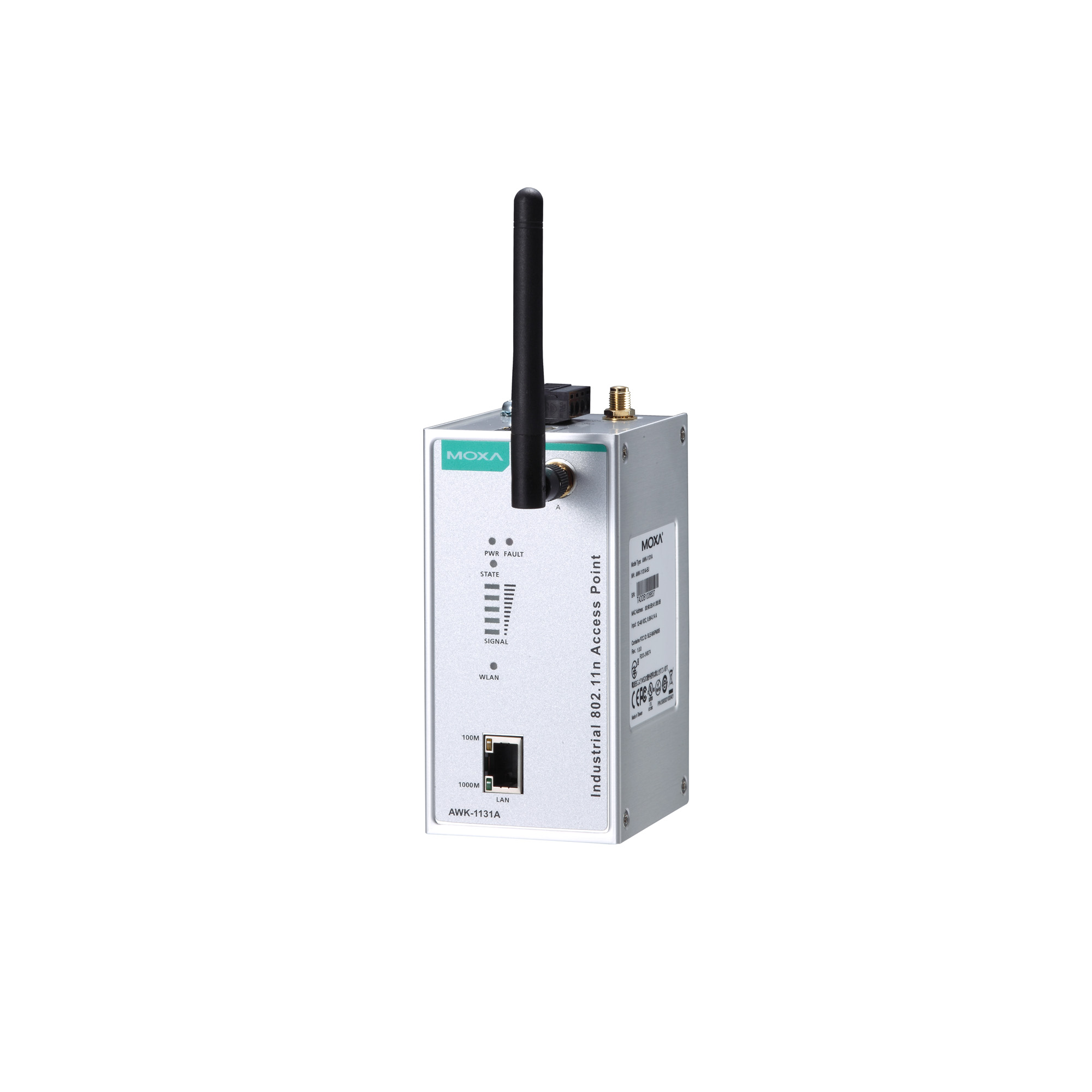

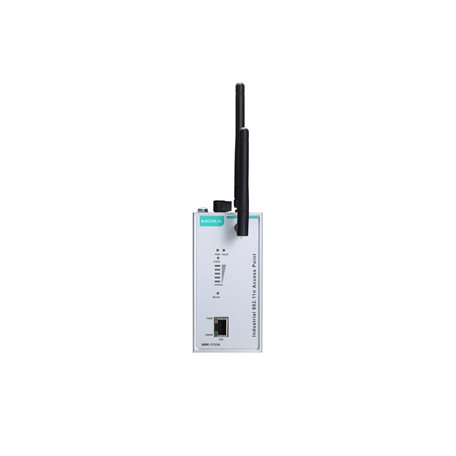

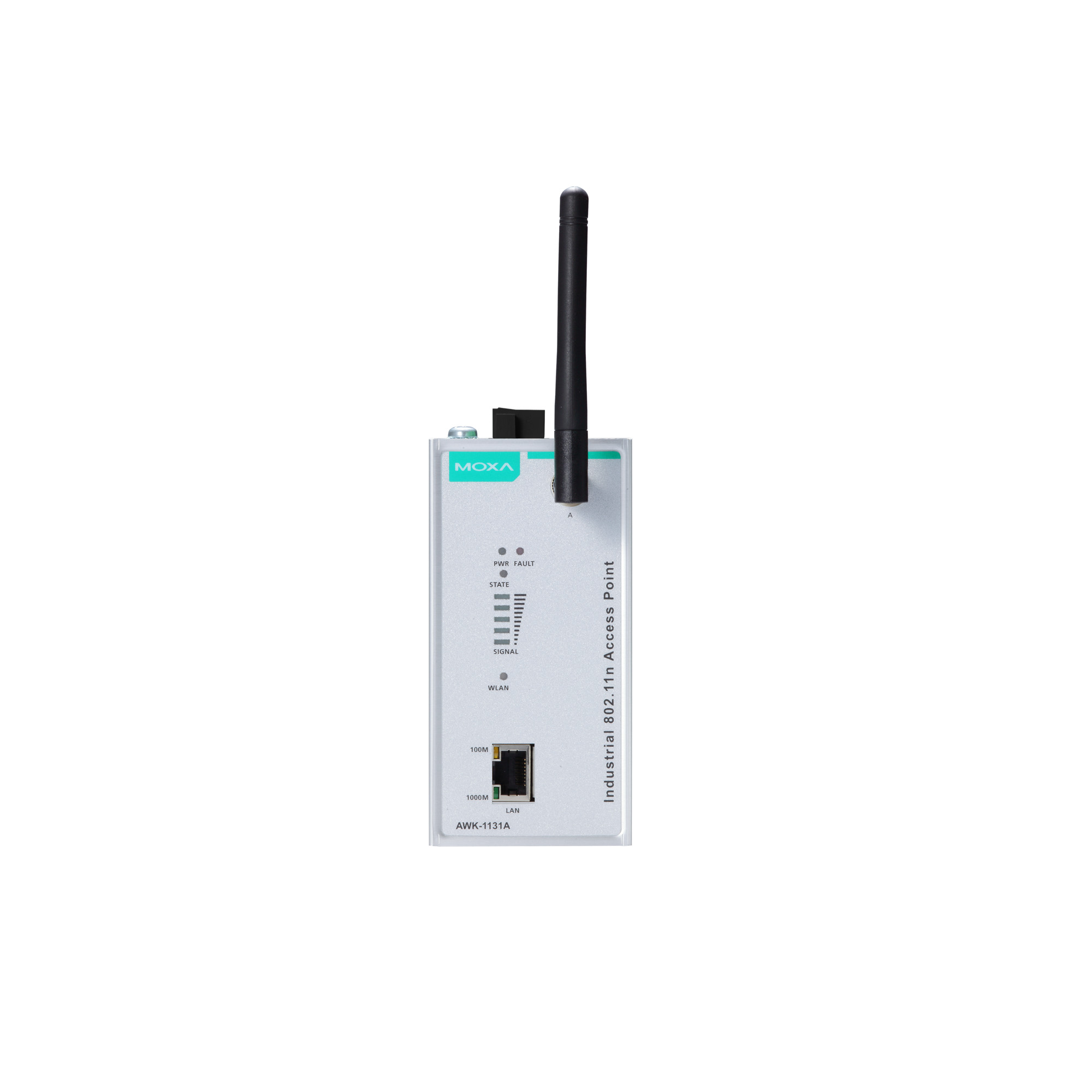

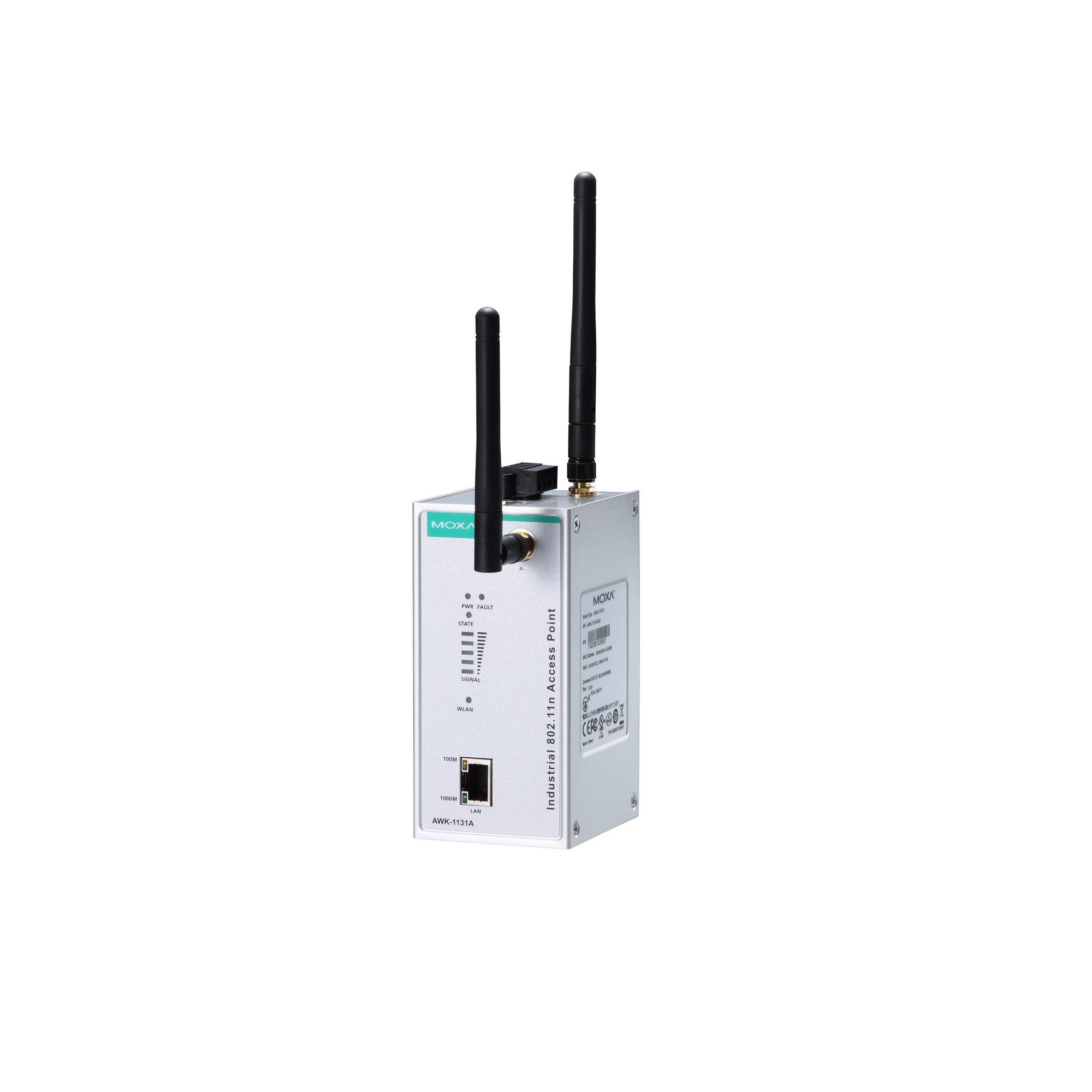

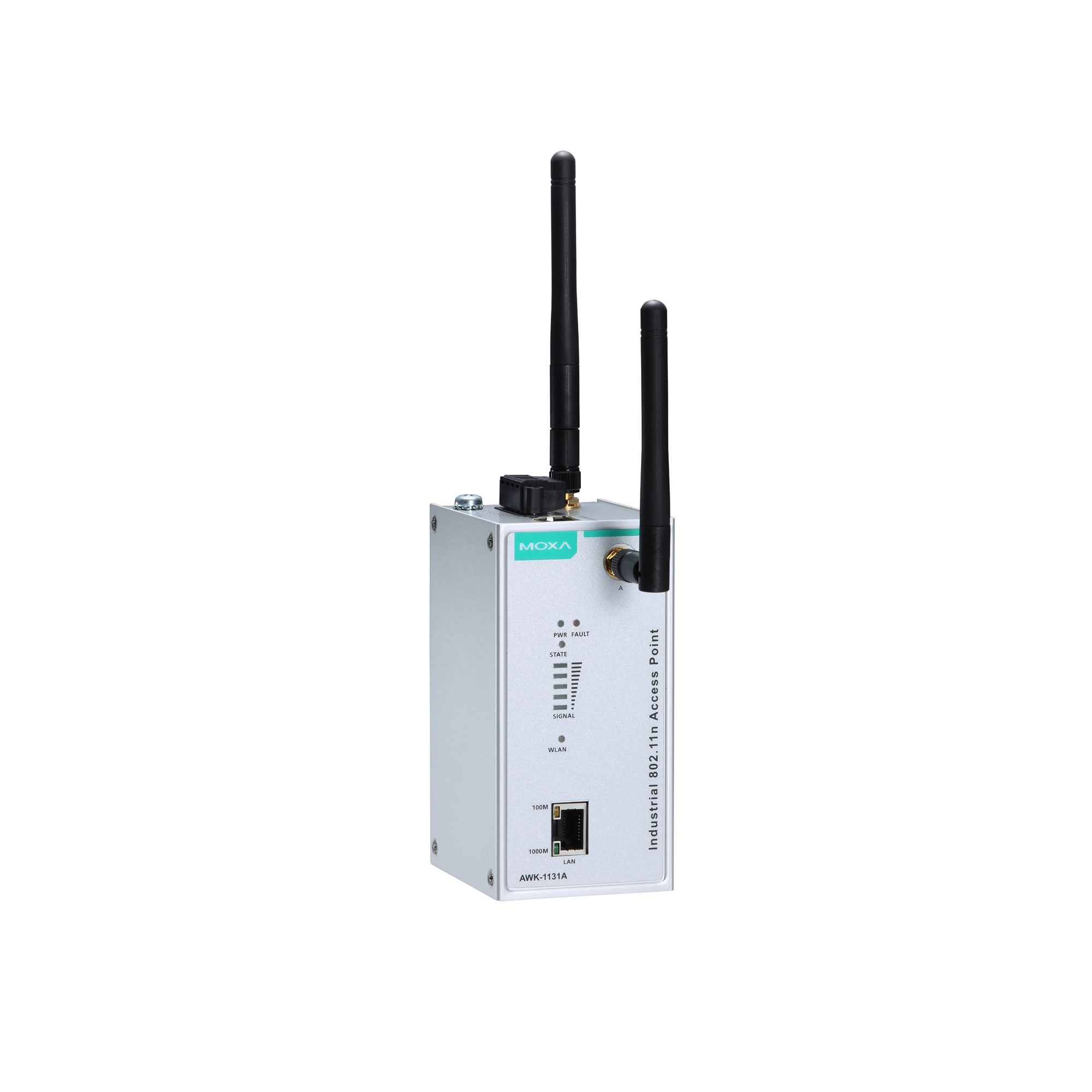

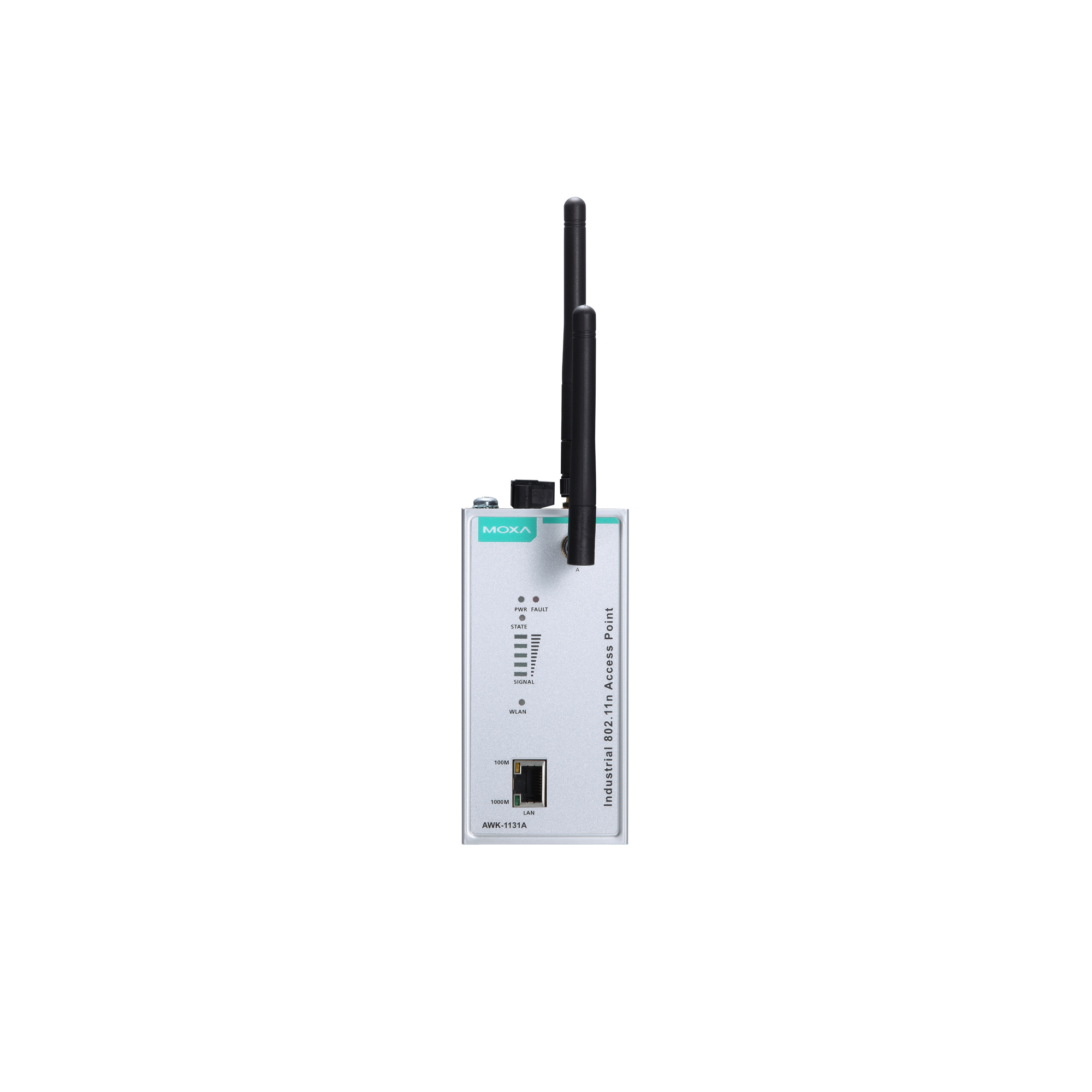

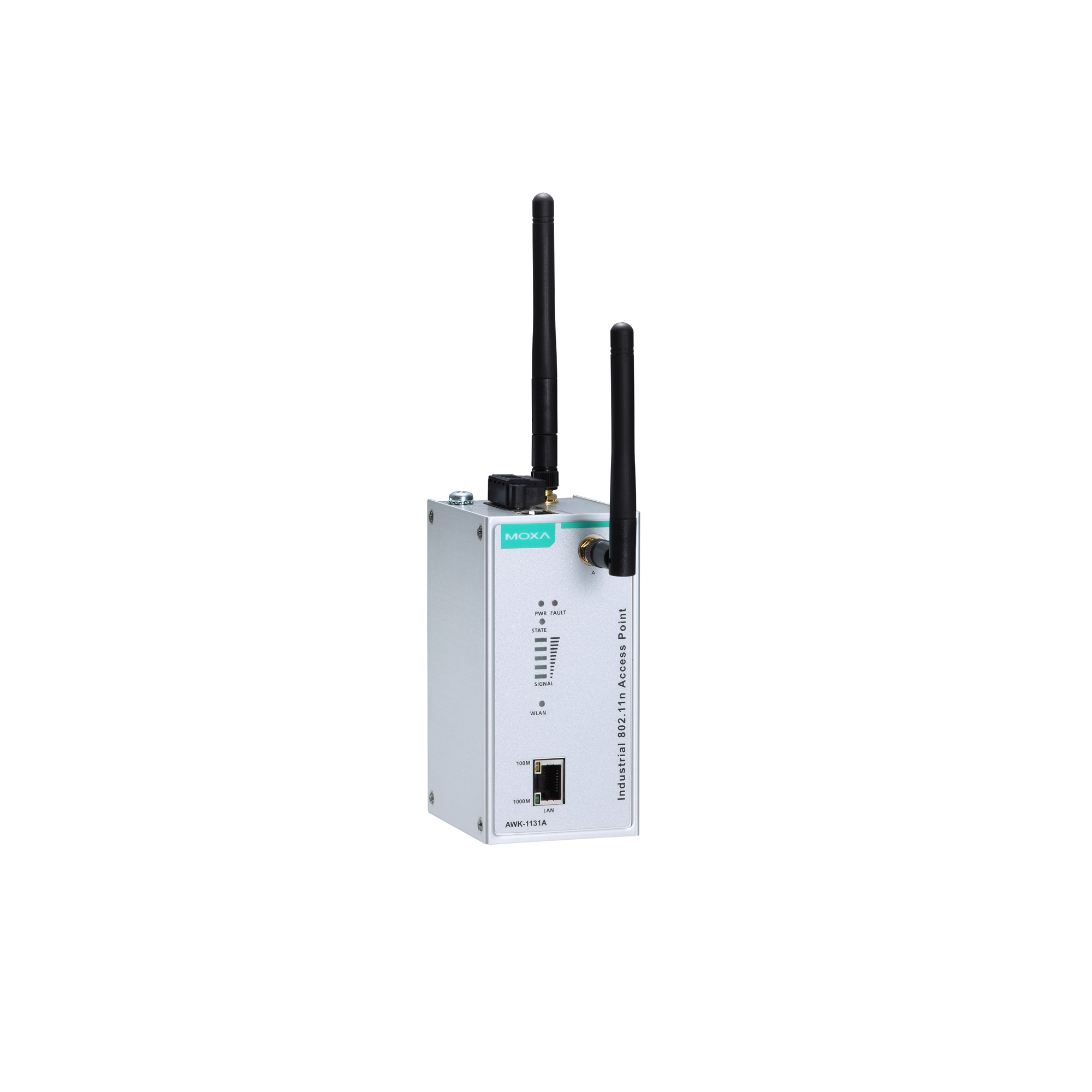

AWK-1131A 系列

入門級工業 IEEE 802.11a/b/g/n 無線 AP/用戶端

moxa-awk-1131a-series-image-1-(1).jpg | Moxa
moxa-awk-1131a-series-image-2-(1).jpg | Moxa
moxa-awk-1131a-series-image-3-(1).jpg | Moxa
moxa-awk-1131a-series-image-4-(1).jpg | Moxa
moxa-awk-1131a-series-image-5-(1).jpg | Moxa
moxa-awk-1131a-series-image-6-(1).jpg | Moxa

特色與優點

  • 支援 IEEE 802.11a/b/g/n 標準的 AP/用戶端
  • 毫秒等級的用戶端 Turbo Roaming 漫遊 此處所指出的快速漫遊復原時間是在最佳化條件下記錄的平均測試結果,其中包含無干擾的 20 MHz RF 頻道、WPA2-PSK 安全性和預設快速漫遊參數。用戶端設定為 100 Kbps 流量負載的 3 頻道漫遊。其他情況也可能會影響漫遊效能。如需有關「快速漫遊」參數設定的詳細資訊,請參閱產品手冊。
  • 整合式天線與電源隔離能力
  • 支援 5 GHz DFS 頻道

認證

  • moxa-wi-fi-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

AWK-1131A 工業無線 AP/用戶端支援 IEEE 802.11n 技術,資料傳輸速率高達 300 Mbps,可滿足日益增長的資料傳輸需求。在操作溫度、電源輸入電壓、突波、ESD 和振動方面,AWK-1131A 符合工業標準及規定。兩個備援 DC 電源輸入可提高電源供應器的可靠性。 AWK-1131A 可以在 2.4 或 5 Ghz頻段上操作,並相容現有的 802.11a/b/g 布署。MxView 網路管理工具程式的無線附加元件能夠以視覺化的方式呈現 AWK 的無線連線,確保整體的 Wi-Fi 連線能力。

改良的更高資料速率及通道容量

  • 高速無線連線,最高可達 300 Mbps 的資料傳輸速率

  • MIMO 技術可提升傳輸及接收多組資料串流的能力

  • 通道結合技術增加通道寬度

  • 支援靈活的通道選擇,建立 DFS 無線通訊系統

工業級應用的規格

  • 備援直流電源輸入

  • 整合式隔離設計,加強對於環境干擾的保護

  • 小巧的鋁製外殼,IP30 等級

透過 MXview Wireless 進行無線網路管理

  • 動態拓撲視圖一目了然顯示無線連結狀態及連線變化

  • 視覺化的互動式漫遊播放功能,可檢閱用戶端的漫遊記錄

  • 個別 AP 和用戶端裝置的詳細裝置資訊及效能指標圖表

  • WLAN Standards

    802.11a/b/g/n
    802.11i Wireless Security

  • Modulation Type

    DSSS
    OFDM
    MIMO-OFDM

  • Frequency Band for US (20 MHz operating channels)

    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Frequency Band for JP (20 MHz operating channels)

    2.412 to 2.484 GHz (14 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2-Personal

  • Transmission Rate

    802.11b: 1 to 11 Mbps
    802.11a/g: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    18±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power for 802.11b

    26±1.5 dBm @ 1 Mbps
    26±1.5 dBm @ 2 Mbps
    26±1.5 dBm @ 5.5 Mbps
    25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    19±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    18±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power

  • Transmitter Power

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -90 @ 6 Mbps
    Typ. -88 @ 9 Mbps
    Typ. -88 @ 12 Mbps
    Typ. -85 @ 18 Mbps
    Typ. -81 @ 24 Mbps
    Typ. -78 @ 36 Mbps
    Typ. -74 @ 48 Mbps
    Typ. -72 @ 54 Mbps
    Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -69 dBm @ MCS7 20 MHz
    Typ. -71 dBm @ MCS15 20 MHz
    Typ. -63 dBm @ MCS7 40 MHz
    Typ. -68 dBm @ MCS15 40 MHz
    Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -93 dBm @ 1 Mbps
    Typ. -93 dBm @ 2 Mbps
    Typ. -93 dBm @ 5.5 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -88 dBm @ 6 Mbps
    Typ. -86 dBm @ 9 Mbps
    Typ. -85 dBm @ 12 Mbps
    Typ. -85 dBm @ 18 Mbps
    Typ. -85 dBm @ 24 Mbps
    Typ. -82 dBm @ 36 Mbps
    Typ. -78 dBm @ 48 Mbps
    Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -69 dBm @ MCS15 20 MHz
    Typ. -67 dBm @ MCS7 40 MHz
    Typ. -67 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    Access point, Client, Sniffer

  • Antenna

    External, 2/2 dBi, Omni-directional

  • Antenna Connectors

    2 RP-SMA female

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1

  • Management

    DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig

  • Security

    HTTPS/SSL, RADIUS, SSH

  • Time Management

    SNTP Client

  • Filter

    ICMP, MAC address, IP protocol, Port-based

  • Console Port

    RS-232, 8-pin RJ45

  • LED Indicators

    PWR, FAULT, STATE, SIGNAL, WLAN, LAN

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)

  • Weight

    307 g (0.68 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Input Current

    0.56 A @ 12 VDC, 0.14 A @ 48 VDC

  • Input Voltage

    12 to 48 VDC

  • Power Connector

    1 removable 4-contact terminal block(s)

  • Power Consumption

    6.96 W (max.)

  • Reverse Polarity Protection

    Supported

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, ANATEL

  • Safety

    EN 60950-1, UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    749,476 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Linux version)
251.0 MB
軟體套件
SHA-512
v1.1.0
  • Linux
2023年2月1日 2023年2月1日 版本說明
MXview
417.7 MB
軟體套件
SHA-512
v3.2.8
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2022年10月31日 2022年10月31日 版本說明
Library for AWK-1131A Series
172.0 KB
程式庫
SHA-512
v1.23
2021年10月14日 2021年10月14日 版本說明
Firmware for AWK-1131A Series
7.8 MB
韌體
SHA-512
v1.23
2021年10月14日 2021年10月14日 版本說明
Library for AWK-1131A Series (MXconfig v2.6 update installer)
1.1 MB
程式庫
SHA-512
v2.6
2020年9月23日 2020年9月23日 版本說明
Utility for AWK-1131A Series (Wireless Search Utility)
1.8 MB
工具程式
SHA-512
v2.8
2020年9月23日 2020年9月23日 版本說明
Wireless Search Utility
1.8 MB
工具程式
SHA-512
v2.6
  • Windows 2000
  • Windows 7
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2017年11月26日 2017年11月26日 版本說明
Turbo Roaming Analyzer
5.8 MB
工具程式
SHA-512
v1.0
2017年10月2日 2017年10月2日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for AWK-1131A Series
1.5 MB
QIG 英文 v8.2 2022年10月4日 2022年10月4日
Manual for AWK-1131A Series
6.7 MB
使用者手冊 英文 v13.1 2022年3月8日 2022年3月8日
AWK-1131A 系列產品資料表
3.3 MB
產品資料表 中文 v2.6 2021年4月1日 2021年4月1日
2D CAD for AWK-1131A
279.8 KB
2D CAD 英文 2019年2月28日 2019年2月28日

可供選擇的機型 (6)

顯示圖片
moxa-awk-1131a-eu-image.jpg | MoxaAWK-1131A-EUmoxa-awk-1131a-eu-t-image.jpg | MoxaAWK-1131A-EU-Tmoxa-awk-1131a-jp-image.jpg | MoxaAWK-1131A-JPmoxa-awk-1131a-jp-t-image.jpg | MoxaAWK-1131A-JP-T
BandEUEUJPJP
Standards802.11a/b/g/n802.11a/b/g/n802.11a/b/g/n802.11a/b/g/n
Operating Temp.0 to 60°C-40 to 75°C0 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

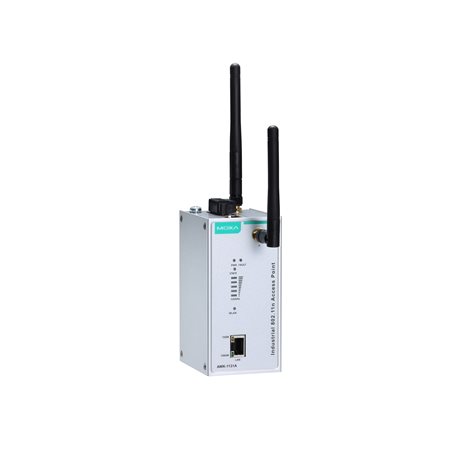

moxa-awk-1131a-us-image.jpg | MoxaAWK-1131A-USmoxa-awk-1131a-us-t-image.jpg | MoxaAWK-1131A-US-T
