MOXA

Network Security Appliance

Moxa’s Network Security Appliances are designed to protect your critical industrial assets from industrial cybersecurity threats with OT-IT integrated cybersecurity technologies such as OT-centric Deep Packet Inspection (DPI) and Intrusion Prevention System (IPS).



For more information, visit our Industrial Cybersecurity microsite.

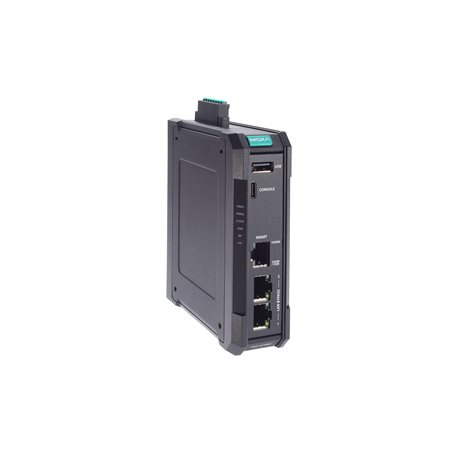

EDF-G1002-BP
EDF-G1002-BP Series

Industrial next-gen LAN firewall with 2 10/100/1000BaseT(X) ports, 1 Ethernet-based management port, Intrusion Prevention System (IPS), Deep Packet Inspection (DPI), Gen3 bypass, centralized management through MXsecurity, -10 to 60°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC

  • Buttons

    • Reset button

  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 3 (2 x LAN ports, 1 x MGMT port)

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3x for flow control
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, BYPASS, USB
DoS and DDoS Protection

  • Technology

    • ARP-Flood
      FIN Scan
      ICMP Flood
      TCP Sessions Without SYN
      NMAP-ID Scan
      NMAP-Xmas Scan
      Null Scan
      SYN/FIN Scan
      SYN/RST Scan
      SYN-Flood
      Xmas Scan
Firewall

  • Throughput

    • Max. 45K packets per second/500 Mbps (based on RFC 2544)

  • Filter

    • DDoS
      Ethernet protocols
      ICMP
      IP address
      MAC address
      Ports

  • Intrusion Prevention System

    • Enabled by default. IPS pattern update functionality requires an additional license.

  • Deep Packet Inspection

    • Modbus TCP
      Modbus UDP
      DNP3
      IEC 60870-5-104
      IEC 61850 MMS
      EtherNet/IP
      Omron FINS
      Siemens S7 Comm.
      Additional protocols will be supported through future firmware updates.
Real-time Firewall Event Log

  • Event Type

    • Firewall events
      Protocol DPI and IDS/IPS events

  • Media

    • Syslog server
      Local storage
      SNMP Trap
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    • USB Type-C
Power Parameters

  • Connection

    • Removable terminal block

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Voltage

    • 12/24/48 VDC
      Redundant dual inputs

  • Input Current

    • 0.69 A (max)

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 35 x 125 x 100 mm (1,38 x 4.92 x 3.94 in)

  • Weight

    • 385 g (0.85 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • IEC 62368-1
      UL 62368-1

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 2,929,641 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
