En route to smarter, safer transportation


With over 15 years of experience in rail digitalization and over 35 years of OT expertise, Moxa is a leading expert in industrial networking and computing solutions. Backed by a strong global presence, we lead the way in pioneering rail technologies while delivering unmatched quality and reliability.


We're forging the future of mobility—driving digital transformation and shaping the next era of transportation.

About Moxa Rail


15+ Years Rail Experience

15+ years of rail expertise, we are dedicated to business and R&D

1000+ Worldwide Successes

Over 50 countries, 200 cities use Moxa rail solutions

  • 1000+ in CCTV/PIS/PA
  • 100+ in TCMS
  • 50+ in CBTC
Co-develop Rail Standards

Co-developing rail industry standards and next-gen train communication networks

  • IEC 61375
  • Safe4RAIL
  • ITxPT (Heavy Rail WG)
Security DNA

Secure by design ensures successful hardware and software development

15 Years Product Supply
  • Onboard switches and routers: 15 years
  • Onboard and trackside wireless APs: 10 years
  • Onboard computers: 10 years
  • IP cameras: 8 years

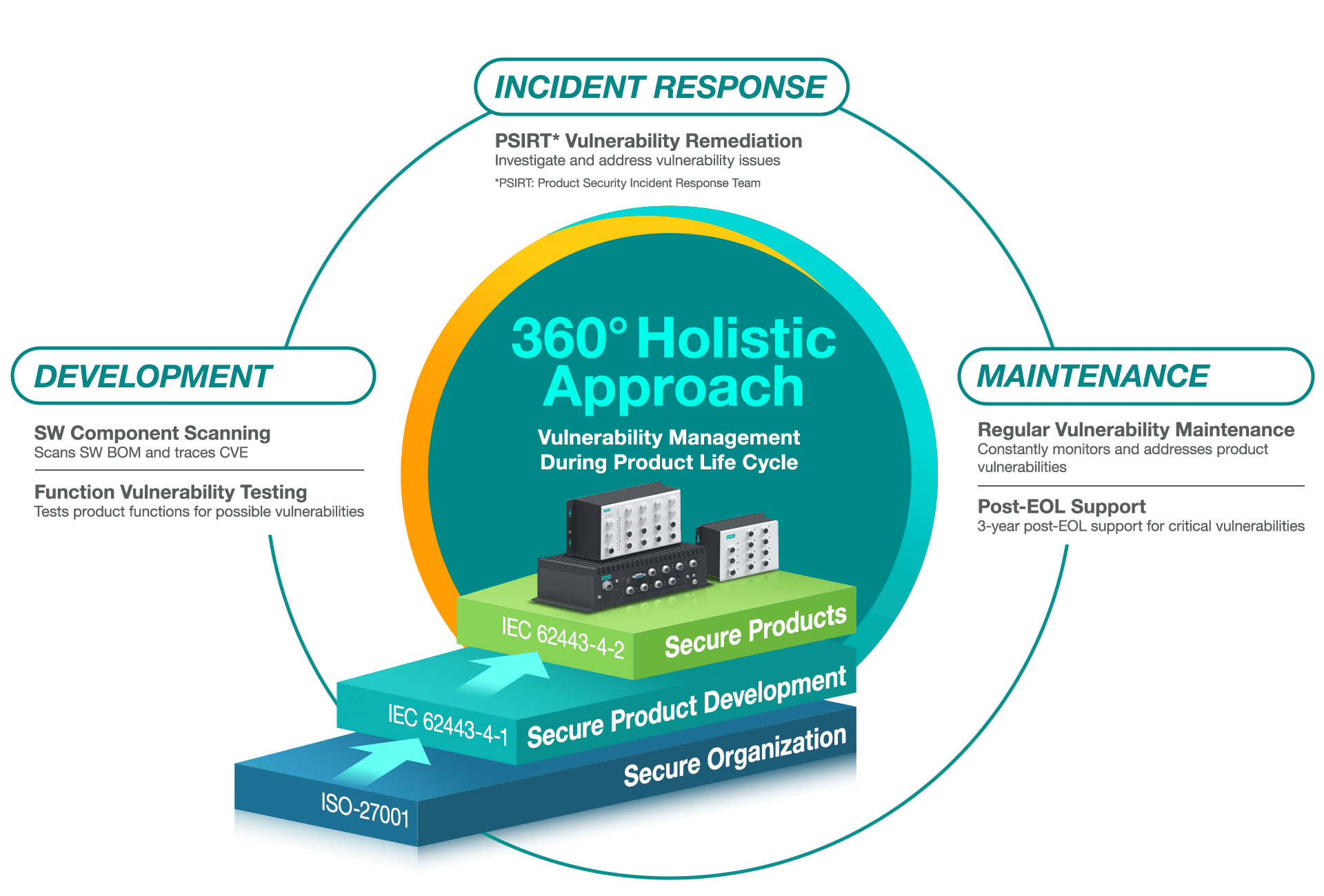

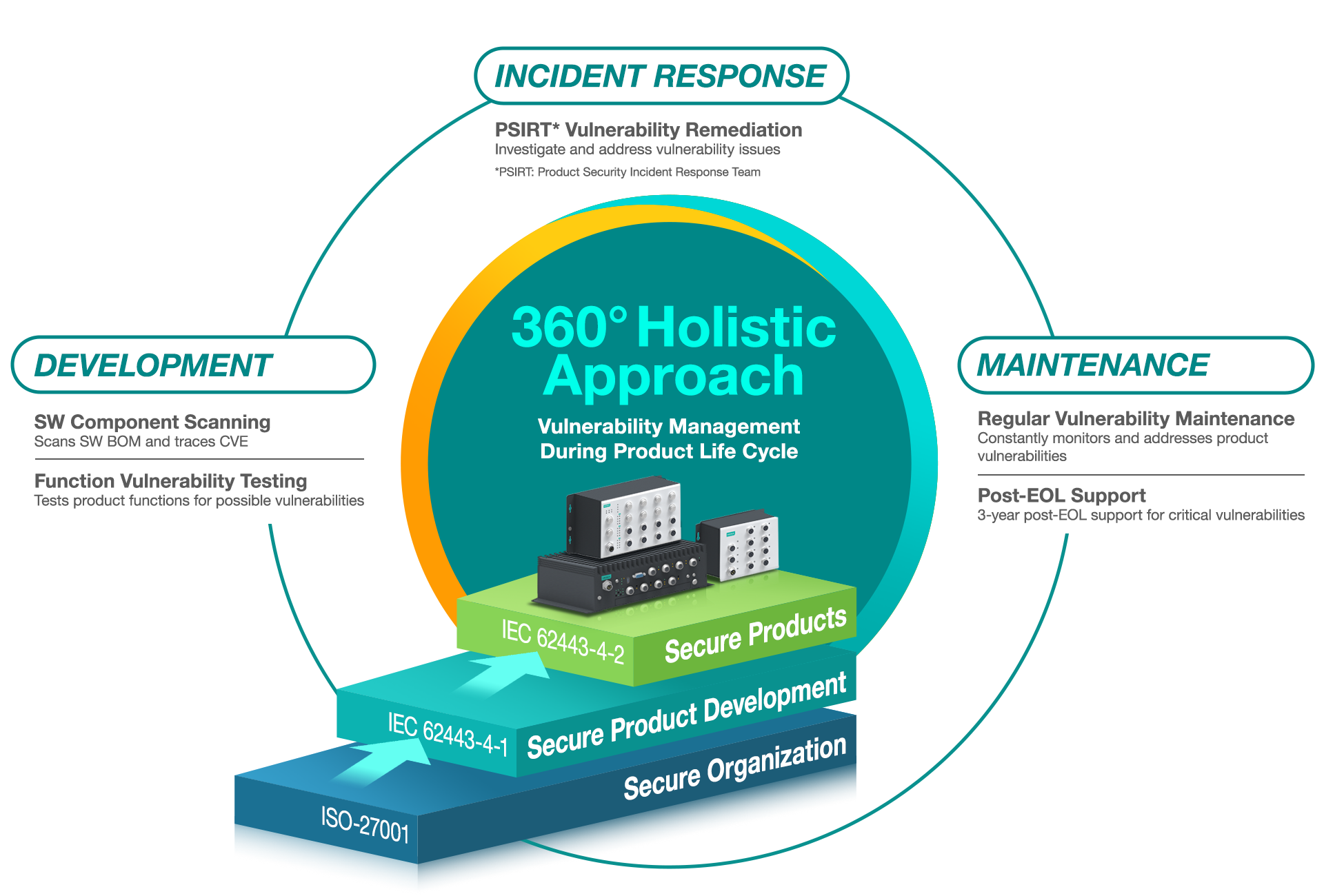

Secure at Every Stage—and Beyond

  • Secure product development
  • ISO-27001 (2013) and IEC 62443-4-1 certified
  • All new products are developed according to IEC 62443-4-2

Moxa’s Onboard Communications Solutions


Moxa offers the industry’s most complete onboard networking and computing portfolio, ranging from high-speed wired and wireless solutions, versatile computers, and diverse IP cameras. Beyond functionality, the portfolio integrates network segmentation and advanced security features to ensure data integrity and confidentiality while mitigating risks.

Onboard and T2G Communications
  • IEC 61375 secure onboard networks
  • Train-to-ground Wi-Fi/cellular networks
Data-driven Intelligence
  • Secure gateways
  • Multi-application computing platforms
  • Train operator displays (TOD)
Visual Monitoring and Recording
  • Onboard video surveillance cameras
  • NVR platforms

Onboard and T2G Communications


Keep your trains connected—anytime, anywhere. Moxa helps operators build secure and high-performance onboard networks with IEC 61375-compliant switches and Wi-Fi solutions. From L2/L3 networks to train-to-ground wireless links, our Multi-WWAN platforms ensure smooth data flow for everything from CBTC to passenger Wi-Fi.

Solution Highlights
  • Ethernet switches and programmable controllers that are based on the IEC 61375 standard.
  • Merge multiple subsystems onto a single integrated network
  • High bandwidth (FE/GE/10G/802.11n) for multiple concurrent video streams
  • PoE capability to save on cabling efforts and costs
  • Flexible and easy network reconfiguration for operational efficiency


  • IEC 61375 secure onboard networks
  • Train-to-ground Wi-Fi / cellular networks

IEC 61375 Onboard Networks Ensure Interoperability and Standardization

IEC 61375 is the new standard for onboard Ethernet train backbone (ETB) to ensure train-wide interoperability between local consist subnets, regardless of their respective network technologies and manufacturers.

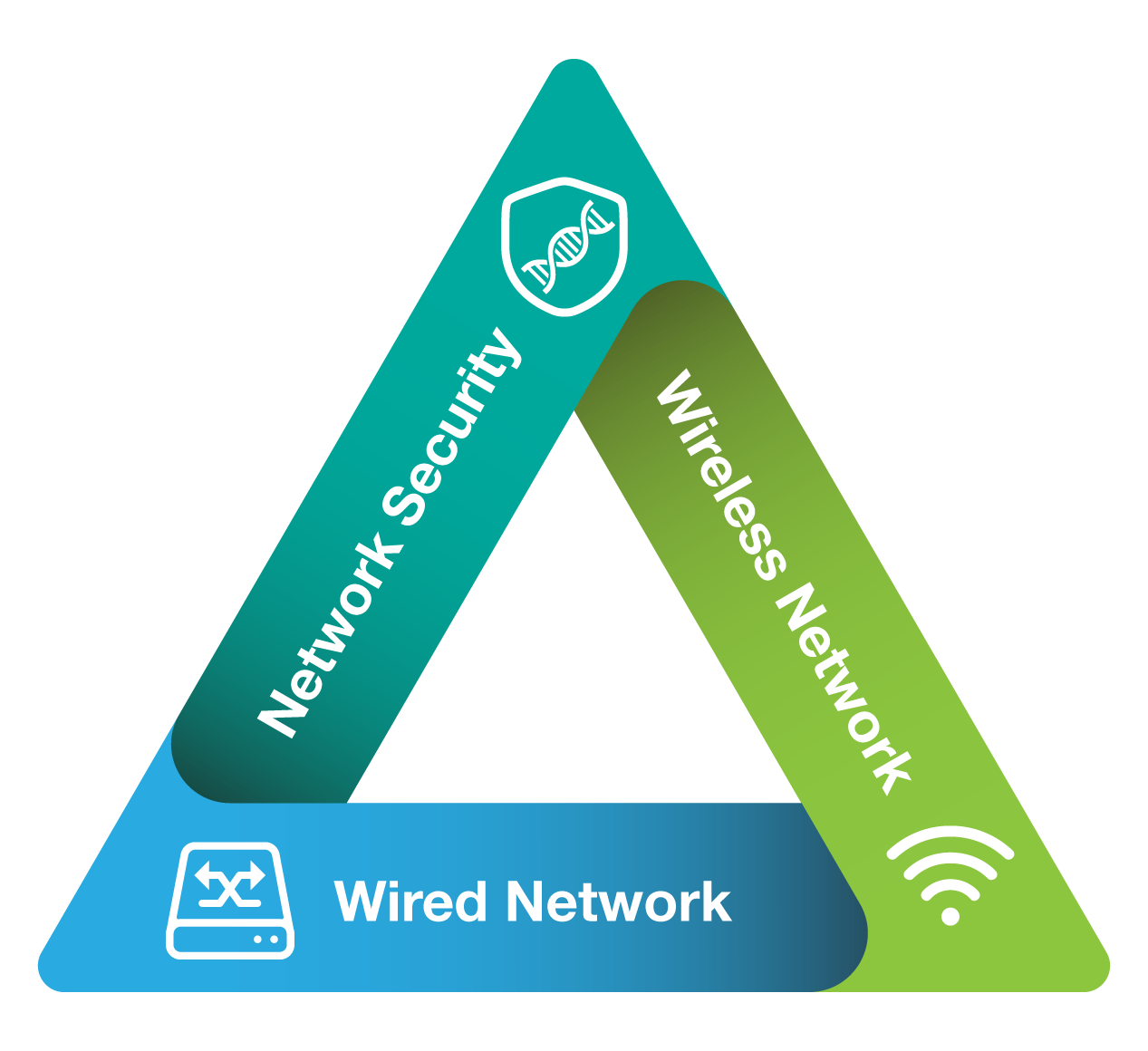

Moxa’s Reliability Triangle for IEC 61375 ensures seamless reconfiguration, simplified retrofits, and built-in cybersecurity—keeping train networks connected, secure, and future-ready.


IEC 61375 Onboard Networks Ensure Interoperability and Standardization

Network Security
Security DNA

Secure-by-design development methodology for HW and SW; device security features based on IEC 62443-4-2

Wired Network
Dynamic Ring Coupling (DRC)

Offers Ethernet redundancy between consists without impacting networks during recomposition

Wireless Network
Auto Carriage Connection (ACC)

Automatically creates wireless connections between train cars, which can adapt to train recompositions during operations

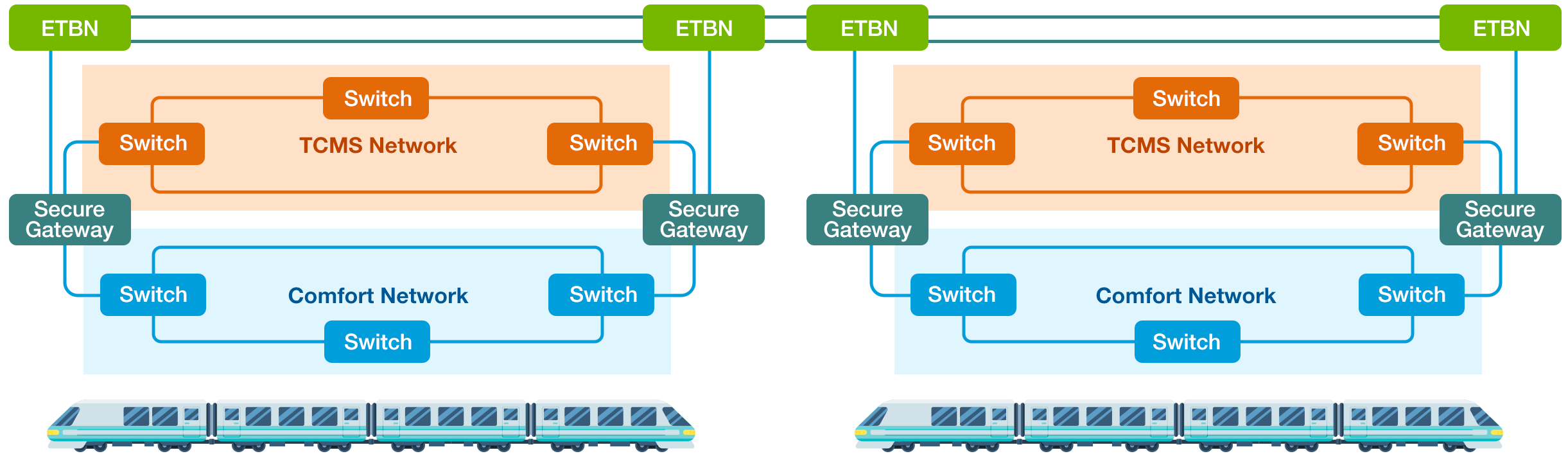

Recommendations for an IEC 61375 Cyber-resilient Network


Separating control and information networks physically boosts cybersecurity and redefines application responsibilities.

Benefits
  • Isolated networks for higher levels of security.
  • Easier to manage and audit network information (e.g., error tracing).



Flexible and Intelligent Network Reconfigurations

Moxa’s onboard switches combine high-density 10GbE/GbE and PoE ports with bypass options to support bandwidth-intensive applications while enabling dynamic train network reconfiguration for maximum operational flexibility.

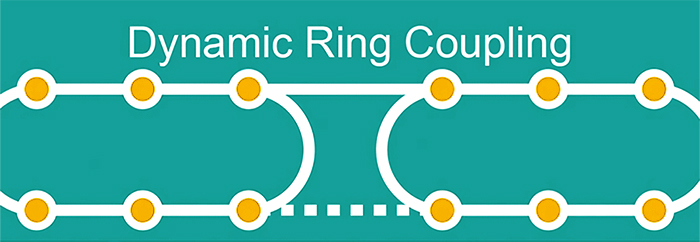

Dynamic Ring Coupling™ (DRC)

Ensures seamless Ethernet redundancy between consists without disrupting services like CCTV, Wi-Fi, and PIS during midjourney reorientation.

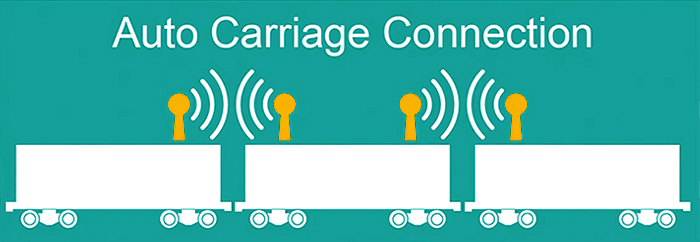

Auto Carriage Connection (ACC)

Creates wireless intercarriage links for retrofitted trains, reducing cabling complexity and supporting flexible consist re-composition.

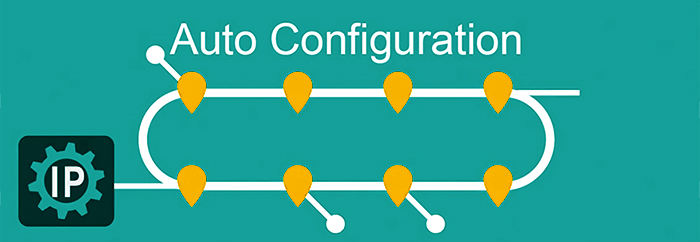

Auto Configuration

Automatically assigns IP settings to all devices, streamlining installation and large-scale deployments.

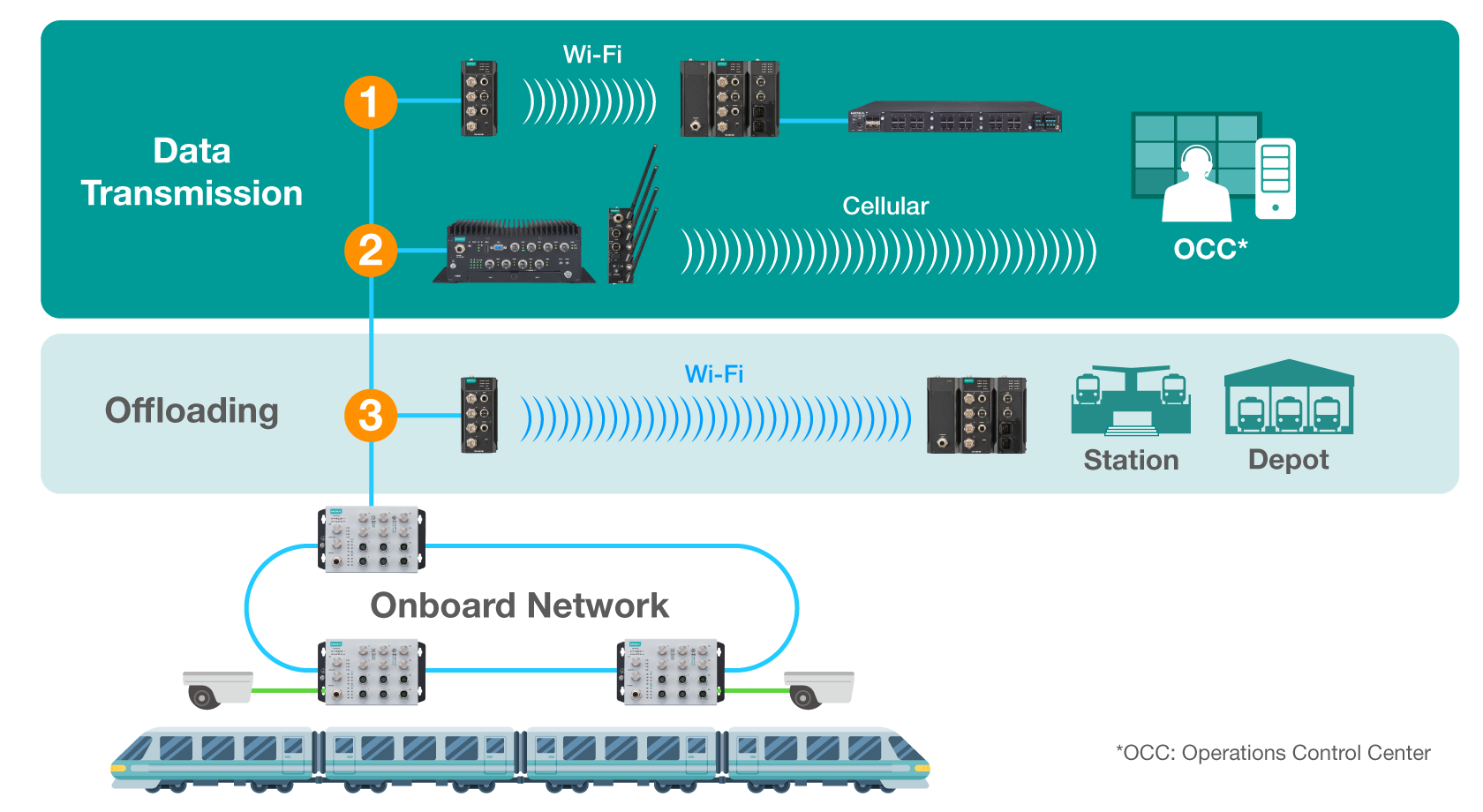

Flexible Train-to-ground Communications

Cellular and Wi-Fi are becoming the preferred train-to-ground (T2G) communication methods. Trains use cellular for uninterrupted streaming on the move, fast roaming Wi-Fi for continuous data transmission, and station Wi-Fi for cost-efficient data offload. Moxa’s hybrid solutions ensure seamless and optimized connectivity across all scenarios.


Three T2G Scenarios
  • Fast roaming over Wi-Fi
  • Data transmission over cellular
  • Offloading over Wi-Fi at station/depot

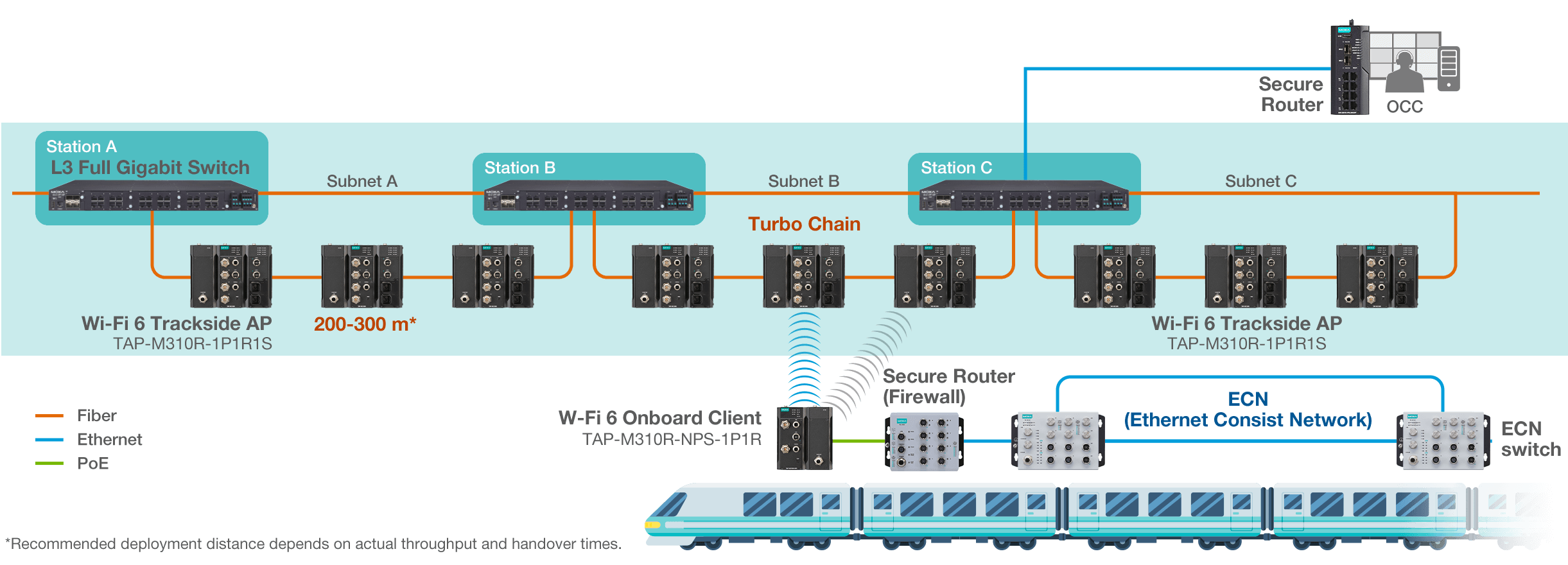

Transmit CCTV and CBTC Data to OCC Over Wi-Fi 6


Scenario
  • Requires a trackside wireless AP every 200 to 300 m for roaming
  • Trackside radios are connected to ruggedized trackside backbone switches via fiber links
Moxa Solution
  • The TAP-M310R Series features modular design. With Ethernet switch modules, it supports multiple Ethernet/Turbo Chains for easier deployment and expansion

Benefits
  • Resilient and cost-efficient network expansion, easy to expand existing networks

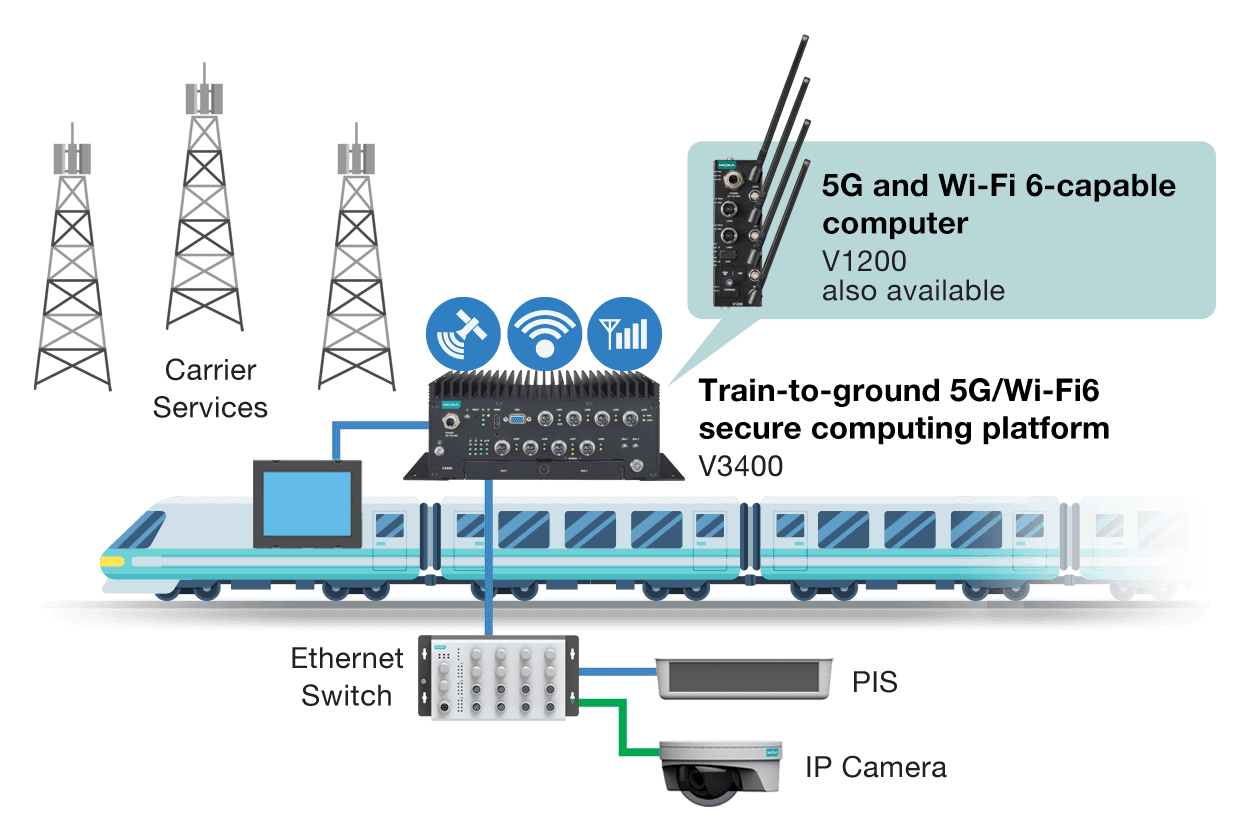

Data Transmission Over 5G During Operation

Scenario
  • A growing need for high-speed, low-latency, and highly reliable communication networks
Moxa Solution
  • The V3400 Series is a flexible computer platform featuring 5G and Wi-Fi 6 that acts as a secure gateway to run and manage multiple customer applications
  • The V1200 Series are 5G and Wi-Fi 6 wireless-capable computers recommended for basic T2G application

Benefits
  • A hybrid solution combining 5G and Wi-Fi 6 for train controls with a dynamic interface for faster, safer, and more reliable rail systems

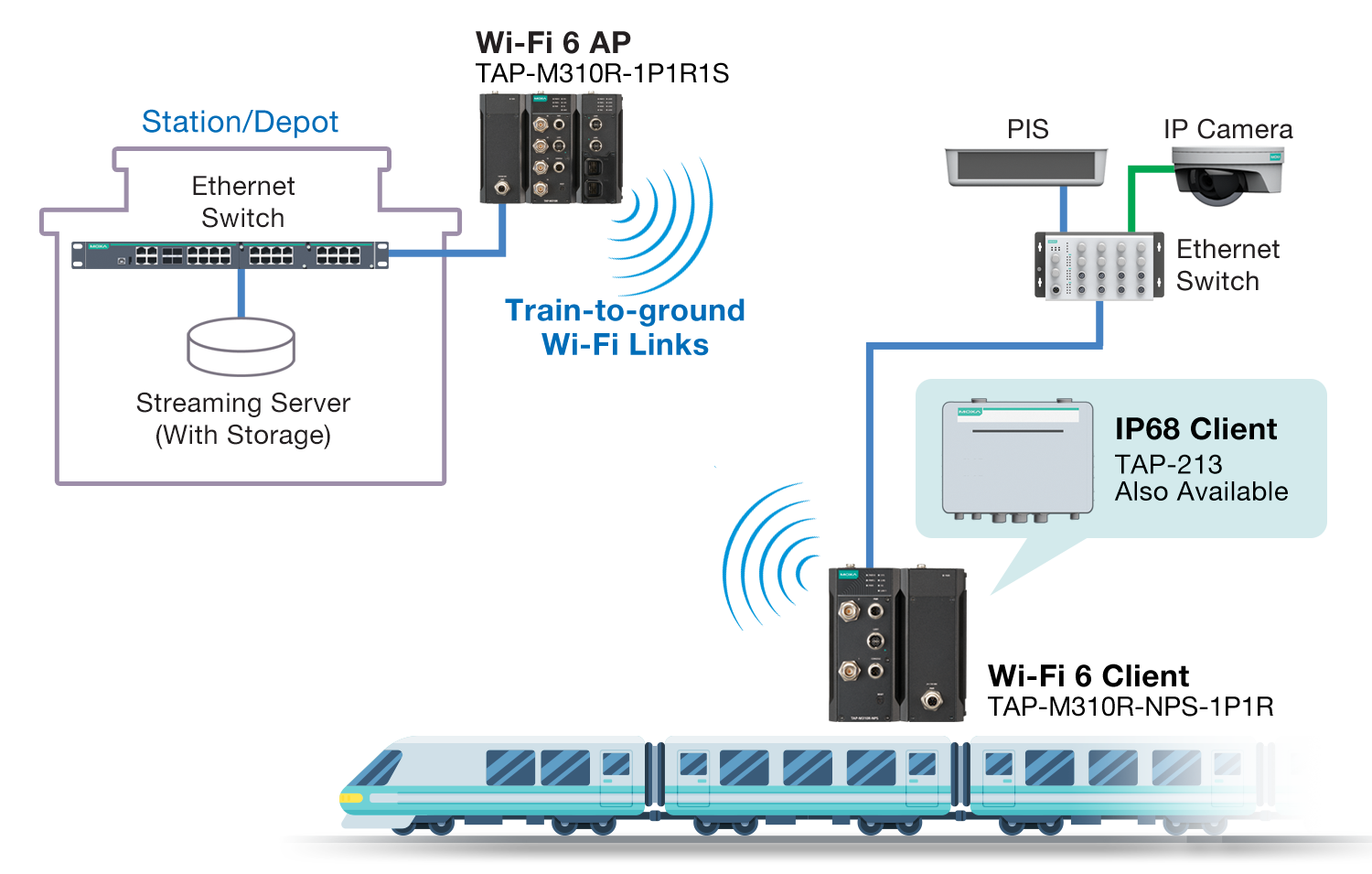

Quickly Offloading Recorded Data to Stations or Depots Over Wi-Fi 6

Scenario
  • When trains enter the station or return to the depot, all onboard data is offloaded over Wi-Fi
Moxa Solution
  • Onboard Wi-Fi 6 clients connect to outdoor APs at the station to send video data from the train to the station

Benefits
  • A hybrid solution combining 5G and Wi-Fi 6 for train controls with dynamic interface for faster, safer, and more reliable rail systems

Data-driven Intelligence


Modern trains demand compact yet powerful onboard computing for real-time monitoring, control, and multiple applications. Our EN 50155-compliant, fanless computers combine video transmission, recording, and secure wireless connectivity. Acting as a versatile platform and trusted secure gateway, they power PIS, CCTV, and operator displays—delivering intelligence, cybersecurity, and smooth operations throughout the journey.


Leverage Real-time Data AnalyticsLocally

Run Multiple Virtualized ApplicationsSimultaneously

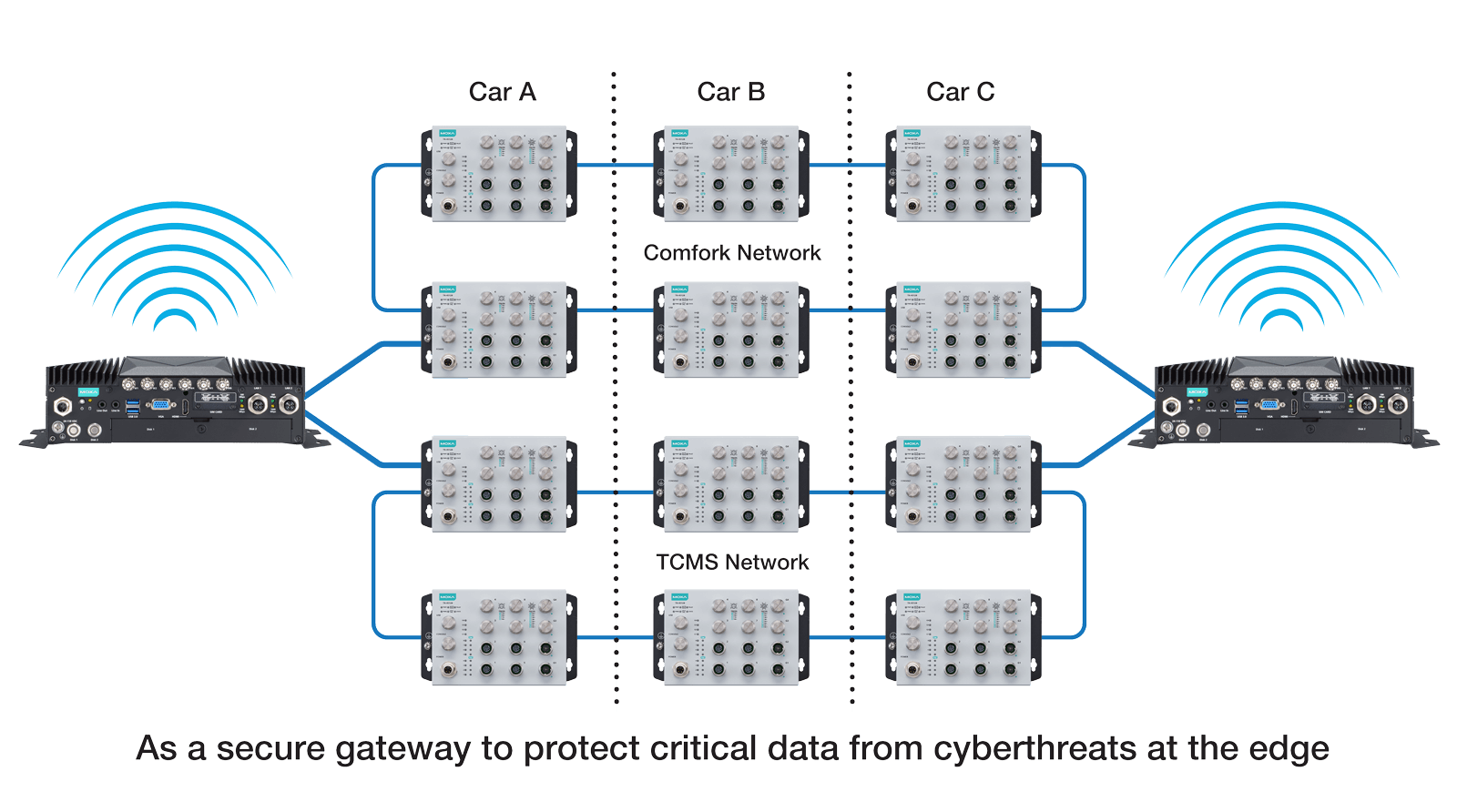

Protect Critical Data FromCyberthreatsat the Edge

Control Data Flows From VehiclesIntelligently

Solution Highlights
  • Onboard computers enable real-time analytics to cut costs and extend asset life
  • A flexible EN 50155 platform acts as a secure gateway, run multiple virtualized applications on one platform securely
  • NVR computers ensure reliable video recording and seamless OCC data streaming
  • Panel computers provide sunlight-readable, touch-enabled operator controls

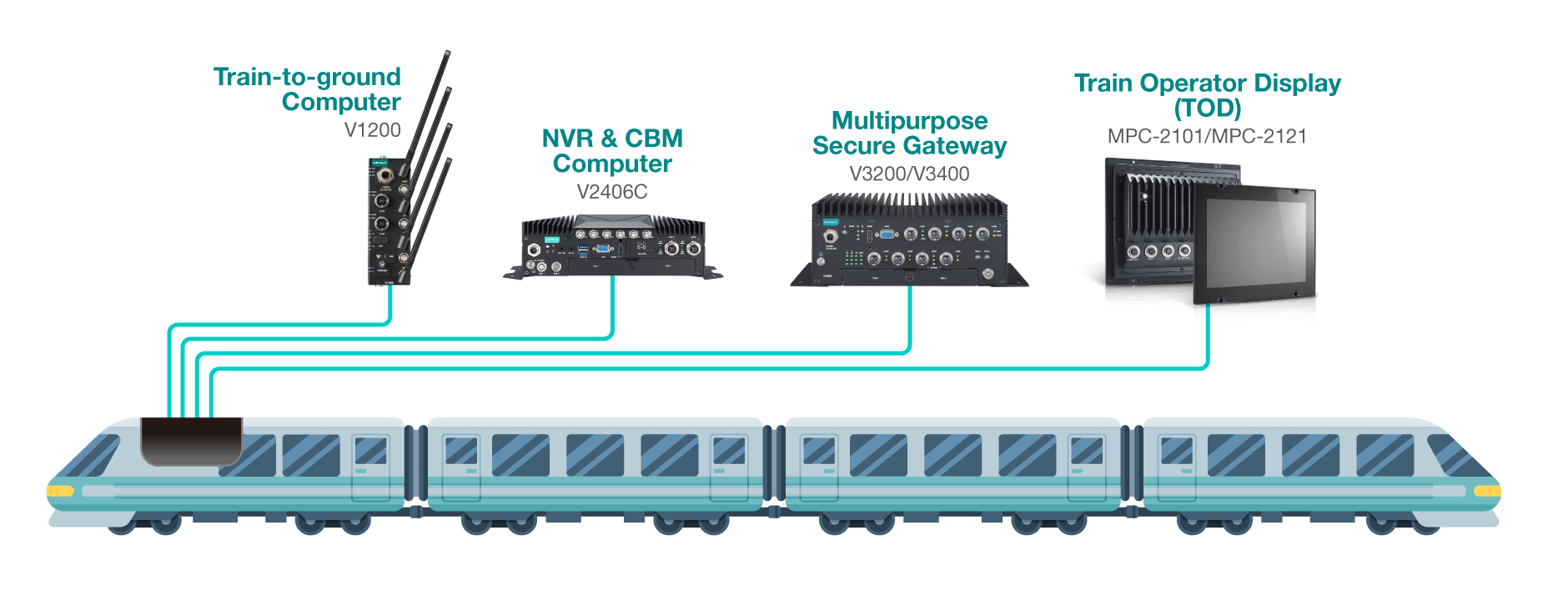

Driving Data Intelligence in Transit With Onboard Computing




  • Secure gateways
  • Multi-application computing platforms
  • Train operator displays (TOD)

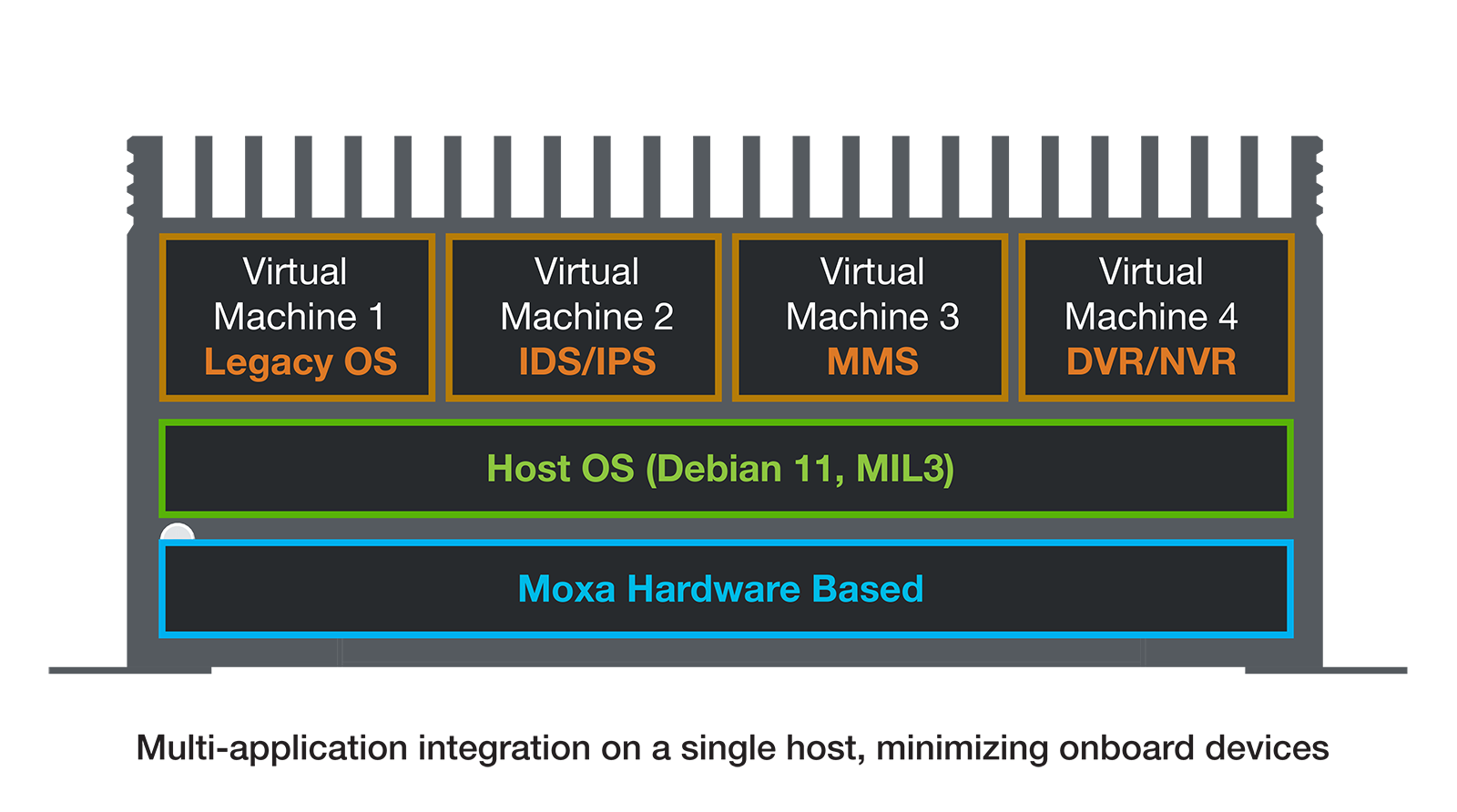

Run Multiple Virtualized Applications Simultaneously–T2G Security and Converged Onboard Applications

A flexible computer platform that acts as a secure gateway to run and manage multiple customer applications.


Features include:
  • Comprehensive network security
  • Advanced firewall and router capabilities
  • Wide variety of network services and features
  • Virtual machine management

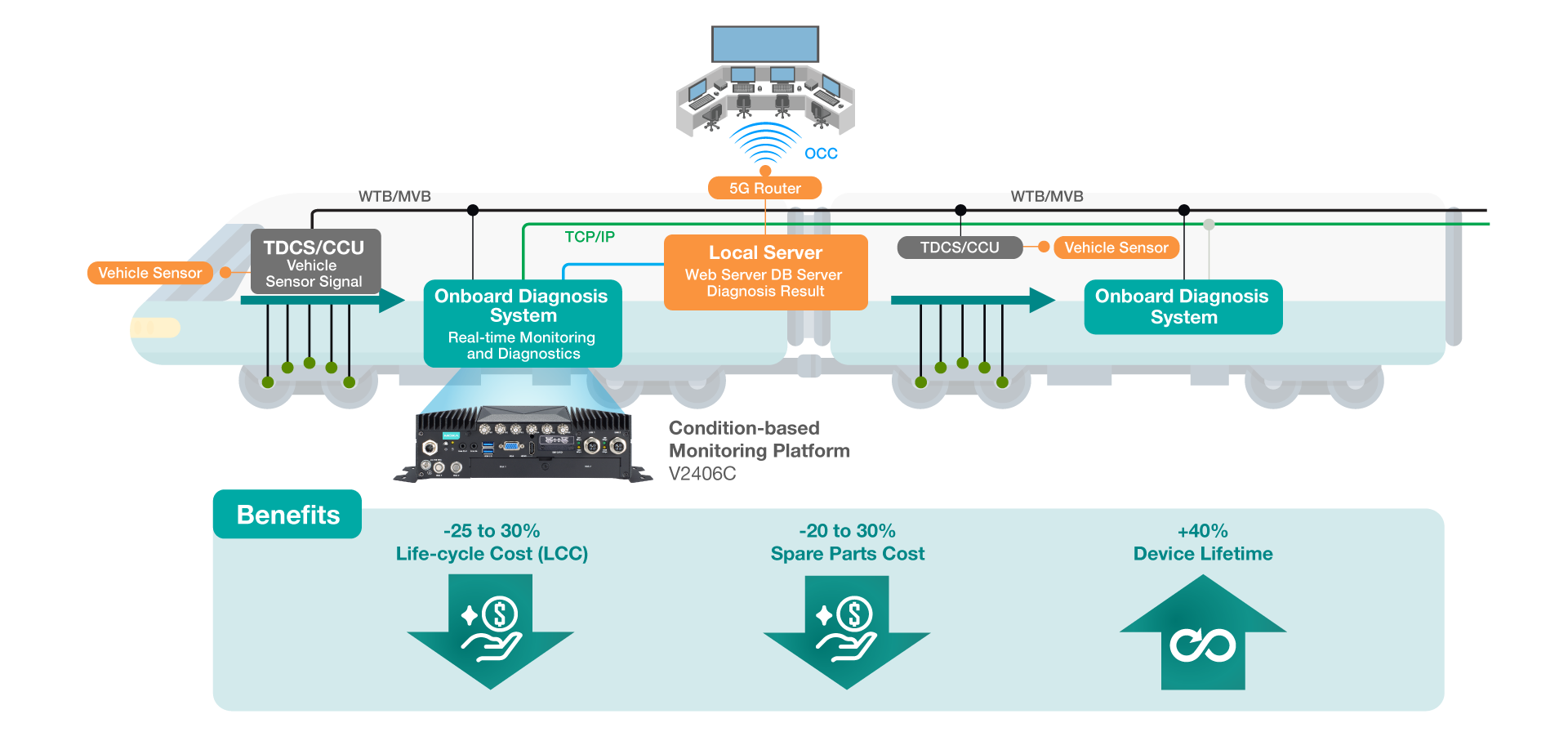

Leverage Real-time Data Analytics and Control Data Flow Condition-based Maintenance (CBM)

Condition-based maintenance (CBM) leverages real-time sensor data and advanced analytics to detect potential issues before they escalate, reducing downtime and costs. Our EN 50155 onboard computers use edge computing to process diagnostic data on trains and share it with central systems. This allows operators to save on life-cycle costs, use fewer parts, and make assets last up to 40% longer.

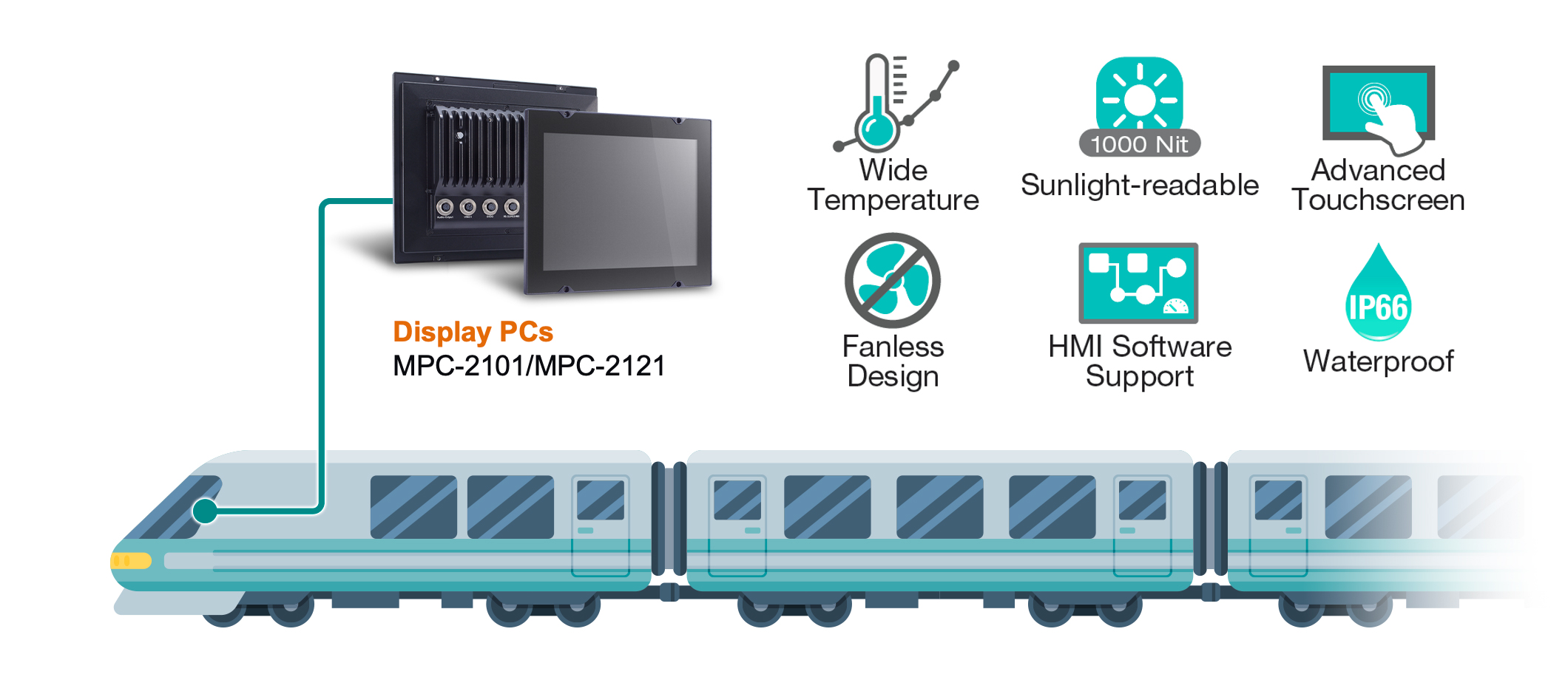

Access and Control Driver Interfaces in Real Time —Train Operator Display (TOD)

Visual Monitoring and Recording


Onboard CCTV must deliver reliable visibility across the entire train—from driver cabs and carriages to entrances and track views—while withstanding space limits, vibration, and sudden light changes. Our rugged IP cameras and high-performance NVR platforms ensure clear HD coverage, efficient bandwidth use, and real-time monitoring, enabling safer journeys and smoother operations.

Solution Highlights
  • Wide choice of cameras and lens types for various onboard scenarios
  • Advanced imaging technologies for a crystal-clear image in any lighting condition
  • PoE-powered to reduce cabling
  • Compliant with the EN 50155 OT4 temperature criteria (-40 to 70°C)
  • Vibration, humidity, dust, and vandal-resistant design


  • Onboard video surveillance cameras
  • NVR platforms

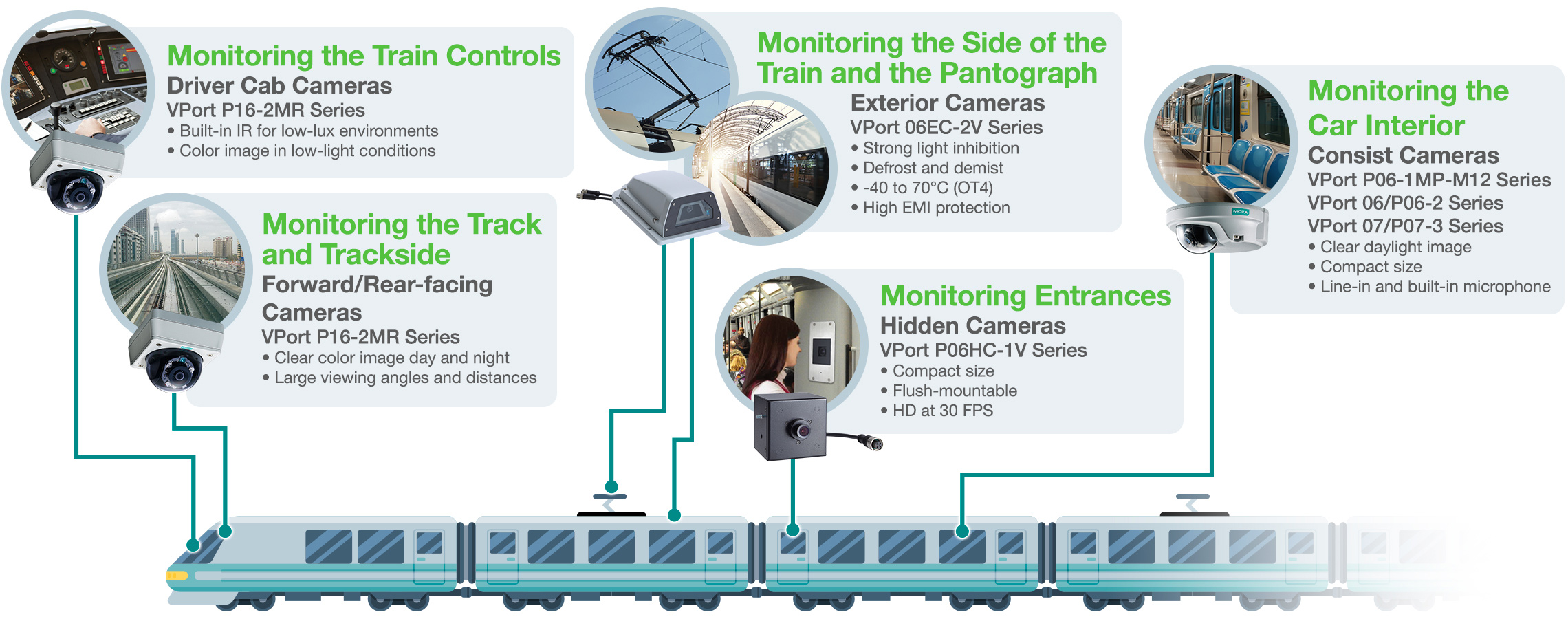

Find the Perfect Fit for Every Application

Moxa offers IP cameras for every need—from front and rear track views to consist and cab monitoring. Hidden HD cameras secure entrances; meanwhile customizable designs meet unique installation requirements.




Ensure a Clear Field of View in Any Situation

The train’s onboard lighting fluctuates dramatically, especially when entering or leaving tunnels. Our IP cameras instantly adjust, providing clear HD/1080P video with WDR, DNR, and BLC. A wide range of lenses ensures the perfect field of view for any environment.

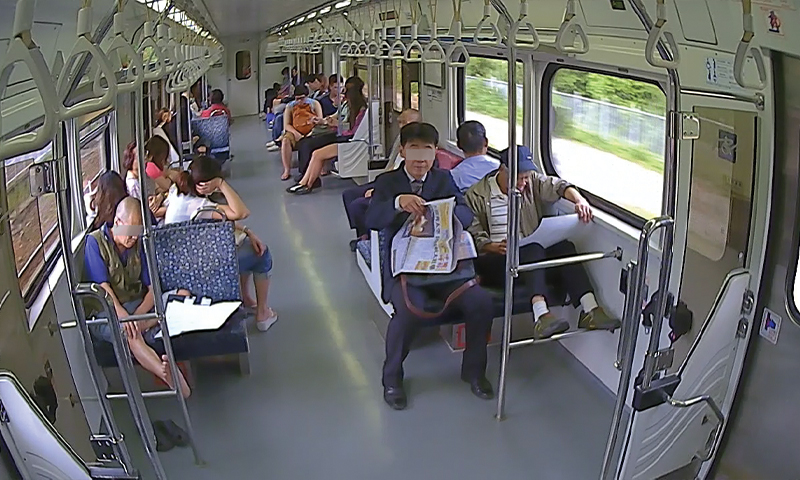

Advanced Imaging Technologies

Solid WDR performance

Strong light inhibition

Clear color image in low-lux areas

Quickly adapts to sudden lighting changes

View Live and Reliably Play Back Onboard CCTV Videos

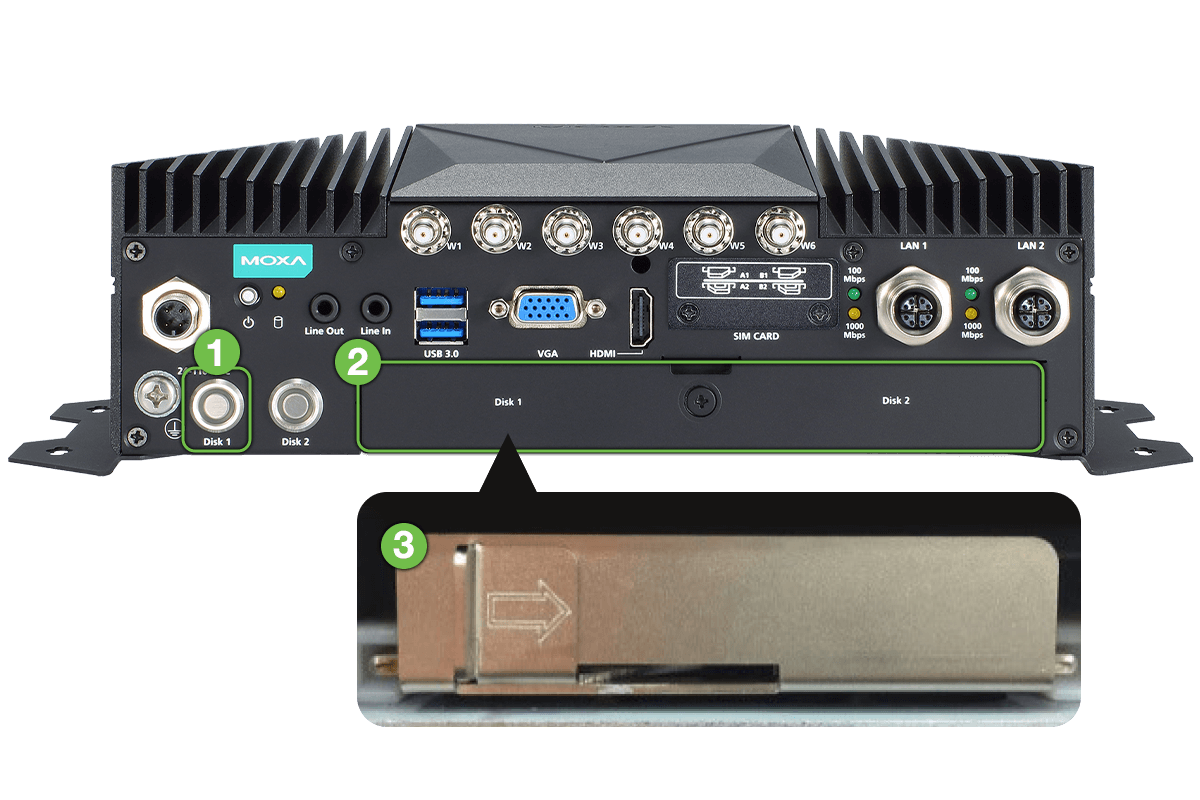

Easy maintenance and minimal system downtime with hot-swappable HD modules
Press the hot-swap button to stop the HDD; the LED will blink
When the LED stops blinking, unscrew the disk panel
Shift the HDD lock, pull out, and replace the HDD

Industry Certifications

Recommended Products


  • Onboard Ethernet Networks
  • Computing Platforms
  • Train-to-ground Communications
  • IP Cameras

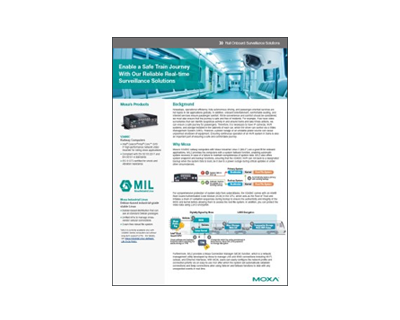

Case Studies
