MOXA

PoEインジェクタ

MoxaのPoEインジェクタは、単一のイーサネットケーブル上での電力供給とデータ通信を組み合わせ、PoE非対応の給電機器(PSE)に受電デバイス(PD)への給電機能を提供します。

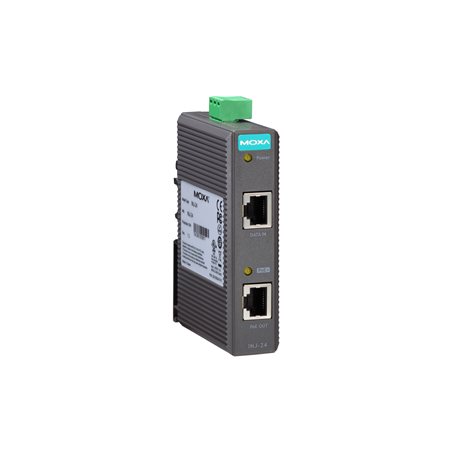

INJ-24
INJ-24シリーズ

PoE+ Injector, maximum output of 30 W at 24/48 VDC, 0 to 60°C operating temperature

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    • 1
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • PoE Pinout

    • V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af/at for PoE/PoE+ output
Power Parameters
  • Input Voltage

    • 24/48 VDC
  • Operating Voltage

    • 22 to 57 VDC
  • Input Current

    • 1.42 A @ 24 VDC
  • Power Consumption (Max.)

    • Max. 4.08 W full loading without PDs’ consumption
  • Power Budget

    • Max. 30 W for total PD consumption
      Max. 30 W for each PoE port
  • Connection

    • 1 removable 3-contact terminal block(s)
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)
  • Weight

    • 115 g (0.26 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508, EN 60950-1
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 2,525,278 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
