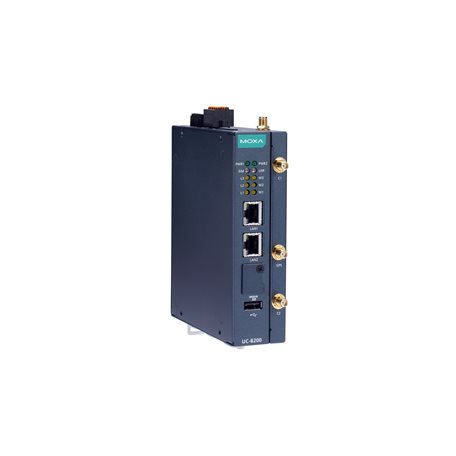

UC-8220-T-LX-AP-S
UC-8200シリーズ

Arm Cortex-A7 dual-core 1 GHz IIoT gateway with built-in TPM module, APAC-region LTE Cat. 4 module preinstalled, 1 expansion slot for a Wi-Fi module, 1 CAN port, 4 DIs, 4 DOs, -40 to 70°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz
  • DRAM

    • 2 GB DDR3L
  • Storage Pre-installed

    • 8 GB eMMC
  • Pre-installed OS

    • Moxa Industrial Linux (Debian 9, Kernel 4.4)
  • Expansion Slots

    • MicroSD (SD 3.0) socket x 1
Computer Interface
  • TPM

    • TPM v2.0
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • CAN Ports

    • CAN 2.0 A/B x 1 (DB9 male)
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Buttons

    • Programmable button
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Console Port

    • 1 x 4-pin header to DB9 console port
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
CAN Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Baudrate

    • 10 to 1000 kbps
  • Industrial Protocols

    • CAN 2.0A, CAN 2.0B
  • Isolation

    • 2 kV (built-in)
  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Dry Contact

    • Off: open
      On: short to GND
  • Isolation

    • 3K VDC
  • Sensor Type

    • Wet contact (NPN)
      Dry contact
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 24 VDC nominal, open collector to 30 VDC
Cellular Interface
  • Cellular Standards

    • LTE CAT-4
  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
GPS Interface
  • Receiver Types

    • 72-channel u-blox M8 engine
      GPS/GLONASS/Galileo
  • Accuracy

    • Position: 2.5 m CEP
      SBAS: 2.0 m CEP
  • Acquisition

    • Aided starts: 3 sec
      Cold starts: 26 sec
  • Sensitivity

    • Cold starts: -148 dBm
      Tracking: -164 dBm
  • Time Pulse

    • 0.25 Hz to 10 MHz
LED Indicators
  • System

    • Power x 2
      Programmable x 1
      SIM card indicator x 1
  • Wireless Signal Strength

    • Cellular/Wi-Fi x 6
Power Parameters
  • No. of Power Inputs

    • Redundant dual inputs
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 12 W
  • Input Current

    • 1 A @ 12 VDC
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics
  • Dimensions

    • 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
      141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in)
  • Housing

    • SECC
      Metal
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
  • IP Rating

    • IP30
  • Weight

    • UC-8210: 560 g (1.23 lb)
      UC-8220: 750 g (1.65 lb)
Environmental Limits
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Shock

    • IEC 60068-2-27
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications
  • Safety

    • UL 62368-1, EN 62368-1
  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
  • Hazardous Locations

    • Class I Division 2, ATEX, IECEx
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 528,574 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
