x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

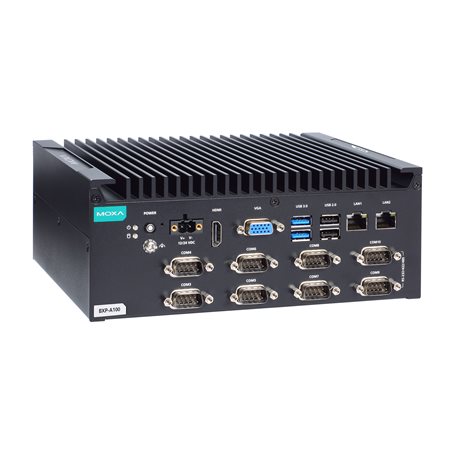

BXP-A100-E2-8C-T
BXP-A100シリーズ

Box computer with Intel Atom® x6211E processor, 2 LAN ports, 10 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperature

Computer
  • CPU

    • BXP-A100-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
      BXP-A100-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)
  • System Memory Slot

    • SODIMM DDR4 slots x 1, up to 32 GB max.
  • System Memory Pre-installed

    • 8 GB DDR4
  • Storage Slot

    • CFast slot x 1 (SATAIII interface)
      SD slots x 1, SD 3.0 interface (SDHC/SDXC)
  • Storage Pre-installed

    • BXP-A100-E2-T-Win10/BXP-A100-E4-T-Win10: 64 GB CFast card
  • Supported OS

    • Windows Images and Drivers Supported:
      - Windows 10 IoT Enterprise LTSC 2021 64-bit
      - Windows 11 Professional 64-bit

      Linux Drivers Supported:
      - Debian 11 (kernel 5.10)
      - Ubuntu 22.04 LTS (kernel 5.15)
      - RHEL 9 (kernel 5.14)
  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface
  • Ethernet Ports

    • BXP-A100-E2-8L-T/E4-8L-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
      All Other Models:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • BXP-A100-E2-8C-T/E4-8C-T:
      RS-232/422/485 ports x 10, software selectable (DB9 male) x 10
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      RS-232/422/485 ports x 5, software selectable (DB9 male) x 5
      All Other Models:
      RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors
  • USB 2.0

    • USB 2.0 hosts x 4, type-A connectors
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • TPM

    • TPM v2.0
  • Video Output

    • HDMI 2.0b x 1, (type-A connector)
      VGA x 1, 15-pin D-sub connector (female)
  • Buttons

    • Reset button
      Power button
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS, XON/XOFF
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Sensor Type

    • Dry contact
  • Dry Contact

    • Logic 0: Short to GND
      Logic 1: Open
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Type

    • Sink
  • Current Rating

    • 200 mA per channel
  • Voltage

    • 0 to 24 VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
Power Parameters
  • Input Voltage

    • 12/24 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
  • Power Consumption

    • 50 W
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP20
  • Dimensions

    • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
      210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)
      BXP-A100-E2-8L-T/E4-8L-T/E2-2L3C-T/E4-2L3C-T:
      210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
      BXP-A100-E2-8C-T/E4-8C-T:
      210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
  • Weight

    • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
      2,015 g (4.44 Ib)
      BXP-A100-E2-8L-T/E4-8L-T:
      2,355 g (5.19 Ib)
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      2,208 g (4.86 Ib)
      BXP-A100-E2-8C-T/E4-8C-T:
      2,385 g (5.25 Ib)
  • Installation

    • Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -30 to 60°C (-22 to 140°F)
  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
      BSMI
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
  • Safety

    • UL 62368-1 (CB)
      BSMI
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-64
  • Package Drop Test

    • ISTA 1A
  • Package Vibration Test

    • ISTA 1A
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
Reliability
  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup
  • Automatic Reboot Trigger

    • Built-in WDT
MTBF
  • Time

    • 556,511 hrs
  • Standards

    • Telcordia (Bellcore), GB
