MOXA

x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

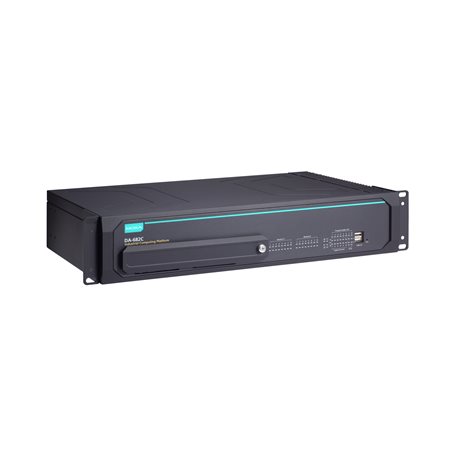

DA-682C-KL7-H-T
DA-682Cシリーズ

Intel® 7th Gen Core™ i7-7600U CPU, 2 HDMIs, 2 PS/2s, 6 Gigabit LAN ports, 2 RS-232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA, 2 SSD slots, single power, -40 to 70°C operating temperature

Computer
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • DRAM

    • 32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module)
  • Graphics Controller

    • Intel® HD Graphics 630
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2
  • Supported OS

    • Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      Linux Debian 9
      Note: OS available by CTOS
Computer Interface
  • Video Output

    • HDMI x 2, HDMI connector (type A)
  • USB 2.0

    • USB 2.0 hosts x 3, type-A connectors
      2 ports on the front panel, 1 port inside the computer
  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
      3 ports on the rear panel
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
  • Serial Ports

    • RS-232/422/485 ports x 2, software-selectable (terminal block)
LED Indicators
  • System

    • Power x 1
      Storage x 1
      Programmable x 8
  • Serial

    • 2 per port (Tx, Rx)
  • LAN

    • 2 per port (10/100/1000 Mbps)
Serial Interface
  • Baudrate

    • 300 bps to 115.2 kbps
  • ESD

    • 8 kV (level 4)
  • Isolation

    • 2 kV
  • Serial Standards

    • RS-232/422/485
  • Surge

    • 2 kV
  • Connector

    • Terminal block
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)
  • Power Consumption

    • 900 mA @ 100-240 VAC
      900 mA @ 100-240 VDC
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (without ears)

    • 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in)
  • Weight

    • 9,900 g (21.82 lb)
  • Installation

    • 19-inch rack mounting
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 300 A/m
      IEC 61000-4-11
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Shock

    • IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
  • Safety

    • UL 60950-1, UL 62368-1, EN 62368-1
  • Protection Relay

    • IEC 60255
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 365,750 hrs
  • Standards

    • Telcordia SR332
Warranty
