MOXA

x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

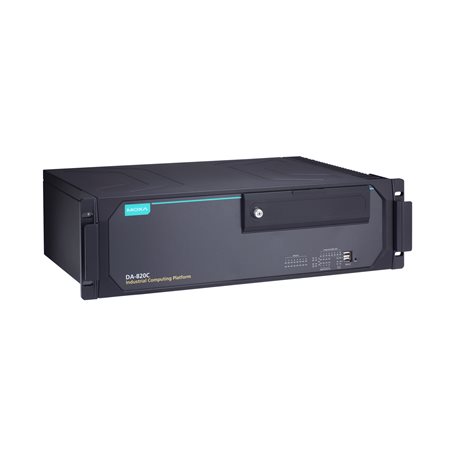

DA-820C-KL3-HH-T
DA-820Cシリーズ

x86 computer with Intel® Core™ i3-7102E CPU, 2 HDMIs, 1 VGA, 2 PS/2s, 4 Gigabit LAN ports, 2 RS/232/422/485 serial ports, 6 DIs, 2 DOs, 1 mSATA, 4 SSD slots, dual AC power, -40 to 70°C operating temperature

Computer
  • CPU

    • Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz)
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • DRAM

    • 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module)
      ECC RAM only supports i3 CPU and Xeon CPU models
  • Graphics Controller

    • Intel® HD Graphics 630
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 4
  • Supported OS

    • Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      Linux Debian 9
      Note: OS available by CTOS
  • Supported Driver

    • Windows Server 2016
Computer Interface
  • Video Output

    • HDMI x 2, HDMI connector (type A)
      VGA x 1, 15-pin D-sub connector (female)
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 3, type-A connectors
      2 ports on the front panel, 1 port inside the computer
  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
      3 ports on the rear panel
  • Expansion Slots

    • PCIe x16 slot x 1
      PCIe x4 slots x 1
      PCIe x1 slots x 2
      PCI slots x 1
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  • TPM

    • TPM v2.0
  • Digital Input

    • DIs x 6
  • Digital Output

    • DOs x 2
LED Indicators
  • System

    • Power x 1
      Storage x 1
      Programmable x 8
  • Serial

    • 2 per port (Tx, Rx)
  • LAN

    • 8 per port (10/100/1000 Mbps)
Serial Interface
  • Baudrate

    • 300 bps to 115.2 kbps
  • Connector

    • DB9 male
  • ESD

    • 8 kV (level 4)
  • Isolation

    • 2 kV
  • Serial Standards

    • RS-232/422/485
  • Surge

    • 2 kV
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
  • Digital Input Channels

    • DIs x 6
  • Voltage

    • 0 to 30 VDC at 25 Hz
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
Digital Outputs
  • Digital Output Channels

    • DOs x 2
  • Current Rating

    • Max. 200 mA per channel
  • Voltage

    • 24 to 30 VDC
  • I/O Type

    • Sink
Power Parameters
  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)
  • Power Consumption

    • 100 W (max.)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (without ears)

    • 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in)
  • Weight

    • 14,000 g (31.11 lb)
  • Installation

    • 19-inch rack mounting
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4, EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 20 A/m
      IEC 61000-4-11 DIPs
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Protection Relay

    • IEC 60255
  • Safety

    • IEC 60950-1, IEC 62368-1, UL 62368-1
  • Shock

    • IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 325,730 hrs
  • Standards

    • Telcordia SR332
Warranty
