DA-820Eシリーズ

IEC 61850-3 3Uラックマウントコンピュータ、第13世代Intel® Core™プロセッサー、ホットスワップ対応電源モジュール、-40~70°Cの動作温度

moxa-da-820e-series-image-(1).jpg | Moxa

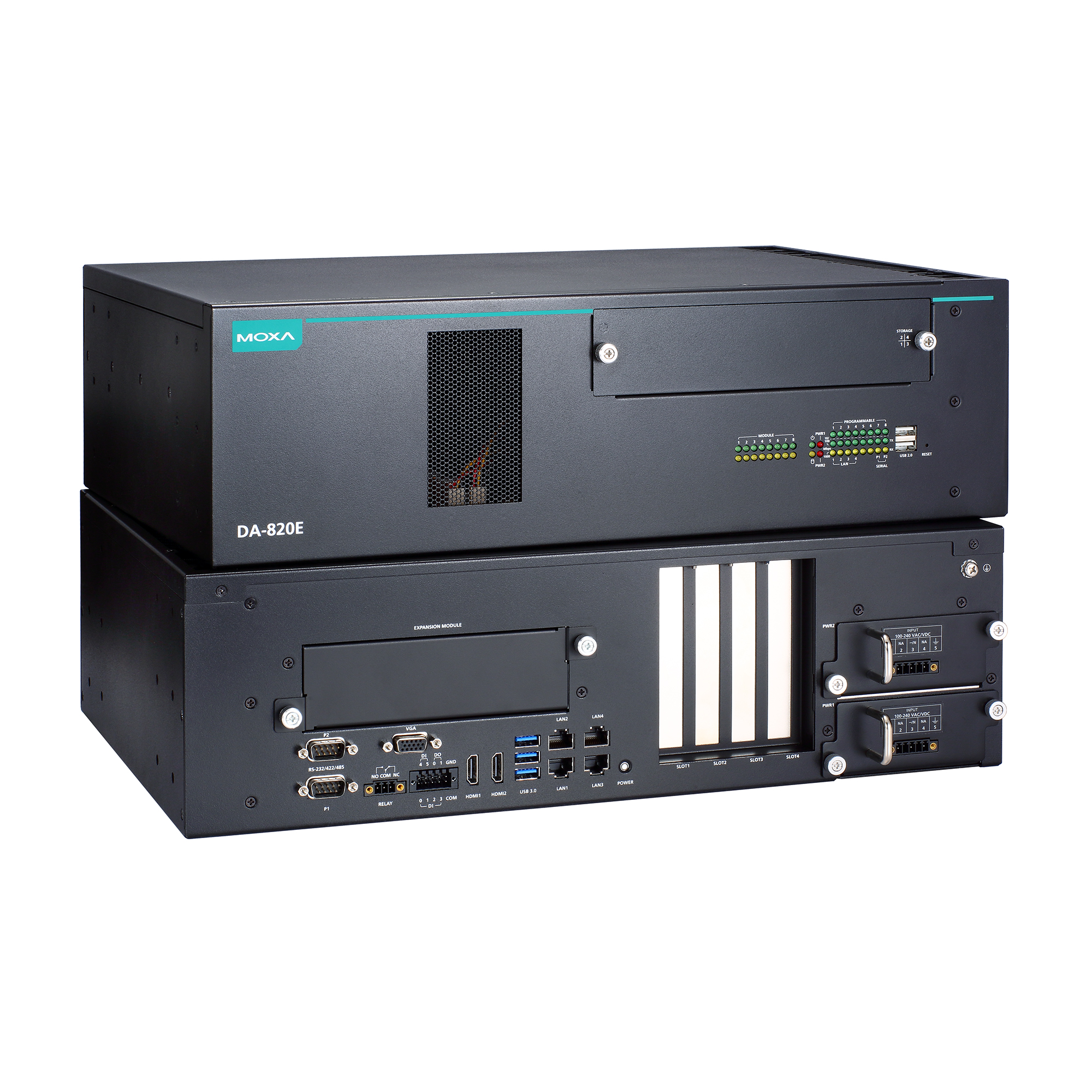

moxa-da-820e-series-image-1-(1).jpg | Moxa

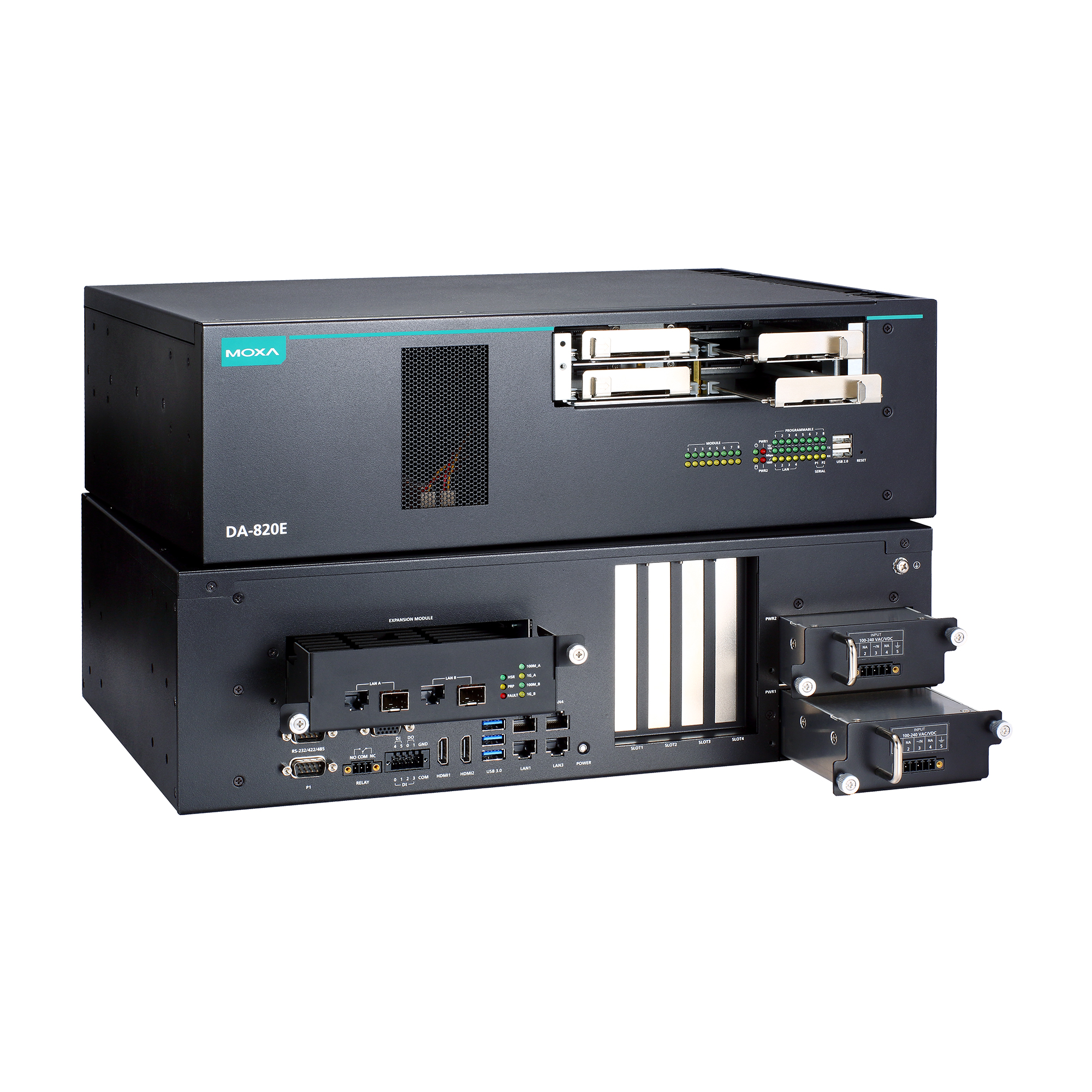

moxa-da-820e-series-image-2-(1).jpg | Moxa

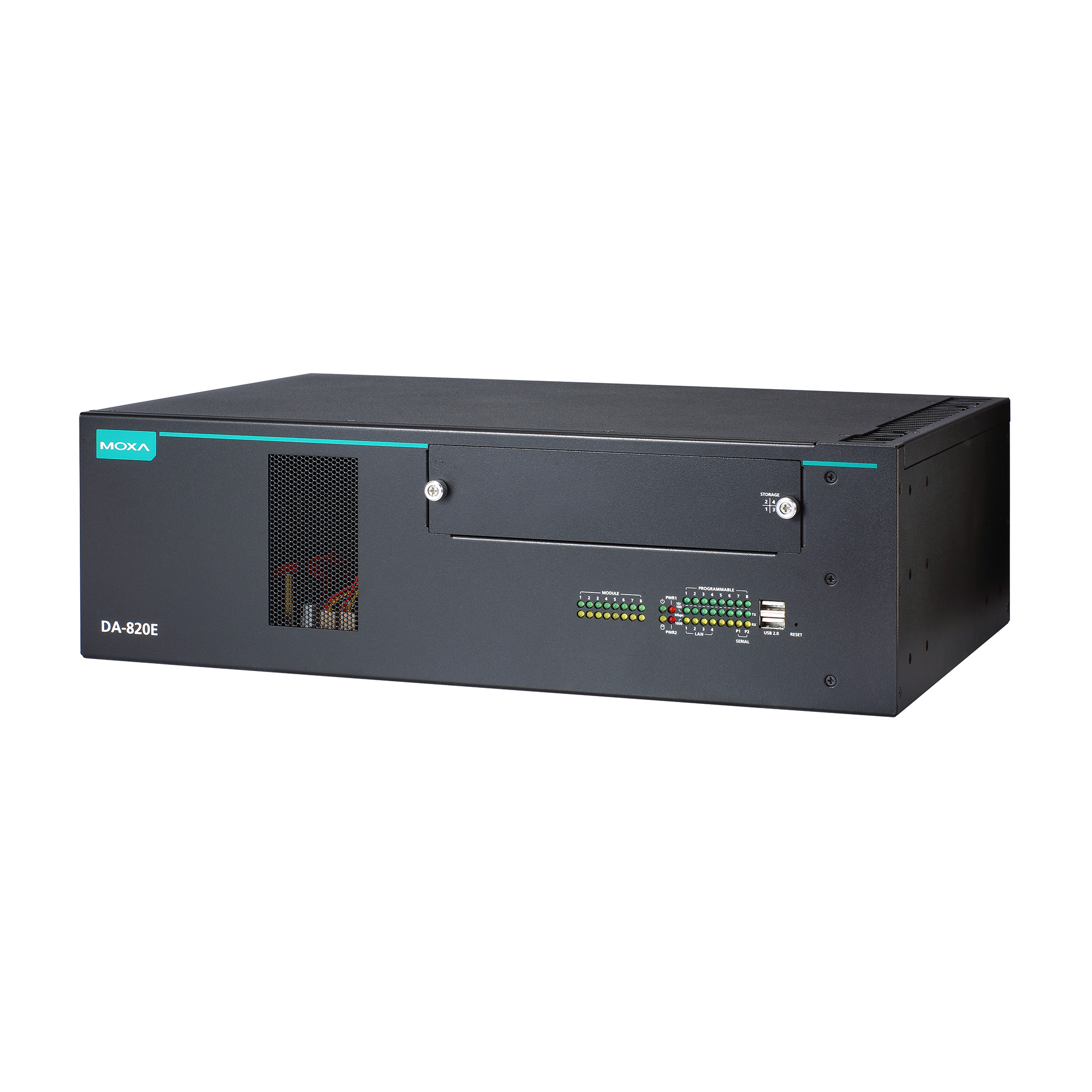

moxa-da-820e-series-image-3-(1).jpg | Moxa

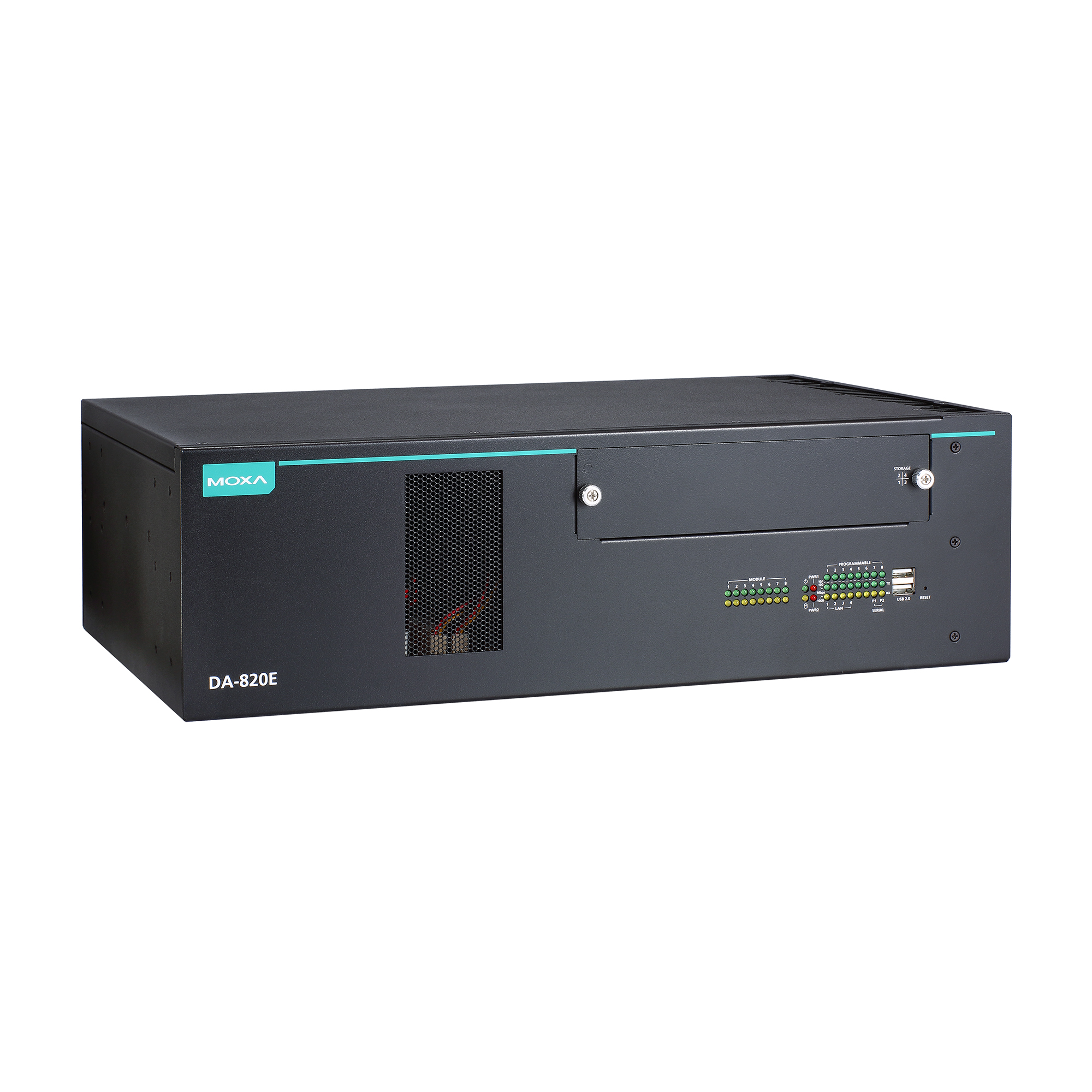

moxa-da-820e-series-image-4-(1).jpg | Moxa

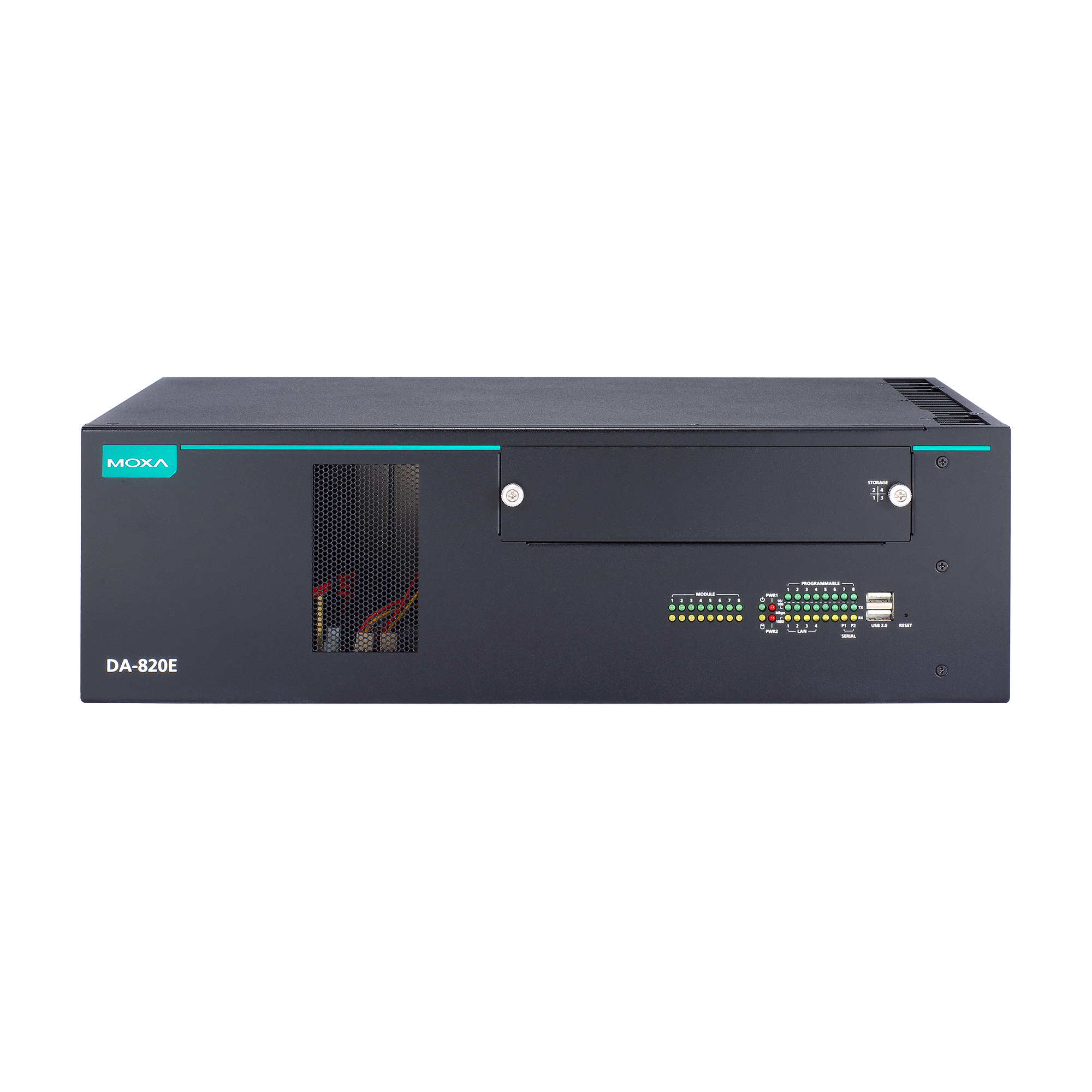

moxa-da-820e-series-image-5-(1).jpg | Moxa

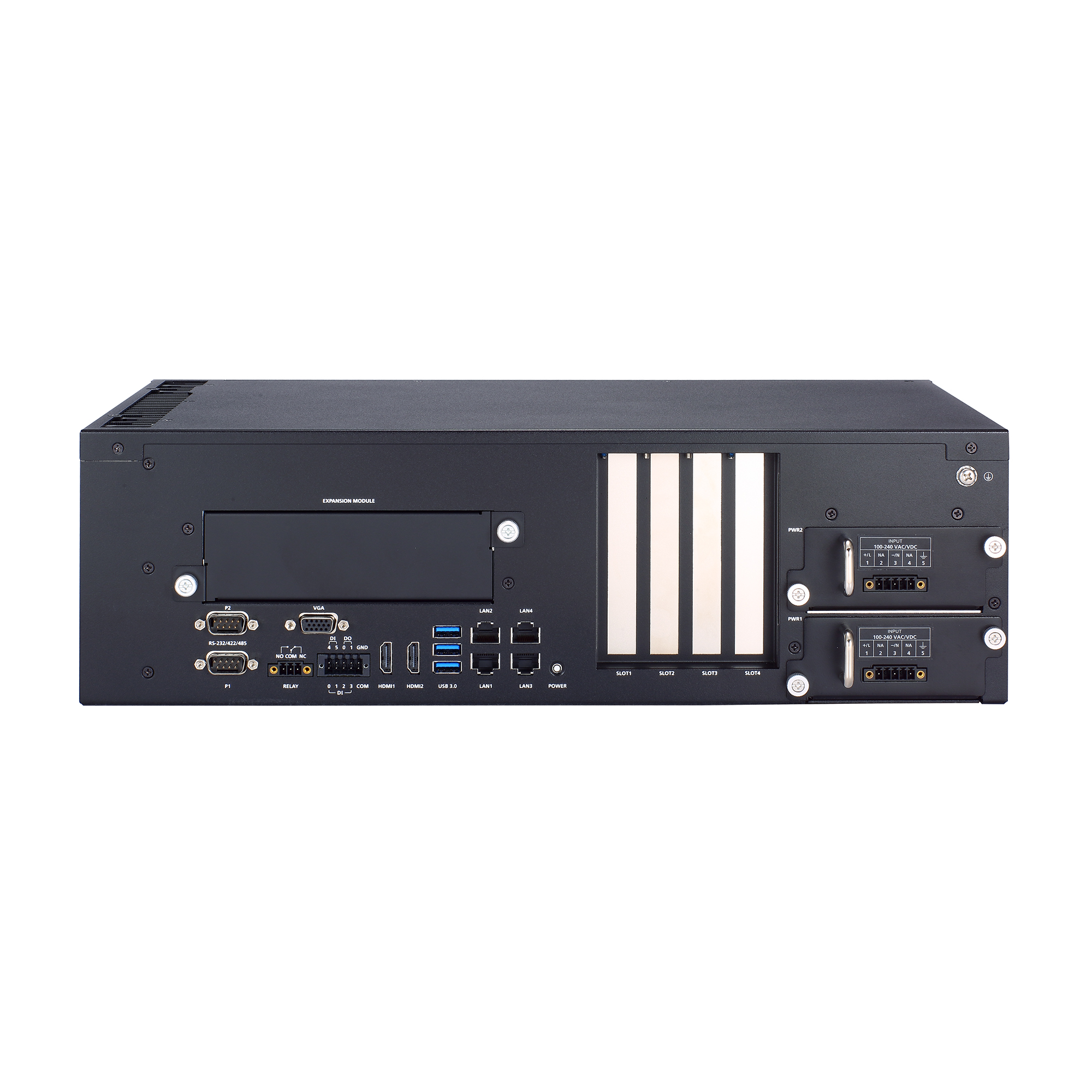

moxa-da-820e-series-image-6-(1).jpg | Moxa

機能と特長

  • IEC 61850-3、IEEE 1613およびIEC 60255準拠の電力自動化コンピュータ
  • 鉄道沿道アプリケーション用のEN 50121-4に準拠
  • 第13世代Intel® Core™プロセッサ
  • 最大64 GBのRAM(2つの内蔵SODIMM ECC DDR4メモリスロット)
  • SSDスロット1と2にIntel® RST RAID 0/1をサポートする4つのSSDスロット
  • ネットワーク冗長性のためのPRP/HSR技術(PRP/HSR拡張モジュール付き)
  • TPM 2.0、UEFIセキュアブート、物理セキュリティなどのセキュリティオプション
  • 拡張モジュール用に、PCIe x8(4レーン)スロットを1つ、およびPCIe x1スロットを3つ搭載
  • ホットスワップ対応電源モジュール設計による冗長電源(100~240 VAC/VDCおよび48 VDC)

認証

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-rec-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

DA-820Eシリーズは、第13世代Intel® Core™ i3/i5/i7プロセッサーを搭載し、優れたコンピューティング能力を提供する高性能3Uラックマウント産業用コンピューターです。3つのディスプレイポート(HDMI2つとVGA1つ)、6つのUSBポート、4つのギガビットLANポート、2つの3-in-1 RS-232/422/485シリアル ポート、6つのDIポート、2つのDOポート、4つの標準PCIe拡張スロット、および1つの独自拡張スロットを含む、多用途のI/O設計を備えています。さらに、ホットスワップ可能な2.5インチSSDスロットを4つ装備し、SSDスロット1と2でIntel® RST RAID 0/1機能をサポートし、ストレージのパフォーマンスと信頼性が向上します。

DA-820Eは変電所アプリケーション向けに特別に設計されており、IEC 61850-3、IEEE 1613、およびIEC 60255規格に準拠しており、要求の厳しい変電所自動化システムにおける堅牢性、信頼性、およびインテリジェント電子デバイス(IED)とのシームレスな統合を保証します。DA820Eは、第13世代Intel®プロセッサーを活用し、従来のOT SCADA機能に加えて、仮想化などの最新の複雑なソフトウェアアプリケーションに必要な高いコンピューティング能力を提供します。

外観

  • CPU

    Intel® Core™ i3-1320PE
    Intel® Core™ i5-1340PE
    Intel® Core™ i7-1370PE

  • System Memory Slot

    SODIMM DDR4 slots x 2

  • DRAM

    64 GB max.
    (SODIMM x 2, each supporting 3200 MHz and 32 GB max. per module, non-ECC type)

  • Graphics Controller

    Intel® Core™ i3-1320PE: Intel® UHD Graphics
    Intel® Core™ i5-1340PE: Intel® Iris® Xe Graphics eligible
    Intel® Core™ i7-1370PE: Intel® Iris® Xe Graphics eligible

  • Storage Slot

    2.5-inch HDD/SSD slots x 4
    M.2 M-key 2280 slot x 1

  • Supported OS

    Windows 10 IoT Enterprise LTSC 2021
    Windows 11 IoT Enterprise LTSC 2024
    Windows Server 2022
    Ubuntu 22.04.3 LTS
    Debian 12
    RHEL 9.4

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    DIs x 6

  • Digital Output

    DOs x 2

  • USB 2.0

    USB 2.0 hosts x 3, type-A connectors
    2 ports on the front panel, 1 port inside the computer for USB dongle-based security

  • USB 3.0

    USB 3.0 hosts x 3, type-A connectors
    3 ports on the rear panel

  • Expansion Slots

    PCIe x8 (4-lane) slot x 1
    PCIe x1 slots x 3
    Proprietary slot x 1

  • Video Output

    HDMI x 2, HDMI connector (type A)
    (up to 3840 x 2160 resolution at 60Hz)
    VGA x 1, 15-pin D-sub connector (female)
    (up to 1920 x 1200 resolution at 60 Hz)

  • TPM

    TPM v2.0

  • Secure Boot

    UEFI

  • System

    Power x 1
    Storage x 1
    Power failure detection x 2
    Programmable x 8

  • Serial

    2 per port (Tx, Rx)

  • LAN

    8 per port (10/100/1000 Mbps)

  • Baudrate

    300 bps to 115.2 kbps

  • Connector

    DB9 male

  • Isolation

    2 kV

  • Serial Standards

    RS-232/422/485

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Digital Input Channels

    DIs x 6

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    DI

  • Isolation

    3k VDC

  • Sensor Type

    Dry contact
    Wet contact (NPN)

  • Dry Contact

    Logic 0: Close to GND
    Logic 1: Open

  • Wet Contact (COM to DI)

    Logic 0: 10 to 30 VDC
    Logic 1: 0 to 3 VDC

  • Digital Output Channels

    DOs x 2

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    0 to 30 VDC

  • Isolation

    3k VDC

  • Input Current

    100 to 240 VAC, 50/60 Hz, 1.75 to 0.66 A (max)
    100 to 240 VDC, 1.65 to 0.66 A (max)
    48 VDC, 3.12 A

  • Input Voltage

    100 to 240 VAC
    100 to 240 VDC
    48 VDC

  • Power Consumption

    DA-PWR-150-HV: 140 W (max.)
    DA-PWR-120-LV: 130 W (max.)

  • Power Button

    Reset button (front panel)
    ON/OFF (rear panel)

  • Housing

    Metal

  • Dimensions (without ears)

    440 x 301 x 132.55 mm (17.32 x 11.85 x 5.22 in)

  • Weight

    11,860 g (26.15 lb)

  • Installation

    19-inch rack mounting

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4
    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8: 20 A/m
    IEC 61000-4-11

  • Power Substation

    IEC 61850-3
    IEEE 1613

  • Protection Relay

    IEC 60255

  • Safety

    IEC 62368-1
    UL 62368-1

  • Shock

    IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    293,786 hrs

  • Standards

    Telcordia Standard SR-332

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Proactive Monitoring Software Package
3.3 MB
ソフトウェアパッケージ
SHA-512
v3.0
  • Windows 10 IoT Enterprise LTSC 2021
  • Windows 11 IoT Enterprise LTSC 2024
  • Windows Server 2022
2025年5月19日 2025年5月19日 リリースノート
Software Package for DA-820E Series (Linux SDK)
18.2 MB
ソフトウェアパッケージ
SHA-512
v1.0
  • Debian 12.x
  • RHEL 9
  • Ubuntu 22.04
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows 10 IoT Enterprise LTSC 2021 for Expansion Modules)
5.8 MB
ユーティリティ
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows 11 IoT Enterprise LTSC 2024)
5.9 MB
ユーティリティ
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年3月7日 2025年3月7日 リリースノート
Driver for DA-820E Series (Windows Server 2022 peripherals)
1.7 GB
ドライバー
SHA-512
v1.0
  • Windows Server 2022
2025年3月7日 2025年3月7日 リリースノート
Software Package for DA-820E Series (Windows 10 IoT Enterprise LTSC 2021 example code)
6.3 MB
ソフトウェアパッケージ
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年3月7日 2025年3月7日 リリースノート
Software Package for DA-820E Series (example code for Windows Server 2022)
6.3 MB
ソフトウェアパッケージ
SHA-512
v1.0
  • Windows Server 2022
2025年3月7日 2025年3月7日 リリースノート
Software Package for DA-820E Series (Windows 11 IoT Enterprise LTSC 2024 example code)
6.3 MB
ソフトウェアパッケージ
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年3月7日 2025年3月7日 リリースノート
Driver for DA-820E Series (Windows 10 IoT Enterprise LTSC 2021 peripherals)
1.7 GB
ドライバー
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows 10 IoT Enterprise LTSC 2021)
5.9 MB
ユーティリティ
SHA-512
v1.0
  • Windows 10 IoT Enterprise LTSC 2021
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows 11 IoT Enterprise LTSC 2024 for Expansion Modules)
5.8 MB
ユーティリティ
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows Server 2022 for Expansion Modules)
5.8 MB
ユーティリティ
SHA-512
v1.0
  • Windows Server 2022
2025年3月7日 2025年3月7日 リリースノート
Utility for DA-820E Series (Windows Server 2022)
5.9 MB
ユーティリティ
SHA-512
v1.0
  • Windows Server 2022
2025年3月7日 2025年3月7日 リリースノート
Driver for DA-820E Series (Windows 11 IoT Enterprise LTSC 2024 peripherals)
1.6 GB
ドライバー
SHA-512
v1.0
  • Windows 11 IoT Enterprise LTSC 2024
2025年3月7日 2025年3月7日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
Proactive Monitoring Software v3.0 User Manual
5.3 MB
マニュアル 英語 v3.0 2025年6月30日 2025年6月30日
QIG for DA-820E Series
1.3 MB
QIG (クイックインストールガイド) 英語 v1.1 2025年6月23日 2025年6月23日
DA-820E シリーズデータシート
4.9 MB
データシート 日本語 v1.0 2025年2月24日 2025年2月24日
Manual for DA-820E Series (Hardware)
5.8 MB
マニュアル 英語 v1.0 2025年2月21日 2025年2月21日
Manual for DA-820E Series (Linux SDK)
1.3 MB
マニュアル 英語 v1.0 2025年2月21日 2025年2月21日
Manual for DA-820E Series (Windows 10 IoT Ent. LTSC 2021 )
10.6 MB
マニュアル 英語 v1.0 2025年2月21日 2025年2月21日
Manual for DA-820E Series (Windows 11 IoT Ent. LTSC 2024)
8.3 MB
マニュアル 英語 v1.0 2025年2月21日 2025年2月21日
Declaration of Conformity for DA-820E Series
321.3 KB
宣言書 英語 v1.0 2025年2月4日 2025年2月4日

利用可能なモデル (12)

画像を表示

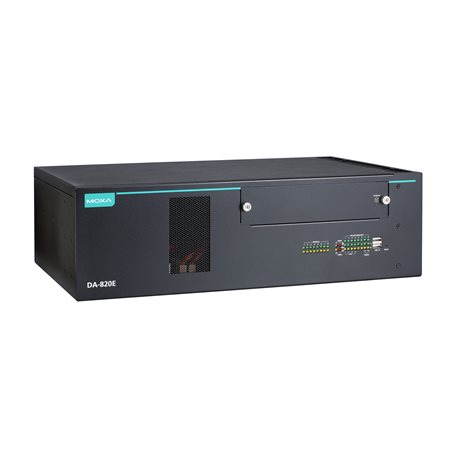

moxa-da-820e-c3-ll-t-image.jpg | MoxaDA-820E-C3-LL-Tmoxa-da-820e-c7-l-t-image.jpg | MoxaDA-820E-C7-L-Tmoxa-da-820e-c5-h-t-image.jpg | MoxaDA-820E-C5-H-Tmoxa-da-820e-c7-h-t-image.jpg | MoxaDA-820E-C7-H-T
