ioLogik 4000 シリーズ

モジュール式リモートI/O

moxa-iologik-4000-series-image-1-(1).jpg | Moxa
moxa-iologik-4000-series-image-2-(1).jpg | Moxa
moxa-iologik-4000-series-image-3-(1).jpg | Moxa
moxa-iologik-4000-series-image-4-(1).jpg | Moxa
moxa-iologik-4000-series-image-5-(1).jpg | Moxa

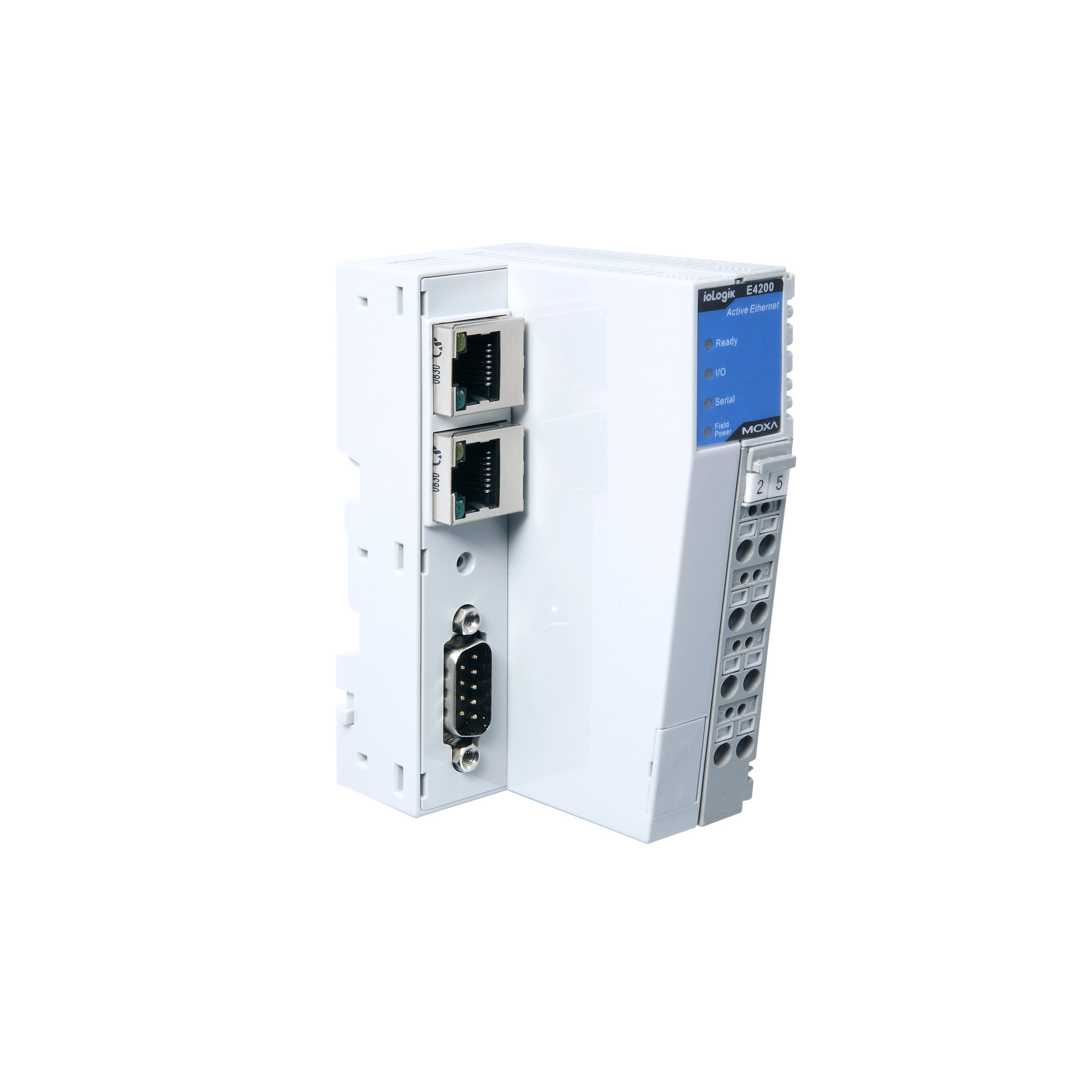

moxa-iologik-4000-series-image-6-(1).jpg | Moxa

機能と特長

  • バックプレーンなしのI/O拡張
  • MX-AOPC UAサーバーとのアクティブな通信
  • SNMP v1/v2cに対応
  • Modular ioAdminユーティリティによる簡単な設定
  • Webブラウザ経由のフレンドリーな設定
  • WindowsまたはLinux向けのMXIOライブラリによりI/O管理を簡略化

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

ioLogik 4000シリーズは、水処理システム、給水システム、廃水処理システム、電力監視システムに使用されるようなリモート監視および警報システムに適しています。 これらの種類のアプリケーションには、より多くのI/Oポイントと、温度センサー、ガス検出器、水質検出器などのさまざまなI/Oタイプが必要です。これらすべてが、ioLogik 4000シリーズでサポートされるI/O機能の多様な組み合わせからメリットを得ることができます。

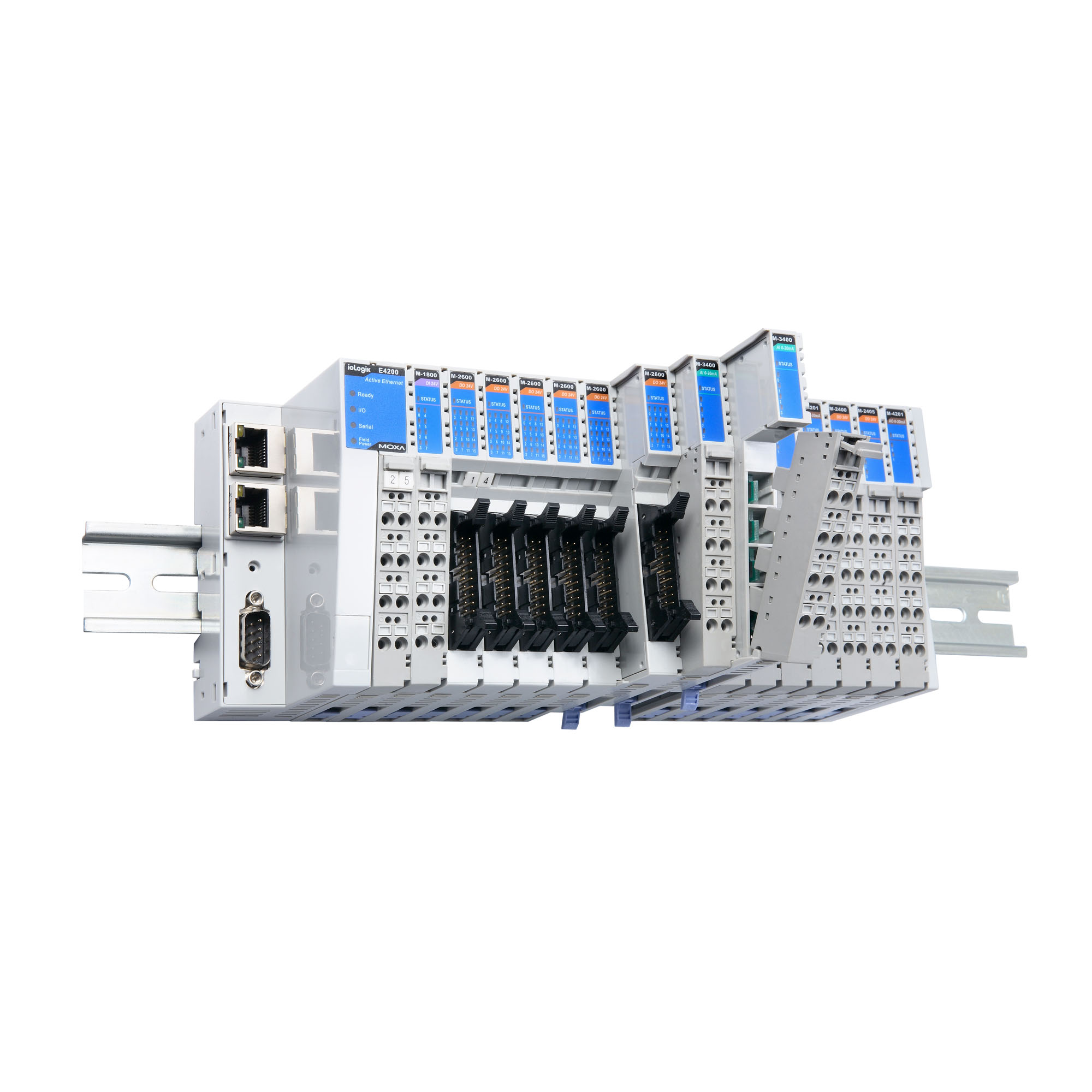

スライスフォームファクタと柔軟なI/Oのバリエーション

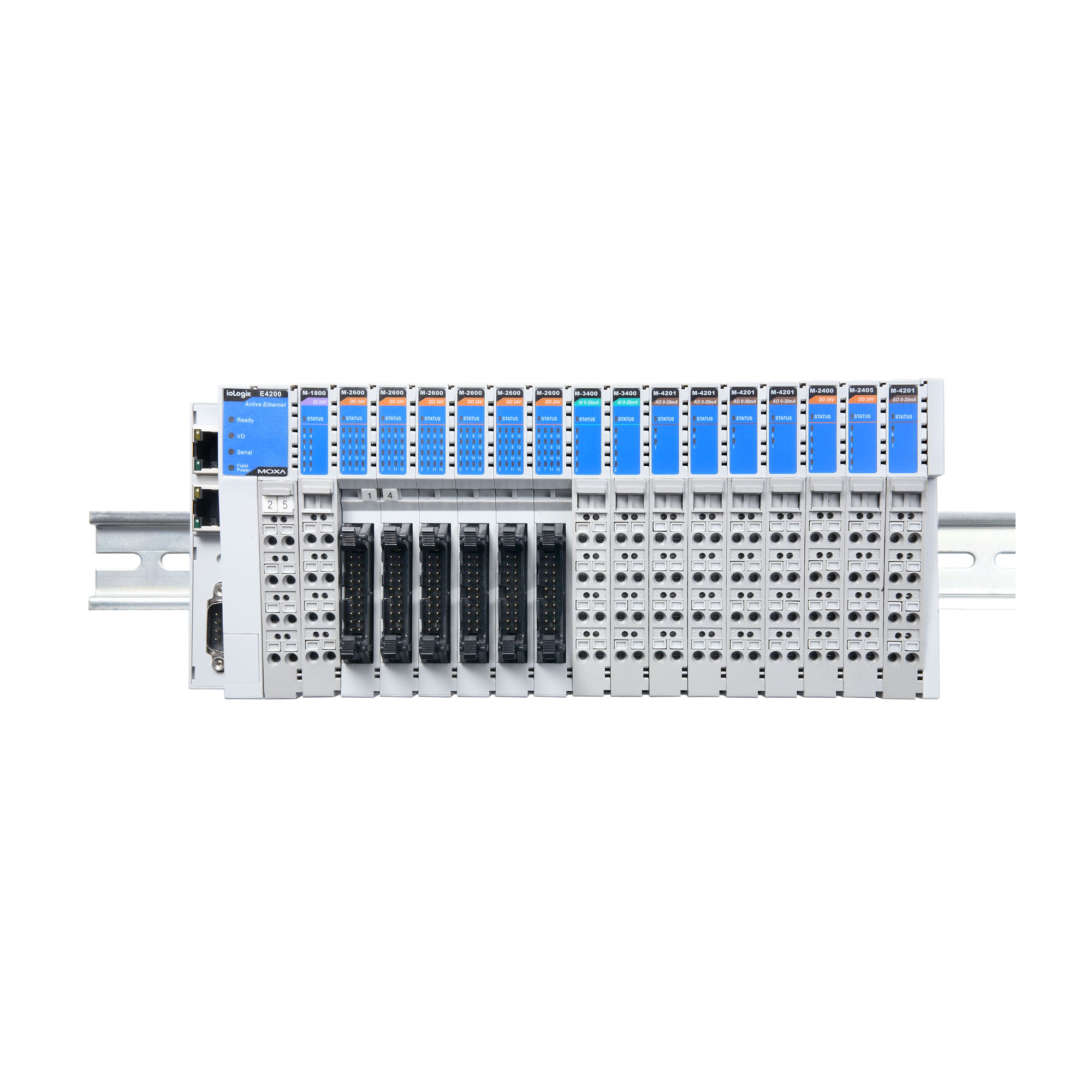

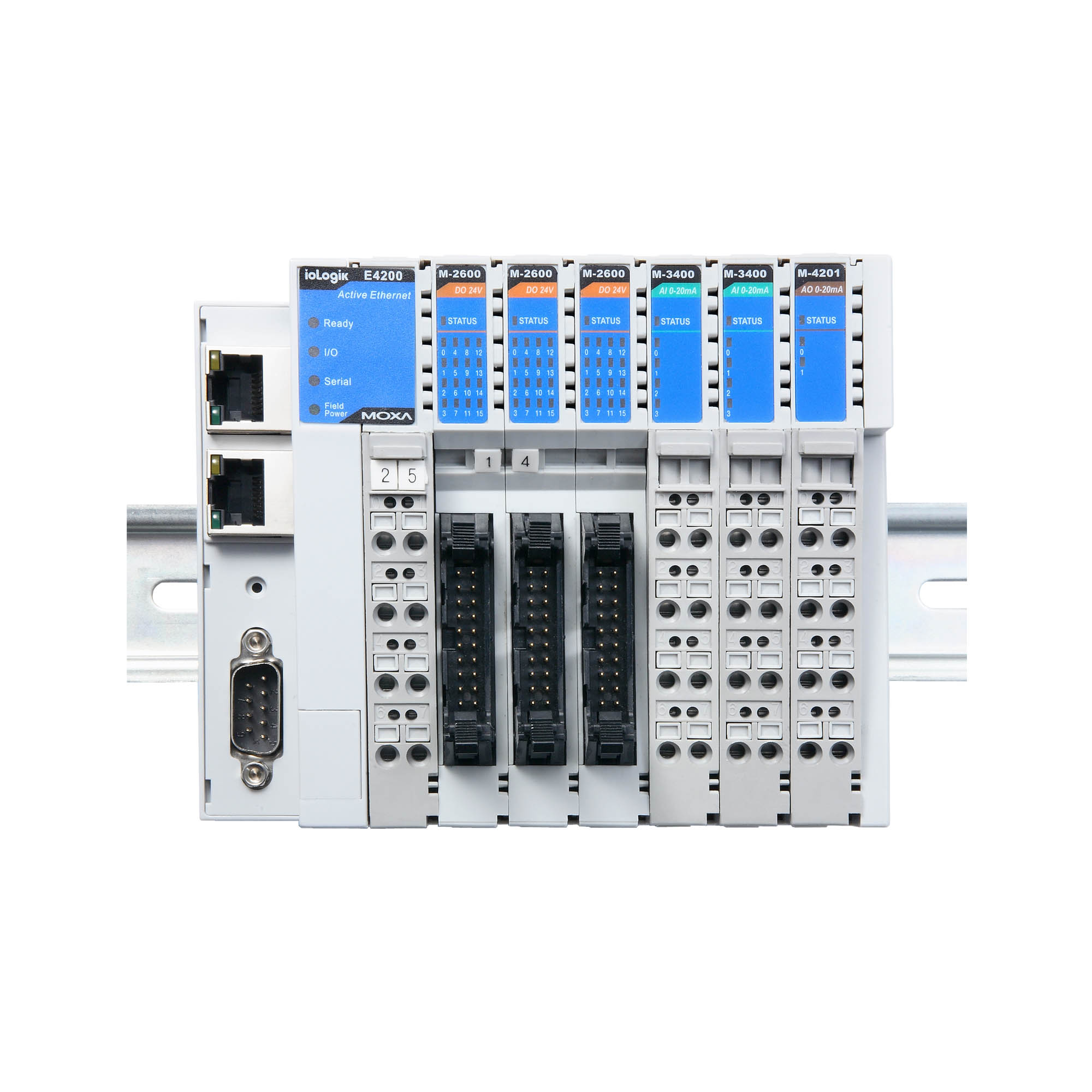

ioLogik 4000シリーズの独自のモジュラー構造により、モジュールの混合とマッチングが可能になり、幅広いリモートオートメーションアプリケーションのニーズを満たすI/Oモジュールの最適な組み合わせを実現できます。産業用モジュラー筐体により、バックプレーンなしでI/Oモジュールをベースユニットに追加できます。ioLogik 4000シリーズはスペースが限られているアプリケーションに最適であり、柔軟性と拡張性を高めるために高密度I/Oポイントが用意されています。モジュールは、温度、圧力、流量、電圧、電流、閉接点など、ほぼすべてのタイプのセンサーに接続できます。



簡単なメンテナンス

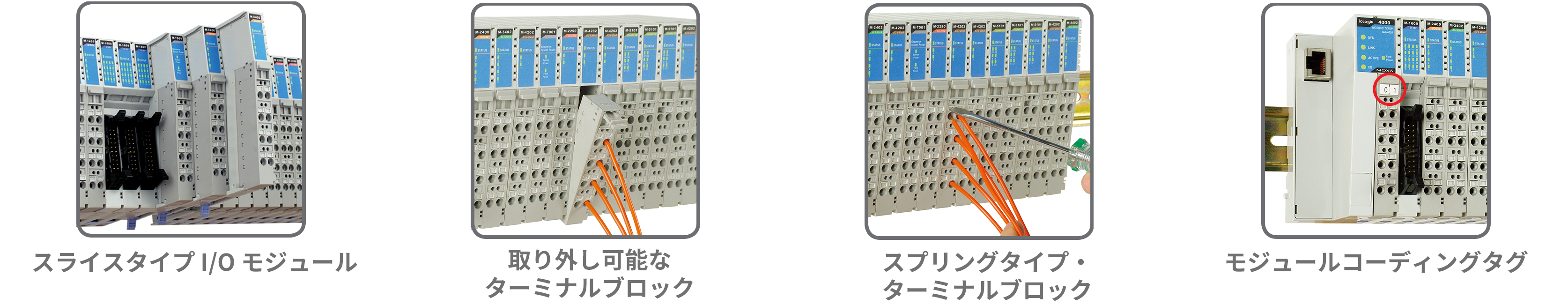

ioLogik 4000シリーズには、取り外し可能なスプリングタイプ・ターミナルブロック(RTB)が付属しており、フィールド配線を将来の使用に備えて節約できます。



  • Buttons

    Reset button

  • Language

    ioLogik E4200: Click&Go, NA-4010/4020/4021: None

  • 10/100BaseT(X) Ports (RJ45 connector)

    NA-4010: 1
    ioLogik E4200: 2, 2 MAC addresses

  • Configuration Options

    NA-4010/ioLogik E4200: Web Console (HTTP)
    NA-4010/4020/4021: Windows Utility (ioAdmin)
    ioLogik E4200: Windows Utility (Modular-ioAdmin)

  • Industrial Protocols

    NA-4010: Modbus TCP Server (Slave), MXIO Library
    NA-4020/4021: MXIO Library
    ioLogik E4200: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, SNMPv1/v2c, SNMPv1 Trap

  • Management

    NA-4010/ioLogik E4200: DHCP Client, HTTP, IPv4, TCP/IP, UDP
    NA-4010/4020/4021: ioAdmin
    ioLogik E4200: Modular-ioAdmin

  • Baudrate

    1200 bps to 115.2 kbps

  • Connector

    NA-4021: DB9 female
    NA-4020: Terminal block

  • Data Bits

    7, 8

  • Flow Control

    NA-4020: ADDC® (automatic data direction control) for RS-485
    NA-4021: None

  • No. of Ports

    1

  • Parity

    None, Even, Odd

  • Serial Standards

    NA-4021: RS-232
    NA-4020: RS-485

  • Stop Bits

    1, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-485-2w

    Data+, Data-, GND

  • Industrial Protocols

    NA-4020/4021: Modbus RTU Server (Client)

  • Serial Interface

    Fixed baudrate

  • Max. No. of Client Connections

    8

  • Mode

    Client

  • No. of Power Inputs

    1

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    11 to 28.8 VDC

  • Power Consumption

    NA-4010: 60 mA @ 24 VDC
    NA-4020/4021: 70 mA @ 24 VDC
    ioLogik E4200: 175 mA @ 24 VDC

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    11 to 28.8 VDC

  • Current in Field Power Contact

    10 A (max.)

  • Housing

    Plastic

  • Dimensions

    45 x 99 x 70 mm (1.77 x 3.90 x 2.76 in)

  • Weight

    NA-4010/4020/4021: 150 g (0.33 lb)
    ioLogik E4200: 180 g (0.396 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NA-4010: 4,739,300 hrs
    NA-4020: 4,721,640 hrs
    NA-4021: 4,695,360 hrs
    ioLogik E4200: 357,000 hrs

  • Standards

    Telcordia SR332

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
MX-AOPC UA Server
112.6 MB
ユーティリティ
SHA-512
v2.2
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2022年11月28日 2022年11月28日 リリースノート
MX-AOPC UA Logger
91.7 MB
ユーティリティ
SHA-512
v2.2
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2022年11月28日 2022年11月28日 リリースノート
Firmware for ioLogik 4000 Series (ioLogik E4200)
1.3 MB
ファームウェア
SHA-512
v1.6
2021年4月28日 2021年4月28日 リリースノート
MX-AOPC UA Server
37.6 MB
ユーティリティ
SHA-512
v2.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2019年5月16日 2019年5月16日 リリースノート
MX-AOPC UA Logger
31.8 MB
ユーティリティ
SHA-512
v2.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2019年5月16日 2019年5月16日 リリースノート
MX-AOPC UA Logger
44.2 MB
ユーティリティ
SHA-512
v1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2017年6月14日 2017年6月14日 リリースノート
MX-AOPC UA Server
36.3 MB
ユーティリティ
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2017年6月14日 2017年6月14日 リリースノート
Software Package for ioLogik 4000 Series
31.9 MB
ソフトウェアパッケージ
SHA-512
v1.0
2017年1月10日 2017年1月10日 リリースノート
MXIO Library for Linux Kernel 3.x
2.1 MB
ライブラリー
SHA-512
v2.12
  • Linux 3.x
2016年12月27日 2016年12月27日 リリースノート
MXIO Library for Linux Kernel 4.x
2.1 MB
ライブラリー
SHA-512
v2.12
  • Linux 4.x
2016年12月27日 2016年12月27日 リリースノート
MXIO .NET Library for Windows
2.7 MB
ライブラリー
SHA-512
v1.10
  • Windows 10
  • Windows 7
  • Windows 8.1
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2016年12月27日 2016年12月27日 リリースノート
MXIO Library for Windows
2.5 MB
ライブラリー
SHA-512
v2.12
  • Windows 10
  • Windows 7
  • Windows 8.1
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2016年12月25日 2016年12月25日 リリースノート
Modular ioAdmin Configuration Utility (ioLogik E4200)
7.3 MB
ユーティリティ
SHA-512
v1.6.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2016年6月5日 2016年6月5日 リリースノート
Firmware for ioLogik 4000 Series (NA-4010)
105.2 KB
ファームウェア
SHA-512
v1.0
2014年9月4日 2014年9月4日 リリースノート
MXIO Library for Linux Kernel 2.6.x
1.8 MB
ライブラリー
SHA-512
v2.11
  • Linux 2.6.x
2014年2月13日 2014年2月13日 リリースノート
ioEventLog Utility
3.4 MB
ユーティリティ
SHA-512
v1.4
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows XP
2008年9月21日 2008年9月21日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
QIG for ioLogik 4000 Series
965.1 KB
QIG (クイックインストールガイド) 英語 v4.1 2021年8月13日 2021年8月13日
ioLogik 4000シリーズデータシート
5.2 MB
データシート 日本語 v1.1 2020年12月9日 2020年12月9日
Manual for ioLogik 4000 Series
4.2 MB
マニュアル 英語 v4.2 2020年4月13日 2020年4月13日
Manual for ioLogik 4000 Series (ioLogik E4200)
4.3 MB
マニュアル 英語 v4.2 2017年4月3日 2017年4月3日
2D CAD for NA-4010 TOP
946.9 KB
2D CAD 英語 2010年6月18日 2010年6月18日
2D CAD for NA-4020 TOP
938.4 KB
2D CAD 英語 2010年6月18日 2010年6月18日
2D CAD for ioLogik E4200
252.4 KB
2D CAD 英語 2008年9月19日 2008年9月19日
