ioLogik 4000シリーズ(M)モジュール

リモートI/Oモジュール

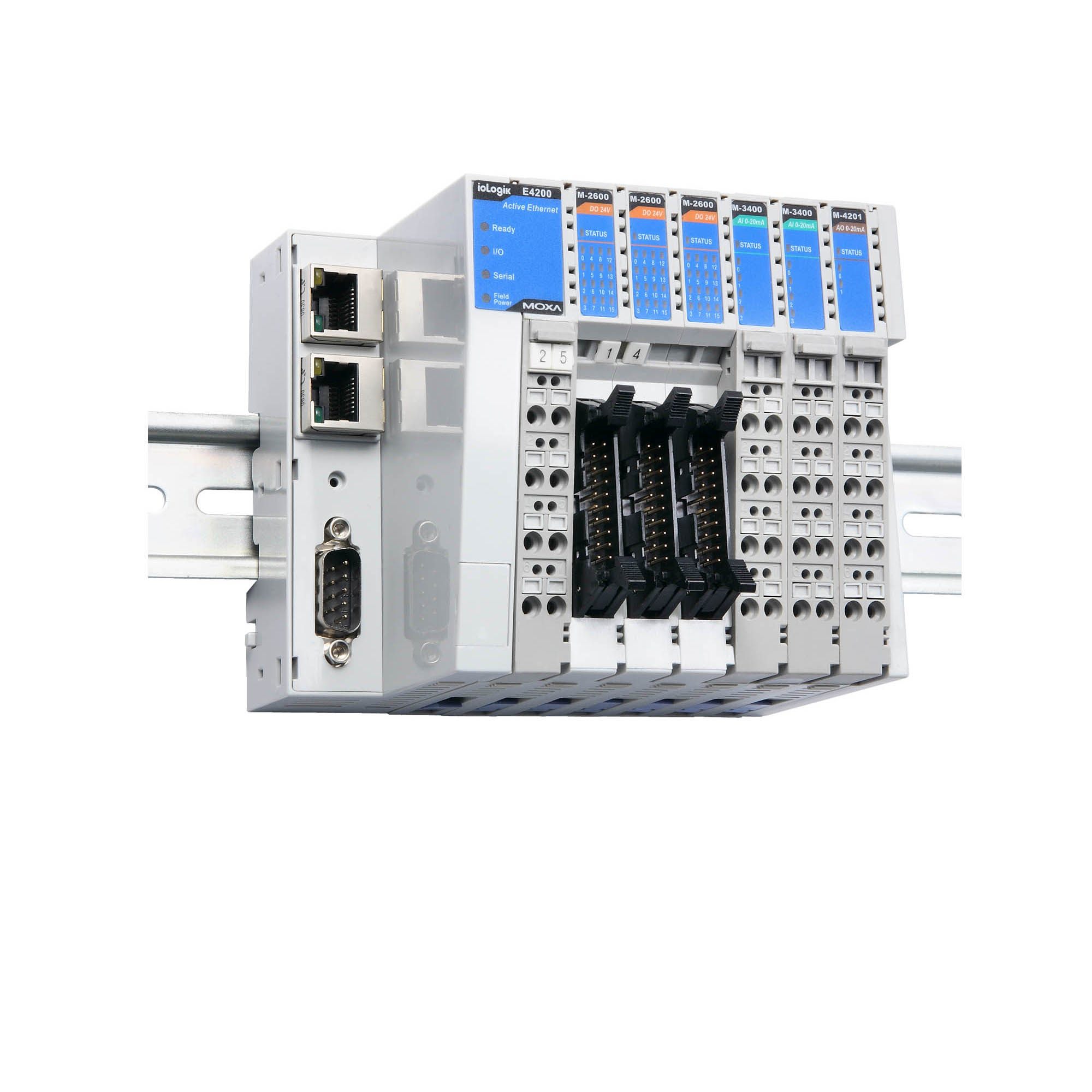

moxa-iologik-4000-series-m-modules-image-1-(1).jpg | Moxa

機能と特長

  • バックプレーンなしのI/O拡張
  • MX-AOPC UAサーバーとのアクティブな通信
  • SNMP v1/v2cに対応
  • Modular ioAdminユーティリティによる簡単な設定
  • Webブラウザ経由のフレンドリーな設定
  • WindowsまたはLinux向けのMXIOライブラリによりI/O管理を簡略化

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

ioLogik 4000シリーズは、水処理システム、給水システム、廃水処理システム、電力監視システムに使用されるようなリモート監視および警報システムに適しています。 この種のアプリケーションには、より多くのI/Oポイントと、温度センサー、ガス検知器、水質検知器などのさまざまなI/Oタイプが必要です。これらすべてが、ioLogik 4000シリーズでサポートされるI/O機能の多様な組み合わせからメリットを得ることができます。

  • Digital Input Channels

    M-1450/1451: 4
    M-1800/1801: 8
    M-1600/1601: 16

  • Digital Output Channels

    M-2800/2801: 8
    M-2600/2601: 16

  • Analog Input Channels

    M-3802/3810: 8

  • Analog Output Channels

    M-4402/4410: 4

  • Thermocouple Channels

    M-6201: 2

  • RTD Channels

    M-6200: 2

  • Isolation

    3k VDC or 2k Vrms

  • Connector

    M-1450/1451/1800/1801: Spring-type Euroblock terminal
    M-1600/1601: I/O flat cable, 20-pin

  • I/O Mode

    DI

  • Points per COM

    M-1450/1451: 2 channels
    M-1600/1601/1800/1801: 8 channels

  • Sensor Type

    M-1800/1801: NPN
    M-1600/1601: PNP

  • Connector

    M-2800/2801: Spring-type Euroblock terminal
    M-2600/2601: I/O flat cable, 20-pin

  • Current Rating

    500 mA per channel

  • I/O Type

    M-2600/2800: Sink
    M-2601/2801: Source

  • I/O Mode

    DO

  • Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 5 VDC
    Resistive load: 0.5 A @ 110 VDC
    Resistive load: 2 A @ 250 VAC

  • Type

    Form A (N.O.) power relay

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ 0 and 60°C

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Input Impedance

    M-3810: 500 kilo-ohms (min.)
    M-3801: 120 ohms

  • Input Range

    M-3810: 0 to 10 VDC
    M-3802: 4 to 20 mA

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ 0 and 60°C

  • Connector

    Spring-type Euroblock terminal

  • Output Range

    M-4410: 0 to 10 VDC
    M-4402: 4 to 20 mA

  • Resolution

    12-bit

  • I/O Mode

    Static

  • I/O Type

    Single-ended

  • Output Impedance

    500 ohms

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ 0 and 60°C

  • Connector

    Spring-type Euroblock terminal

  • Input Impedance

    500 kilo-ohms (min.)

  • Sensor Type

    JPT100, JPT200, JPT500 (-200 to 640°C)
    JPT1000 (-200 to 350°C)
    NI100, NI50, NI500 (-60 to 250°C)
    NI1000 (-60 to 150°C)
    NI120 (-80 to 260°C)
    CU10

  • Resolution

    0.1°C or 0.1 ohms

  • Millivolt Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ 0 and 60°C

  • Connector

    Spring-type Euroblock terminal

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV

  • Resolution

    12-bit
    0.1°C or 10 µV

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Input Impedance

    500 kilo-ohms (min.)

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    M-7001: 2
    M-7002: 1

  • Input Voltage

    M-7001: 24 VDC, 11 to 28.8 VDC
    M-7002: 5/24/48 VDC, 110/220 VAC

  • Power Consumption

    M-1450/1451/1800/1801: 35 mA @ 5 VDC
    M-1600/1601: 40 mA @ 5 VDC
    M-2450: 65 mA @ 5 VDC
    M-2600/2601/2800/2801/3810/4402/4410: 60 mA @ 5 VDC
    M-3802/6200/6201: 80 mA @ 5 VDC

  • Channels

    M-7804: 8
    M-7805: 8

  • Mode

    M-7804: 0 VDC
    M-7805: 24 VDC

  • Housing

    Plastic

  • Dimensions

    14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)

  • Weight

    Under 80 g

  • Installation

    DIN-rail mounting

  • Wiring

    I/O cable, 14 to 28 AWG

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    M-1450: 19,482,240 hrs
    M-1451: 19,727,520 hrs
    M-1600: 11,659,560 hrs
    M-1601: 11,694,600 hrs
    M-1800: 15,759,240 hrs
    M-1801: 15,811,800 hrs
    M-2450: 14,033,520 hrs
    M-2600: 9,732,360 hrs
    M-2601: 9,749,880 hrs
    M-2800: 13,884,600 hrs
    M-2801: 14,340,120 hrs
    M-3802: 7,375,920 hrs
    M-3810: 7,288,320 hrs
    M-4402: 7,840,200 hrs
    M-4410: 6,219,600 hrs
    M-6200: 3,644,160 hrs
    M-6201: 3,828,120 hrs
    M-7001: 19,569,840 hrs
    M-7002: 75,528,720 hrs
    M-7804: 73,750,440 hrs
    M-7805: 73,750,440 hrs

  • Standards

    Telcordia SR332
