MOXA

IPカメラ

当社のIPカメラは、堅牢な設計のドーム、ボックス、カメラを選んでいただけます。EN 50155規格に一部準拠しているため、信頼性の高いパフォーマンスと、さまざまなアプリケーションに適した優れた画質を実現できます。

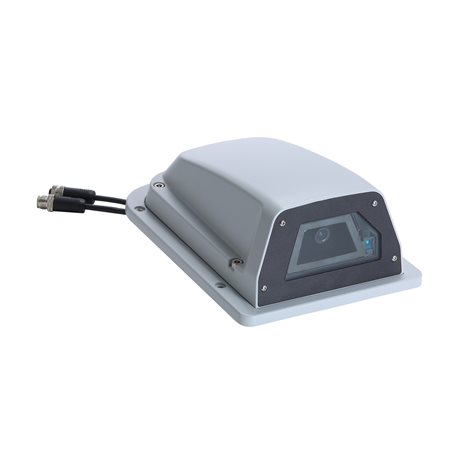

VPort 06EC-2V60M-T
VPort 06EC-2Vシリーズ

EN50155, 1080P image, day & night outdoor IP camera, 6 mm lens, -40 to 70°C operating temperature

Memory
  • microSD Slot

    • SDXC
Input/Output Interface
  • Digital Output Channels

    • 1
  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC
  • Connector

    • 5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface
  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 1
Ethernet Software Features
  • Protocols

    • TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
  • Password

    • User-level password protection
  • Filter

    • IP address
  • Encryption

    • HTTPS
Power Parameters
  • No. of Power Inputs

    • 2
  • Source of Input Power

    • PoE (IEEE 802.3af)
  • Input Voltage

    • 24 VDC for front-window heater (for defrosting)
  • Input Current

    • 0.167 A @ 48 VDC, 0.9 A @ 24 VDC
  • Power Connector

    • M12 connector
  • Note

    • PoE is for powering the camera; 24 VDC is for powering the heater
Camera Characteristics
  • Sensor

    • 1/3-in 1080P progressive scan CMOS
  • Lens

    • f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24°
  • Minimum Illumination

    • Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
      B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
  • Day & Night

    • Auto/Color/BW; ICR control
  • ICR Control

    • Auto
  • Synchronization

    • Internal
  • White Balance

    • ATW/AWB
  • Electronic Shutter

    • Auto, Fixed (1/30 to 1/25000 sec)
  • S/N Ratio

    • Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction)

    • Built-in 2D/3D DNR
  • WDR (wide dynamic range)

    • 100 dB
  • AGC (auto gain control)

    • 2X, 4X, 8X, 16X
  • Flickerless Control

    • Automatic, 50 Hz, 60 Hz modes
  • Image Rotation

    • Flip, Mirror, 90°, 180°, 270° rotation
  • Image Setting

    • Manual tuning with saturation, sharpness, and contrast
  • Camera Angle

    • Pan: ±5°, Tilt: +10/-5° (controlled manually)
Video Interface
  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Output

    • via Ethernet
  • Video Streams

    • 4 independent H.264 or MJPEG video streams
  • NTSC/PAL

    • Auto-sensing or manual
  • Video Resolution and FPS (frames per second)

    •
  • Video Resolution and FPS (frames per second)

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      3 privacy mask areas provided
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Maximum of 5 simultaneous unicast connections, 50 multicast clients
      Digital PTZ
Camera Software Development
  • Video Standards

    • ONVIF Profile S
Camera Alarm Software Features
  • Intelligent Video

    • Camera tampering detection
  • Video Motion Detection

    • 3 independently configurable areas
  • Shock Detection

    • Built-in G sensor
  • Humidity

    • Detects camera’s internal humidity
  • Scheduling

    • Daily repeat timing schedule
  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms

    • HTTP event servers for setting customized alarm actions
  • Email/FTP Messaging

    • Automatic transfer of stored images via email or FTP as event-triggered actions
  • Pre-Alarm Buffer

    • 50 MB video buffer for JPEG snapshot images
  • Video Recording

    • Event recordings stored on the SD card
Software Requirements
  • Memory Size

    • 2 GB
  • Operating System

    • Windows 7 or above
  • Browser

    • Internet Explorer 9.x or above
  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics
  • Housing

    • Metal
      IP67
      Transparent Glass cover
  • Dimensions

    • 83 x 168 x 233 mm (3.27 x 6.61 x 8.78 in)
  • Weight

    • 1630 g (3.59 lb)
  • Installation

    • Wall mounting (standard)
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Ingress Protection

    • IEC 60529, IP67
  • Salt Spray Test

    • ASTM B368 (CASS), 125 hours
  • Altitude

    • 2000 m
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • UL 60950-1
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • Railway

    • EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
  • Time

    • 480,269 hrs
  • Standards

    • Telcordia SR332
Warranty
  • Warranty Period

    • 5 years
      Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
  • Details
